Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios

SKU: NXL-iQ12SUB/WH

NEW ARRIVAL

Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios
Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios

Subwoofer marino de 12" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 600W RMS 4 ohmios

SKU: NXL-iQ12SUB/WH

NEW ARRIVAL

Precio de venta$624.95
/CADA
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
En stock

Channel:

Power Rating:

Tamaño: 12"

10"
12"

Color: Blanco

Negro
Blanco

Color:

Cantidad:
  • Key Features

    • Manejo de potencia RMS de 600 W
    • Durabilidad de grado marino (clasificación IP65)
    • Iluminación LED digital
    • Motor de imán híbrido (imán principal de ferrita e imán de neodimio inverso)

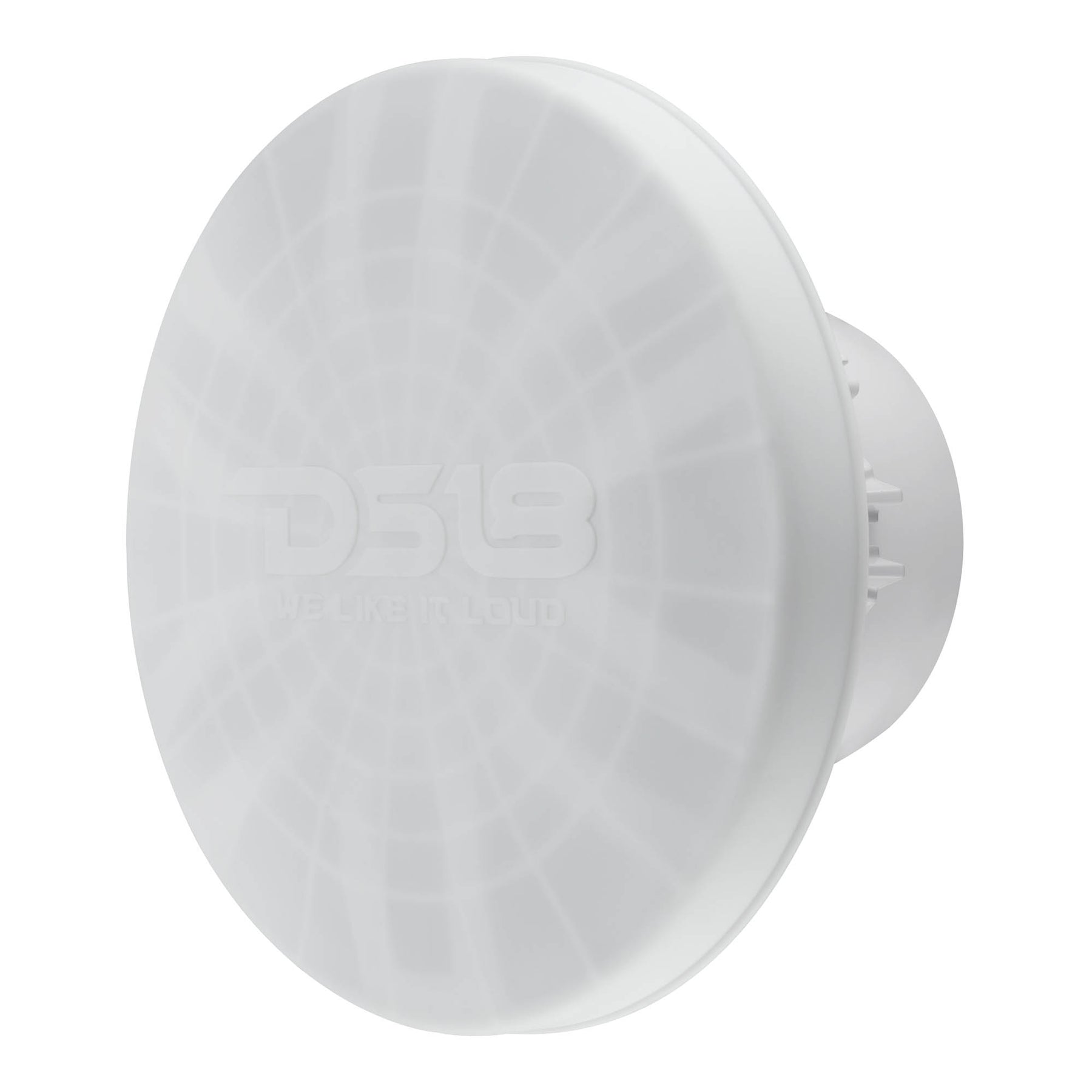

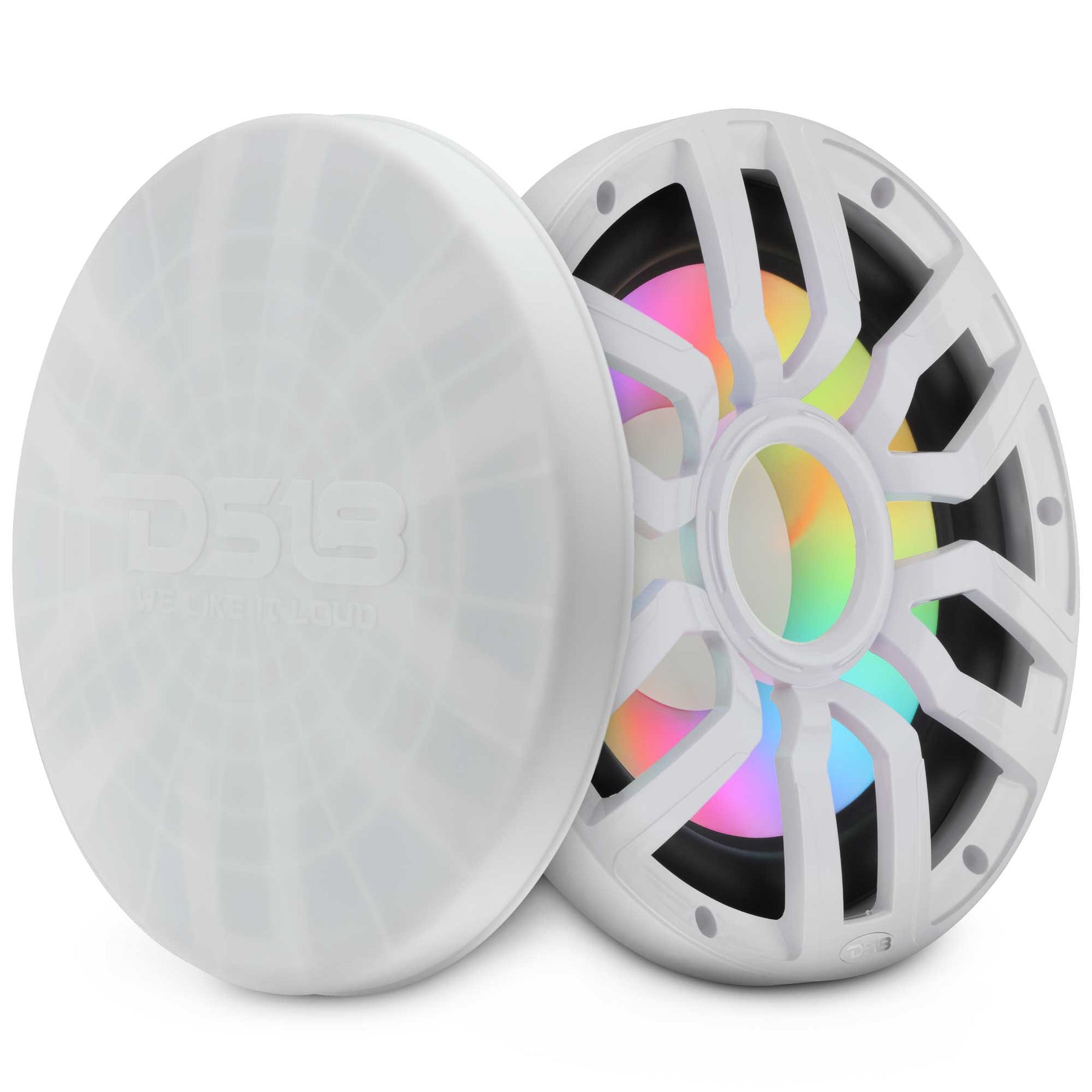

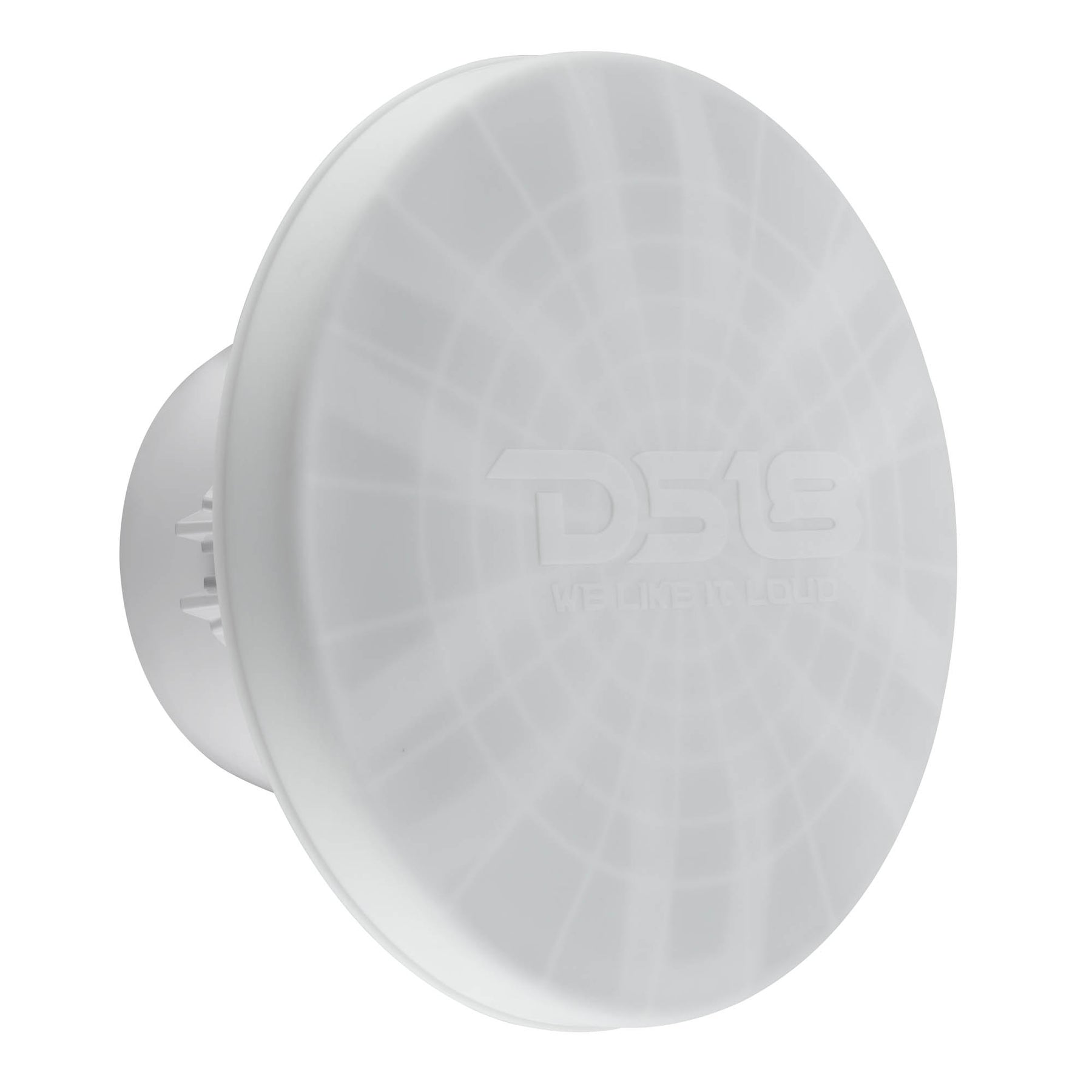

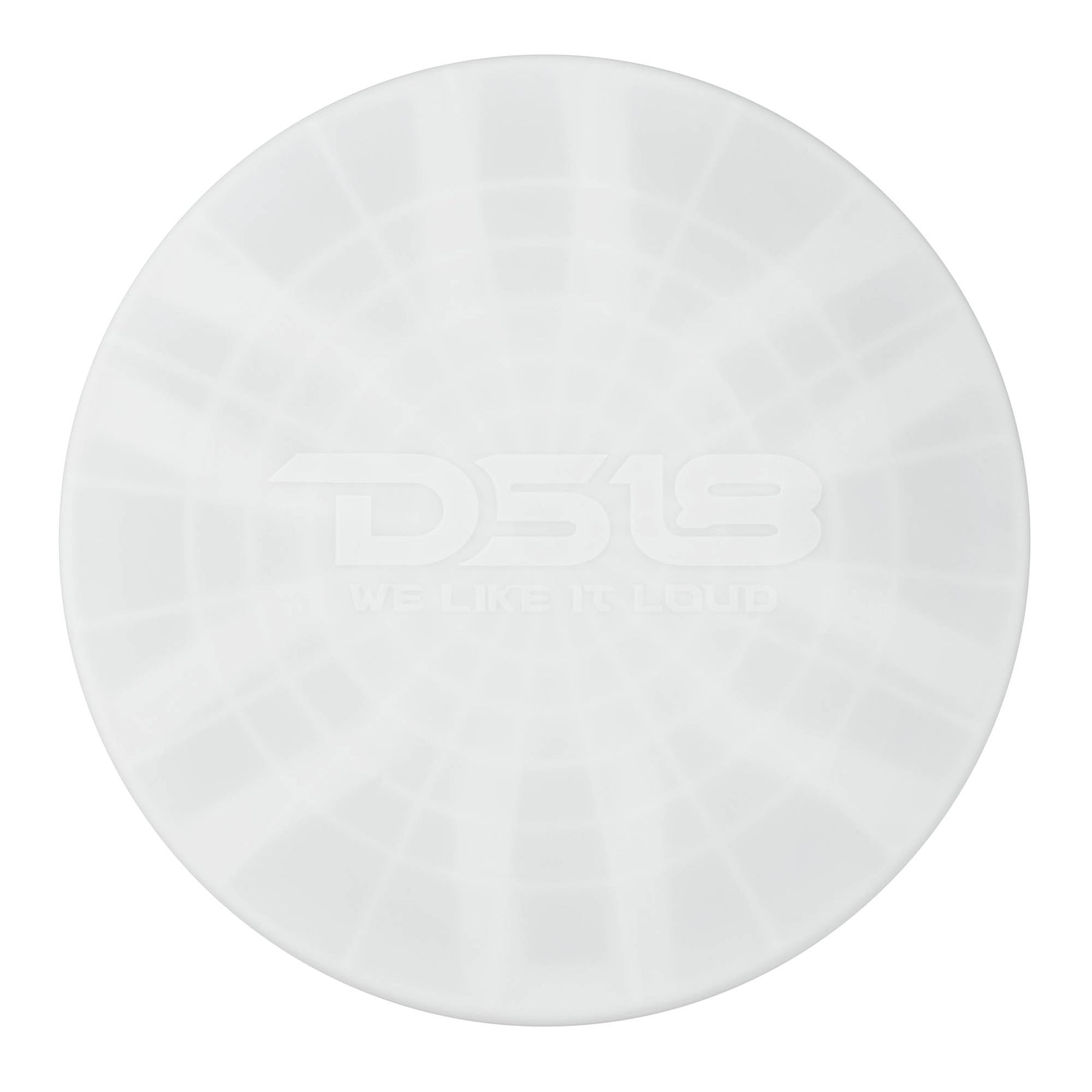

    • Cubierta de silicona incluida / Diseño de rejilla extraíble
    • Cesta de aluminio



  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    General Specifications

    Nominal Diameter
    12" / 325mm
    Nominal Impedance
    4 ohms
    RMS Power Handling
    600W
    MAX Power Handling
    1200W
    Sensitivity (1w/1m)
    88dB
    Frequency Response
    20Hz-250Hz
    Recommended High-Pass Crossover
    80Hz
    Sold in Pair or Single
    Single

    Body / Features

    UV Protection
    Yes, 100% Stable
    Marine Grade Type
    IP65
    LED Lights
    Yes, Digital LED integrated (behind cone)
    LED Connection Type
    12V & Digital IN (Water-Resistant Terminal)
    Digital LED Chip Type
    1815S
    Grill Type
    Injection Molded Composite ASA with UV Protection coating and electroplated decorative strips
    Color / Finish
    White

    Woofer Specifications

    Voice Coil Diameter
    2.4" / 61.1mm
    Voice Coil Former Material
    Glass fiber
    Winding Material
    CCAW
    Cone Material
    PPI
    Surround Material
    Rubber
    Basket Material
    Aluminum
    Magnet Material
    Ferrite + Neodymium
    Magnet Weight
    77oz + 1.8oz

    Thiele & Small Parameters

    Equivalent Volume
    44.69L / 1.578ft3
    Excursion (one way)
    8.8mm
    Free Air Resonance
    38 Hz
    Mechanical Factor
    7.272
    Electrical Factor
    0.478
    Total Factor
    0.448
    Moving Mass
    154.727g
    Compliance
    126.520 uM/N
    BL Factor
    15.3
    Voice Coil Inductance
    0.887 mH
    Cone Area
    498.76 cm_
    DC Resistance
    3.2 Ohms
    Efficiency Bandwidth Product
    75.3

    Recommended Enclosures

    Sealed Internal Volume
    0.6~2ft3
    Sealed Box Output Response
    60~35Hz
    Free Air or Baffle Mount
    Yes (Recommended)

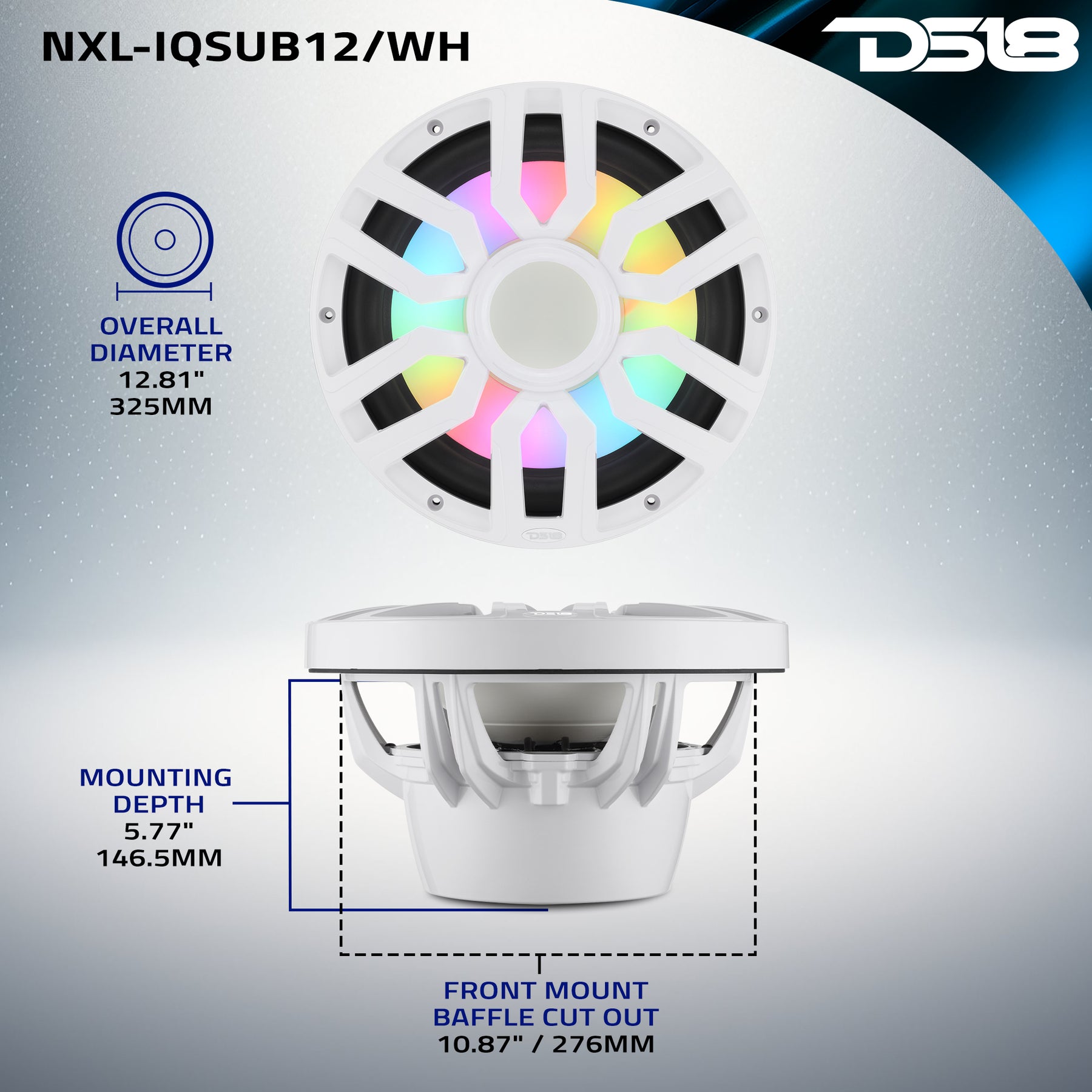

    Speaker Measurement

    Overall Diameter
    12.81" / 325mm
    Overall Depth
    7.55" / 192mm
    Front Mount Baffle Cutout
    10.87" / 276mm
    Mounting Depth
    5.77" / 146.5mm
    Motor Diameter
    6.14" / 156mm

    Load More
  • Product Overview

    Product Overview

    Bass Ready for All Elements
    The NXL-iQSUB12 is a 12” marine-grade subwoofer built to bring bass to your marine and powersports vehicles. Its smart design, combined with the latest subwoofer technology, makes these subwoofers the ultimate bass upgrade. Included subwoofer covers help protect your investment.

    Functional Design
    With 600W RMS and 88 dB sensitivity at 1W/1m, this subwoofer delivers deep, controlled bass with authority. Its motor structure pairs a ferrite main magnet with reverse neodymium for added strength and precision. A 5.77” mounting depth allows for versatile installation across a variety of applications.

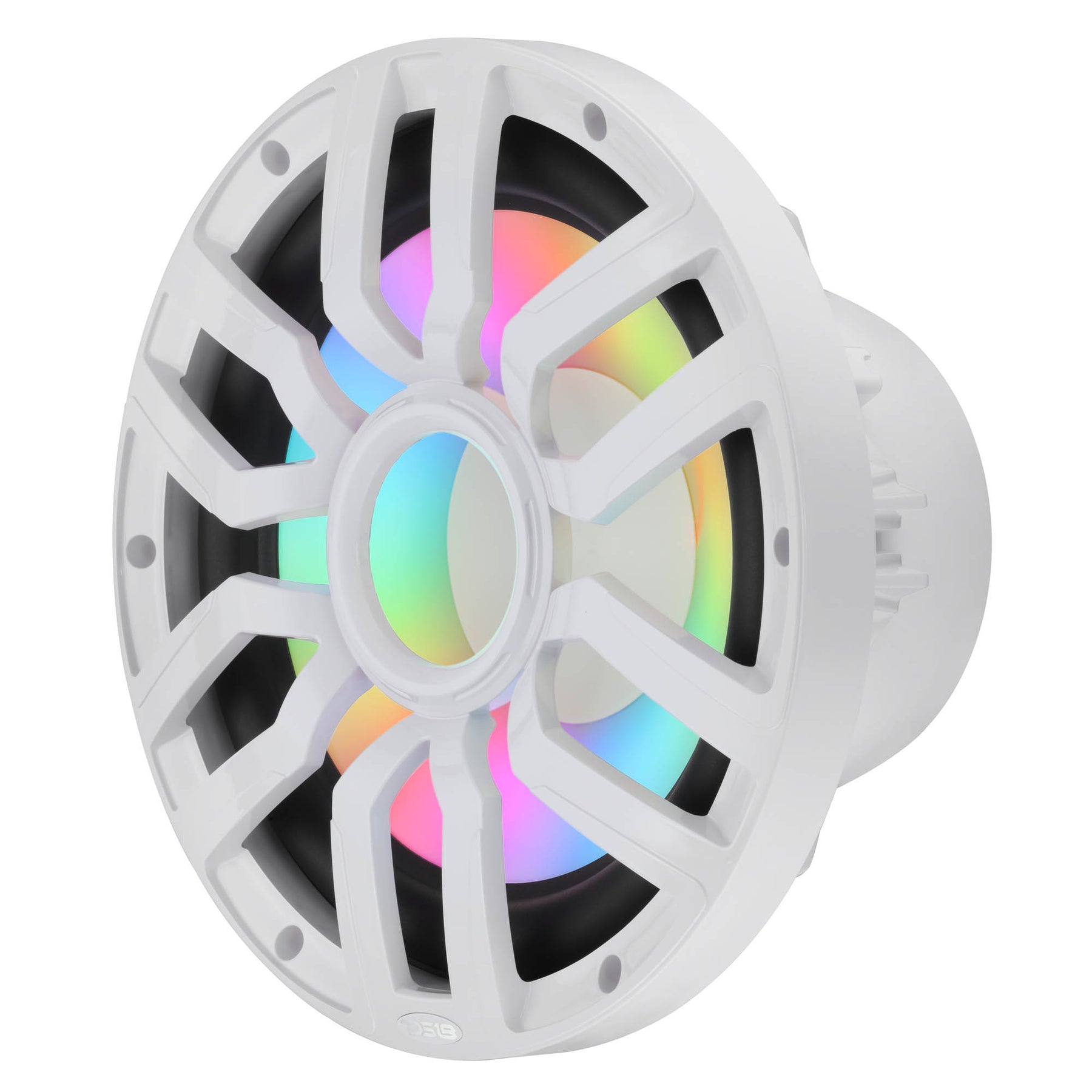

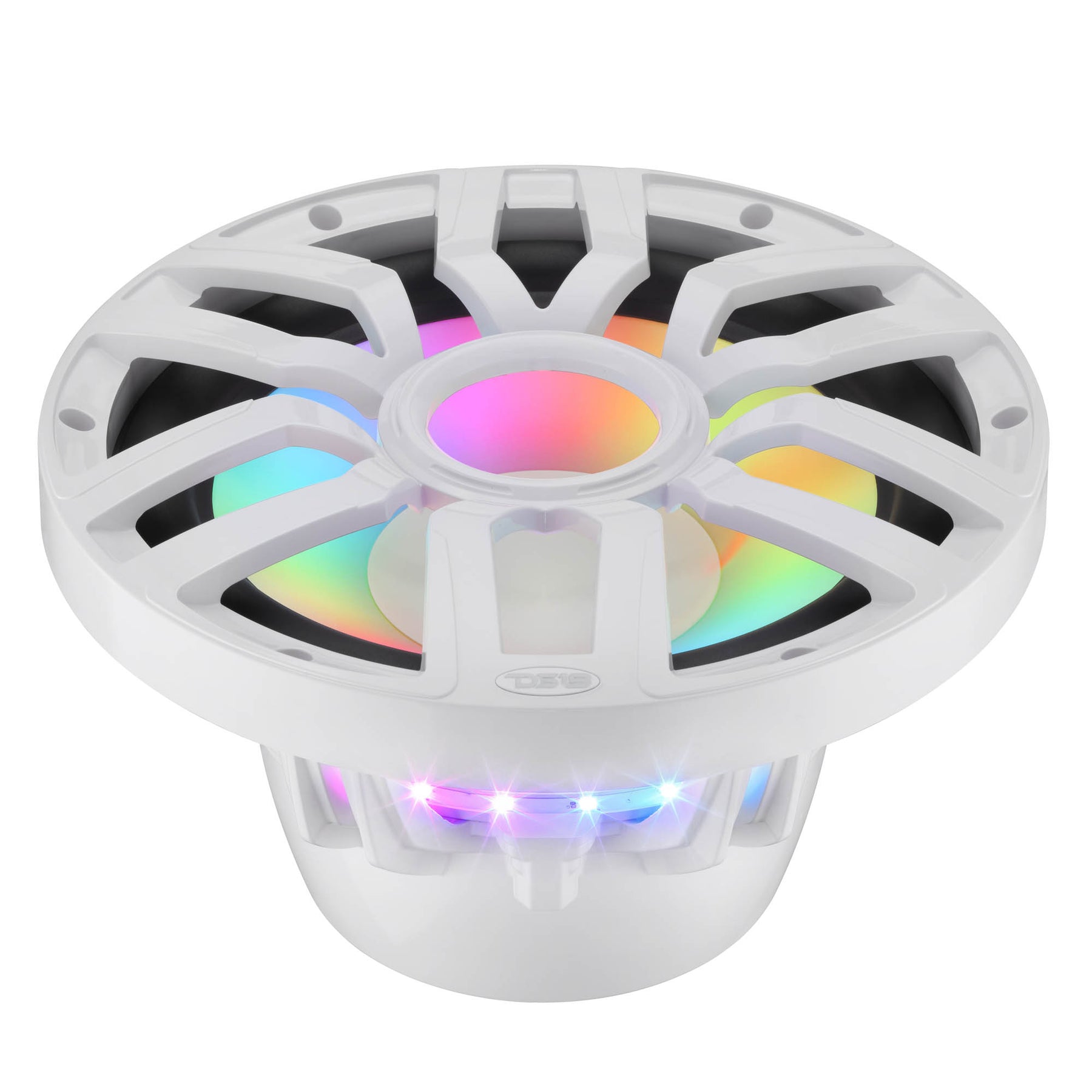

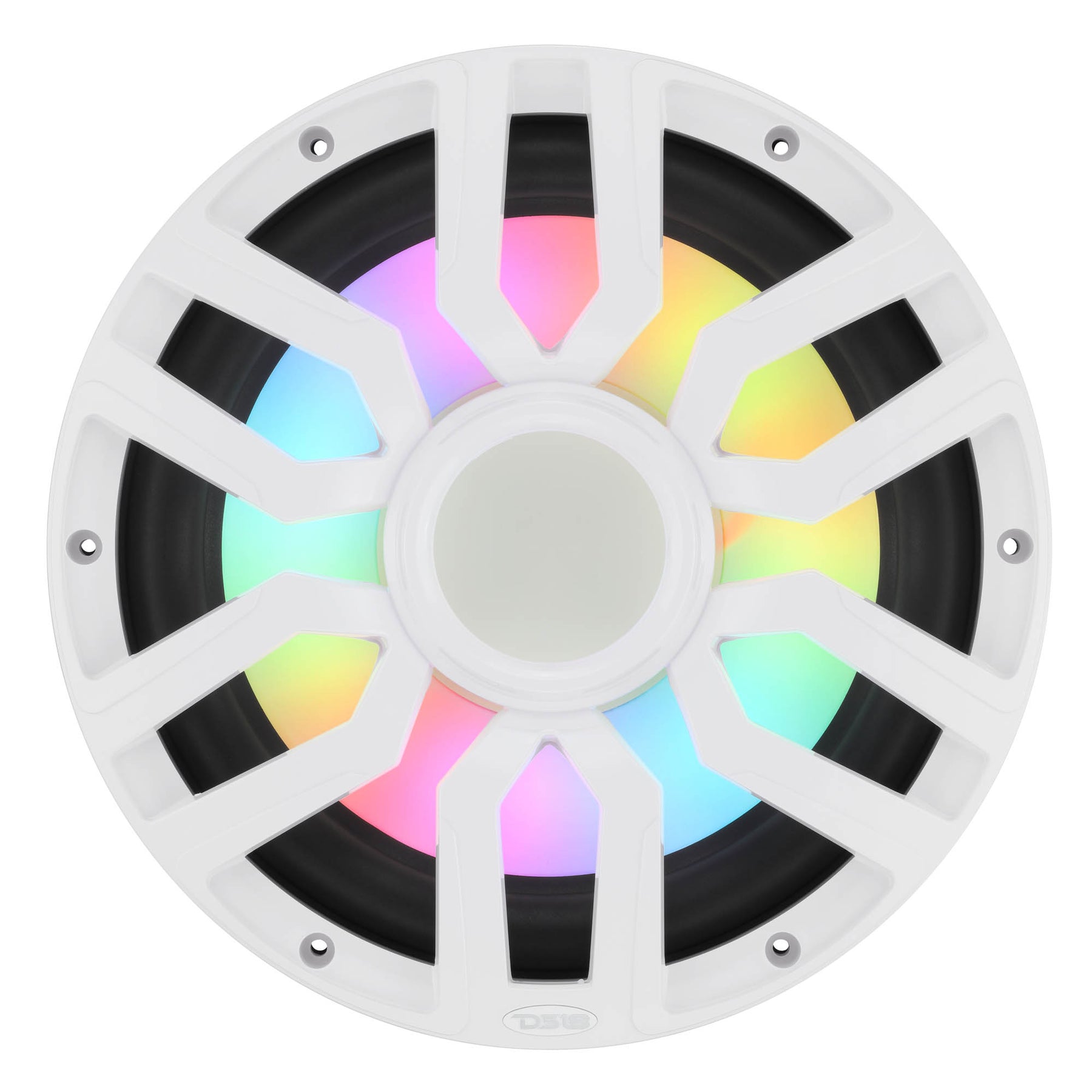

    Built-In Digital LEDs
    Integrated digital LEDs behind the cone give this 12” subwoofer a bold, vibrant glow that elevates your build and brings it to life. Control the lighting with the LC-DRM Bluetooth controller (sold separately) through the DS18 LC app for full customization.

    IP65 Rated, UV Stable
    The NXL-iQ12SUB is engineered for performance and practicality, featuring a removable grille for quick cleaning after every ride. Its aluminum basket and UV coating resist heat and harsh elements for lasting reliability. A PPI cone and UV-protected grille preserve its bold look season after season.

    Bring the Boom
    The NXL-iQSUB marine subwoofers feature advanced audio technology with protected components, so you can enjoy powerful sound on the water. Digital LEDs enhance your build’s look while maintaining marine-grade durability. Available in black or white in 10” and 12” options.
