Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios

SKU: NXL-iQ10SUB/WH
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios
Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios

Subwoofer marino de 10" con motor de imán híbrido, rejilla extraíble y luces LED digitales - 500W RMS 4 ohmios

SKU: NXL-iQ10SUB/WH
Precio de venta$449.95
/CADA
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
En stock

Channel:

Power Rating:

Tamaño: 10"

10"
12"

Color: Blanco

Negro
Blanco

Color:

Cantidad:
  • Key Features

    • 500W RMS de Potencia Admisible
    • Durabilidad de Grado Marino (Clasificación IP65)
    • Iluminación LED Digital
    • Motor de Imán Híbrido (Imán principal de ferrita e imán de neodimio inverso)

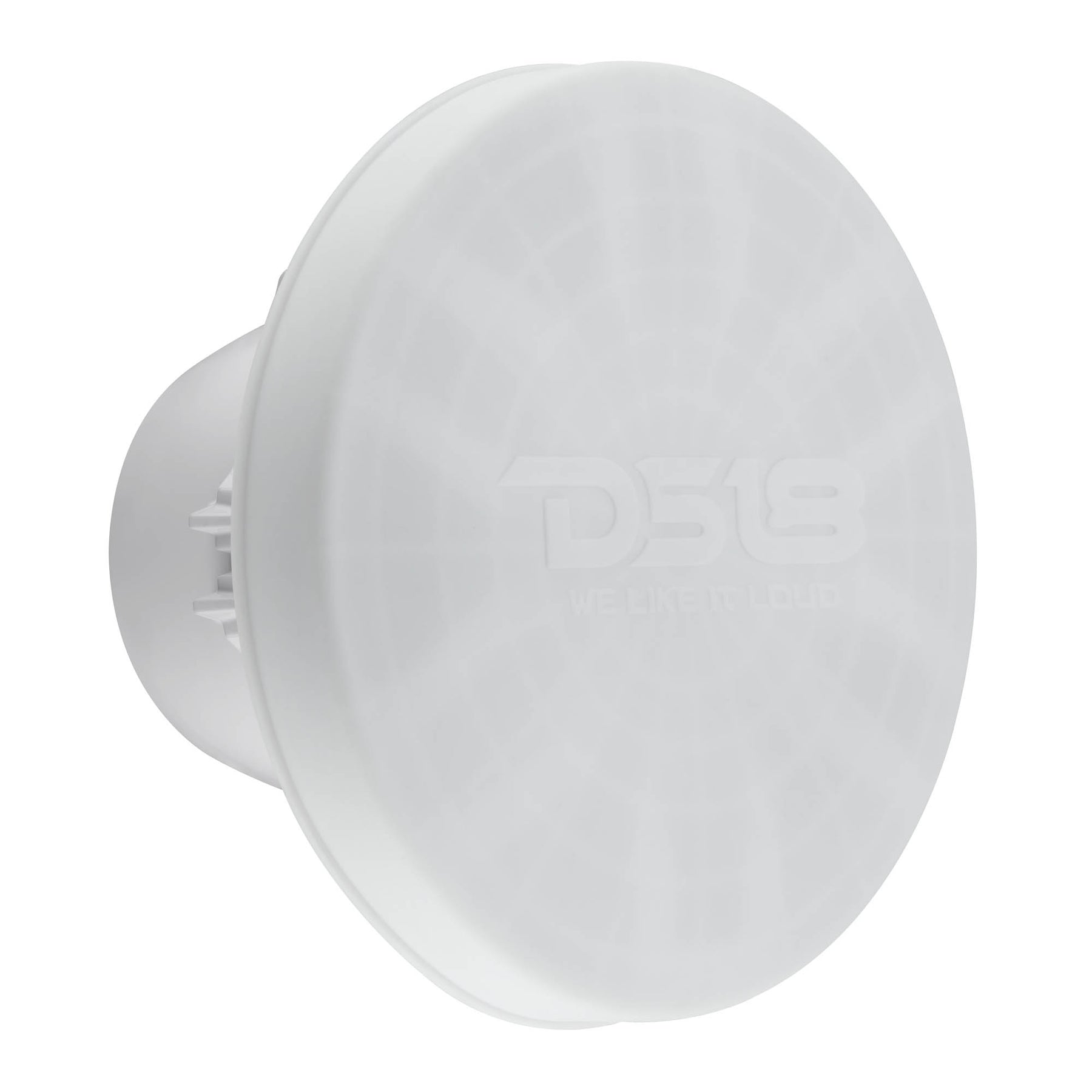

    • Cubierta de Silicona Incluida / Diseño de Rejilla Extraíble
    • Cesta de Aluminio



  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    General Specifications

    Nominal Diameter
    10" / 268mm
    Nominal Impedance
    4 ohms
    RMS Power Handling
    500W
    MAX Power Handling
    1000W
    Sensitivity (1w/1m)
    87dB
    Frequency Response
    20Hz-250Hz
    Recommended High-Pass Crossover
    100Hz
    Sold in Pair or Single
    Single

    Body / Features

    UV Protection
    Yes, 100% Stable
    Marine Grade Type
    IP65
    LED Lights
    Yes, Digital LED integrated (behind cone)
    LED Connection Type
    12V & Digital IN (Water-Resistant Terminal)
    Digital LED Chip Type
    1815S
    Grill Type
    Injection Molded Composite ASA with UV Protection coating and electroplated decorative strips
    Color / Finish
    White

    Woofer Specifications

    Voice Coil Diameter
    2.4" / 61.1mm
    Voice Coil Former Material
    Glass fiber
    Winding Material
    CCAW
    Cone Material
    PPI
    Surround Material
    Rubber
    Basket Material
    Aluminum
    Magnet Material
    Ferrite + Neodymium
    Magnet Weight
    73oz + 1.8oz

    Thiele & Small Parameters

    Equivalent Volume
    14.34L / 0.506ft3
    Excursion (one way)
    6.6mm
    Free Air Resonance
    53 Hz
    Mechanical Factor
    6.808
    Electrical Factor
    0.723
    Total Factor
    0.654
    Moving Mass
    98.487g
    Compliance
    92.724 uM/N
    BL Factor
    12
    Voice Coil Inductance
    0.74 mH
    Cone Area
    330.06 cm_
    DC Resistance
    3.2 Ohms
    Efficiency Bandwidth Product
    73.3

    Recommended Enclosures

    Sealed Internal Volume
    0.6~2ft3
    Sealed Box Output Response
    64~45Hz
    Free Air or Baffle Mount
    Yes (Recommended)

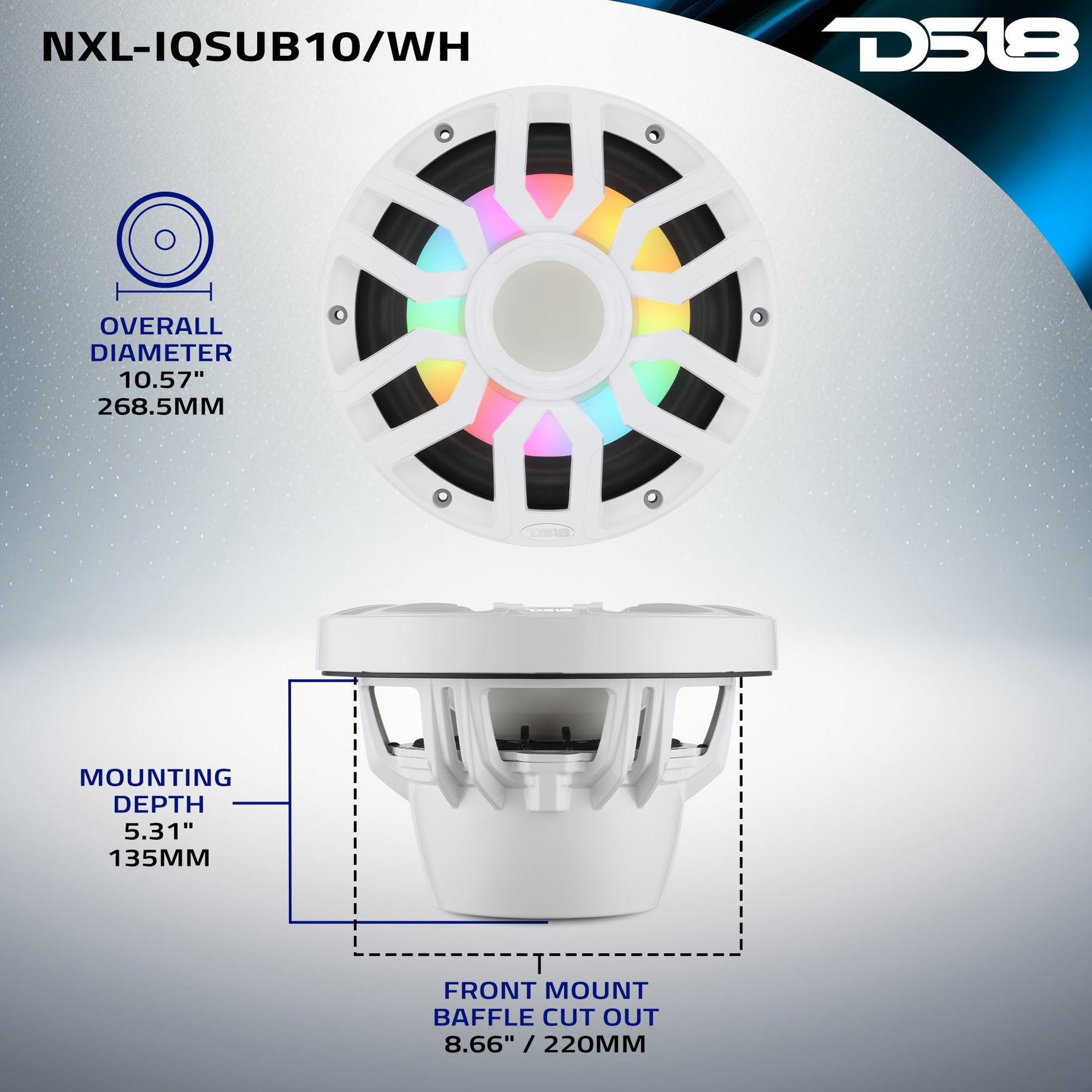

    Speaker Measurement

    Overall Diameter
    10.57" / 268.5mm
    Overall Depth
    6.9" / 175mm
    Front Mount Baffle Cutout
    8.66" / 220mm
    Mounting Depth
    5.31" / 135mm
    Motor Diameter
    5.28" / 134mm

    Load More
  • Product Overview

    Product Overview

    Precision Marine-Grade Subwoofer

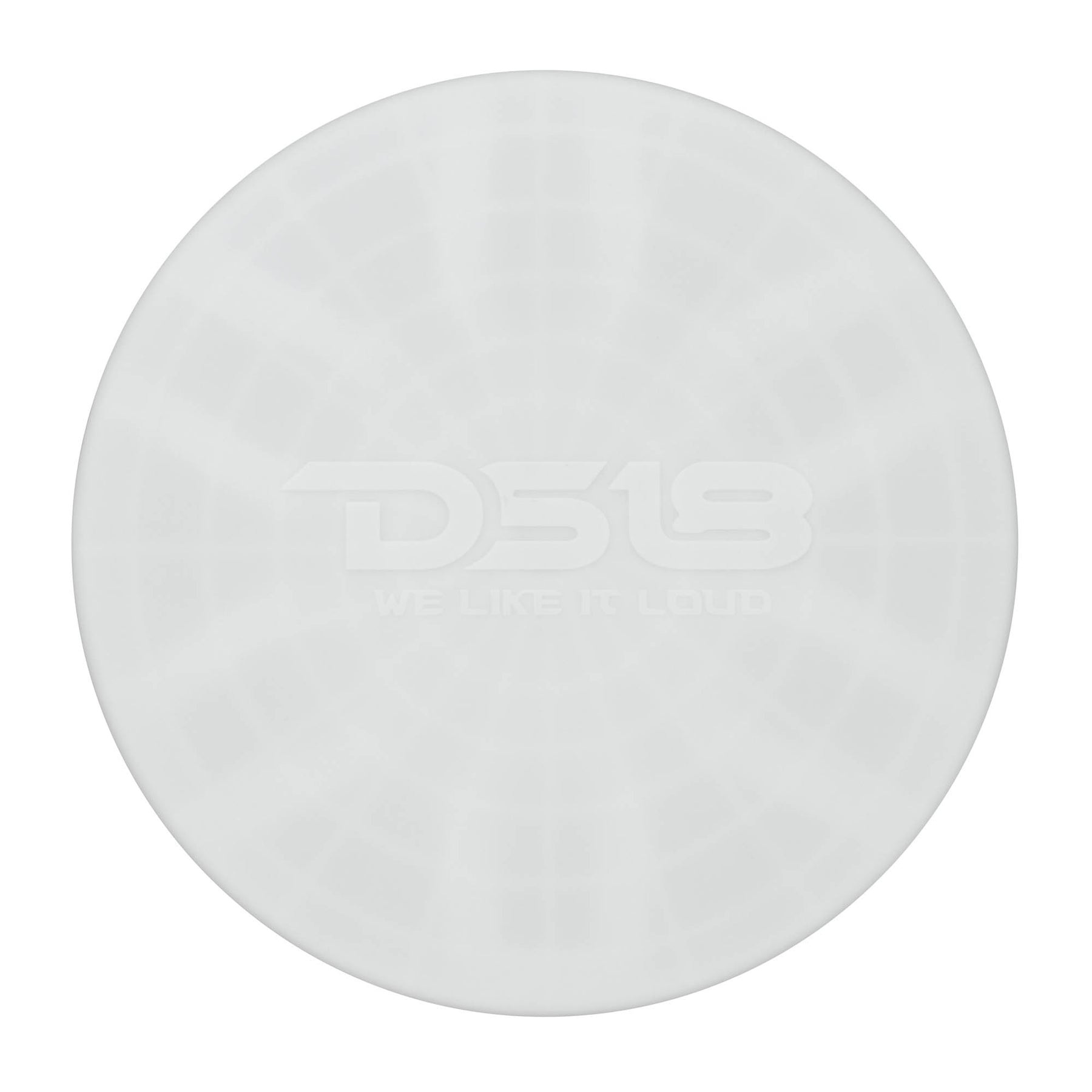

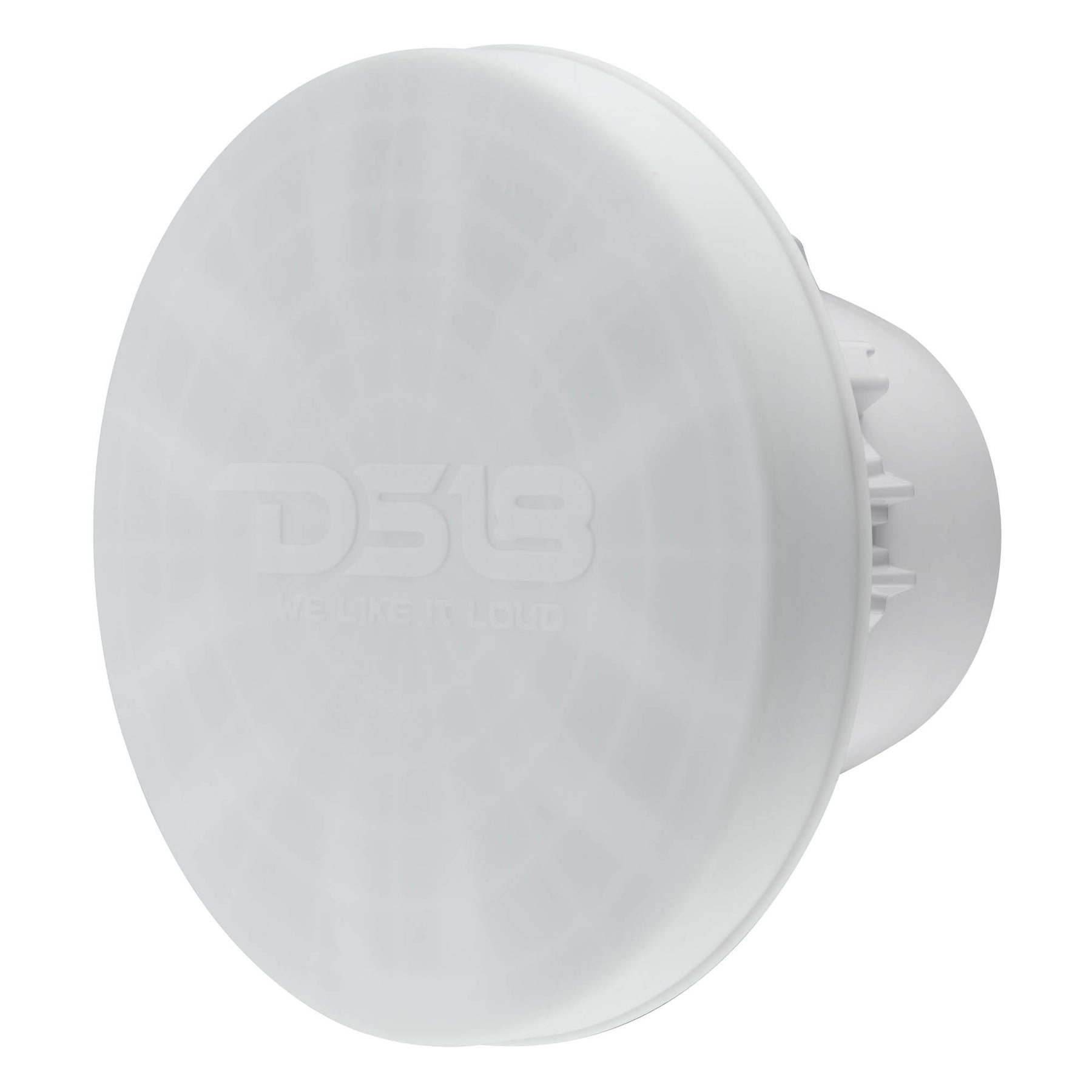

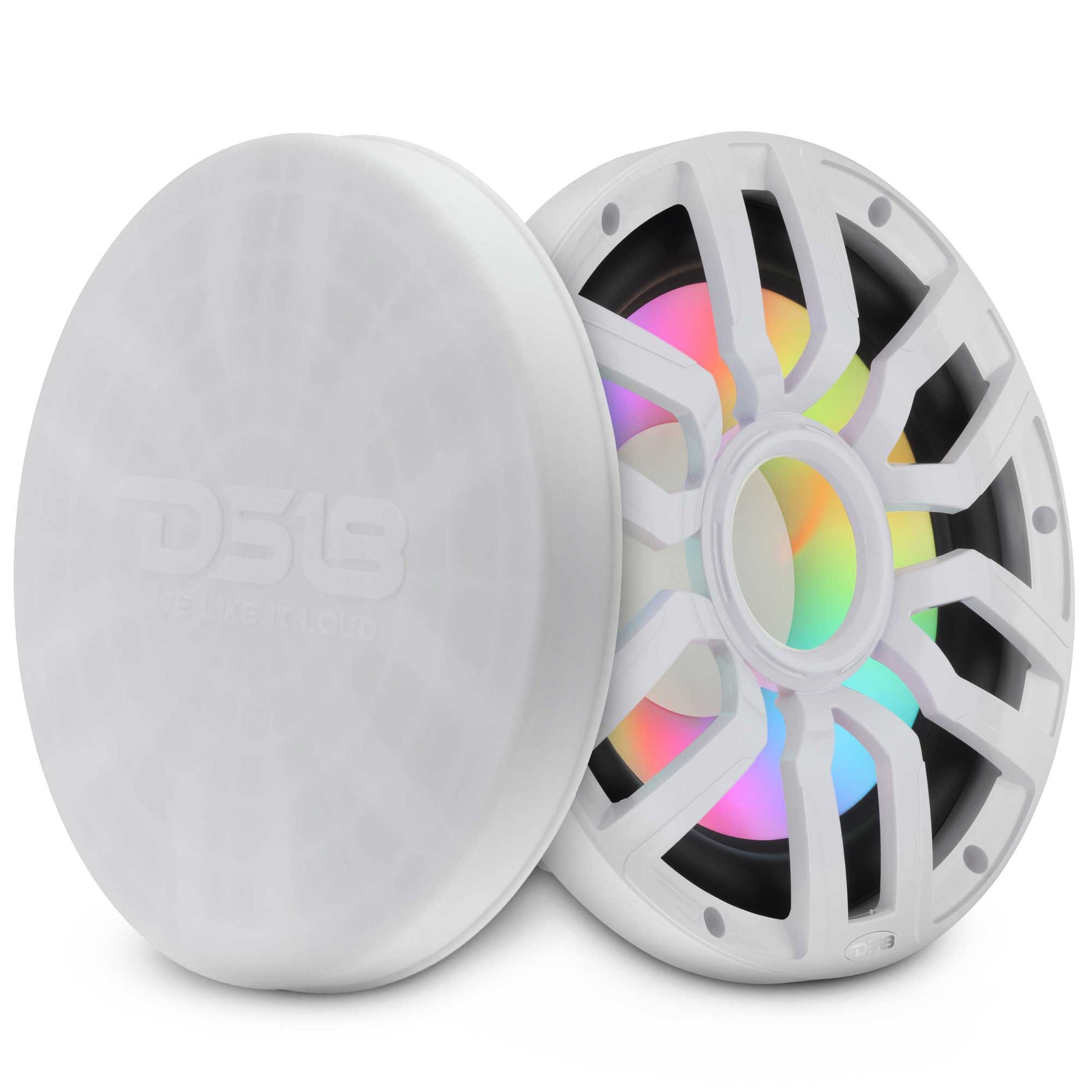

    The NXL-iQ10SUB is a 10” marine-grade subwoofer that combines smart design with precision engineering to deliver the bass your system deserves in your marine and powersports vehicles. Included subwoofer covers help protect your investment.

    Deep Impact Performance
    With 500W RMS power handling and 87 dB sensitivity at 1W/1m, this subwoofer delivers powerful bass. Its motor structure features a ferrite main magnet and reverse neodymium magnet for strong, controlled output. A 5.31” mounting depth allows for versatile installation across a variety of applications.

    Make Waves With Color

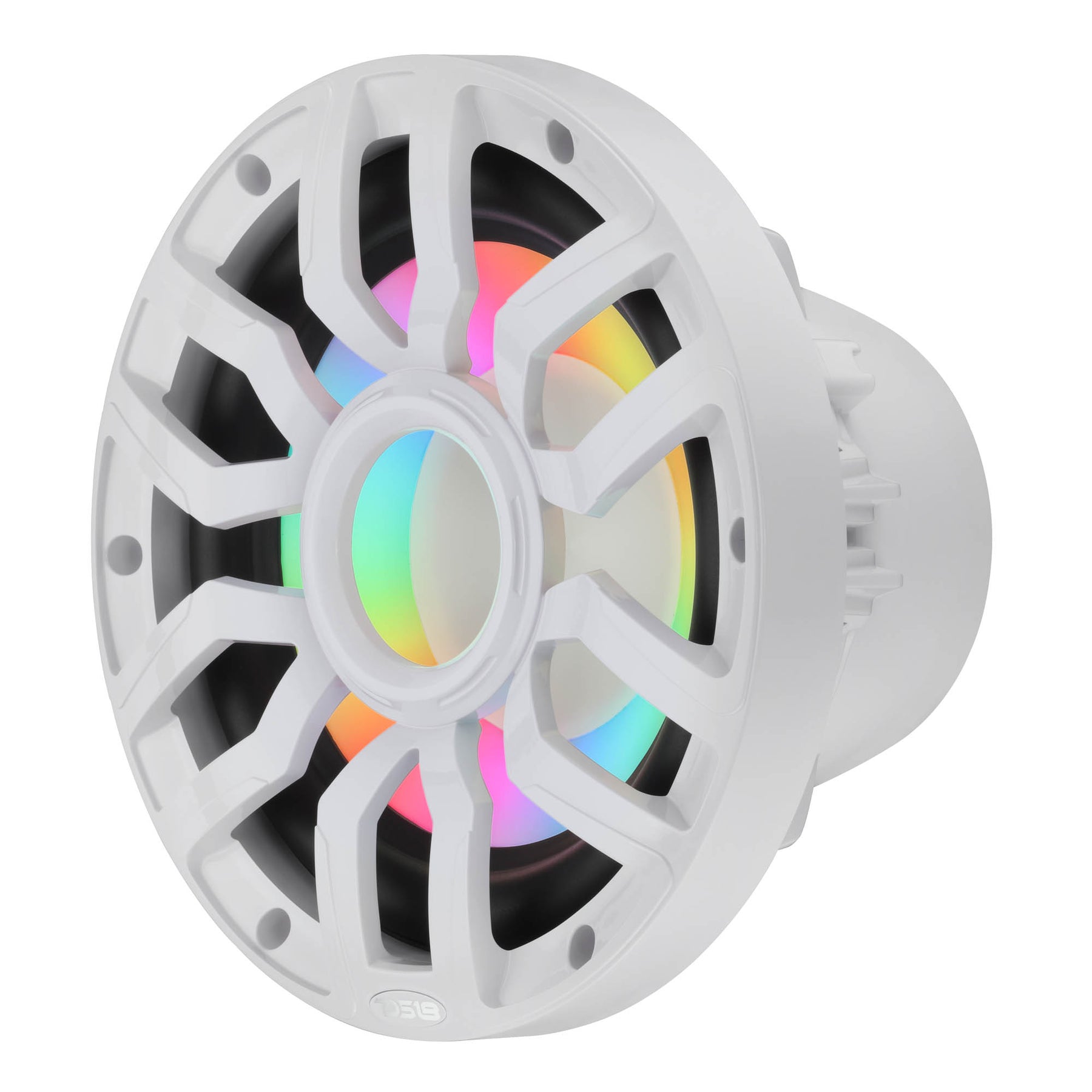

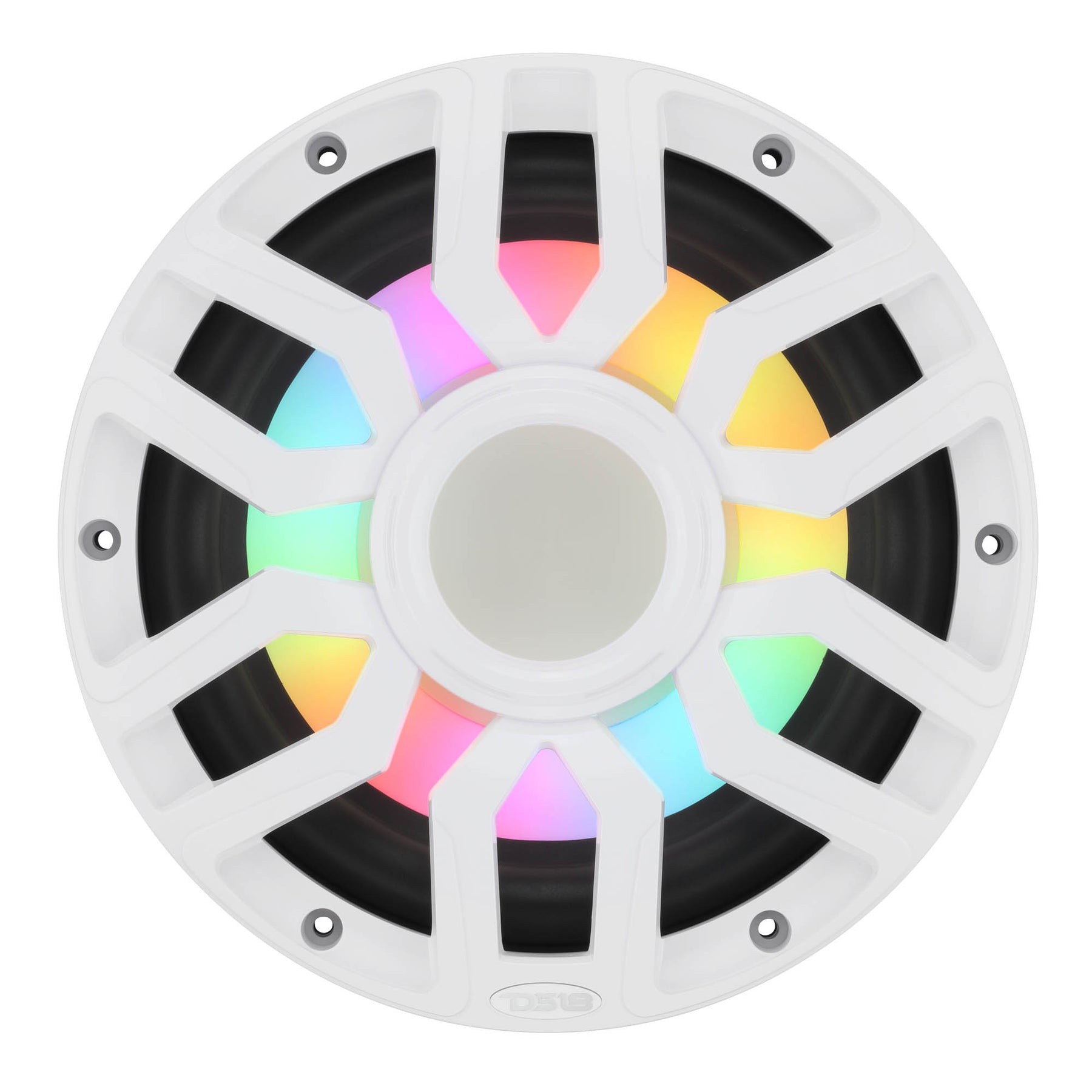

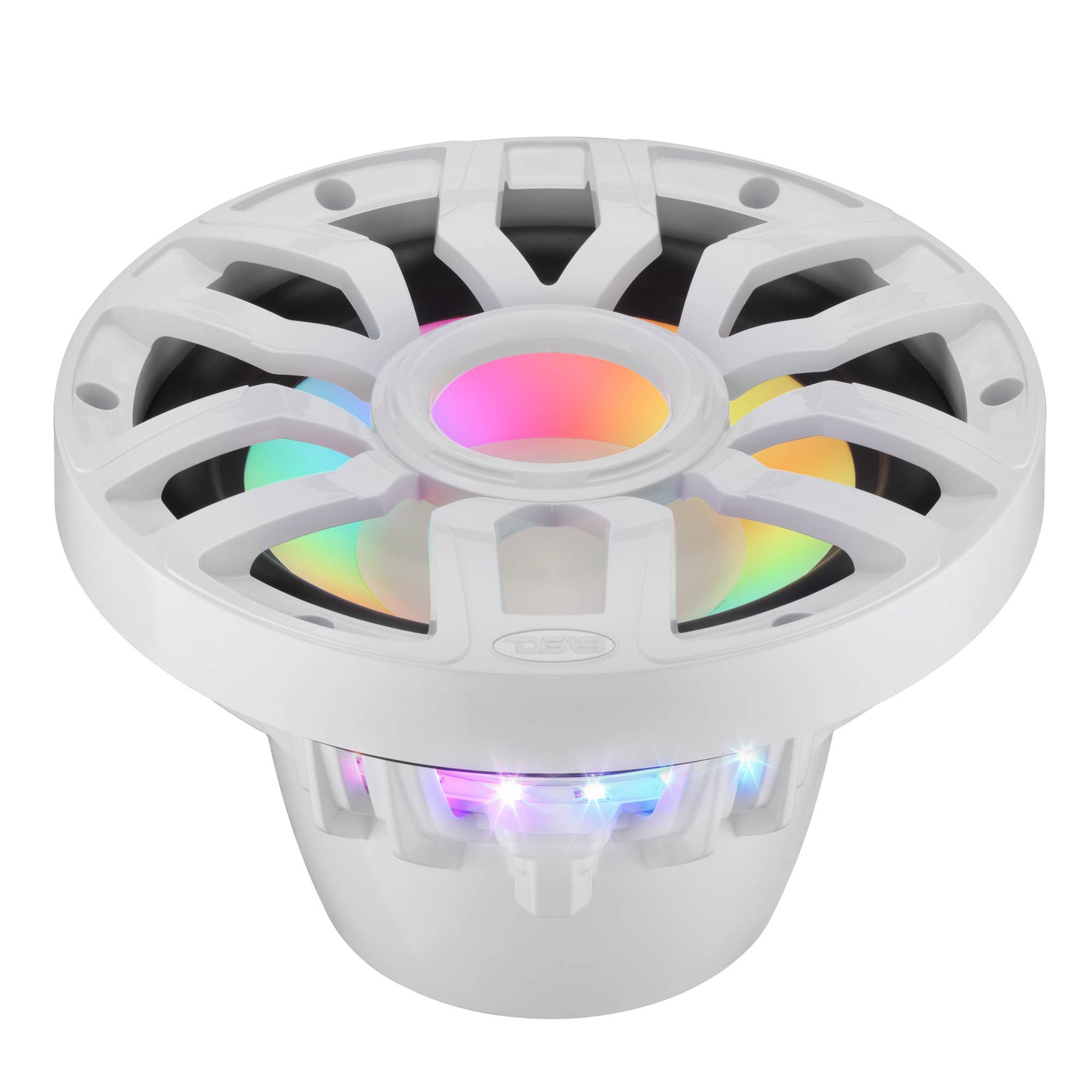

    Integrated digital LED lighting behind the cone gives this subwoofer a bold glow to complete your build. Control the lights with the LC-DRM Bluetooth controller (sold separately) using the DS18 LC app.

    Designed for Open Environments
    The NXL-iQ10SUB is built for function, featuring a removable grille for easy cleaning after every ride. Its aluminum basket with UV coating resists heat and the elements for long-lasting performance. A PPI cone and UV-protected grille keep it looking fresh.

    Bring the Boom
    The NXL-iQSUB marine subwoofers feature advanced audio technology with protected components, so you can enjoy powerful sound on the water. Digital LEDs enhance your build’s look while maintaining marine-grade durability. Available in black or white in 10” and 12” options.

Complete your System
