XL 10" Mid-Bass Loudspeaker 700 Watts Rms 4-Ohm
SOLD OUT
XL 10" Mid-Bass Loudspeaker 700 Watts Rms 4-Ohm
SOLD OUT
Sale $169.96 / EACH
Reg.$199.95
15% OFF FOR MOVING SALE!
-
Key Features
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
Nominal Diameter
10" / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
700 watts
MAX Power Handling
1400 watts
Sensitivity (1w/1m)
98dB
Frequency Response
40Hz-5KHz
Recommended HI Pass Crossover
80Hz
Sold in Pair or Single
Single
Grill Included
No
Motor
Voice Coil Diameter
3.5" / 89mm
Voice Coil Former Material
Kapton
Winding Material
CCAW (2 Layers IN/OUT)
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Ferrite
Magnet Weight
93 Oz
Displacement Volume
1.44L / 0.051ft3
Thiele & Small Parameters
Equivalent Volume Vas
17.1L / 0.603ft3
Excursion (one way) Xmax
4mm
Free Air Resonance Fs
70Hz
Mechanical Factor Qms
3.136
Electrical Factor Qes
0.327
Total Factor
0.296
Mechanical Mass Mms
50.047g
Mechanical Compliance Cms
0.089mm/N
BL Factor BL
16.135
Voice Coil Inductance Le
0.39mH
Cone Area Sd
363cm2
DC Resistance Re
3.6 ohm
Mechanical Mass w/o air Mmd
50g
Measurement
Overall Diameter
10.3" / 261.5mm
Overall Depth
4.93" / 125mm
Front Mount Baffle Cutout
9.2" / 233mm
Mounting Depth
4.4" / 114mm
Motor Diameter
7.48" / 190mm
-
Product Overview
Product Overview
DS18 10XL1400MB-4 DS18’s 10XL1400MB-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.
DS18’s 10XL1400MB-4 stands head and shoulders above the midbass competition. This 10 inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.
With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 40Hz-5KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues.
Crafted with precision, DS18’s 10XL1400MB-4 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.
Elevate your audio game with the DS18 10XL1400MB-4. Immerse yourself in the richness and clarity of your favorite music like never before.
FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
XL 10" Mid-Bass Loudspeaker 700 Watts Rms 4-Ohm
Default Title
Related products
MOVING SALE
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 99dB
MOVING SALE
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
MOVING SALE
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.5dB
MOVING SALE
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.7dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
MOVING SALE
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
MOVING SALE
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
MOVING SALE
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
MOVING SALE
- Re Cone Kit
- For 10XL1400MB-4
- Impedance: 4 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- Re Cone Kit
- For 10XL1400MB-4
- Impedance: 4 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
MOVING SALE
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
MOVING SALE
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 99dB
MOVING SALE
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
MOVING SALE
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.5dB
MOVING SALE
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
MOVING SALE
Channel:
Power Rating:
Impedance:
:
Color:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
MOVING SALE
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
MOVING SALE
Channel:
Power Rating:
Size:
:
Color:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
MOVING SALE
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
MOVING SALE
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
MOVING SALE
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
MOVING SALE
Channel:
Power Rating:
Size:
:
Color:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
MOVING SALE
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
MOVING SALE
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
MOVING SALE
Channel:
Power Rating:
Size:
:
Color:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
MOVING SALE
Channel:
Power Rating:
Size:
:
Color:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
MOVING SALE
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
MOVING SALE
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB

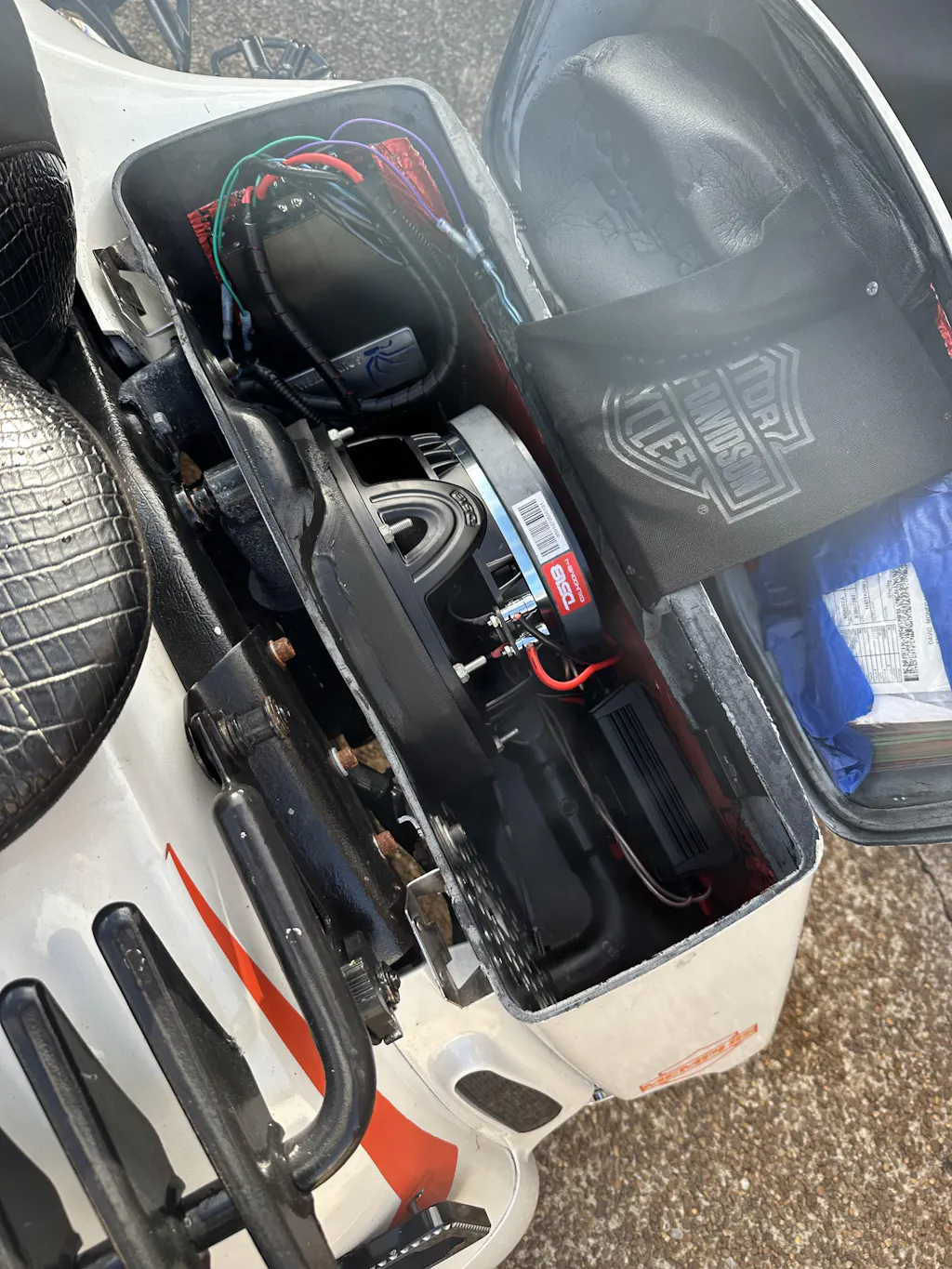

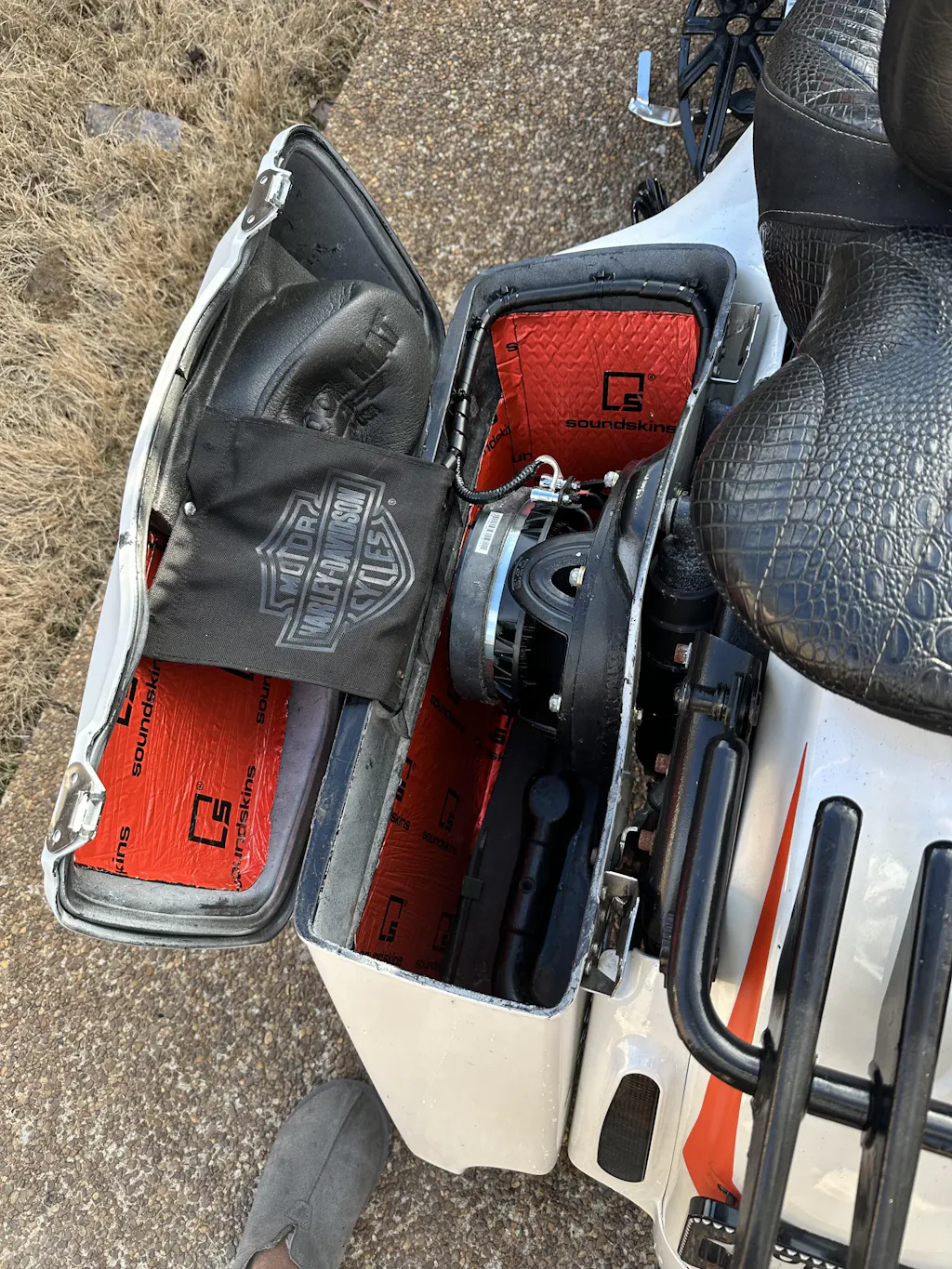

Sounds good in a Harley Davidson saddlebag. Sounds so good I had to buy another one for the other side
Sounds great and can handle a lot of power A+
Let customers speak for us
from 3464 reviewsI love the Infinite INFINITE 35 AH battery installed it on my 2013 Can Am Maverick 1000r and it has enough cracking power to start it every time see how it does when i add accessories
I love how there loud and everything but I had one go out on me
5 STAR!!! Installed these speakers in my 2019 Road Glide and I could not be happier with the clear sound!
Loud asf crystal clear
Really nice kit, AMP is also very solid and compact, fits nicely under the seat on the low profile AMP rack I bought !
Would recommend taking to a shop for installation. I’ve got a 2025 Jeep Gladiator and my only complaint is how difficult it is to disassemble the dash.
Also note this is not exactly plug and play if you intend on Amplifying tweeters and Dash speakers. These are extremely Loud and clear on Vocals.
If you plan on doing The Sound bar too, you have two RCA’s labeled FR & FL. You need a RCA Y splitter, DS18 Makes them. You actually need 2 red and 2 black splitters. Would highly recommend the speakers if you’re looking to Wind Proof the audio.
Never had subs this small but was suggested to try it and happy I did! I had 2 12s in my gladiator and wasn’t to happy with it and tried 4 of these and the sound is night and day difference! I have them in a ds18 ported box on a FR 3.5k
Have not installed them yet but the quality looks Superior
Good
Nice quality nice sound
Payed big bucks for the best sound but didn’t get any stickers
ZR 10" Subwoofer 700 Watts Rms DVC 4-Ohm
These speakers made a big difference from stock I can hear the speakers on Harley over 60mph.
