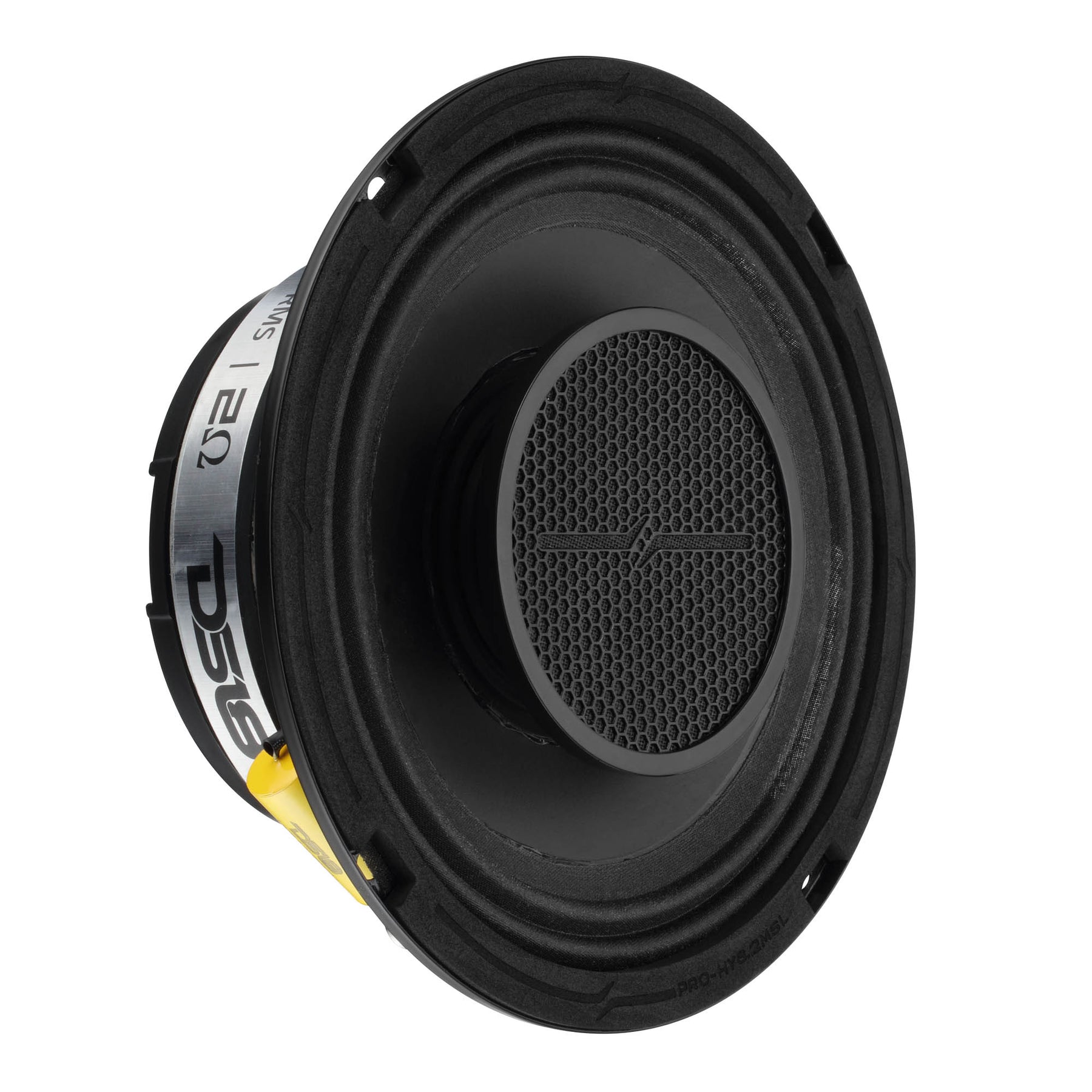

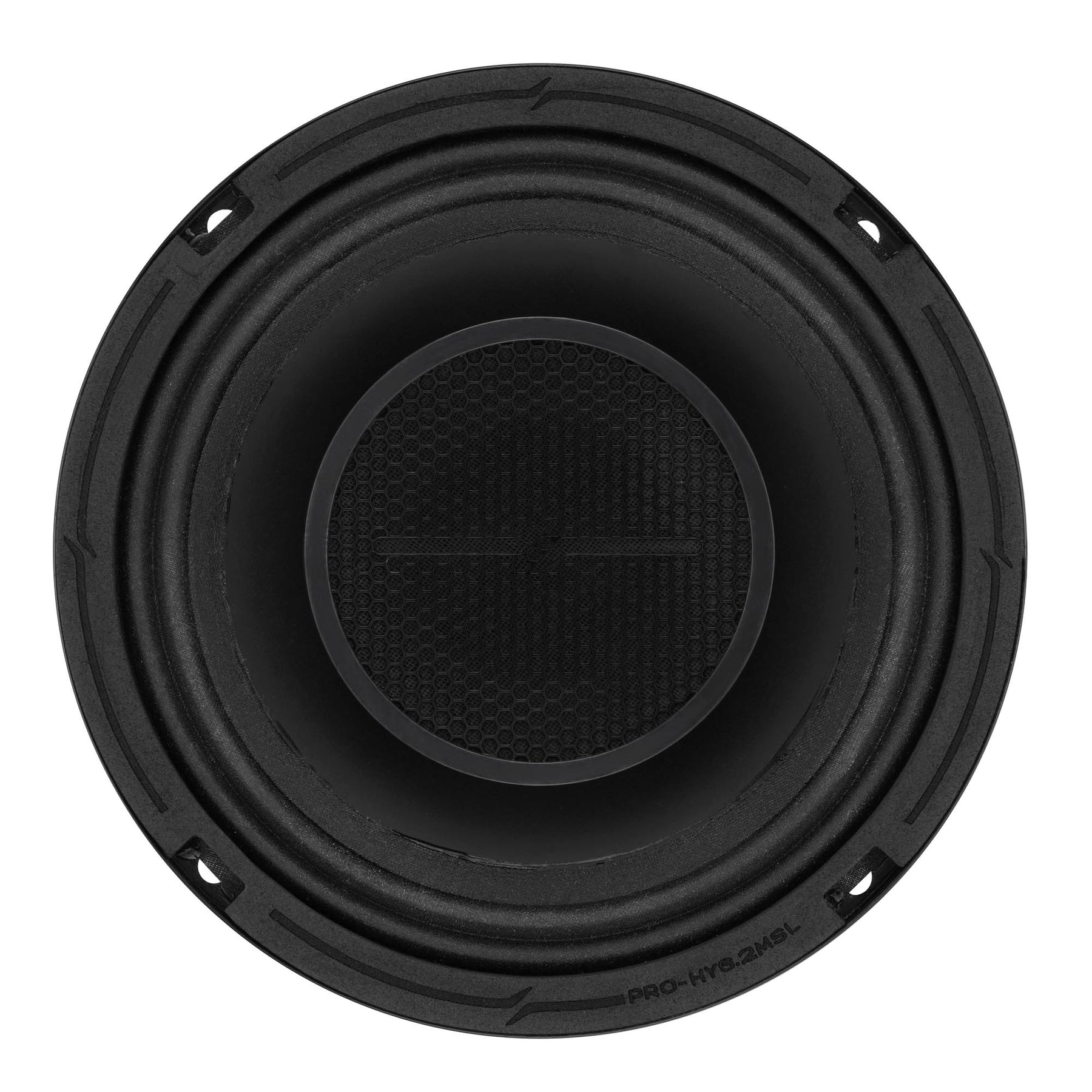

PRO 6.5" Hybrid Slim Loudspeaker with a 1" Compression Driver Horn | 150W RMS 2-Ohm
PRO 6.5" Hybrid Slim Loudspeaker with a 1" Compression Driver Horn | 150W RMS 2-Ohm
Sale / EACH
Reg.
15% OFF FOR DS18 Season Sale!
-
Key Features
- 6.5" Slim Hybrid Loudspeaker
- 150W RMS / 300W MAX
- 1" Titanium Compression Driver
- IP65 Rated + Grille w/ Water/Sun Protection Cloth
- Neodymium Driver Magnet / Ferrite Woofer Magnet
- Mounting Depth: 2.82"
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSpecifications
SKU
PRO-HY6.2MSL
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
2 Ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
97dB
Frequency Response
120Hz-20Khz
Recommended HI Pass Crossover
140Hz
Number of Ways
2 ways
Pair or Single
Single
Grill Included
Yes
Woofer Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
19.5 Oz
Thiele & Small Parameters
Equivalent Volume Vas
7L / 0.248ft3
Excursion (one way) Xmax
1.5mm
Free Air Resonance Fs
163Hz
Mechanical Factor Qms
7.488
Electrical Factor Qes
1.102
Total Factor Qts
0.96
Mechanical Mass Mms
2.87g
Mechanical Compliance Cms
0.333mm/N
BL Factor BL
2.287
Voice Coil Inductance Le
0.07041mH
Cone Area Sd
136.8 Cm2
DC Resistance Re
1.9 ohm
Mechanical Mass w/o air Mmd
20.7g
Driver Specifications
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3.15" / 80mm
Speaker Measurement
Overall Diameter (Without Grill)
6.55" / 167mm
Overall Diameter (With Grill)
6.93" / 176mm
Overall Depth (Without Grill)
3.26" / 83mm
Overall Depth (With Grill)
3.45" / 88mm
Front Mount Baffle Cutout
5.65" / 144mm
Mounting Depth
2.82" / 72mm
Motor Diameter
4.31" / 110mm
-
Product Overview
Product Overview
DS18 PRO-HY6.2MSL 6.5" Hybrid Slim Loudspeaker with 1" Compression Driver Horn
DS18’s PRO-HY6.2MSL is made for tight builds that need BIG sound. With a hybrid design that pushes full-range clarity in a slim profile, this 2-ohm loudspeaker is the perfect solution for motorcycles, UTVs, Slingshots, Jeeps, and other powersports vehicles.
Hybrid Power
This compact beast combines a 6.5” midrange woofer with a built-in 1” compression driver horn—giving you the full range of frequencies in one clean unit. It hits 150W RMS / 300W MAX, with 97dB sensitivity and a wide 120Hz–20KHz response, delivering loud, accurate audio where it matters most.Built to Ride
The PRO-HY6.2MSL features a paper cone, cloth surround, and a black steel basket backed by a 19.5oz ferrite magnet. The compression driver brings the heat with a titanium diaphragm, Kapton voice coil, and neodymium magnet.Fits Tight
At just 2.82” mounting depth and a slim 6.55” total diameter, the PRO-HY6.2MSL mounts just about anywhere your setup needs some punch. Offering a clean fit and getting louder than anything else in its class.
