EXL 6.5" 2-Way Component Speaker System 150 Watts Rms 4-Ohm
SOLD OUT
EXL 6.5" 2-Way Component Speaker System 150 Watts Rms 4-Ohm
SOLD OUT
Sale $173.36 / PAIR
Reg.$203.95
15% OFF FOR MOVING SALE!
-
Key Features
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
EXL-SQ6.5CX
Nominal Diameter
6.5"
Nominal Impedance
4 ohm
RMS Power Handling
150W
MAX Power Handling
500W
Sensitivity (1w/1m)
86dB
Frequency Response
45Hz-20kHz
Recommended HI Pass Crossover
40Hz
Number of ways
2 way
Pair or Single
Pair
Grill Included
Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
ASV
Winding Material
SV
Cone Material
Woven Fibre Paper Cone
Bullet Material
Aluminum
Surround Material
Butyl Rubber
Basket Material
Steel
Basket Color/Finish
Black Sand
Magnet Material
Ferrite (Y30)
Magnet Weight
11.2 Oz
Overall Diameter
6.5" / 165.5mm
Overall Depth
2.63" / 67mm
Front Mount Baffle Cutout
5.62" / 143mm
Mounting Depth
2.44" / 62mm
Motor Diameter
3.14" / 80mm
TWEETER SPECIFICATIONS
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Aluminium
Winding Material
SV
Diaphragm Material
Silk
Magnet Material
Neodymium
Magnet Weight
9.6g
Overall Diameter (without Adapter)
1.69" / 43mm
Overall Depth (without Adapter)
0.74" / 19mm
Front Mount Baffle Cutout
1.92" / 49mm
Mounting Depth
0.7" / 18mm
CROSSOVER SPECIFICATIONS
Passive Crossover Ways
2 Way
Frequency Crossover point
3Khz
Power Handling
300W RMS
Cut-Off Slope
Wf: 6dB / Tw: 12dB per Octave
Tweeter Attenuation
0 / -3 / -6 dB
Capacitor Type
Mylar
Coil Type
Wf: Iron / Tw: Free air
Terminal Type
Screw Type
Housing Material
Top: PS / Bottom: ABS
Adjustments
Tweeter Attenuation
Extra Features
PTC Tweeter Protection
Crossover Measurement (Inches) Overall Length
2.59" / 66mm
Overall Depth
4.72" / 120mm
Overall Height
1.39" / 35.4mm
Gross Single Unit Weight (lb)
6.5
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
8.62L / 0.304ft3
Excursion (one way) Xmax
9mm
Free Air Resonance Fs
62Hz
Mechanical Factor Qms
3.72
Electrical Factor Qes
0.76
Total Factor Qts
0.63
-
Product Overview
Product Overview
DS18 EXL-SQ6.5CX 6.5" 2-Way Component Speaker System 400 Watts 4-Ohm (Pair)
Instantly increase the sound quality in your vehicle and get EXTREMELY LOUD with powerful clear sound that fills any space with DS18’s EXL-SQ6.5CX: a top-of-the-line 2-way component speaker system designed for the ultimate audio experience in your car or truck.
Featuring two 6.5-inch woofers and two 1-inch tweeters, the EXL-SQ6.5CX delivers exceptional sound clarity and deep bass response that will fill your vehicle with rich, vibrant sound.
The EXL-SQ6.5CX comes with a woofer equipped with a 2-way design with a 3-ohm impedance, making these speakers extremely easy to incorporate into any high-powered audio system.
The glass fiber cone equipped on the woofers guarantees it performs at its best and has a longer lifespan. The glass fiber cone provides stiffness, ensures accurate sound reproduction, and minimizes distortion. Its lightweight design enables faster and more responsive changes to the signal, while also maximizing energy efficiency.
The EXL-SQ6.5CX also comes with a silk dome tweeter that provides a tangible soundstage due to the wider dispersion pattern. These tweeters also deliver exceptional high-frequency response with low amounts of distortion thanks to the silk dome’s low mass and high stiffness.
In addition to their superior performance, the EXL-SQ6.5CX speakers also feature a sleek, modern design that will complement any car interior. The speakers come with grilles included, which are made from high-quality materials that are both durable and stylish.
FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
EXL 6.5" 2-Way Component Speaker System 150 Watts Rms 4-Ohm
Default Title
Related products
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Love them
Good stuff
Awesome
Bought the ds18 xx10 and these puppies hit hard really satisfied with my purchase and gladly recommended DS18 and the ds18 exl-sq6.5 cx... compliment my sound system. And I'm changing over from a full JL audio system that speaks for quality. And performance
EASY INSTALL AND GREAT SOUND
Let customers speak for us
from 3550 reviewsThe amp itself was great and a great price but was too large to fit in my motorcycle firing so I had to return for an exchange for smaller amp, I was charged $70 restock fee on top of having to pay an extra $85 for the exchange only having the amp for 1 day and no use 🤬 Rule of thumb, make sure of the size you buy before you order or you’ll end up paying more it you have to send it back..!😖
Very nice.. would love to add your product to my car audio shop.
For 4 speakers I used two of these amps and am verp pleased with their performance. I'm getting plenty of power but on my Harley at highlway speeds, I fairing speakers just aren't big enough, so it's time ot speaker shop!
As advertised loud an clear!
Easy to install and sounds a lot better than stock
Voy a comprar solamente su producto y mi sonido será de ds18
Patrocínenme
Installed the 10inch enclosure in my 2022 GMC Acadia. Sounds great,the bass was just what I wanted. Just enough to improve the sound inside with the limited space i had.
I put 6 of these in my Honda pilot and the fucker took me to mars while bumpin Tupac wtf do I do now

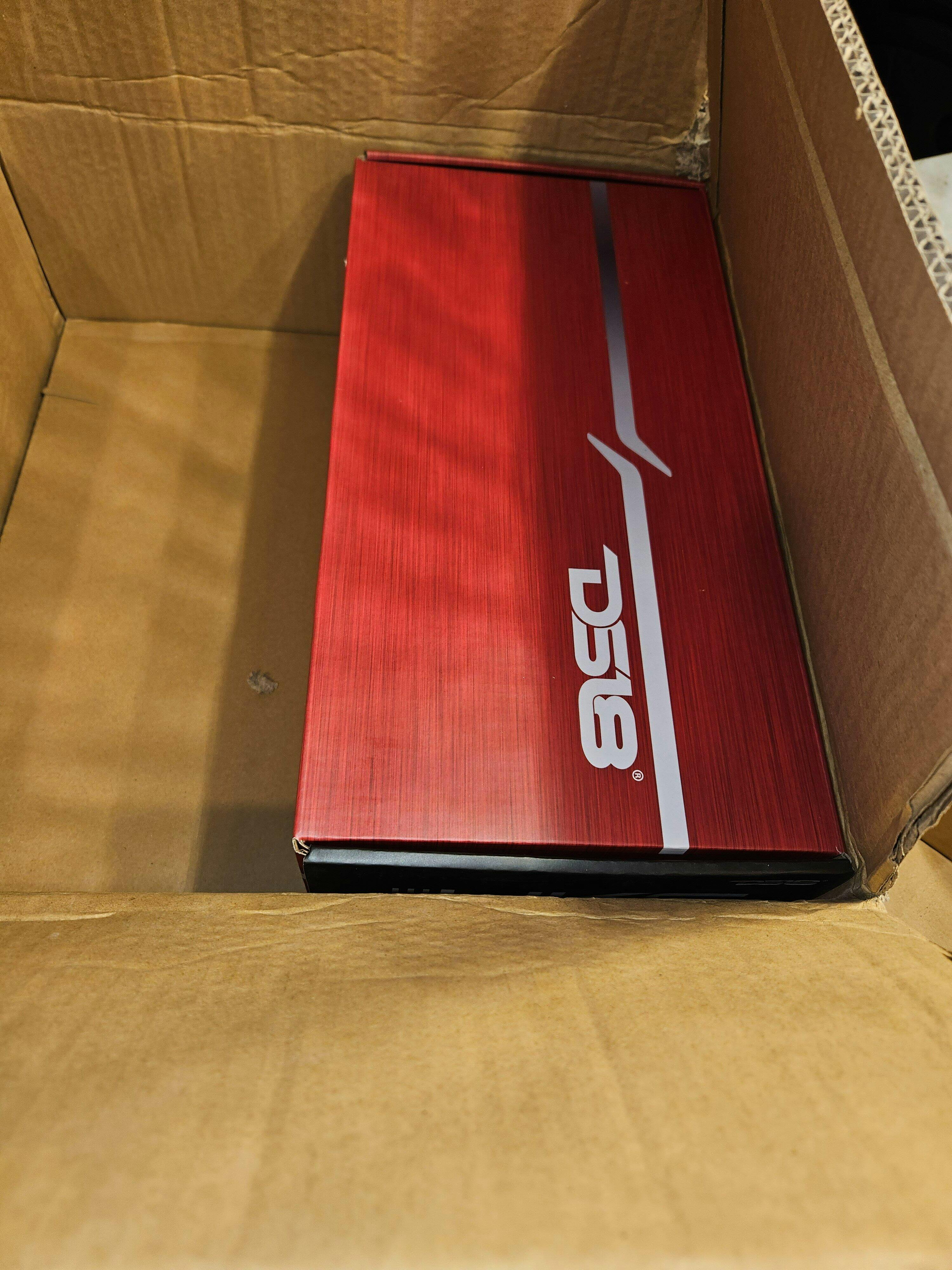

Love this amp paired with 1 exl-xx12.2dhe
DS18 SW-16GA-100RB 16-GA Ultra Flex CCA Speaker Wire 100 Ft
Love the sound and volume it partake in
I disappointed they wouldn’t fit in my aftermarket fairing. So i put them in my side box lids. I ran them off the radio with no amp and they are louder than my front ones hooked to an amp. They are amazing
Worked great it was nice and small and fit under the seat of my single cab
It took me abt a year being retired to buy all the pieces, the sub boxes were impressive and the subs and RGB’s are fantastic
