EXL 6.5" 2-Way Component Speaker System | 150W RMS 4-Ohm
SOLD OUT
EXL 6.5" 2-Way Component Speaker System | 150W RMS 4-Ohm
SOLD OUT
Sale / PAIR
Reg.
20% OFF FOR CYBER MONDAY SALE!
-
Key Features
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
EXL-SQ6.5CX
Nominal Diameter
6.5"
Nominal Impedance
4 ohm
RMS Power Handling
150W
MAX Power Handling
500W
Sensitivity (1w/1m)
86dB
Frequency Response
45Hz-20kHz
Recommended HI Pass Crossover
40Hz
Number of ways
2 way
Pair or Single
Pair
Grill Included
Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
ASV
Winding Material
SV
Cone Material
Woven Fibre Paper Cone
Bullet Material
Aluminum
Surround Material
Butyl Rubber
Basket Material
Steel
Basket Color/Finish
Black Sand
Magnet Material
Ferrite (Y30)
Magnet Weight
11.2 Oz
Overall Diameter
6.5" / 165.5mm
Overall Depth
2.63" / 67mm
Front Mount Baffle Cutout
5.62" / 143mm
Mounting Depth
2.44" / 62mm
Motor Diameter
3.14" / 80mm
TWEETER SPECIFICATIONS
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Aluminium
Winding Material
SV
Diaphragm Material
Silk
Magnet Material
Neodymium
Magnet Weight
9.6g
Overall Diameter (without Adapter)
1.69" / 43mm
Overall Depth (without Adapter)
0.74" / 19mm
Front Mount Baffle Cutout
1.92" / 49mm
Mounting Depth
0.7" / 18mm
CROSSOVER SPECIFICATIONS
Passive Crossover Ways
2 Way
Frequency Crossover point
3Khz
Power Handling
300W RMS
Cut-Off Slope
Wf: 6dB / Tw: 12dB per Octave
Tweeter Attenuation
0 / -3 / -6 dB
Capacitor Type
Mylar
Coil Type
Wf: Iron / Tw: Free air
Terminal Type
Screw Type
Housing Material
Top: PS / Bottom: ABS
Adjustments
Tweeter Attenuation
Extra Features
PTC Tweeter Protection
Crossover Measurement (Inches) Overall Length
2.59" / 66mm
Overall Depth
4.72" / 120mm
Overall Height
1.39" / 35.4mm
Gross Single Unit Weight (lb)
6.5
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
8.62L / 0.304ft3
Excursion (one way) Xmax
9mm
Free Air Resonance Fs
62Hz
Mechanical Factor Qms
3.72
Electrical Factor Qes
0.76
Total Factor Qts
0.63
-
Product Overview
Product Overview
DS18 EXL-SQ6.5CX 6.5" 2-Way Component Speaker System 400 Watts 4-Ohm (Pair)
Instantly increase the sound quality in your vehicle and get EXTREMELY LOUD with powerful clear sound that fills any space with DS18’s EXL-SQ6.5CX: a top-of-the-line 2-way component speaker system designed for the ultimate audio experience in your car or truck.

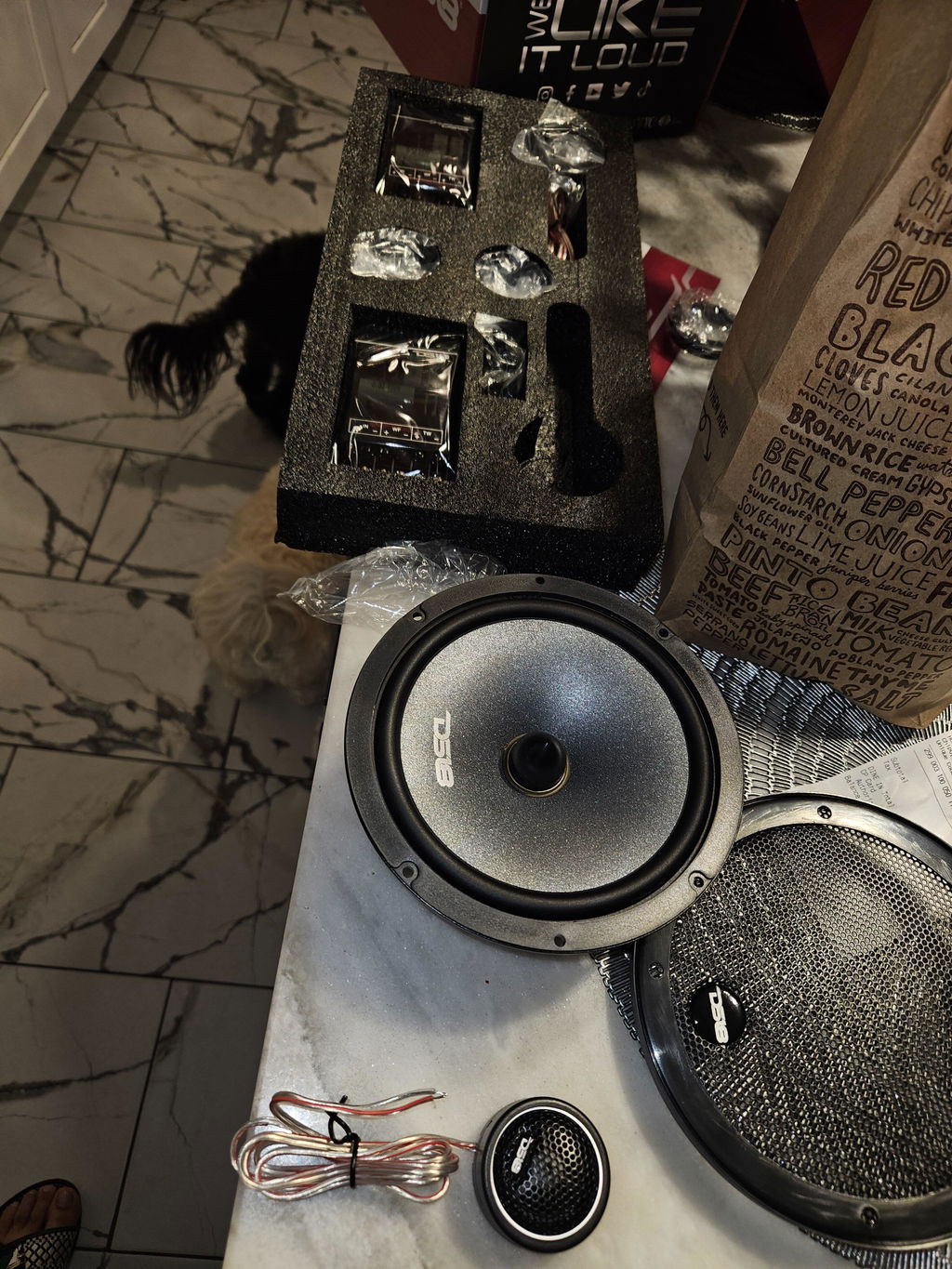

Featuring two 6.5-inch woofers and two 1-inch tweeters, the EXL-SQ6.5CX delivers exceptional sound clarity and deep bass response that will fill your vehicle with rich, vibrant sound.
The EXL-SQ6.5CX comes with a woofer equipped with a 2-way design with a 3-ohm impedance, making these speakers extremely easy to incorporate into any high-powered audio system.
The glass fiber cone equipped on the woofers guarantees it performs at its best and has a longer lifespan. The glass fiber cone provides stiffness, ensures accurate sound reproduction, and minimizes distortion. Its lightweight design enables faster and more responsive changes to the signal, while also maximizing energy efficiency.
The EXL-SQ6.5CX also comes with a silk dome tweeter that provides a tangible soundstage due to the wider dispersion pattern. These tweeters also deliver exceptional high-frequency response with low amounts of distortion thanks to the silk dome’s low mass and high stiffness.
In addition to their superior performance, the EXL-SQ6.5CX speakers also feature a sleek, modern design that will complement any car interior. The speakers come with grilles included, which are made from high-quality materials that are both durable and stylish.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
EXL 6.5" 2-Way Component Speaker System | 150W RMS 4-Ohm
Related products
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Channel:
Power Rating:
Size:
:
Color:
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Channel:
Power Rating:
Size:
:
Color:
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Channel:
Power Rating:
Size:
:
Color:
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Channel:
Power Rating:
Size:
:
Color:
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Channel:
Power Rating:
Size:
:
Color:
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Channel:
Power Rating:
Size:
:
Color:
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Size:
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Channel:
Power Rating:
Size:
:
Color:
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
- 4x6" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 87dB
Size:
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Channel:
Power Rating:
Size:
:
Color:
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6.5" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Size:
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
- 6.5" 2-Way Component
- MAX Power: 500 Watts
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 86dB
- Ferrite & Neodymium Magnets
- Pair ~ Crossovers & Grills Included
Size:
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Love them
Good stuff
Awesome

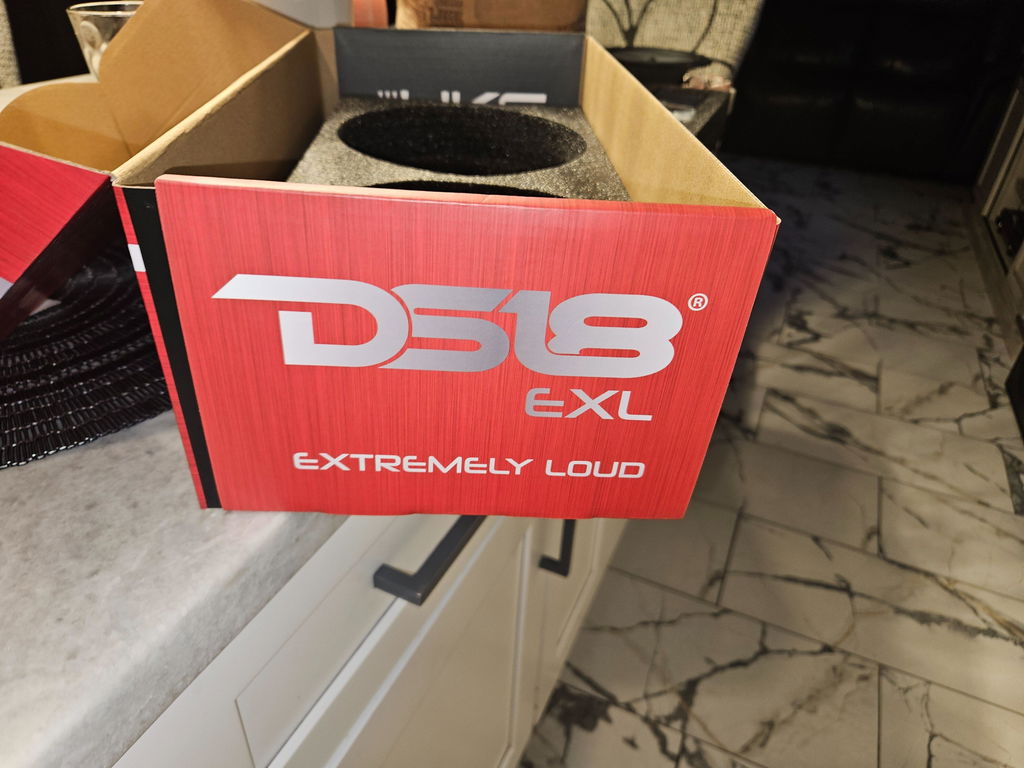

Bought the ds18 xx10 and these puppies hit hard really satisfied with my purchase and gladly recommended DS18 and the ds18 exl-sq6.5 cx... compliment my sound system. And I'm changing over from a full JL audio system that speaks for quality. And performance
EASY INSTALL AND GREAT SOUND
Let customers speak for us
from 3992 reviewsThe Pro CF 6x9 is a well built beautifully looking and sounding speaker! Very happy with DS18 and the product they sell!
Thank you DS18!
i love them i got them to complete my 6 speaker rack and now everyone looks at me when driving

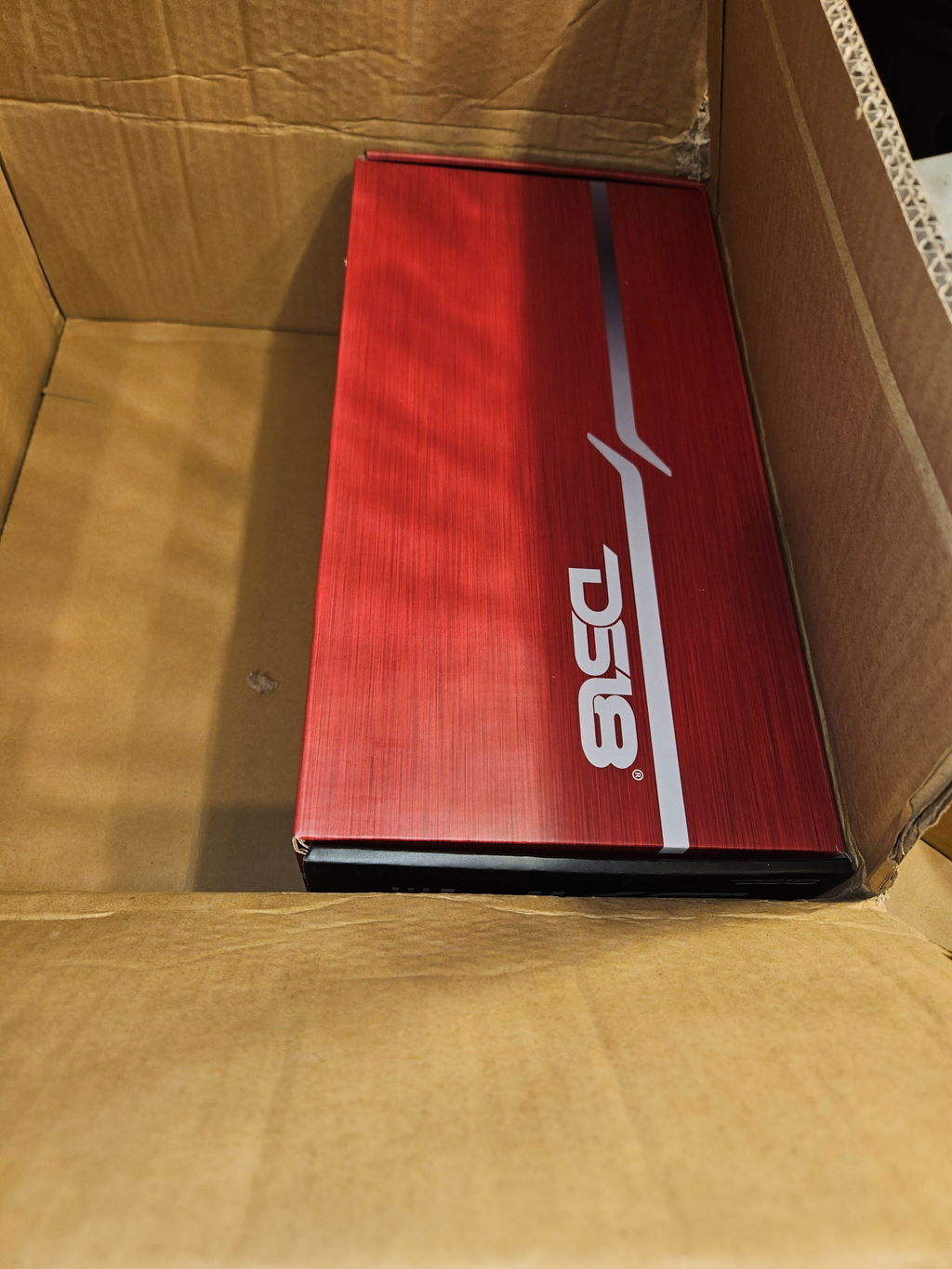

This amp has been nothing short of amazing. I have it powering the DS18 shallow mount 10 and it’s very powerful.
YESSAH BOY I GON RUN DIS ON MY 80A STOCK TAHOE ALTERNATOR AND STOCK ELECTRICAL BECUZ DIS GON TURN ALL THE CHICKS HEADS DAS ALL DAT MATTERS
Shetty horns my stunt wall better with QF and JN bc i like to hop on trends
I heard quinns setup with these while i was cruising in my clapped out corolla and now i cant hear out of my left ear
The DS18 PRO-DKH4 is absolutely worth it if you’re chasing serious volume, clarity, and pro-audio level performance. This driver uses a massive 4-inch titanium voice coil and a heavy-duty bolt-on horn that delivers extremely loud, crisp highs without breaking a sweat. With high sensitivity and real power-handling capability, it cuts through road noise, crowds, and outdoor environments effortlessly. The build quality is on another level — the materials and weight alone show it’s made for competition setups, big systems, and anyone who needs their mids and highs to stay clean even at extreme volumes. It’s not meant for casual stock upgrades or soft, warm sound; this is a driver built for people who want aggressive, high-output vocals and instruments that project like a concert speaker. If your system is designed for loud, clean performance and you want a top-tier horn driver that can keep up with big amps and big bass, the PRO-DKH4 is worth every dollar.
made ears bleed bought 5 of them for my churro
These scream, must buy never buying another horn.
I thought my Walmart tweeters was crisp until I ordered these they took my sound to another level
if you are having someone install this for you its the best you can get for this price. im very very happy with the product.
however i was thinking the install would be a lot more plug and play as far as mounting the door speakers and tweeters. other than that no issues at all
ION Compact Full Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
ION Compact Full Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm
Better than reviews!!
We are loading your cart...
Password Required
Please enter the password to access this page.
