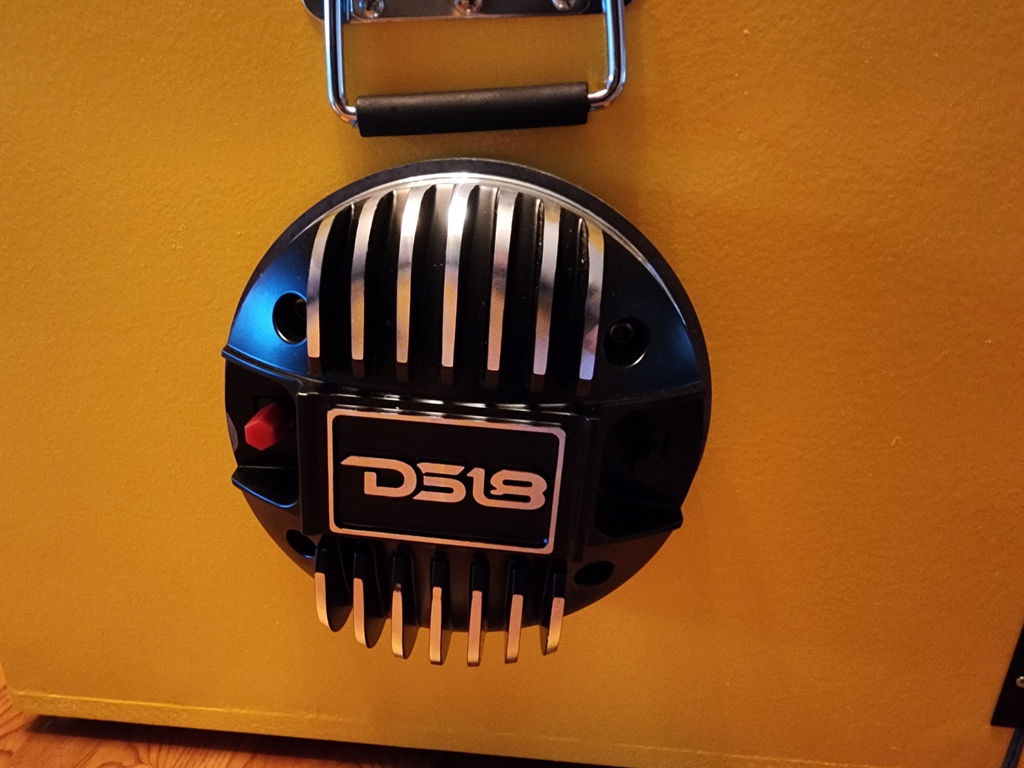

2" Throat Bolt on Driver 400 Watts 3" Phenolic Vc 8-Ohm
2" Throat Bolt on Driver 400 Watts 3" Phenolic Vc 8-Ohm
Sale / EACH
Reg.
15% OFF FOR DS18 Season Sale!
-
Key Features
- 2" Compression Driver
- RMS Power: 400 Watts(800 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Ferrite Magnet - Phenolic Diaphragm
- Bolt On
- Easily Repaired With The PRO-D2VC
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-D2PH
Throat Diameter
2" / 50.8mm
Installation Type
Bolt-on
Nominal Impedance
8 ohm
AES Power Handling
200W
Program Power Handling
400W
Peak Power Handling
800W
Sensitivity (1w/1m)
109 dB
Frequency Response
500Hz - 10KHz
Recommended Hi Pass Crossover
800 Hz
MOTOR
Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
Kapton
Winding Material
Aluminum
Diaphragm Material
Phenolic
Magnet Material
Ferrite
Magnet Weight
65 oz
Body Material
Aluminum
Color
Black Aluminum
MEASUREMENTS
Overall Diameter
6.69" / 170mm
Overall Depth
3.2" / 81.4mm
Bolt Pattern Type
4*M6
Product Weight
11.5 lbs
Product Dimensions
7.5 x 7 x 3.5
M/C Weight
48 lbs
M/C Dimensions
15.75 x 14.75 x 4.75
M/C QTY
4
Sold In
Piece
-
Product Overview
