PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm

SKU: PRO-NEO10SLIM

NEW ARRIVAL

PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm
PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm

PRO 10" Slim Neodymium Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm

SKU: PRO-NEO10SLIM

NEW ARRIVAL

Sale price$215.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

:

:

Color:

Quantity:
  • Key Features

    • 10" Mid-Range W/Bullet
    • MAX Power: 500 Watts
    • RMS Power: 250 Watts
    • Impedance: 4-Ohm
    • Neodymium Magnet
    • Shallow ~ 97dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    SKU
    PRO-NEO10SLIM
    Nominal Diameter
    10" / 254mm
    Nominal Impedance
    4 ohms
    RMS Power Handling
    250W
    MAX Power Handling
    500W
    Sensitivity (1w/1m)
    97dB
    Frequency Response
    100Hz - 3.7kHz
    Recommended HI Pass Crossover
    120Hz
    Pair or Single
    Single
    Grill Included
    No

    Motor

    Voice Coil Diameter
    2" / 50.8mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Paper
    Bullet Material
    CNC Aluminum
    Surround Material
    Cloth
    Basket Material
    Aluminum
    Basket Color/Finish
    Matte Black
    Magnet Material
    Neodymium
    Magnet Weight
    7.9 Oz
    Displacement Volume
    0.85L / 0.03ft3

    Thiele & Small Parameters

    Equivalent Volume
    21.86L / 0.77ft3
    Excursion (one way)
    1.45 mm
    Free Air Resonance
    80 Hz
    Mechanical Factor
    6.58
    Electrical Factor
    0.39
    Total Factor
    0.37
    Mechanical Mass
    24.95 g
    Mechanical Compliance
    0.129 mm/N
    BL Factor
    8.93
    Voice Coil Inductance
    0.05 mH
    Cone Area
    346.36 cm2
    DC Resistance
    3.3 ohms
    Mechanical Mass w/o air
    17.66 g

    Measurement

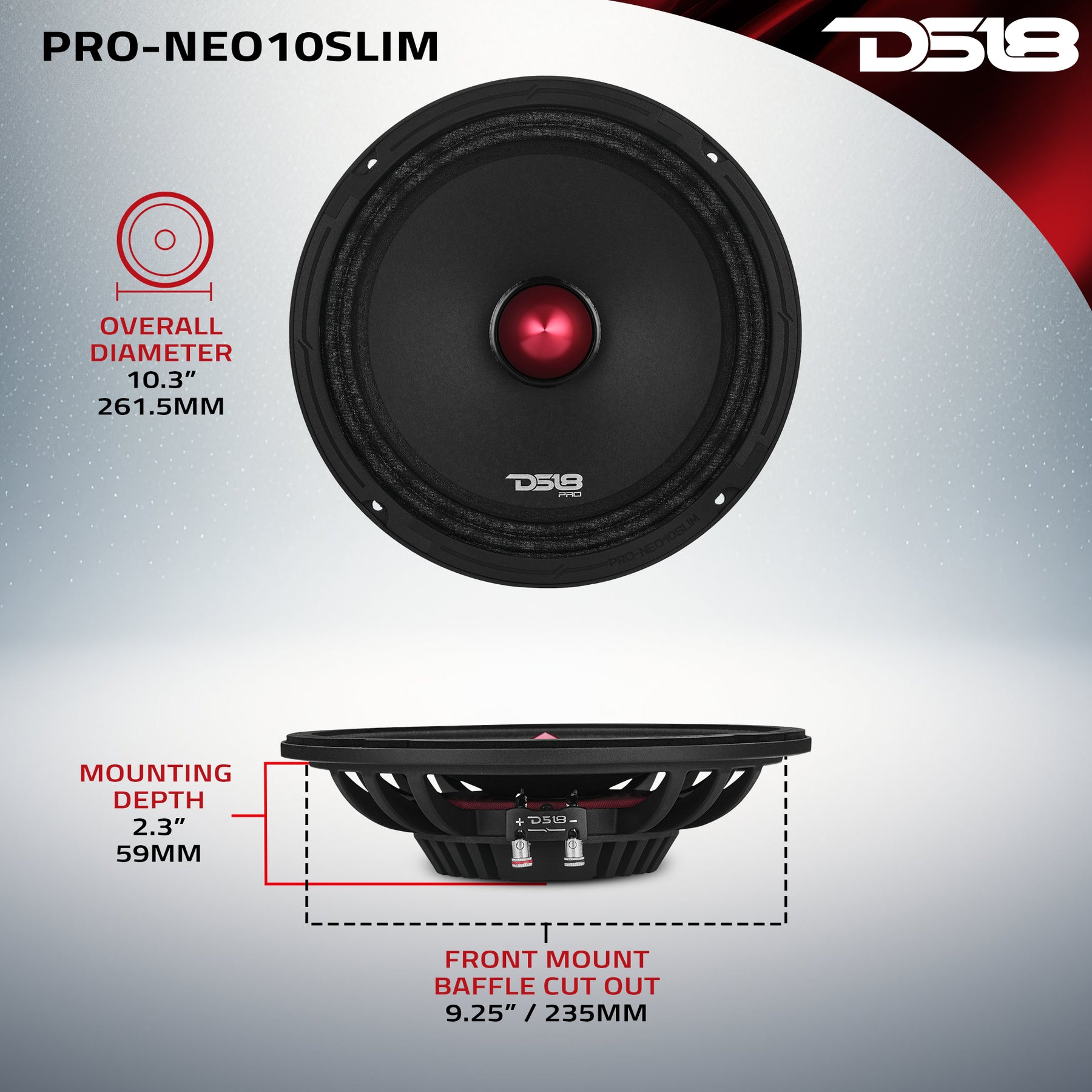

    Overall Diameter
    10.3" / 261.5mm
    Overall Depth
    2.75" / 70mm
    Front Mount Baffle Cutout
    9.25" / 235mm
    Mounting Depth
    2.3" / 59mm
    Motor Diameter
    4.13" / 105mm

    Load More
  • Product Overview

    Product Overview

    DS18 PRO-NEO10SLIM

    10” Slim Neodymium Mid-Range Loudspeaker with Bullet

    DS18’s PRO-NEO10SLIM is a shallow-mount 10” mid-range loudspeaker engineered for crushing volume and pro-grade clarity—all in a low-profile frame.

    Compact Frame, Massive Output
    With a mounting depth of just 2.3", the PRO-NEO10SLIM fits where standard 10” drivers won’t. Despite its slim form, it pumps out a powerful 250W RMS (500W MAX), driven by a neodymium magnet and a 2" Kapton voice coil.


    Pro-Level Sound
    A CNC-machined aluminum bullet boosts dispersion and cuts distortion, while the paper cone and cloth surround maintain tight response from 100Hz to 3.7kHz. With a sensitivity rating of 97dB, this speaker delivers high output with minimal power.


    Light Magnet, Heavy Impact
    With an extremely lightweight neodymium motor weight, the PRO-NEO10SLIM gives you all the output without the bulk. More room for air movement, so it’s the loudest “slim” you’ll ever hear.


    If you want a high-powered midrange to punch through your mix, the PRO-NEO10SLIM gives you pro-audio performance in a form factor that fits almost anywhere.
