PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill 275 Watts Rms 4-Ohm
PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill 275 Watts Rms 4-Ohm
Sale $96.86 / EACH
Reg.$113.95
15% OFF FOR MOVING SALE!
-
Key Features
- 6X9" Coaxial Water Resistant Mid-Range
- RMS Power: 275 Watts(550W Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Built in Tweeter with Grill
- 98dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-ZT69
Nominal Diameter
6x9”
Nominal Impedance
4 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
98dB
Frequency Response
60Hz-22KHz
Recommended Hi Pass Crossover
80 Hz
MIDRANGE
Voice Coil Diameter
1.5” (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz
Magnet Material
Ferrite
TWEETER
Voice Coil Diameter
1”
Voice Coil Material
KAPTON
Winding Material
CCAW
Diaphragm Material
ALUMINUM ALLOY
Magnet Weight
0.44 oz
Magnet Material
NEODYMIUM (N38H)
THIELE & SMALL PARAMETERS
Vas
14.6927 LTR
Xmax
16 mm
Fs
85 Hz
Qms
3.906
Qes
0.639
Qts
0.549
Re
3.2 ohms
MEASUREMENTS
Overall Diameter
260 x 180 mm (10.24 x 7.09”)
Front Mount Baffle Cutout
219 x 150 mm (8.62 x 5.91”)
Mounting Depth
85 mm (3.35”)
Overall Depth
97 mm ( 3.81”)
-
Product Overview
Product Overview
DS18 PRO-ZT69 6x9” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 550W 4-Ohm
Experience earth-shaking sound with the PRO-ZT69: a 2-way mid-range built for raw power, accurate reproduction, and crystal-clear clarity across the entire frequency range—all packed into a rugged, water-resistant coaxial.
Insane Power
Handling an RMS power of 275W and a MAX power of 550W, the PRO-ZT69 reaches volumes that will take your breath away. With a 4-Ohm impedance for easy installation and an ultra-sensitive 98dB rating, you’re guaranteed powerful output at lower power levels.Wide Frequency Range
With an impressive frequency response of 60Hz - 22KHz, the PRO-ZT69 captures every nuance across the entire audio spectrum. The integrated tweeter refines the balance between highs and lows, creating a smooth listening experience every session.Deep, Impactful Bass
Engineered with a robust ferrite magnet, the 6x9" mid-range woofer generates a deep low-end punch, for immersive bass response. This powerful magnet structure enhances voice coil action for forceful impact in your low-end.Bullet Tweeter Power
The built-in bullet tweeter is powered by a high-performance neodymium magnet, delivering crisp, ultra-clear highs efficiently. Designed for peak performance, this tweeter ensures every detail in your music is heard clearly.Protective Grill Included
No need to worry about accidental scuffs or kicks—the rugged grill shields against potential damage, while the water-resistant cone guarantees reliable performance even in damp environments.Transform your system with the PRO-ZT69 and experience audio the way it was meant to be heard!
FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill 275 Watts Rms 4-Ohm
Default Title
Related products
Size:
Color:
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Color:
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
Size:
Color:
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
Size:
Color:
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- BLACK
- 1 Piece
Size:
Color:
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6.5" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Color:
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6x9" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
Size:
Color:
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 8" Grill
- Metal
- Slim Design
- For Speakers and Mid-Ranges
- RED
- 1 Piece
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
- 4" High Compression Hybrid Driver/Tweeter
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm ~ 111dB
- Neodymium Magnet
- Easily Repaired With The
- 4" High Compression Hybrid Driver/Tweeter
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm ~ 111dB
- Neodymium Magnet
- Easily Repaired With The
Channel:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channel:
Power Rating:
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 2 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 2 X 100 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 90 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
- 5 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 4 x 130 Watts @ 4 Ohm + 1 x 900 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Crossover/ Bass Control Knob
Channel:
Power Rating:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 1200 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 300 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 700 Watts @ 4 Ohm
- Power/Protection/Clip Indicator
- Built in Crossover
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ RED
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ GREEN
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ GREEN
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ BLUE
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ BLUE
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Purple
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Purple
Channel:
Power Rating:
Color:
:
Color:
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Yellow
- 4 GA CCA Ultra Flex Amplifier Wire Kit
- Up to 1680 Watts RMS
- Mini-ANL Fuse Holder with 120A
- Power & Remote Wires
- Speaker & RCA Cables
- Installation Accessories ~ Yellow

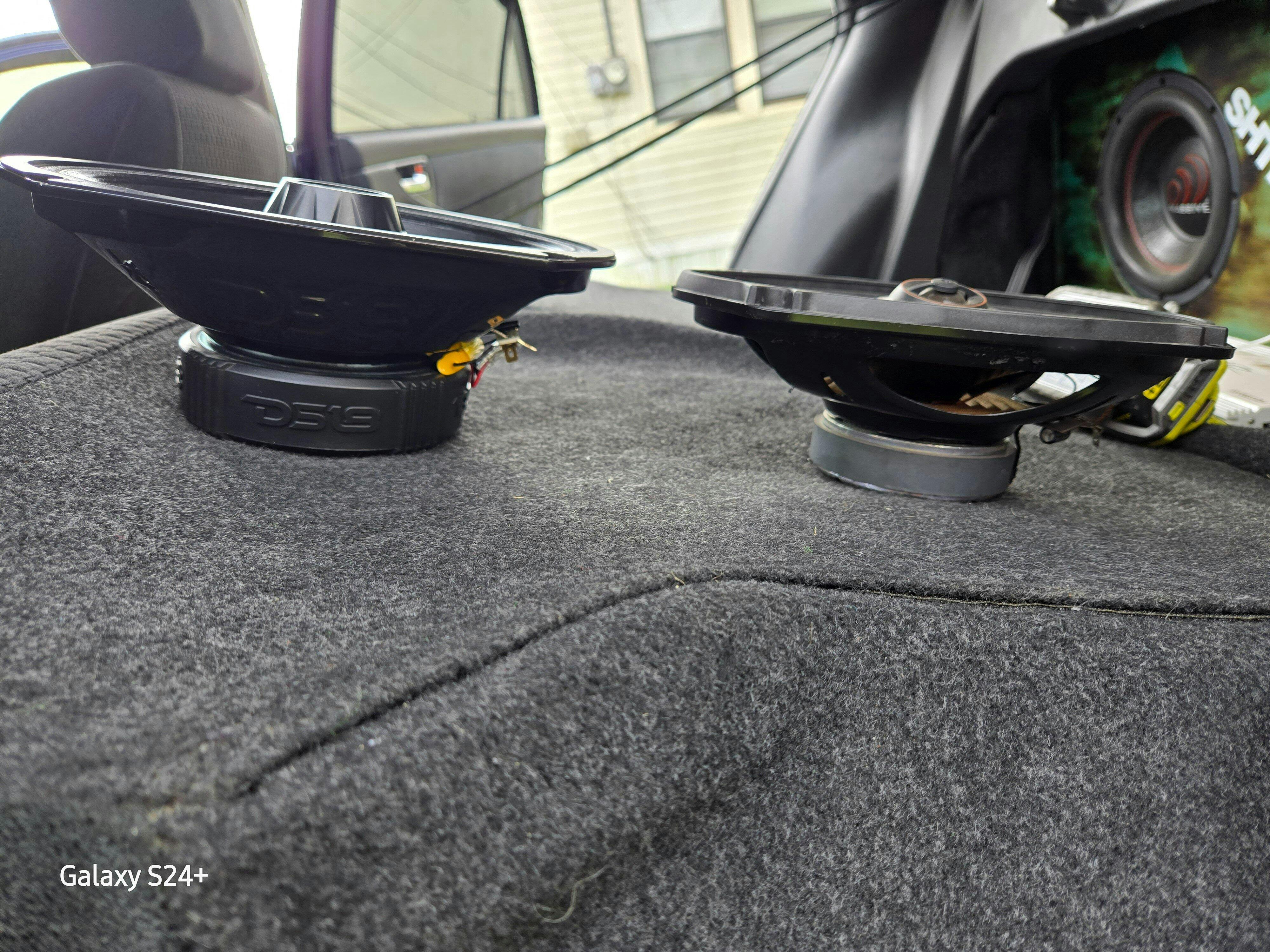

I disappointed they wouldn’t fit in my aftermarket fairing. So i put them in my side box lids. I ran them off the radio with no amp and they are louder than my front ones hooked to an amp. They are amazing
