SXE Class D 4-Channel Full-Range Car Amplifier 4 x 275 RMS @4 Ohm 4000 Watts

SXE Class D 4-Channel Full-Range Car Amplifier 4 x 275 RMS @4 Ohm 4000 Watts

Name: SXE Class D 4-Channel Full-Range Car Amplifier 4 x 275 RMS @4 Ohm 4000 Watts
Brand: SXE-4000.4D
SKU: SXE-4000.4D/BK
Price: 284.95 USD
Availability: InStock
Rating: 5.0 (10 reviews)

SKU: SXE-4000.4D/BK

$284.95

/EACH

Ships Free Next Business Day From Miami, FL, USA

Full Range Amplifier
4 Channel
Class D
2 ~ 4 Ohm Stable
4 x 275 Watts @ 4 Ohm
Compact Design

In stock

Loading variants....

Color:Black

Variant

Quantity:

Notify Me When Available

FAST FREE SHIPPING

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Have a Question?

Our experts are here to answer any questions you may have.

Contact Us
305-928-8734

Live Chat

KEY FEATURES

4 CHANNELS

STEREO FULL-RANGE

CLASS D

LED INDICATOR

HPF/FULL/LPF

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

Power

Total Watts (Peak)
4000W
RMS Power @ 4 ohm
4 x 275W
RMS Power @ 2 ohm
4 x 430W
RMS Power @ 1 ohm
N/A
RMS Power @ 4 ohm Bridge
2 x 750W

Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
86%
Damping Factor
140
Input Impedance
20kΩ
Channel Separation
45dB
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
HPF/FULL/LPF
X-Over Filter Range
40Hz-2KHz
Bass Boost Range
No
Bass Boost Frequency
No
Infrasonic Filter
No
Phase Selector
No

Features

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
LED Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
External fuse
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (80℃)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color / Finish
Red / Black Brushed Aluminum

Measurement

Overall Length
11" / 279.3mm
Overall Width
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
9.5" / 242mm
Gross Single Unit Weight
2.07KG

Extra Features

Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Two or Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
No

Product Overview

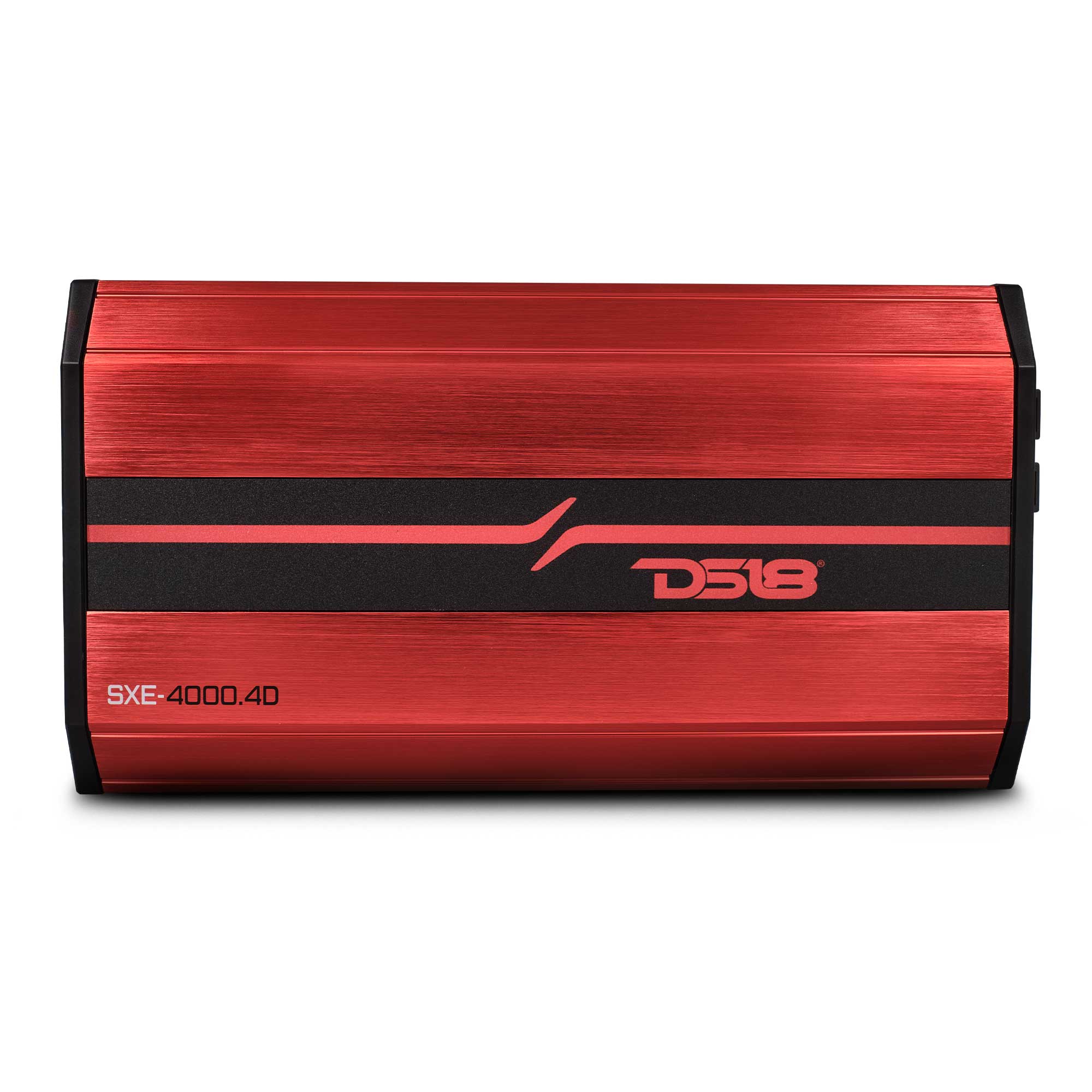

DS18 SXE-4000.4D

Class D 4-Channel Full-Range Car Amplifier 4000W

DS18’s SXE Amplifiers offer an extreme increase to the quality of audio reproduced by vehicles. With the SXE-4000.4D at the helm, your vehicle's speakers unleash their true potential to detail the best parts of your favorite tracks.

The SXE-4000.4D offers you the ability to shape your systems audio to match your personal preferences. Its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-4000.4D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup.

Thanks to its Class D circuit design the SXE-4000.4D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-4000.4D's staggering performance, delivering 750W x 2 CH bridged at 4-ohms, 430W x 4 CH at 2-ohms, and 275W x 4 CH at 4-ohms.

The SXE-4000.4D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. We’ve thought of everything to guarantee a long-lasting and exceptional audio experience.
