DS18 ELITE-Z 12" Subwoofer with 1600 Watts DVC 4-Ohms audio subwoofers

ZR 12" Subwoofer 750 Watts Rms DVC 4-Ohm

ZR 12" Subwoofer 750 Watts Rms DVC 4-Ohm

Name: ZR 12" Subwoofer 750 Watts Rms DVC 4-Ohm
Brand: ZR12.4D
SKU: ZR12.4D
Price: 164.95 USD
Availability: InStock
Rating: 5.0 (2 reviews)

SKU: ZR12.4D

$164.95

/EACH

Ships Free Next Business Day From Miami, FL, USA

12" Subwoofer
MAX Power: 1500 Watts
RMS Power: 750 Watts
Impedance: 4-Ohm 2.5" DVC
Ferrite Magnet
82dB

In stock

Quantity:

Notify Me When Available

FAST FREE SHIPPING

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Have a Question?

Our experts are here to answer any questions you may have.

Contact Us
305-928-8734

Live Chat

KEY FEATURES

12" DIAMETER

SUBWOOFER

4+4 OHM

VOICE COIL 2.5"

FERRITE MAGNET

NON-PRESSED PAPER CONE

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
ZR12.4D
Nominal Diameter
12" / 305mm
Nominal Impedance
4 + 4 Ohm
RMS Power Handling
750W
Maximum Power Handling
1500W
Sensitivity (1w/1m)
82 dB
Frequency Response
25-200Hz
Recommended Lo Pass Crossover
90Hz

MOTOR

Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
100 Oz
Displacement Volume
0.07 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
22.7 L
Free Air Resonance Fs
28 Hz
Mechanical Factor Qms
5.08
Electrical Factor Qes
0.94
Total Factor Qts
0.79
Moving Mass Mms
268.1g
Compliance Cms
66.4? m/N
Bl Factor BI
10.7
Voice Coil Inductance Le
818.8m mH
Diaphragm Area Sd
502.73 Cm2
DC Resistance Re
3.4 + 3.4 Ohm
Efficiency Bandwidth Product EBP
29.8

MEASUREMENTS

Overall Diameter
12.36" / 314mm
Overall Depth
7.55" / 192mm
Front Mount Baffle Cutout
11.2" / 284mm
Mounting Depth
6.6" / 168mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
18.5
Dimensions W x L x H (Inches)
13.25 x 13.25 x 8.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
39
M/C Dimensions W x L x H (Inches)
14 x 14 x 18.25

Product Overview

DS18 ZR12.4D

12” Car Subwoofer 1500W 4-Ohm DVC

Introducing the DS18 ZR12.4D, a true powerhouse designed to deliver mind-blowing bass and precision performance.
The ZR subline is renowned for its exceptional performance, and the ZR12.4D is no exception. With a robust 1500W of MAX power handling and 750W of RMS power handling, the ZR12.4D guarantees a spine-tingling audio experience that will leave you craving for more. Its 2.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 4+4 ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.
With DS18’s ZR12.4D, you don't just get exceptional performance; you also get unmatched style and unbreakable durability. The ZR12.4D features a strong stamped basket that not only provides structural integrity but also showcases show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. Its matte black finish adds a touch of elegance, making it a visually stunning addition to any car audio setup.
With a frequency response ranging from 25Hz to 200Hz and a sensitivity of 82 dB, the ZR12.4D captures every nuance of your music, delivering it with crystal-clear precision. The recommended low-pass crossover of 90Hz ensures seamless integration with your existing audio system, allowing your music to shine in all its glory.
With its striking design, exceptional performance, and versatility, the ZR12.4D is the perfect choice for car audio enthusiasts who demand nothing but the best.

Amazing

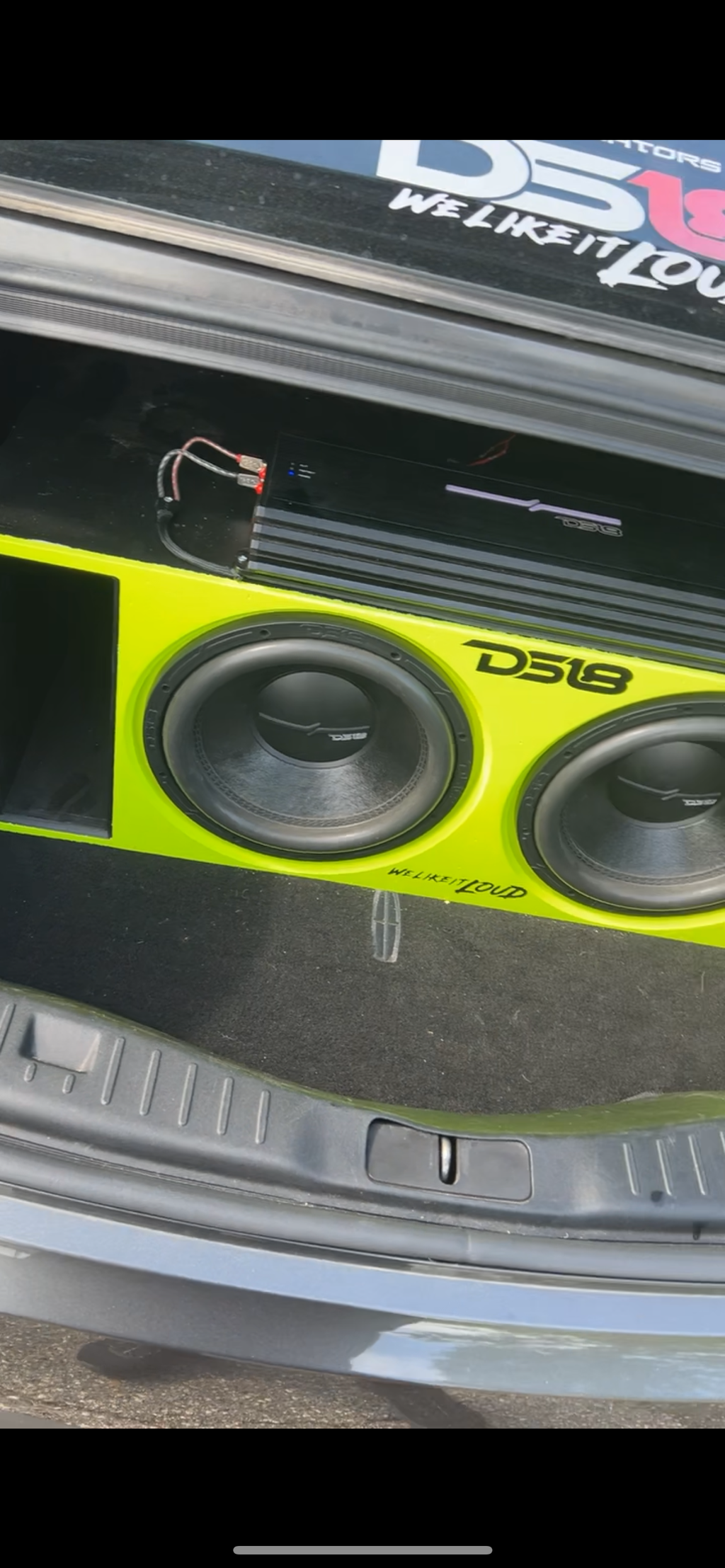

These subs can handle some power. Have two hooked up to a ZR2000.1 and they get hot but keep playing. Definitely won’t win any comps with these but for daily build to just beat the mirrors on the car next to u than these will do it!
