EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm






EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
Sale $382.46 / EACH
Reg.$449.95
15% OFF FOR MOVING SALE!
-
Key Features
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 87dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
EXL-XX12.4DHE
Nominal Diameter
12"
Nominal Impedance
4+4 ohms
RMS Power Handling
2000W
MAX Power Handling
4000W
Sensitivity (1w/1m)
87dB
Frequency Response
20-1.3K Hz
Recommended Lo Pass Crossover
80 Hz
Motor
Voice Coil Diameter
3" / 75.6mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Glass Fiber
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
306 OZ
Displacement Volume
3.26L
Thiele & Small Parameters
Equivalent Volume Vas
20.738L
Free Air Resonance Fs
41.3 Hz
Mechanical Factor Qms
4.525
Electrical Factor Qes
0.511
Total Factor Qts
0.459
Moving Mass Mms
285.433 g
Compliance Cms
0.026 mm/N
Bl Factor BL
17.166
Voice Coil Inductance Le
9.8 mH
Diaphragm Area Sd
433.74 cm2
DC Resistance Re
3.6 + 3.6 ohms
Efficiency Bandwidth Product EBP
80.8
Measurement
Overall Diameter
12.63" / 321mm
Overall Depth
9.25" / 235mm
Front Mount Baffle Cutout
11.1" / 282mm
Mounting Depth
7.87" / 200mm
Motor Diameter
8.89" / 226mm
-
Product Overview
Product Overview
DS18 EXL-XX12.4DHE 12” High Excursion Car Subwoofer 4000W MAX 4-Ohm DVC
Engineered for car audio enthusiasts, the EXL-XX12.4DHE pushes the boundaries of low-frequency bass reproduction, delivering an unparalleled audio experience that will leave you breathless.
As a high-tier addition to our acclaimed lineup, the EXL-XX12.4DHE offers an astonishing price-to-performance ratio, rivaling even the most expensive high excursion subs on the market. Crafted to meet the demands of the most discerning audiophiles, the EXL-XX12.4DHE boasts a three-inch black aluminum voice coil—a testament to its exceptional power handling capabilities and efficiency. With a remarkable power rating of 2000W RMS and a staggering MAX power of 4000W, this subwoofer packs a punch that reverberates through your entire vehicle.
The EXL-XX12.4DHE utilizes the strength of a ferrite magnet weighing in at an incredible 306 ounces. Its immense power effortlessly controls the cone movement, allowing for precise audio reproduction even at extreme volumes. The cone, crafted from high-quality paper, guarantees accurate sound reproduction, while the foam surround ensures optimal flexibility and longevity. Encased in a sleek black aluminum basket, this subwoofer exudes style and sophistication.
What sets the EXL-XX12.4DHE apart is its exceptional high excursion surround. Paired with a high resonant frequency (FS) of 41.3Hz, the EXL-XX12.4DHE seamlessly delves into the subsonic range without missing a beat, provided your box is tuned accordingly. This version of the EXL-XX boasts a nominal diameter of 12" (304.8 mm) and a nominal impedance of 4+4 OHMS to amplify the performance and capabilities of this high-powered subwoofer.
The EXL-XX12.4DHE captures the essence of power, precision, and affordability, revolutionizing the way you experience bass in your vehicle.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
Default Title
Related products
MOVING SALE
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 87dB
MOVING SALE
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 88dB
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 88dB
MOVING SALE
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 88dB
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 88dB
MOVING SALE
- Re Cone Kit
- For EXL-XX12.4DHE
- Impedance: 4 Ohm DVC
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- Re Cone Kit
- For EXL-XX12.4DHE
- Impedance: 4 Ohm DVC
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
Awesome speaker. Great Bass with wonder trembles. I Love DS18
So far I’m loving the bass sounds great not to mention I’m breaking them in just installed last week
I have 2 of these on a taramps bass 8k in my Durango. Went through a lot of subs before I got these. I've had them for over a year, hands down best subs I've ever owned.
Running two of these on a FSB 5K sounds great!
Let customers speak for us
from 3464 reviewsI love the Infinite INFINITE 35 AH battery installed it on my 2013 Can Am Maverick 1000r and it has enough cracking power to start it every time see how it does when i add accessories

I love how there loud and everything but I had one go out on me

5 STAR!!! Installed these speakers in my 2019 Road Glide and I could not be happier with the clear sound!

Loud asf crystal clear

Really nice kit, AMP is also very solid and compact, fits nicely under the seat on the low profile AMP rack I bought !
Would recommend taking to a shop for installation. I’ve got a 2025 Jeep Gladiator and my only complaint is how difficult it is to disassemble the dash.
Also note this is not exactly plug and play if you intend on Amplifying tweeters and Dash speakers. These are extremely Loud and clear on Vocals.
If you plan on doing The Sound bar too, you have two RCA’s labeled FR & FL. You need a RCA Y splitter, DS18 Makes them. You actually need 2 red and 2 black splitters. Would highly recommend the speakers if you’re looking to Wind Proof the audio.

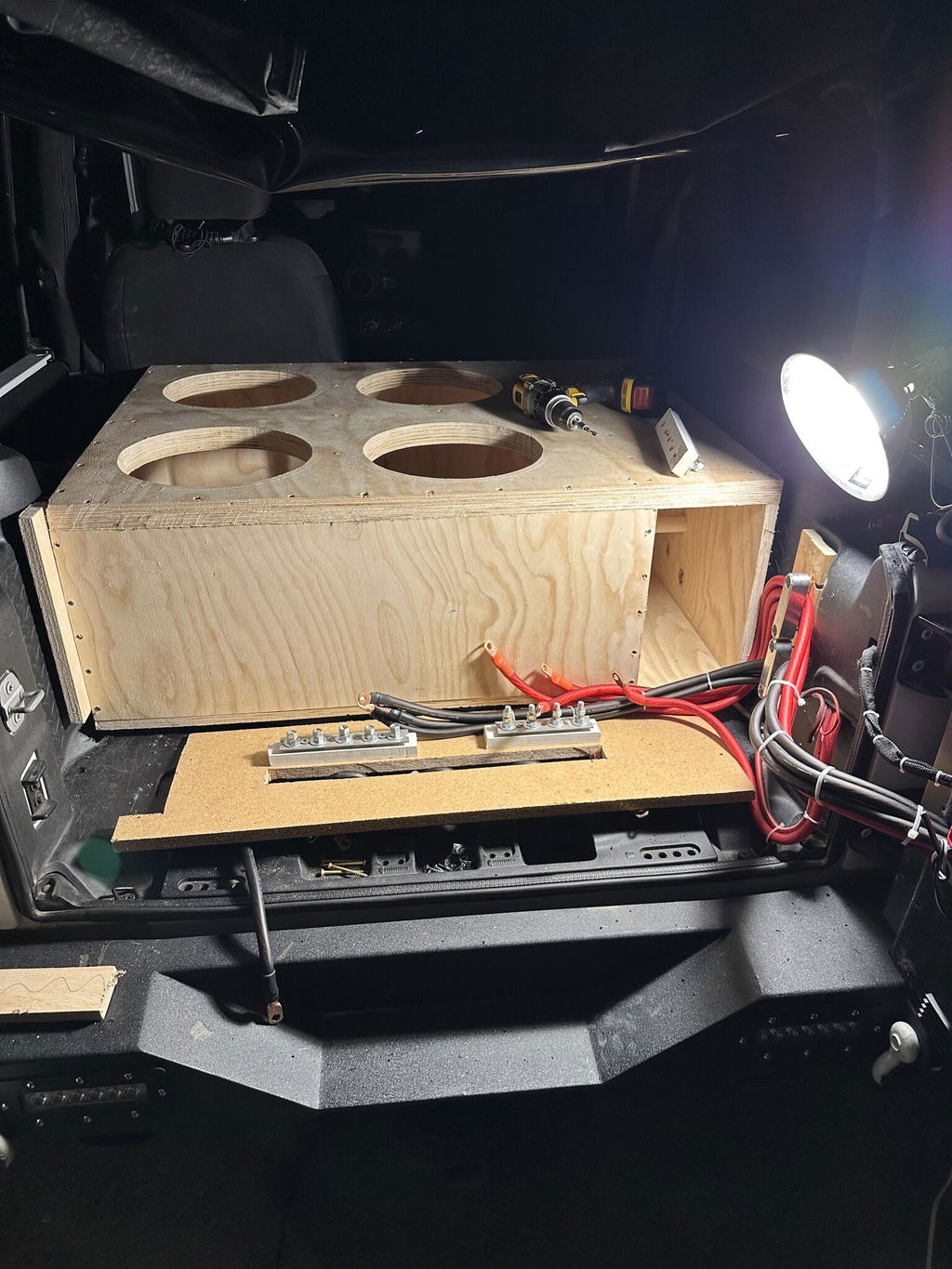

Never had subs this small but was suggested to try it and happy I did! I had 2 12s in my gladiator and wasn’t to happy with it and tried 4 of these and the sound is night and day difference! I have them in a ds18 ported box on a FR 3.5k
