EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm






EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
Sale $509.96 / EACH
Reg.$599.95
15% OFF FOR Labor Day Sale!
Availability:353 Items
-
Key Features
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 88dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
EXL-XX15.4DHE
Nominal Diameter
15"
Nominal Impedance
4+4 ohms
RMS Power Handling
2000W
Maximum Power Handling
4000W
Sensitivity (1w/1m)
88dB
Frequency Response
20-1.5K Hz
Recommended Lo Pass Crossover
80 Hz
MOTOR
Voice Coil Diameter
3" / 75.6mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Glass Fiber
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
306 OZ
Displacement Volume
3.62L
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
29.965L
Free Air Resonance Fs
35.6 Hz
Mechanical Factor Qms
7.098
Electrical Factor Qes
0.68
Total Factor Qts
0.62
Moving Mass Mms
410.638 g
Compliance Cms
0.027 mm/N
Bl Factor Bl
19.865
Voice Coil Inductance Le
11.25 mH
Diaphragm Area Sd
804.25 cm2
Dc Resistance Re
3.6 + 3.6 ohms
Efficiency Bandwidth Product EBP
52.3
MEASUREMENTS
Overall Diameter
15.59" / 396mm
Overall Depth
10.24" / 260mm
Front Mount Baffle Cutout
13.98" / 355mm
Mounting Depth
8.86" / 225mm
Motor Diameter
8.86" / 225mm
Gross Single Unit Weight (lb)
56.5
Single Unit Box Dimensions W x L x H (Inches)
18 x 18 x 13.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight
56.5
Master Carton Dimensions W x L x H (Inches)
18 x 18 x 13.5
-
Product Overview
Product Overview
DS18 EXL-XX15.4DHE 15” High Excursion Car Subwoofer 4000W MAX 4-Ohm DVC
Engineered for car audio enthusiasts, the EXL-XX15.4DHE pushes the boundaries of low-frequency bass reproduction, delivering an unparalleled audio experience that will leave you breathless.
As a high-tier addition to our acclaimed lineup, the EXL-XX15.4DHE offers an astonishing price-to-performance ratio, rivaling even the most expensive high excursion subs on the market. Crafted to meet the demands of the most discerning audiophiles, the EXL-XX15.4DHE boasts a three-inch black aluminum voice coil—a testament to its exceptional power handling capabilities and efficiency. With a remarkable power rating of 2000W RMS and a staggering MAX power of 4000W, this subwoofer packs a punch that reverberates through your entire vehicle.
The EXL-XX15.4DHE utilizes the strength of a ferrite magnet weighing in at an incredible 306 ounces. Its immense power effortlessly controls the cone movement, allowing for precise audio reproduction even at extreme volumes. The cone, crafted from high-quality paper, guarantees accurate sound reproduction, while the foam surround ensures optimal flexibility and longevity. Encased in a sleek black aluminum basket, this subwoofer exudes style and sophistication.
What sets the EXL-XX15.4DHE apart is its exceptional high excursion surround. Paired with a high resonant frequency (FS) of 35.6Hz, the EXL-XX15.2DHE seamlessly delves into the subsonic range without missing a beat, provided your box is tuned accordingly. This version of the EXL-XX boasts a nominal diameter of 15" (381 mm) and a nominal impedance of 4+4 OHMS to amplify the performance and capabilities of this high-powered subwoofer.
The EXL-XX15.4DHE captures the essence of power, precision, and affordability, revolutionizing the way you experience bass in your vehicle.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

EXL XX 15" High Excursion Subwoofer 2000 Watts Rms DVC 4-Ohm
Default Title
Related products
- Re Cone Kit
- For EXL-XX15.4DHE
- Impedance: 4 Ohm DVC
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- Re Cone Kit
- For EXL-XX15.4DHE
- Impedance: 4 Ohm DVC
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 4-Ohm 3" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 87dB
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 88dB
- 15" High Excursion Subwoofer
- MAX Power: 4000 Watts
- RMS Power: 2000 Watts
- Impedance: 2-Ohm 3" DVC
- Ferrite Magnet
- 88dB

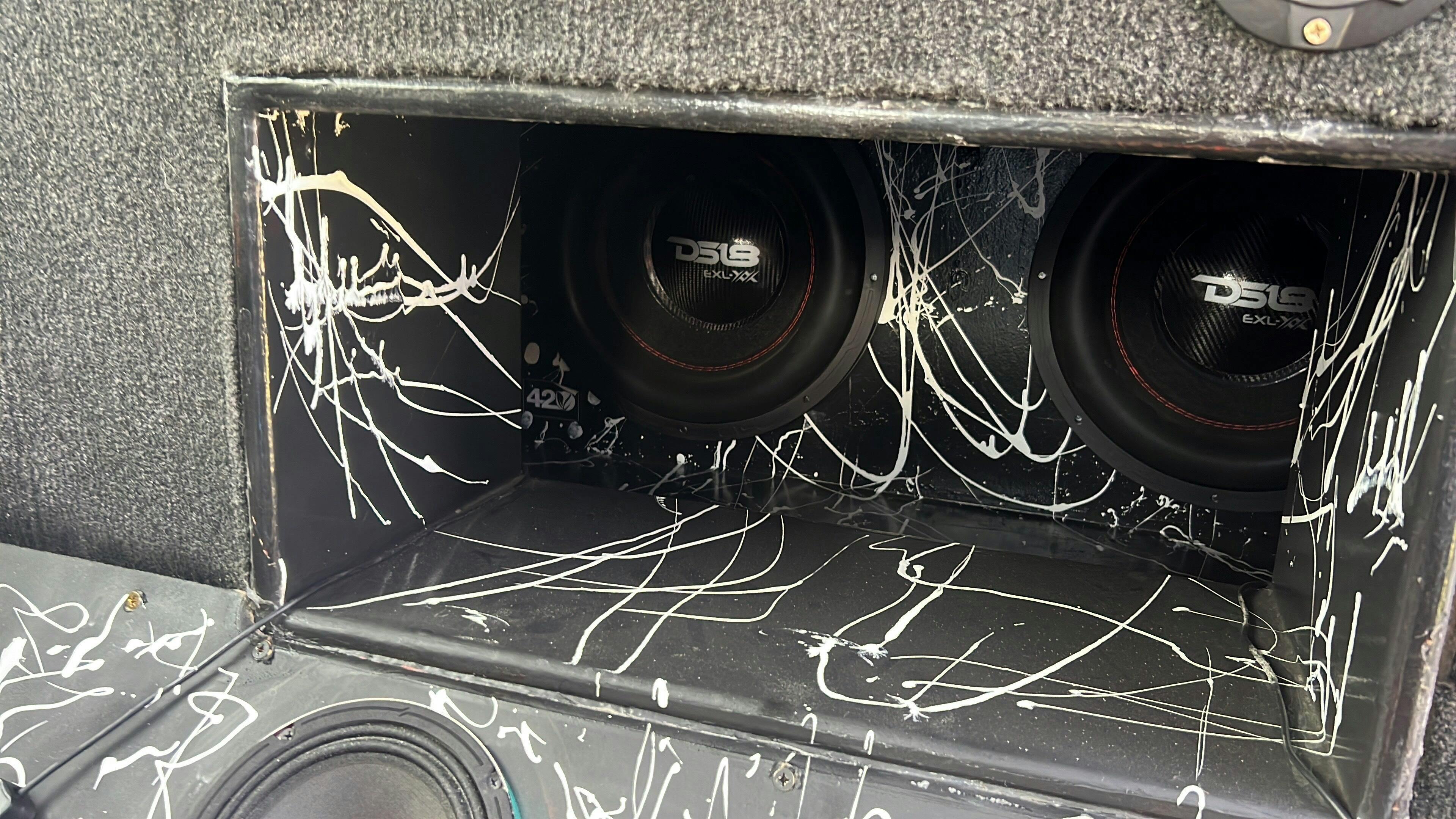

Got 2 of these in WAY too big of a box - 36x36x24 ported -4x7 triple layer .
