XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
Sale / EACH
Reg.
20% OFF FOR CYBER MONDAY SALE!
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
Channel:
Power Rating:
:
:
Color:
Have a Question? Ask a Specialist 305-928-8734 / Live Chat
FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
KEY FEATURES
MID-RANGE loudspeaker
6.5" DIAMETER
4 OHM
2" Kapton Voice Coil
aluminum BASKET
FERRITE MAGNET
TECHNICAL DATA
DOWNLOAD THE USER MANUAL
DOWNLOAD THE USER MANUAL
GENERAL SPECIFICATIONS
SKU
6XL600-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
300 Watts
MAX Power Handling
600 Watts
Sensitivity (1w/1m)
97dB
Frequency Response
60Hz-12.5KHz
Recommended Hi Pass Crossover
100Hz
Pair or Single
Single
MOTOR
Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Aluminum
Basket Color | Finish
Satin Black
Magnet Material
Ferrite
Magnet Size
34 Oz
Displacement Volume
0.45L / 0.015ft3
THIELE & SMALL PARAMETERS
Vas
5.71L / 0.201ft3
Xmax
3.7 mm
Fs
100Hz
Qms
4.93
Qes
0.5
Qts
0.454
Mms
11.917
Cms
0.214 mm/N
BL
6.906
Le
0.1647mH
Sd
136.85 cm²
Re
3.2 ohms
Mmd
10.996g
MEASUREMENTS
Overall Diameter
6.7" / 170mm
Overall Depth
3.5" / 89mm
Front Mount Baffle Cutout
5.9" / 150mm
Mounting Depth
3.14" / 80mm
Motor Diameter
4.96" / 126 mm
Product Overview
Brace yourself for the LOUD revolution with DS18’s 6XL600-4, a 6.5” Mid-Range Loudspeaker that will take your car’s audio to places it’s never been before.
DS18’s 6XL600-4 handles an awe-inspiring RMS of 300W, and an incredible MAX of 600W ensuring that your audio experience is a symphony of pure power. It’s extraordinary sensitivity, fixed at 97dB, transforms even the slightest whisper into an ear-piercing roar.
DS18’s 6XL600-4 has a frequency response ranging from 60Hz to 12.5KHz, guaranteeing you never miss a beat. DS18 understands that every audio enthusiast has unique preferences, which is why we recommend a HI Pass Crossover of 100Hz to complement your audio setup, ensuring a harmonious balance between the lows, mids, and highs.But the true magic lies within the construction of the 6XL600-4. The aluminum basket, dressed in a satin black finish, provides a sturdy foundation for the 6XL600-4. Engineered with precision, this custom-tooled basket provides unparalleled stability, effectively reducing unwanted vibrations, and ensuring distortion-free sound reproduction. The strategic design incorporates ample ventilation, allowing for efficient heat dissipation, even during prolonged listening sessions at high volumes.
The expertise of our engineers shows in the design of the polished high-quality spring-loaded push terminals that ensure a seamless connection between your audio system and the speakers. The spring-loaded mechanism further simplifies the installation process, making it effortless to achieve a tight and secure connection every time.
And let's not forget the magnetic force behind it all—a robust ferrite magnet weighing in at an impressive 34 Oz, generating immense power and driving your speakers performance.
DS18's 6XL600-4— is your gateway to professional audio in your vehicle. Are you ready for the audio revolution?
Related products
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Range
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.7dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.5dB
- 12" Mid-Bass
- MAX Power: 1500 Watts
- RMS Power: 750 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98.5dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Range
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 10" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 99dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 99dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
- 6.5" Mid-Range w/Bullet
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 97dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98.5dB
Impedance:
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- 6.5" Mid-Range
- MAX Power: 650 Watts
- RMS Power: 325 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 98.5dB
- Re Cone Kit
- For 6XL600-4
- Impedance: 4 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- Re Cone Kit
- For 6XL600-4
- Impedance: 4 Ohm
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 4 Ohm
- Ferrite Magnet
- 99.5dB
Impedance:
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
- 10" Mid-Bass
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8 Ohm
- Ferrite Magnet
- 99.5dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100.7dB
Size:
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
- 10" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 101dB
Size:
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
- 12" Mid-Range
- MAX Power: 1000 Watts
- RMS Power: 500 Watts
- Impedance: 8-Ohm
- Neodymium Magnet
- 100dB
This speaker is by far one of the best speakers I’ve owned, has amazing frequency response and it gets really loud. They are really efficient.

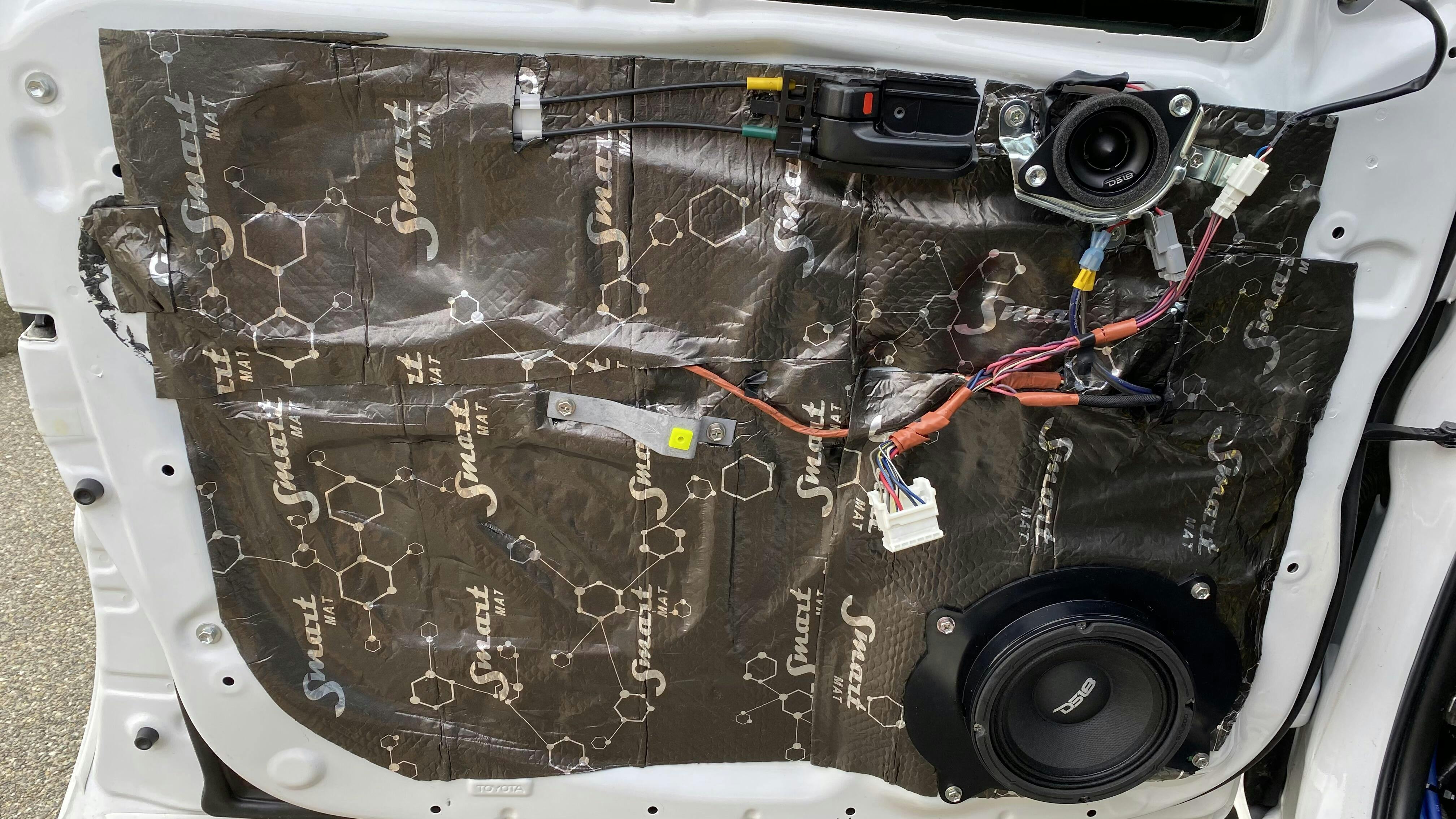

I have a set of these 6.5s DS18 midrange speakers in the door of my 2013 Tacoma. I have them running off an Arc Audio 1200.6 amp. They sound better than just about any door speaker I have ever tried (it’s a lot) . I have the DS18 tweets also. Love the sound and hp filter set at 125hrz and let it play full range to the upper hrz.
Let customers speak for us
from 4003 reviewsMotorcycle Handlebar Mounted Bluetooth Speaker System with Neodymium Magnet
DS18 level 1 rca still gets things done as far as sound quality.
Level 2 rca from DS18 is good quality and clean.
You can’t go wrong choosing DS18 rca cables for the win.
I definitely recommend DS18 rca cables to anyone looking for good sound quality.
DS18 is definitely an upgrade from the rca cables I currently have from a local supplier that only last for a couple of year’s then start giving you interference in the sound quality.
Solid, break them in
Stock Honda Civic Si 2013 speakers are poor because there is barely any bass. I bought this at a stereo shop and had it installed, exactly the type of bass that I wanted with adjustable knob and more bass to spare! It can rattle the car if you want and can hear it while standing outside, but only if you want it too. Every song feels truer and get tons of complements for it. Save your wallet and get this very affordable speaker.
100% would recommend👍
Sound is loud and clear
Let me tell yall, I purchased the 20 inches for my 2019 polaris slingshot inclousers sub boxes, and these things are the bomb dignity, I mean I love them the bass hit is deep and bold, I get lots of compliments on the way they sounds. So guys go out and get a pair and you want be disappointed
The Pro CF 6x9 is a well built beautifully looking and sounding speaker! Very happy with DS18 and the product they sell!
Thank you DS18!
i love them i got them to complete my 6 speaker rack and now everyone looks at me when driving
This amp has been nothing short of amazing. I have it powering the DS18 shallow mount 10 and it’s very powerful.
YESSAH BOY I GON RUN DIS ON MY 80A STOCK TAHOE ALTERNATOR AND STOCK ELECTRICAL BECUZ DIS GON TURN ALL THE CHICKS HEADS DAS ALL DAT MATTERS
We are loading your cart...
Password Required
Please enter the password to access this page.
