DS18 TX1 2" PEI Dome Ferrite Tweeter 0.5" VC 200 Watts

TX1 2" PEI Dome Ferrite Tweeter 0.5" VC 200 Watts

TX1 2" PEI Dome Ferrite Tweeter 0.5" VC 200 Watts

Name: TX1 2" PEI Dome Ferrite Tweeter 0.5" VC 200 Watts
Brand: TX1
SKU: TX1R
Price: 17.95 USD
Availability: InStock
Rating: 4.93 (15 reviews)

SKU: TX1R

$17.95

/PAIR

Ships Free Next Business Day From Miami, FL, USA

2" PEI Dome Tweeter
RMS Power: 50 Watts(200 Watts Peak)
Impedance: 4 Ohm ~ 88dB
Ferrite Magnet
Red ~ Silver
Pair

In stock

Loading variants....

Color:Red

Variant

Quantity:

Notify Me When Available

FAST FREE SHIPPING

30-DAY RETURNS

2 YEAR WARRANTY

SECURE PAYMENT

Have a Question?

Our experts are here to answer any questions you may have.

Contact Us
305-928-8734

Live Chat

KEY FEATURES

4 OHM

0.5" VOICE COIL

FERRITE MAGNET

PEI dome DIAPHRAGM

SOLD AS PAIR

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
TX1
Nominal Diameter
2"
Nominal Impedance
4 OHMS
AES Power Handling
25W
Program Power Handling
50W
Peak Power Handling
200W
Sensitivity (1w/1m)
88 dB
Frequency Response
2K-20KHz
Recommended Hi Pass Crossover
3KHz
Pair
Yes

MOTOR

Voice Coil Diameter
0.5"
Voice Coil Former Material
KSV
Diaphragm Material
PEI Dome
Magnet Material
Ferrite
Body Material
Plastic

MEASUREMENTS

Overall Diameter
2.4" / 60.96mm
Overall Height
1.24" / 31.49mm
Front Mount Baffle Cutout
2" / 50.8mm
Mounting Depth
0.71" / 18.03mm

PRODUCT DIMENSIONS

Product Weight
0.5 lbs
Product Dimensions
8 x 5 x 1.75

M/C DIMENSIONS

M/C Weight
21 lbs
M/C Dimensions
16.5 x 15.75 x 10.25
M/C QTY
30
Sold In
Pair

Product Overview

DS18 TX1

2” PEI Dome Ferrite Tweeter 0.5” VC 200W (PAIR)

Engineered and designed in the USA by DS18, the TX1 is not just any ordinary tweeter; it's a masterpiece crafted to elevate your car audio experience to new heights.
The TX1 redefines accuracy in high-frequency reproduction. These compact titans pack a punch, with an astonishing 200W of MAX Power Handling. With such immense power at your disposal, your high frequencies will soar through the air, reaching every corner of your vehicle with clarity and precision. With a frequency response ranging from 2KHz to 20KHz, the TX1 will sweep you away on a journey through the entire musical spectrum. Whether it's the delicate tinkling of cymbals or the soaring vocals of your favorite artist, every nuance and detail will be faithfully reproduced, leaving you spellbound.
DS18 understands the importance of maximizing space in your vehicle. The TX1 tweeters are ingeniously crafted to provide exceptional performance while minimizing the amount of space they occupy. Their 2-inch PEI dome design ensures they seamlessly integrate into your car's audio system, fitting snugly into most factory tweeter locations on factory amplifiers. Embrace the power of superior sound without sacrificing valuable real estate in your car.
The TX1 tweeters slim design also allows it to effortlessly adapt to various applications with minimal fabrication. Let your imagination run wild as you explore the endless possibilities of where to place these remarkable tweeters. Transform your car into a concert hall on wheels, with every seat enveloped in immersive audio.

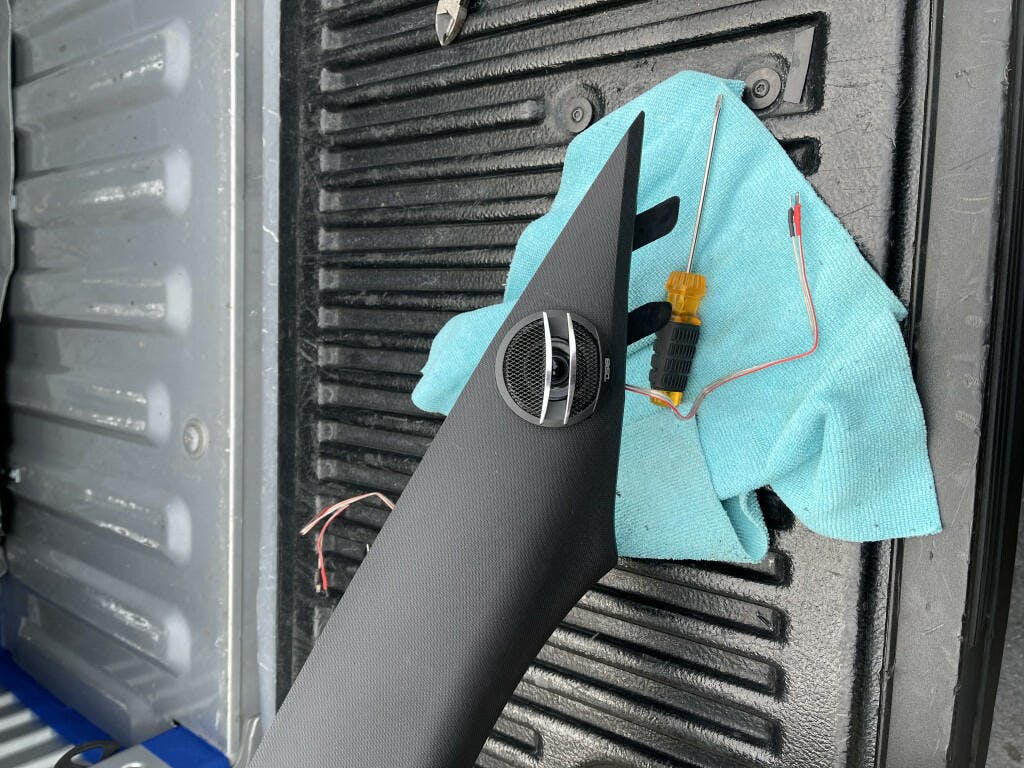

Good sound , good fit

Was able to dismantle 2013 Toyota Highlander original tweeters
And these new ds18
Fit in the basket .
Plus was able to use existing tweeter wiring so I didn’t need
To buy adapter connections .
