High Power 240 Watts RMS (4 x 60) Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer







High Power 240 Watts RMS (4 x 60) Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer
Sale $305.96 / EACH
Reg.$359.95
15% OFF FOR Labor Day Sale!
Model: DSP + Built In Amp (240W RMS)
Availability:52 Items
-
Key Features
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX ~ AM/FM
- DSP ~ EQ ~ 4 X 60 Watts
- SWC Output ~ Subwoofer Output
- Multi Color Illumination ~ 4" Screen
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
GENERAL SPECIFICATIONS
SKU
SDX-P200
Nominal DIN Size
1-DIN
Rated Power Voltage
14.4V
Voltage Operation
9.6-15 Volts
Maximum Current Consumption
30A
Temperature Operation
0~60°C / 32~140°F
Screen Size
4" / 104mm
Display Type
LCD Dots
Buttons / Controls
ABS
Backlight Illumination Type
RGB / 3 Zones
Body Material / Color / Finish
Steel / Bronze
Audio Specifications
Maximum Power Output (Peak)
4x180W
Continuous Power Output (RMS)
4x60W
Minimum Impedance
4 Ohms
Frequency Response
20Hz-20KHz
Pre-Output Level (RCA)
3V / 3.5V (Subwoofer)
Equalizer Bands
24 Bands
Equalizer Gain
+ / - 9dB
Crossover
3-Way
Crossover Slope
6 / 12 / 24 dB/Oct
Time Alignment
0~25ms / 0~850cm
Audio Control
Subwoofer Level, Fader, Balance, Loudness
Frequency Range (FM)
87.5 - 108.0 MHz
Frequency Range (AM)
522 - 1620 KHz
Presets Memory
18 FM / 12 AM
Region
Europe, America, Asia, Russia
Sensitivity Adjustment
Local / DX
BT Specifications
Version
4.2
Services
Hands Free Calls, Audio Streaming, APP Remote Control
Audio Protocols
A2DP, AVRCP, HFP
Range
32ft / 10m
USB / SD Player Specifications
Type / Class
2.0, 3.0 / FAT 16, FAT32
Format Files Supported
FLAC (16 Bit), WAV, AAC, APE, MP3
Max Memory Size Reader
64 Gb
Max Current USB Charger
1A
Number of Ports
1 (Front)
Connectivity Specifications
A/V Aux Input
Yes, Front 3.5mm Jack (2V Max)
Microphone
Yes, Built-In / External Mic Input
Remote Control (SWC)
Yes, 3.5mm Jack Input
Remote Control (Handset)
Yes, Card Type with Rubber Buttons
APP Control
Yes, (Android Devices)
Measurements
Overall Width (Chassis)
7" / 178mm
Overall Height (Chassis)
1.96" / 50mm
Overall Depth (Chassis)
6.2" / 158mm
Overall Width (Bezel Frame)
7.4" / 188mm
Overall Height (Bezel Frame)
2.2" / 58mm
Overall Depth (Bezel Frame)
0.98" / 25mm
-
Product Overview
Product Overview

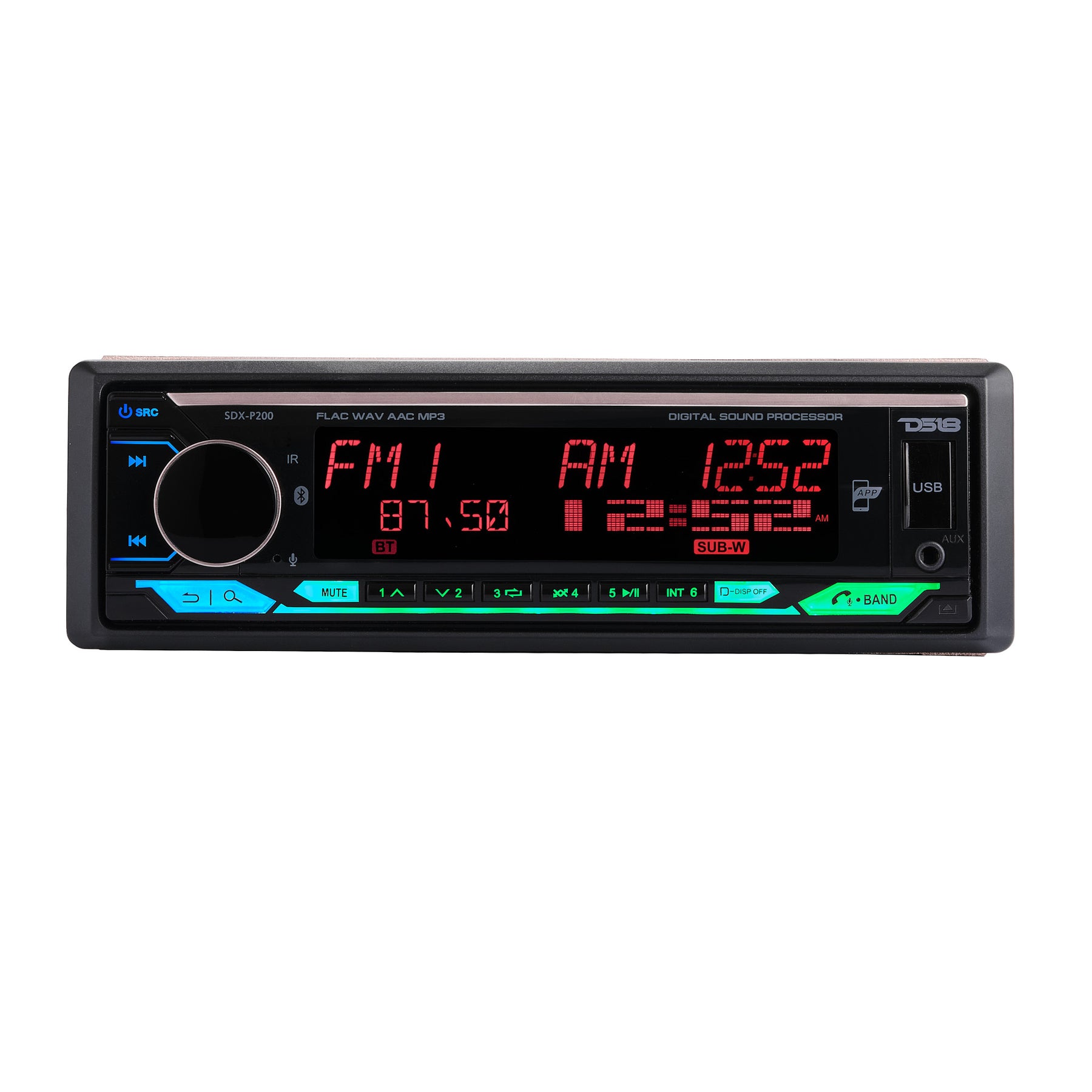

DS18 SDX-P200 Single DIN Digital Media Receiver With DSP / Bluetooth / USB / APP / AUX & Built-In High Power Amplifier
Want big sound with bold control? DS18’s SDX-P200 packs pro-level audio features, wireless streaming, and impressive flexibility into a sleek, single DIN unit that looks just as powerful as it sounds.
Connect Your Devices
With Bluetooth 5.0 for extreme connectivity, plus 30 preset AM/FM stations, the SDX-P200 gives you instant access to everything you want to hear. The front-facing USB reader supports FLAC, WAV, AAC, APE, and MP3 files, and also lets you charge your device on the go.Powerful Performance
The SDX-P200’s high-powered internal amplifier delivers a booming 60W RMS x 4 channels, providing LOUD, clear sound even when your system’s pushed to the max.Customize Your Sound
Take command of your soundstage with the built-in Digital Signal Processor. You get time alignment, a 24-band graphic EQ, 2/3-way crossover options, and a dedicated subwoofer pre-out for dialed-in control.Vibrant Display
The vibrant 4" LCD screen delivers clean, easy-to-read visuals. Dynamic multi-color LED backlighting with 3-zone RGB illumination lets you set the vibe to match your ride.Control at Your Fingertips
Download DS18’s SDX Remote Control App for iOS or Download DS18’s SDX Remote Control App for Android and manage your receiver settings, DSP features, and audio controls directly from your smartphone. Or, use the included wireless remote to command your setup without needing steering wheel interface systems.Designed for easy installation and high performance, the SDX-P200 is the perfect centerpiece for your upgraded audio system.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

High Power 240 Watts RMS (4 x 60) Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer
Default Title
Related products
- Digital Media Single Din Receiver
- Mech-Less
- BT ~ SD ~ USB ~ AUX ~ AM/FM
- 7 Selectable Colors
- Remote Control
- EQ and Subwoofer Control
- Digital Media Single Din Receiver
- Mech-Less
- BT ~ SD ~ USB ~ AUX ~ AM/FM
- 7 Selectable Colors
- Remote Control
- EQ and Subwoofer Control
Channel:
Power Rating:
Model:
:
Color:
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX
- DSP ~ EQ ~ AM/FM
- SUB Output ~ SWC Output
- Multi Color Illumination~ 4" Display
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX
- DSP ~ EQ ~ AM/FM
- SUB Output ~ SWC Output
- Multi Color Illumination~ 4" Display
Channel:
Power Rating:
Model:
:
Color:
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX
- DSP ~ EQ ~ AM/FM
- SUB Output ~ SWC Output
- Multi Color Illumination~ 4" Display
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX
- DSP ~ EQ ~ AM/FM
- SUB Output ~ SWC Output
- Multi Color Illumination~ 4" Display
Channel:
Power Rating:
Model:
:
Color:
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX ~ AM/FM
- DSP ~ EQ ~ 4 X 60 Watts
- SWC Output ~ Subwoofer Output
- Multi Color Illumination ~ 4" Screen
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX ~ AM/FM
- DSP ~ EQ ~ 4 X 60 Watts
- SWC Output ~ Subwoofer Output
- Multi Color Illumination ~ 4" Screen
Style:
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
Style:
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
Style:
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
- 7" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 7" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
Style:
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
Style:
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
Style:
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 6.9" Double-Din Digital Media Receiver
- Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 10.5" Single Din Digital Media Receiver
- Adjustable Angle Floating Display ~ Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 10.5" Single Din Digital Media Receiver
- Adjustable Angle Floating Display ~ Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Apple Car Play ~ Mirror Link
- Touchscreen
- IOS and Android Compatible
- 10.5" Single Din Digital Media Receiver
- Floating Display ~ Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Mirror Link IOS and Android
- Touchscreen
- Screen with adjustable angle
- 10.5" Single Din Digital Media Receiver
- Floating Display ~ Mech-Less
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ SWC
- Mirror Link IOS and Android
- Touchscreen
- Screen with adjustable angle
- 10.5" Single-Din Digital Media Receiver
- Rotating Floating Display ~ Mech-Less ~ Touchscreen
- Android 10 Operating System
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ HDMI
- DSP ~ Mirror Link ~ GPS ~ SWC
- IOS and Android Compatible
- 10.5" Single-Din Digital Media Receiver
- Rotating Floating Display ~ Mech-Less ~ Touchscreen
- Android 10 Operating System
- BT ~ USB ~ SD ~ AUX ~ AM/FM ~ HDMI
- DSP ~ Mirror Link ~ GPS ~ SWC
- IOS and Android Compatible

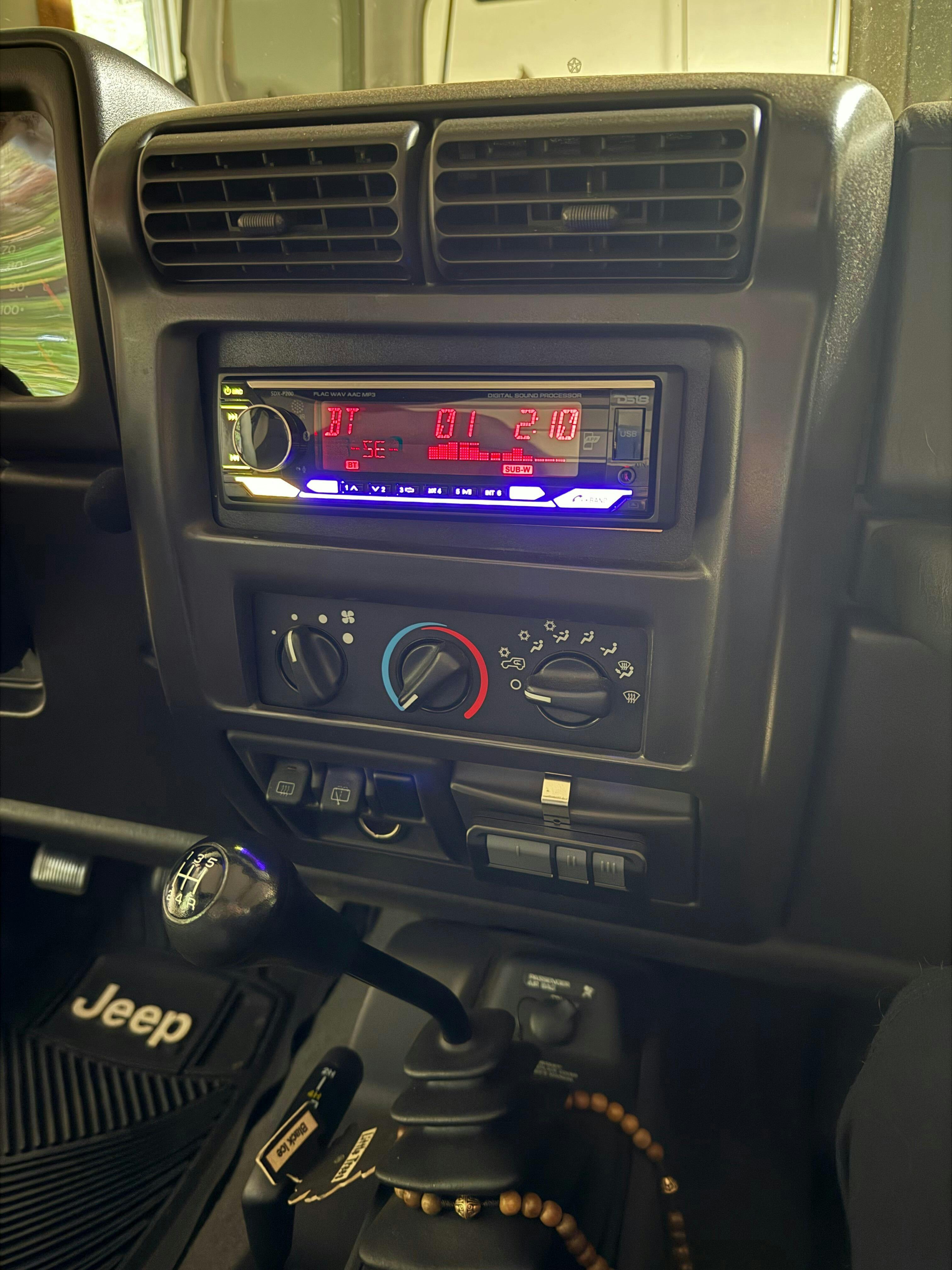

This unit is perfect for upgrading sound in a stock Jeep that you run without top or doors. My old 14w x4 RMS unit could hardly be heard while running above 60mph but this unit has so much power that I can play my music at the volume I want, and the volume knob still has a long way to go. No need to run a separate amp, but DS18 does recommend running a heavier power wire straight to the battery (although they don’t explicitly indicate this in the install instructions.)
