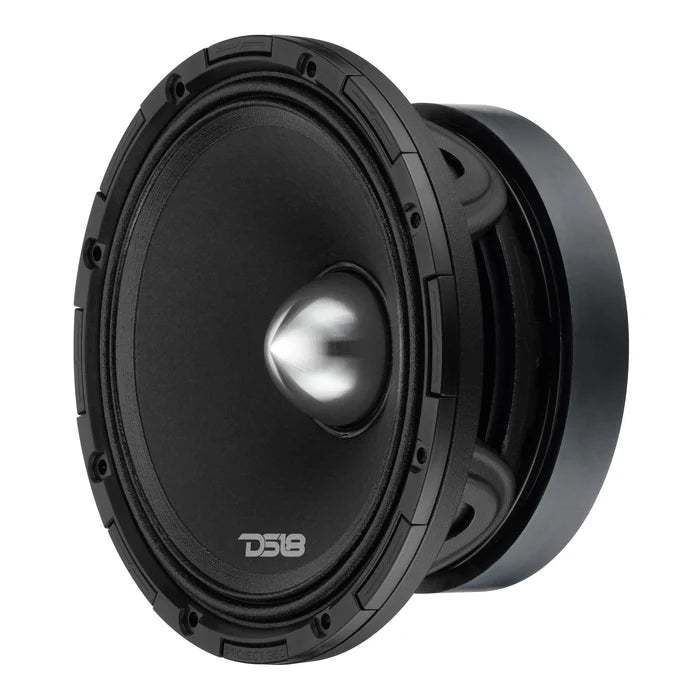

PROJECT360 High-Sensitivity Mid-High Loudspeaker with Bullet Rotating Recone Design For Quick Repair

SKU: PROJECT360.64B

🚨 New Arrival

PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B
PROJECT360.64B

PROJECT360.64B

🚨 New Arrival

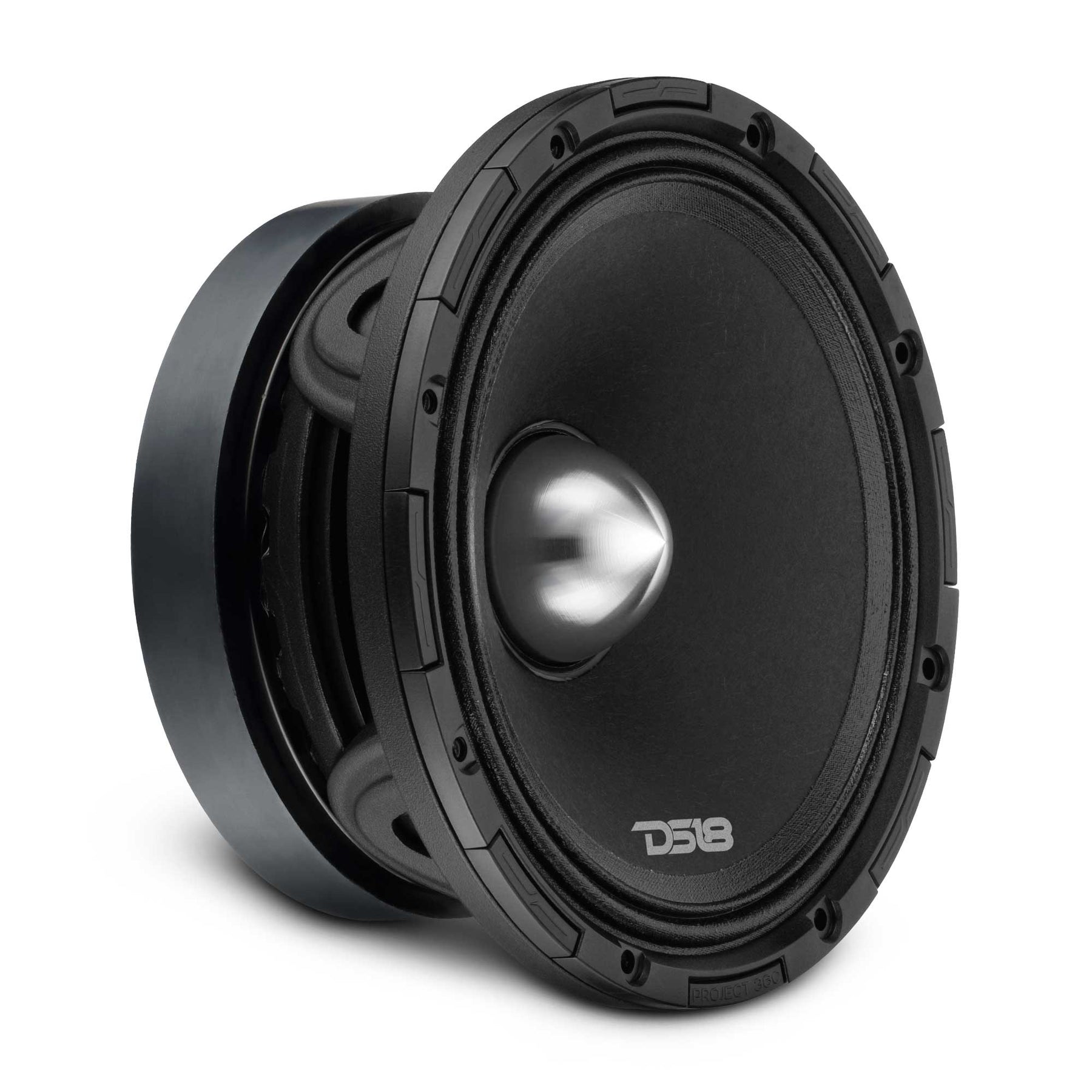

PROJECT360 6.5” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 4-Ohm - Rotating Recone Design For Quick Repair

PROJECT360 6.5” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 8-Ohm - Rotating Recone Design For Quick Repair

PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 4-Ohm - Rotating Recone Design For Quick Repair

PROJECT360 6x9” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 8-Ohm - Rotating Recone Design For Quick Repair

PROJECT360 8” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 4-Ohm - Rotating Recone Design For Quick Repair

PROJECT360 8” High-Sensitivity Mid-High Loudspeaker with Bullet - 300W RMS 8-Ohm - Rotating Recone Design For Quick Repair

🚨 New Arrival

Sale price$114.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Loading variants....

Size:6.5"
Impedance:4-Ohm
Quantity:
Patent-Pending Rotating Recone Design
Crystal-Clear Highs
Competition-Level Output
No Glue. No Downtime
High Power Handling
Efficient Bullet Design

DOWNLOAD THE USER MANUAL

  • SPECIFICATIONS
  • Nominal Diameter: 6.5" / 152mm
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 300 W
  • MAX Power Handling: 600 W
  • Sensitivity (1w/1m): 98 dB
  • Frequency Response: 100Hz – 17kHz
  • Recommended High-Pass Crossover: 140 Hz
  • Sold as: Single Unit
  • Grill Included: No
  • Demodulating Rings: Yes
  • Improved Heat Dissipation: Yes
  • Cone Shape: Curvilinear
  • Speaker Terminals: Spade
  • Easy Recone Design: Yes

  • MOTOR
  • Voice Coil Diameter: 1.75" / 44.5mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dust Cap Material: Paper
  • Surround Material: Cloth
  • Spider Diameter: 4" / 102mm
  • Leads Connection Type: Round Crossed
  • Basket Material: Aluminum
  • Basket Color / Finish: Black
  • Magnet Material: Ferrite
  • Magnet Weight: 48 oz
  • Bullet Material: CNC Aluminum
  • Bullet Color: Silver

  • THIELE & SMALL PARAMETERS
  • Equivalent Volume: 1.32L / 0.046ft3
  • Excursion (one way): 0.3 mm
  • Free Air Resonance: 189 Hz
  • Mechanical Factor: 5.915
  • Electrical Factor: 0.637
  • Total Factor: 0.575
  • Moving Mass: 13.305g
  • Mechanical Compliance: 0.034 mm/N
  • BL Factor: 9.495
  • Voice Coil Inductance: 0.040 mH
  • Cone Area: 176.71 cm2
  • DC Resistance: 2.9 Ohms

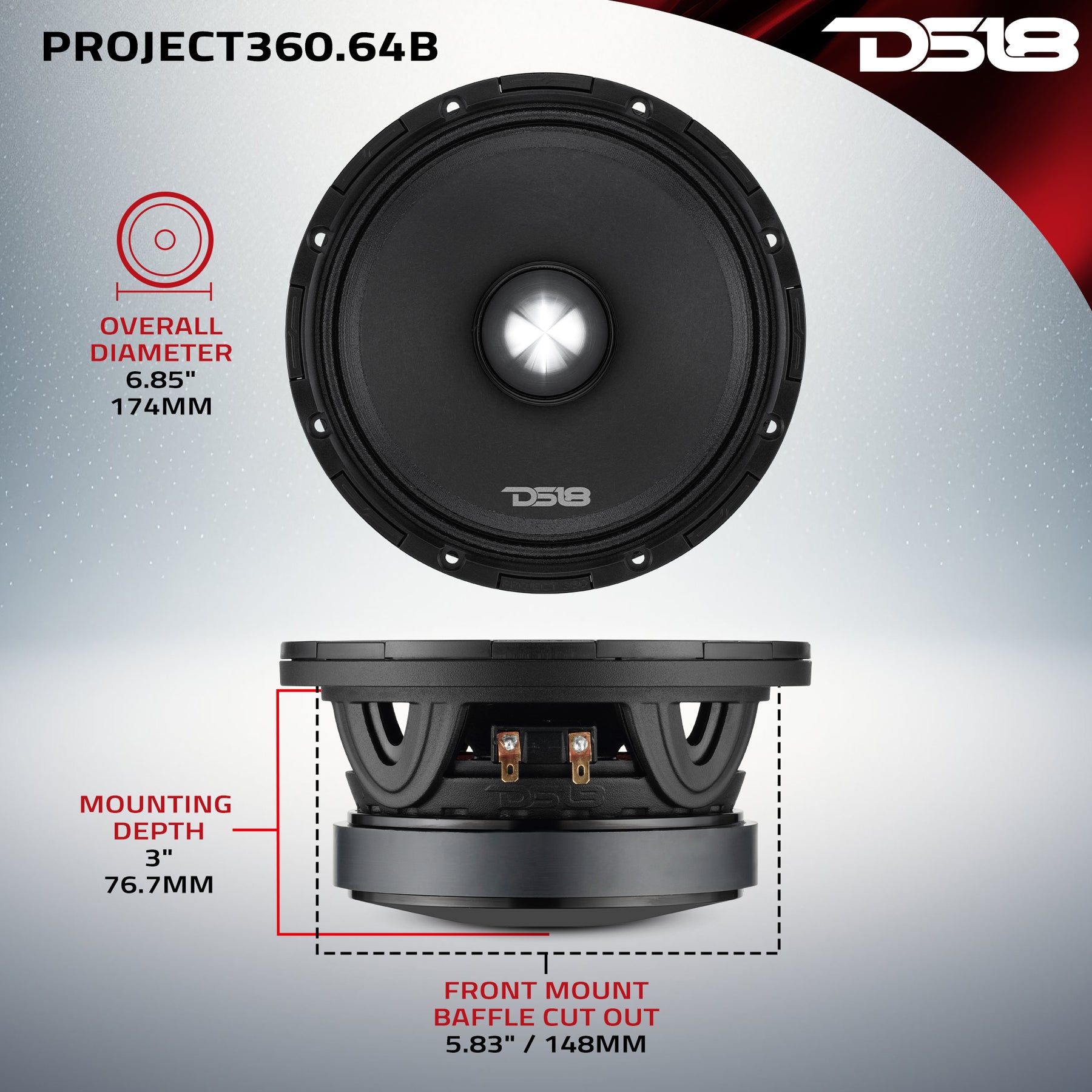

  • MEASUREMENT
  • Overall Diameter: 6.85" / 174mm
  • Overall Depth: 3.57" / 90.6mm
  • Front Mount Baffle Cutout: 5.83" / 148mm
  • Mounting Depth: 3" / 76.7mm
  • Motor Diameter: 5.5" / 140mm

R O T A T I N G   R E C O N E   D E S I G N

PROJECT360 PROJECT360.N PROJECT360.B
Speaker TypeMid-High Speaker TypeMid-High Speaker TypeMid-High
Speaker DesignDust Cap Speaker DesignDust Cap Speaker DesignSilver Bullet
Sizes6.5", 6X9", 8" Sizes6.5", 6X9", 8" Sizes6.5", 6X9", 8"
Magnet MaterialFerrite Magnet MaterialNeodymium Magnet MaterialFerrite
Impedance4 Ohms, 8 Ohms Impedance4 Ohms, 8 Ohms Impedance4 Ohms, 8 Ohms
Cone MaterialPaper Cone MaterialPaper Cone MaterialPaper
Voice Coil Size1.75" Voice Coil Size1.75" Voice Coil Size1.75"
Voice Coil Former MaterialKapton Voice Coil Former MaterialKapton Voice Coil Former MaterialKapton
Basket MaterialAluminum Basket MaterialAluminum Basket MaterialAluminum
Speaker TerminalsSpade Speaker TerminalsSpade Speaker TerminalsSpade
Improved Heat DissipationYes Improved Heat DissipationYes Improved Heat DissipationYes
Demodulating RingsYes Demodulating RingsYes Demodulating RingsYes
SPEC PROJECT360 PROJECT360.N PROJECT360.B
Speaker Type Mid-High Mid-High Mid-High
Speaker Design Dust Cap Dust Cap Silver Bullet
Sizes 6.5", 6X9", 8" 6.5", 6X9", 8" 6.5", 6X9", 8"
Magnet Material Ferrite Neodymium Ferrite
Impedance 4 Ohms, 8 Ohms 4 Ohms, 8 Ohms 4 Ohms, 8 Ohms
Cone Material Paper Paper Paper
Voice Coil Size 1.75" 1.75" 1.75"
Voice Coil Former Kapton Kapton Kapton
Basket Material Aluminum Aluminum Aluminum
Speaker Terminals Spade Spade Spade
Heat Dissipation Yes Yes Yes
Demodulating Rings Yes Yes Yes
COMPATIBLE RECONE MODEL
PROJECT360 6.5” Rotating Recone Replacement Kit for 4-Ohm Bullet Models Only

PROJECT360 6.5” Rotating Recone Replacement Kit for 4-Ohm Bullet Models Only

$34.95
Total $34.95

INNOVATIVE DESIGN, PREMIUM SOUND

The PROJECT360 Bullet Series

It isn't just louder, it's smarter with a focus on high output, clarity, and reliability. Designed for enthusiasts who demand powerful midrange and crisp highs, each bullet speaker delivers consistent sound quality whether you're building a daily system or pushing the limits in a high-performance setup.

Exclusive DS18 Technology

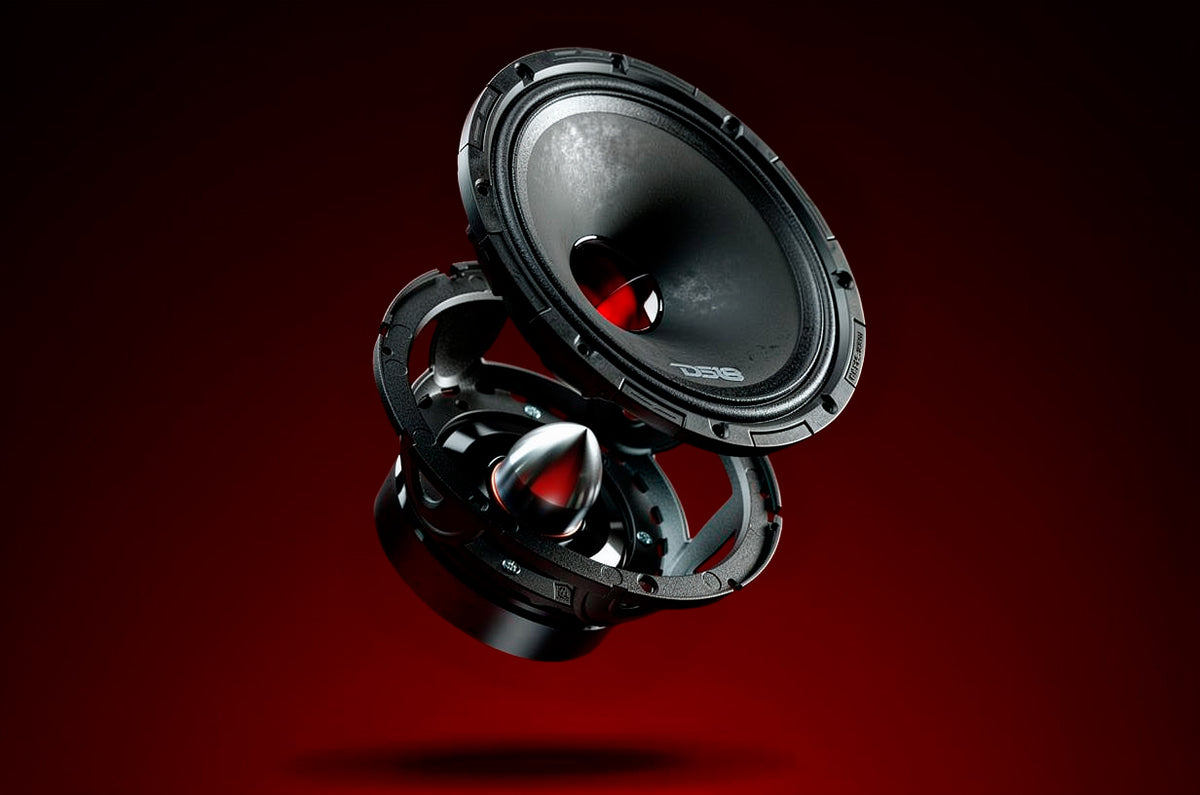

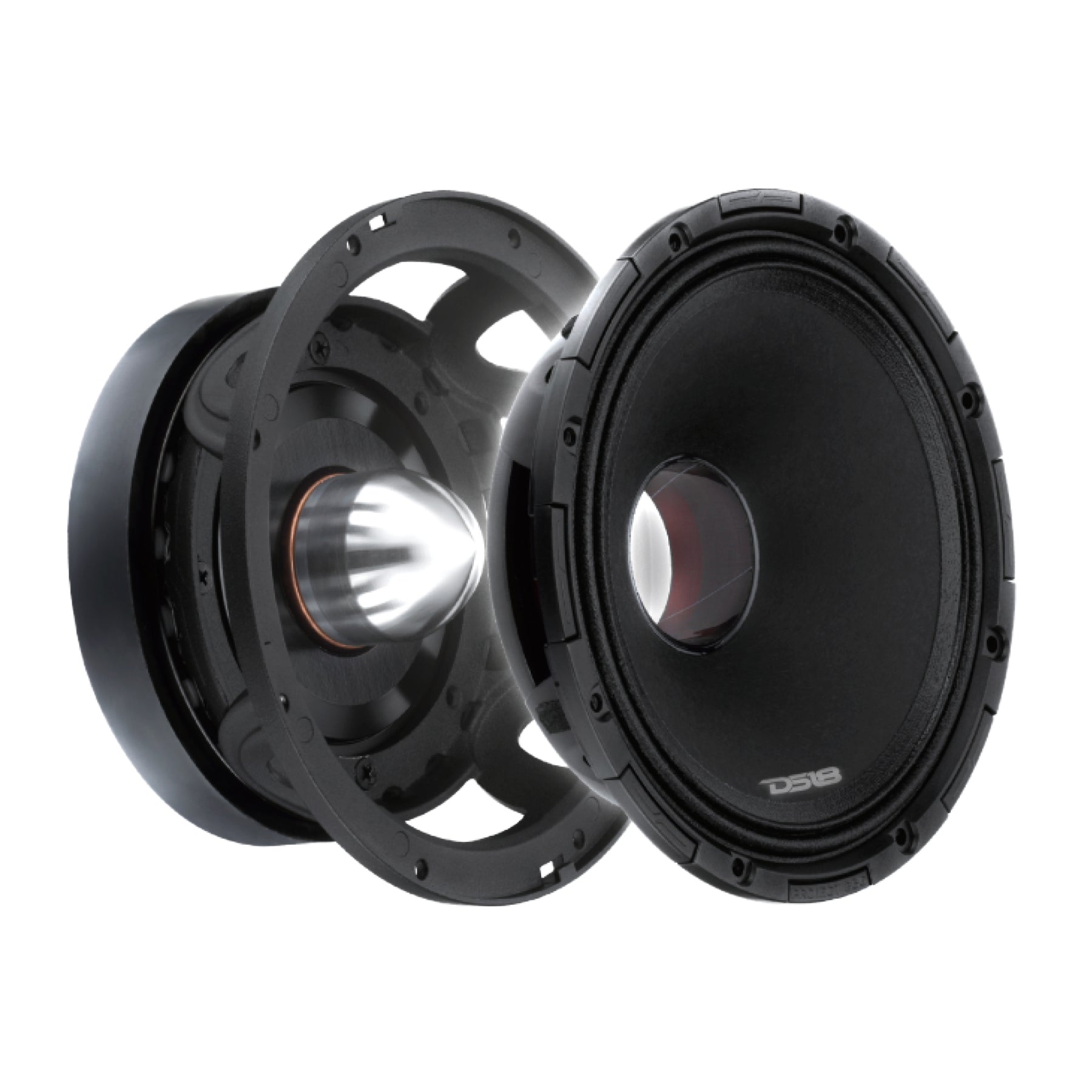

What sets PROJECT360 apart is its patent-pending Rotating Recone Design, an innovative, serviceable system that allows for quick and easy maintenance and repair. Built with durable materials and engineered for efficiency, you can spend more time enjoying your system and less time working on it.

KEY FEATURES

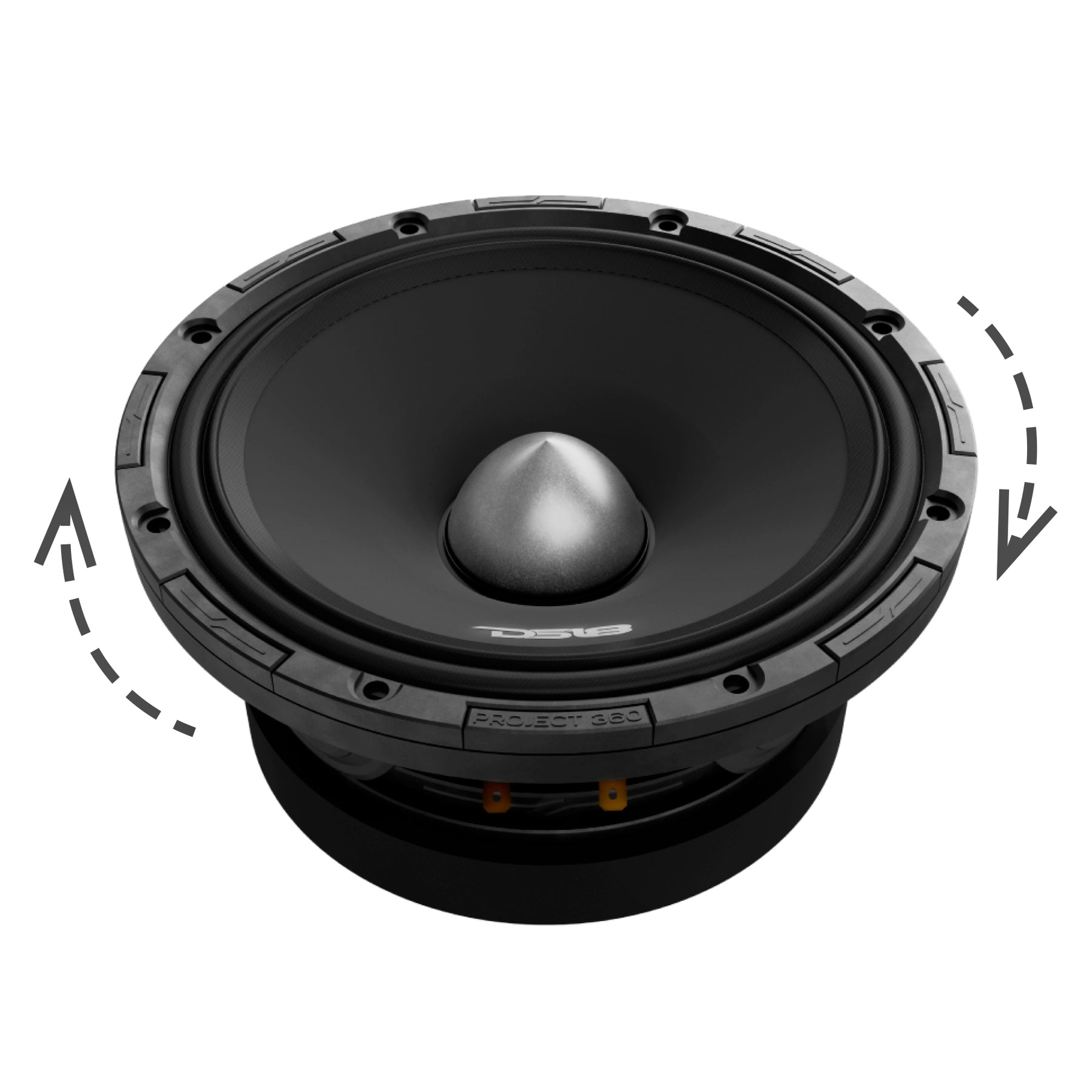

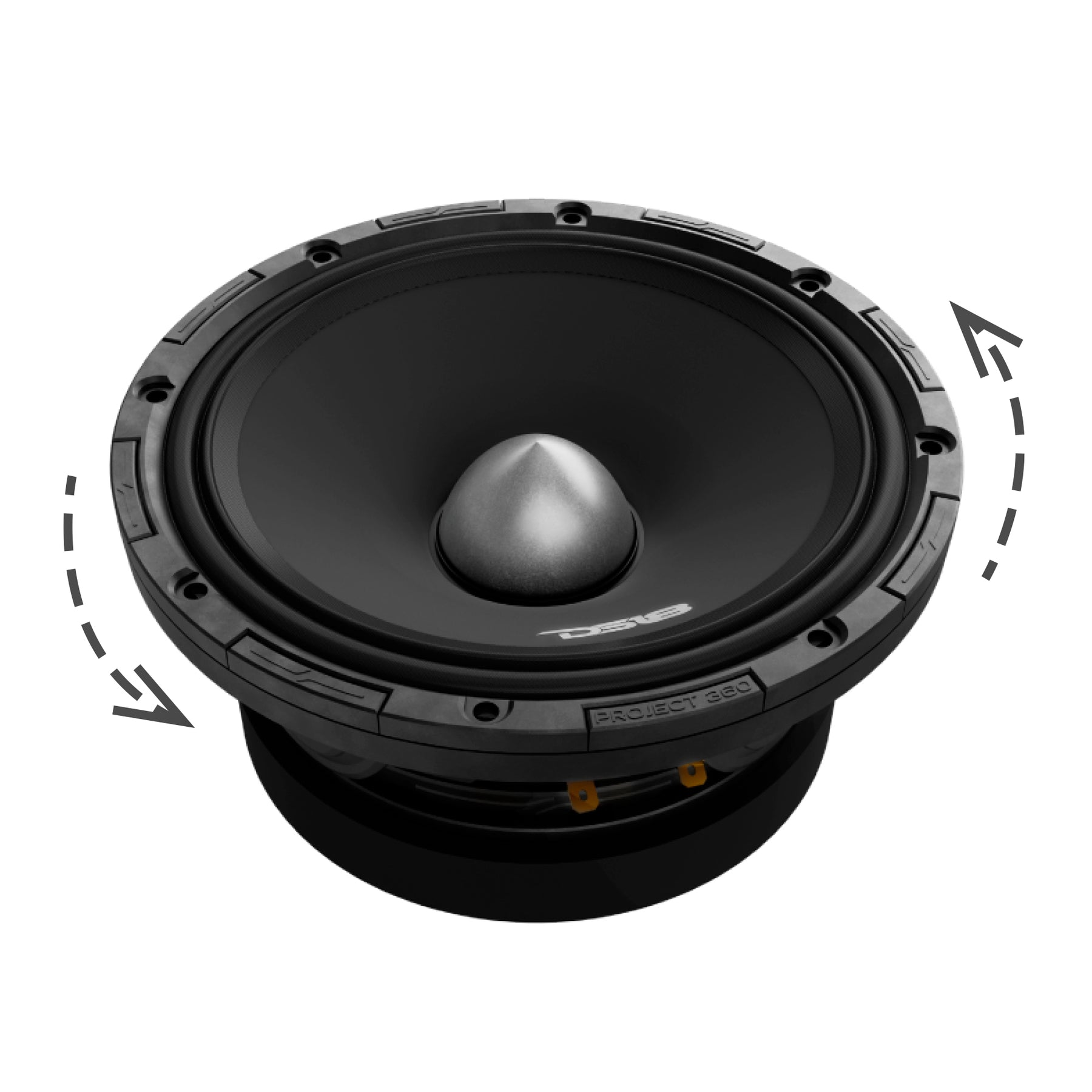

Patent-Pending Rotating Recone Design

Patent-Pending Rotating Recone Design

Designed for quick and easy replacement of the speaker’s moving components.

Crystal-Clear Highs

Crystal-Clear Highs

Clean vocal projection and enhanced sound reproduction with minimal distortion.

Competition-Level Output

Competition-Level Output

Impressive performance with minimal amplifier power.

No Glue. No Downtime.

No Glue. No Downtime.

The patent-pending rotating design eliminates the traditional glue curing process.

High Power Handling

High Power Handling

1.75” voice coil and carefully selected materials increase power handling while enhancing thermal management.

Efficient Bullet Design

Efficient Bullet Design

Aluminum basket and bullet design provide rigidity, improved heat dissipation, and clarity.

AS SEEN IN MAJOR NEWS OUTLETS

How PROJECT360 Is Changing the Game

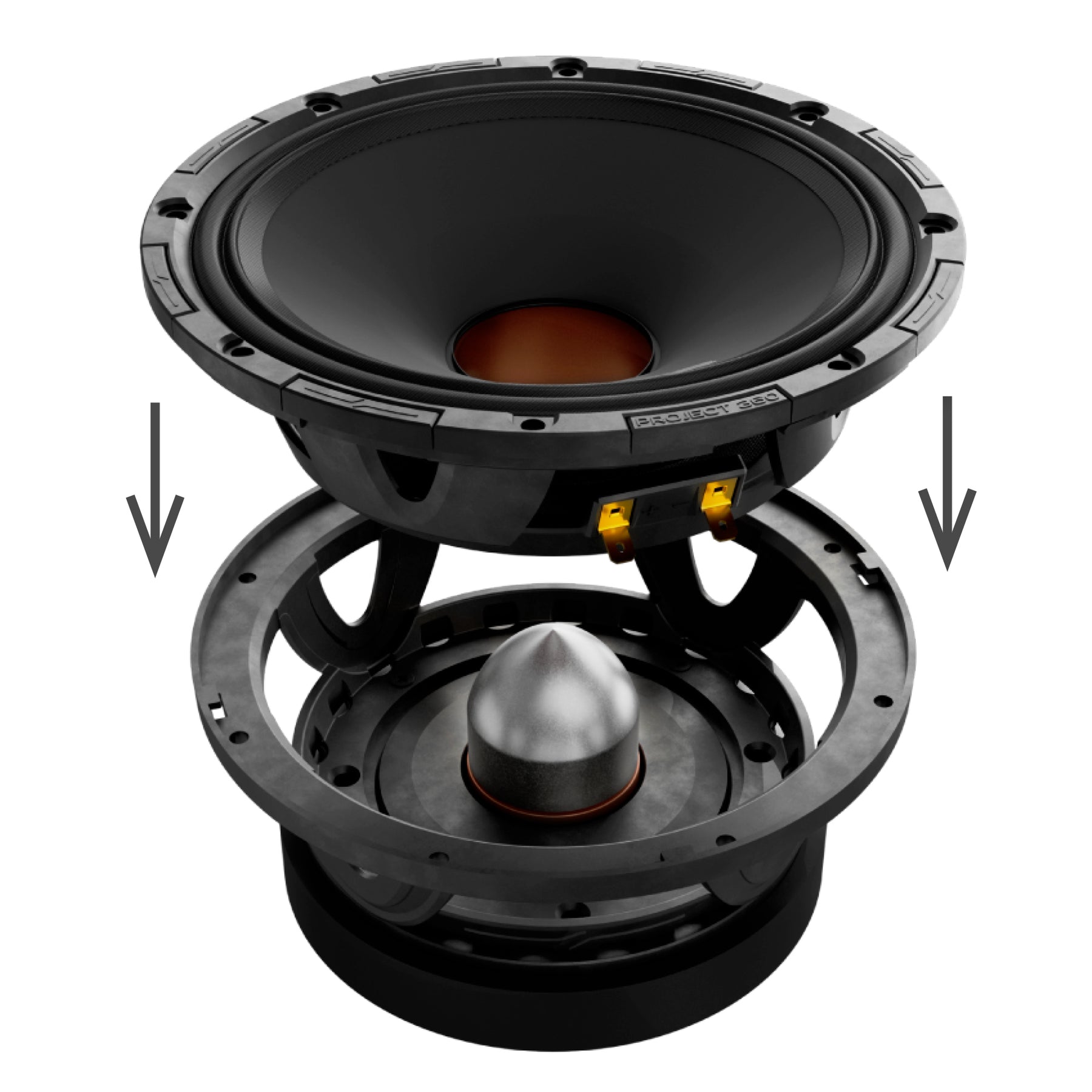

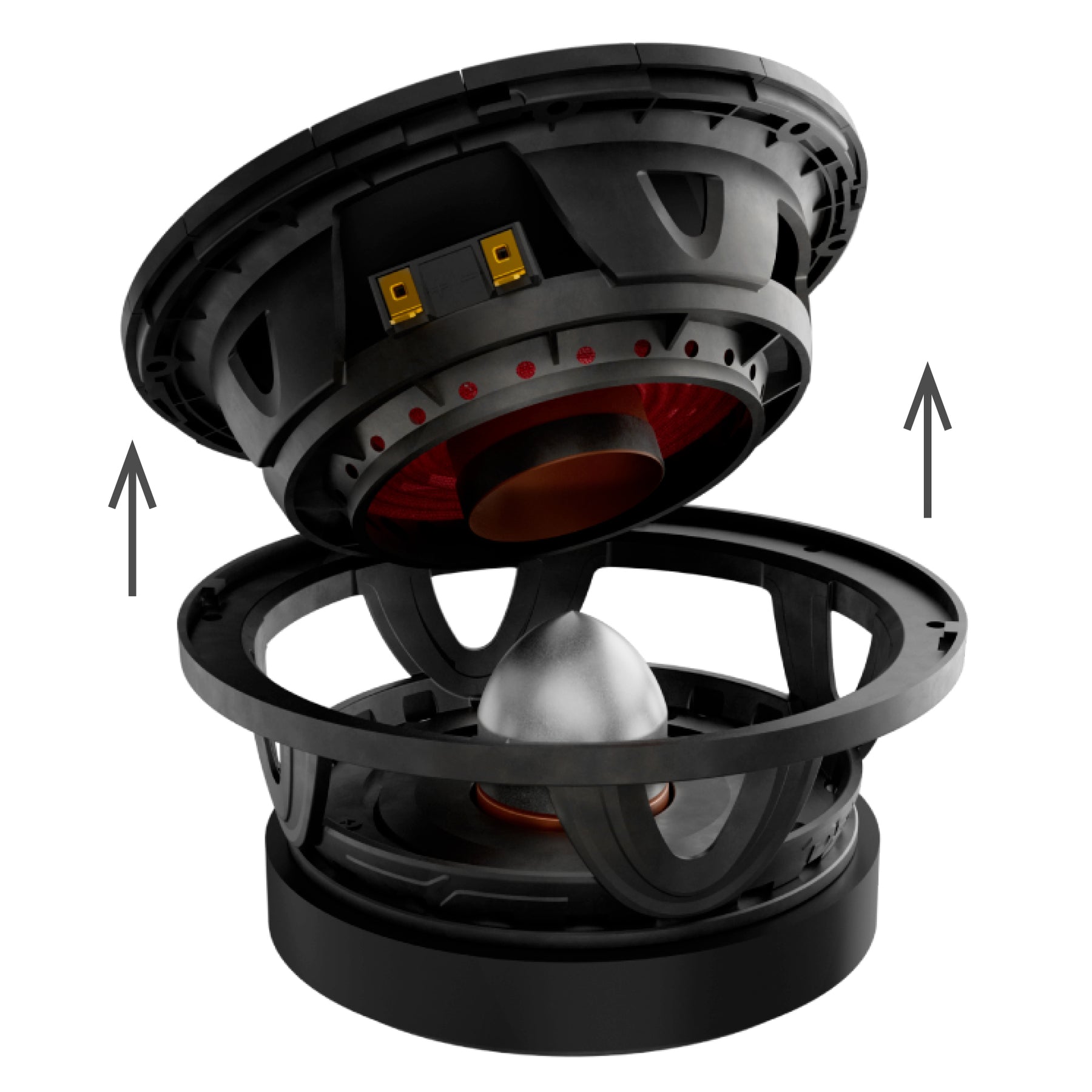

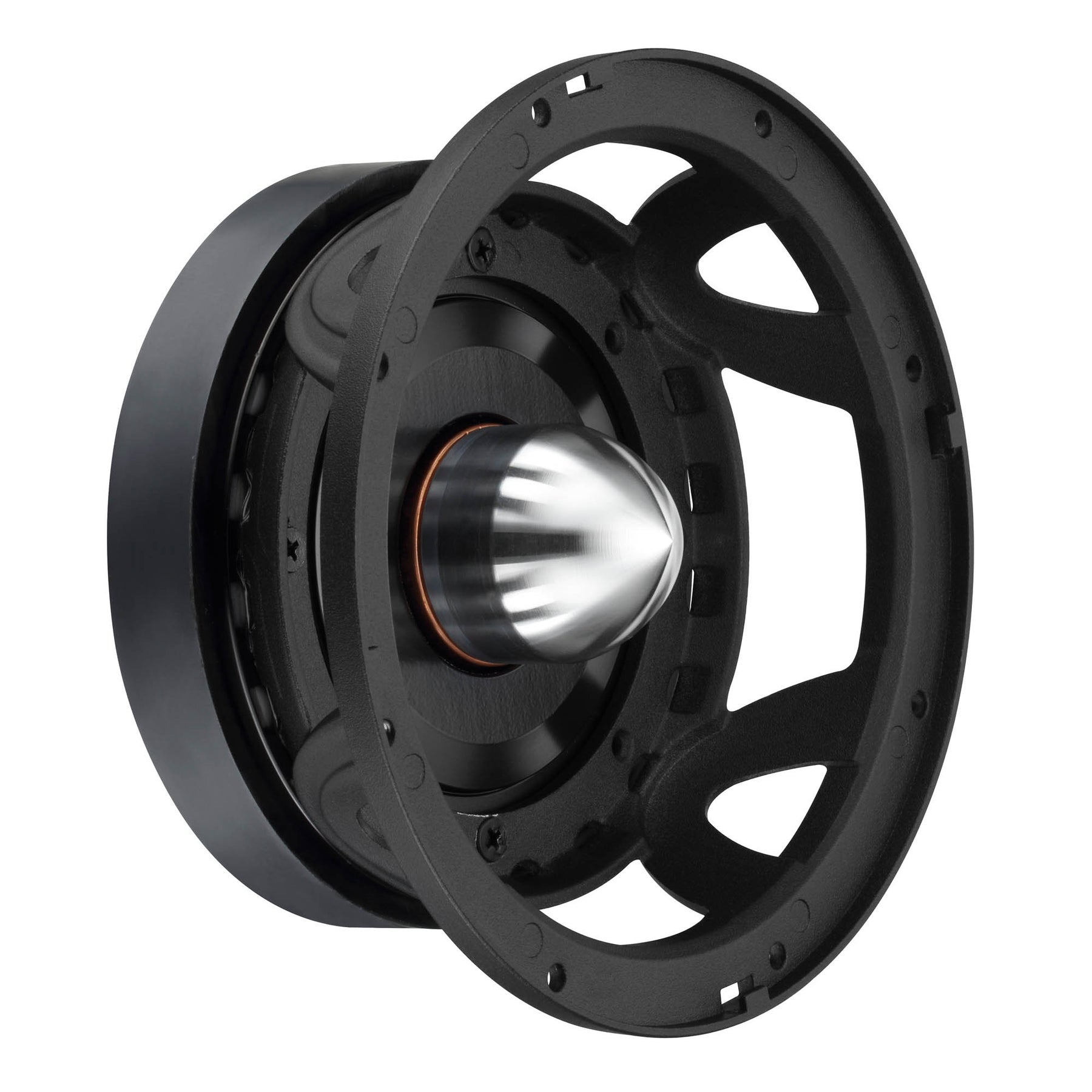

When you’re in the middle of an audio competition, every second counts. Traditionally, if you push your speaker past its limit, the repair process can take hours, even days. With PROJECT360, simply remove the damaged module, clean the basket, and install a new recone, quickly and efficiently, all on your own.

RECONE PROCESS COMPARISON

See Why the Pros are Switching to PROJECT360

Power for Every Build

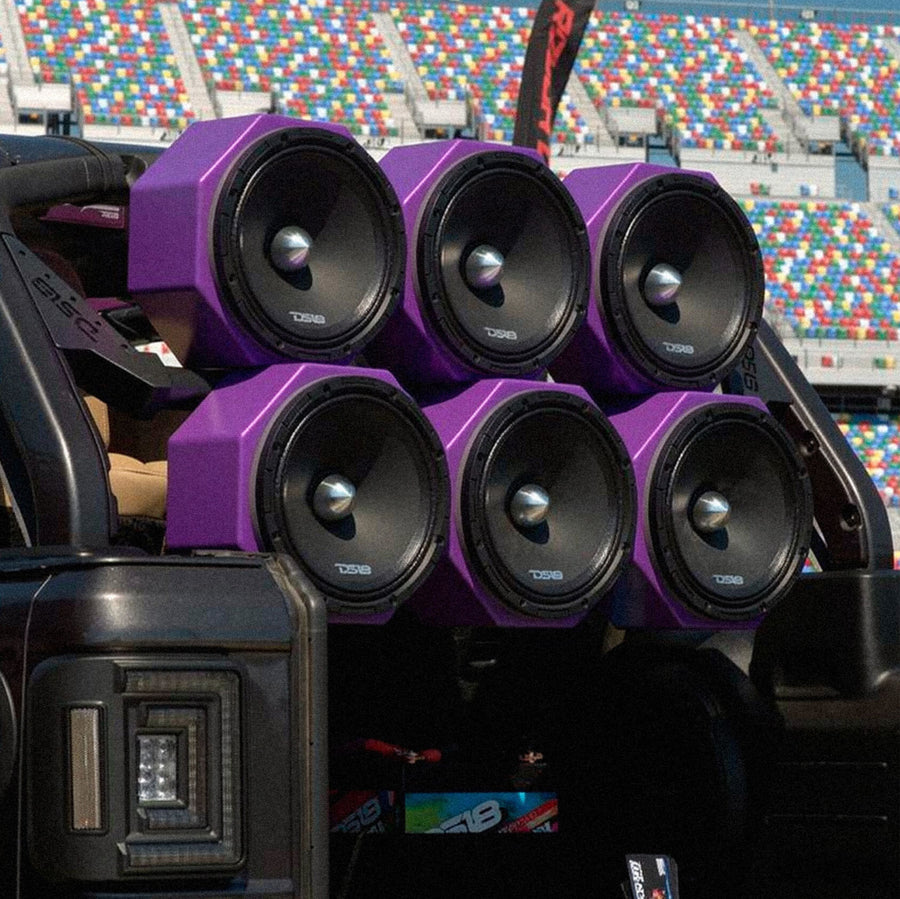

Whether you’re building a competition-grade wall or a lightweight motorcycle setup, we have the speaker to match your vision.

PROJECT360.B
Built for Power

Built for Power

The classic powerhouse. Maximum heat dissipation and reliable, heavy-hitting performance for traditional installs.
