PRO 5.25" Neodymium Full-Range Bullet Loudspeaker 200 Watts Rms 4-Ohm









PRO 5.25" Neodymium Full-Range Bullet Loudspeaker 200 Watts Rms 4-Ohm
Sale / EACH
Reg.
15% OFF FOR 4th of July Sale!
-
Key Features
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
PRO-FR5NEO
Nominal Diameter
5.25"
Nominal Impedance
4 ohms
RMS Power Handing
200 Watts
Maximum Power Handing
400 Watts
Sensitivity (1w/1m)
94 dB
Frequency Response
250Hz- 16KHz
Recommended Hi Pass Crossover
260 Hz
SPECS
Voice Coil Diameter
1.2" (30.5 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
5.52Oz
THIELE & SMALL PARAMETERS
Vas
0.722L / 0.025ft3
Xmax
6.7 mm
Fs
237Hz
Qms
7.158
Qes
0.619
Qts
0.569
Re
3.15 ohms
MEASUREMENTS
Overall Diameter
5.25" / 133.5 mm
Front Mount Baffle Cutout
4.64" / 118 mm
Mounting Depth
1.96" / 50 mm
Overall Depth
2.24" / 57 mm
Product Weight
2.14 lbs
Product Dimensions
7.25 x 7.25 x 2.75
M/C Weight
46 lbs
M/C Dimensions
22 x 15.5 x 12
M/C QTY
24
Sold In
Piece
-
Product Overview
Product Overview
DS18 PRO-FR5NEO 5.25” Neodymium Full-Range Loudspeaker With Bullet and Grill 400W 4-Ohm
Unleash the power of your music with the DS18 PRO-FR5NEO - a 5.25" neodymium full-range loudspeaker that is guaranteed to bring your music to life! With a staggering 400 watts of maximum power, this speaker delivers unparalleled volume and clarity that will transport you to a new dimension of sound.
The PRO-FR5NEO's high-powered neodymium magnet generates a much greater action force in the voice coil, providing a higher magnetic flux density in the air gap. As the strongest permanent magnet of all commercially available speakers, neodymium magnets are the perfect choice for those seeking simple perfection in sound.
Designed with DS18's signature attention to detail, the PRO-FR5NEO boasts a beautiful, tooled aluminum brushed accented basket and high-quality terminals that complement its sleek and modern design.
Additionally, the Silver Bullet integrated in this speaker’s design widens the higher range of frequencies it reproduces bringing you a fuller range of frequencies to blast. With a frequency response of 250Hz - 16KHz, an impedance of 4 Ohms, and a sensitivity of 94 dB, the PRO-FR5NEO provides crystal-clear audio with no distortion. Its cloth edge surround, aluminum frame, and non-pressed paper cone ensure the highest quality materials for the best possible sound.
Don’t settle for less, get the best with the PRO-FR5NEO.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
PRO 5.25" Neodymium Full-Range Bullet Loudspeaker 200 Watts Rms 4-Ohm

Related products
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
Size:
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
Size:
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
Size:
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Neodymium Magnet
- 96dB ~ w/Grill
- Refurbished
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Neodymium Magnet
- 96dB ~ w/Grill
- Refurbished
Size:
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
Size:
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
Size:
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
Size:
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Neodymium Magnet
- 96dB ~ w/Grill
- Refurbished
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Neodymium Magnet
- 96dB ~ w/Grill
- Refurbished
Size:
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
Size:
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
- 5.25" Full-Range w/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4 Ohm
- Neodymium Magnet
- 94dB ~ w/Grill
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB ~ w/Grill
Size:
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
- 6X9" Full-Range W/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 98dB ~ w/Grill
Size:
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
- 8" Full-Range w/Bullet
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 99db ~ w/Grill
Channel:
Power Rating:
Size:
Condition:
Color:
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Neodymium Magnet
- 96dB ~ w/Grill
- Refurbished
- 6.5" Full-Range w/Bullet
- MAX Power: 450 Watts
- RMS Power: 225 Watts
- Neodymium Magnet
- 96dB ~ w/Grill
- Refurbished
Speakers sound amazing! Just wished I had a mini marine ds18 amplifier to go with it.
Man these speaker are insane. I installed them on my Harley. In some speaker pods on the crash bars. Man I can hear these clear as day at 80+mph. I can hear them over my Bassani fish tails! Which is insane super pleased and worth the money!

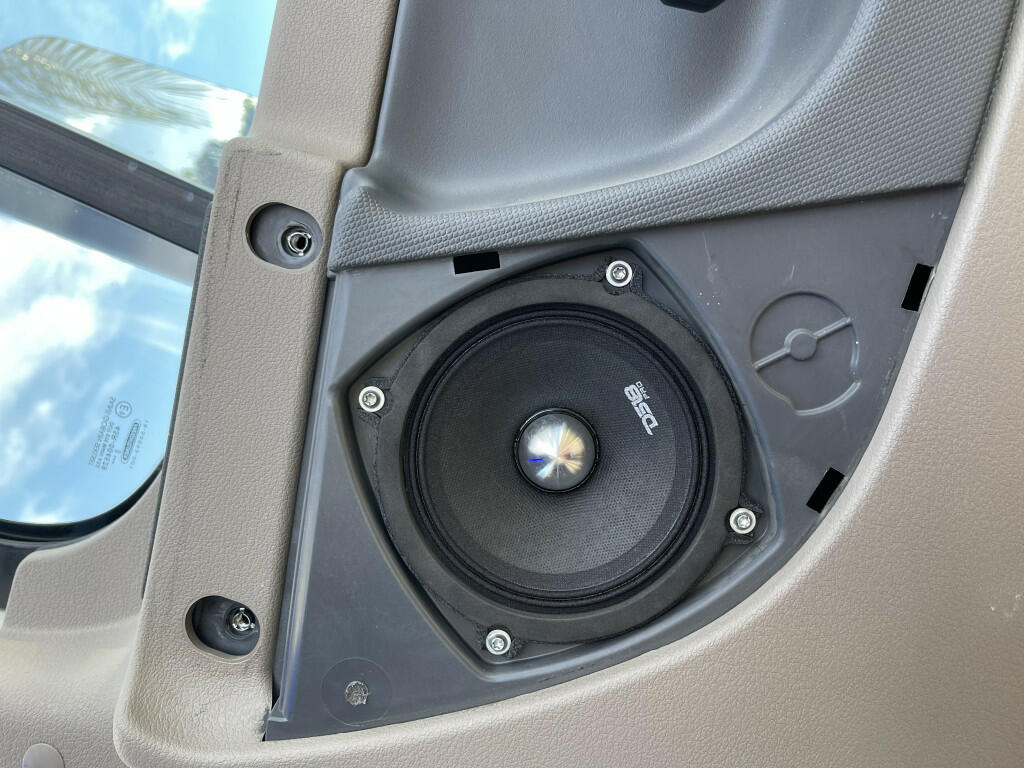

This speaker and super loud . I purchased them for my 2008 Chevy single cab wow I’m super happy with my purchased.
