NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm
NEW ARRIVAL
NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm
NEW ARRIVAL
Sale $305.96 / PAIR
Reg.$359.95
15% OFF FOR MOVING SALE!
-
Key Features
- 6.5" 2-Way Marine Speaker
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 95dB
- Ferrite & Neodymium Magnets
- Digital LED Lighting
- White ~ Water Resistant IP65
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessGeneral
SpecificationsSKU
NXL-IQ6/WH
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz-20KHz
Number of Ways
2-Ways
Recommended High-Pass Crossover
60Hz
Sold in Pair or Single
Pair
Body
FeaturesUV Protection
Yes, 100% Stable
Marine Grade Type
IP65
LED Lights
Yes, Digital LED integrated (behind cone)
Digital LED Connection Type
12V & Digital IN/OUT terminal
Digital LED Chip Type
1815S
Grill Type
Injection Molded Composite ASA with UV Protection coating
Color / Finish
White
Woofer
SpecificationsVoice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
PPI
Dust Cap Material
PPI
Surround Material
Rubber
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
13 oz + 1.1 oz
Tweeter
SpecificationsType
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 oz
Thiele
Small ParametersEquivalent Volume Vas
3.15L / 0.11ft3
Excursion (one way) Xmax
3mm
Free Air Resonance Fs
94Hz
Mechanical Factor Qms
7.497
Electrical Factor Qes
1.205
Total Factor Qts
1.038
Moving Mass Mms
16.603 g
Compliance Cms
0.1679 mm/N
Bl Factor BI
5.138
Voice Coil Inductance Le
1.4 mH
Diaphragm Area Sd
114.99cm2
DC Resistance Re
3.3 Ohms
Efficiency Bandwidth Product EBP
78.8
Speaker
MeasurementOverall Diameter
7" / 177mm
Overall Depth
3.75" / 95mm
Front Mount Baffle Cutout
5.3" / 135mm
Mounting Depth
2.5" / 63mm
Motor Diameter
3.75" / 95mm
-
Product Overview
Product Overview

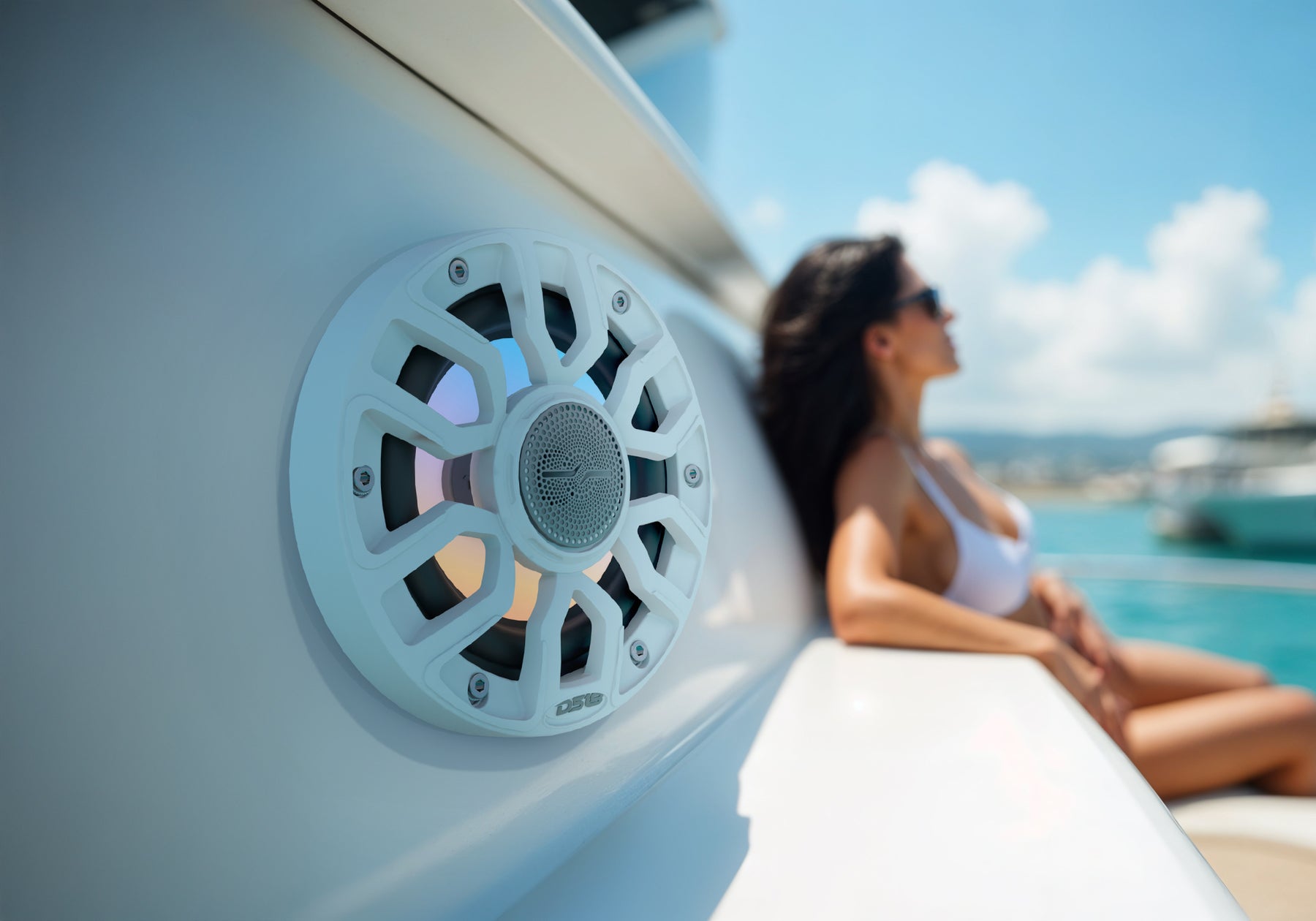

NXL-IQ6 6.5" Marine Grade Coaxial Speaker with LED Lights and Bullet Tweeter
DS18’s NXL-IQ6 redefines marine-grade audio. Crafted for outdoor environments, these 6.5” coaxial speakers deliver 150W RMS and 300W MAX of crisp, full-bodied sound that cuts through open air easily. Its IP65 water-resistant and UV-protected construction means the IQ’s holds up where others fall short.
Intelligent Design with True Two-Way Sound
The NXL-IQ6 features a floating 25mm bullet tweeter seamlessly integrated into the grille, working in tandem with a dynamic mid-bass woofer to deliver detailed mids and highs up to 20KHz. Each speaker includes a high-quality injection-molded polypropylene cone with UV protection, and durable soft rubber surround. A 4-ohm impedance ensures system flexibility, while the 95dB sensitivity gives it the volume and presence serious audio junkies crave.Complete Your System
This speaker is sold in pairs and includes stainless steel mounting screws, waterproof terminals, and protective silicone covers for a clean and professional install. Digital RGB LEDs are integrated directly into the speaker and grill, ready to sync with your vibe using DS18’s LC-DRM controller and app (sold separately).Boost your marine experience with the NXL-IQ6—because high-quality audio should be enjoyed anywhere!
Disclaimer: The BT Digital LED Control Module (LC-DRM) is required to operate multifunctional digital RGB-LED lighting. The lights will not function without this module.
