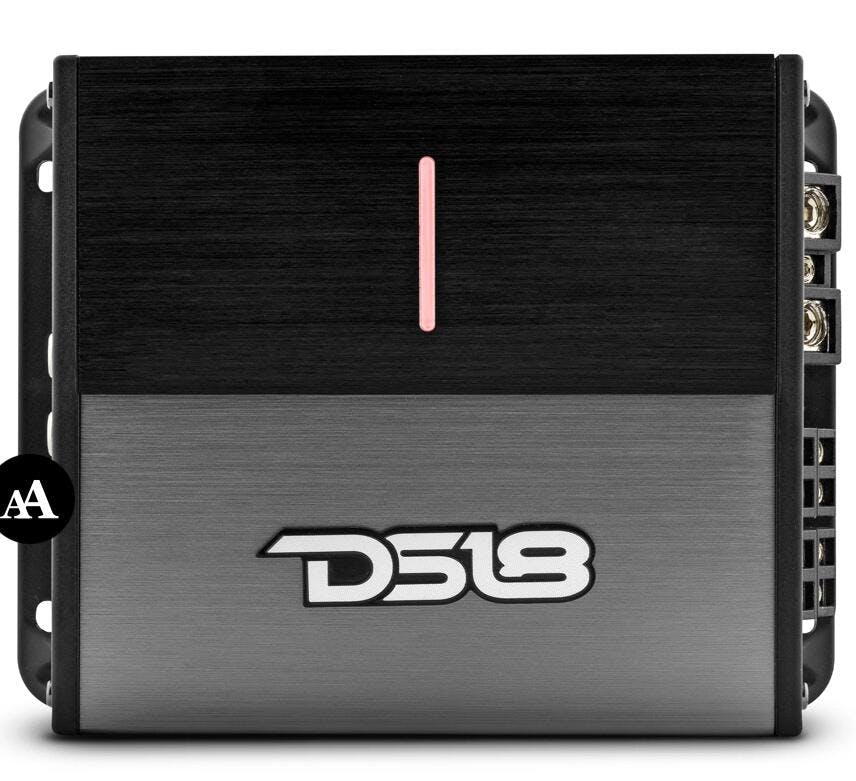

ION Compact Full Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm
ION Compact Full Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm
Sale $254.96 / EACH
Reg.$299.95
15% OFF FOR MOVING SALE!
Channel: 4-Channel
Power Rating: 4 x 150W RMS
Availability:668 Items
-
Key Features
- 4 Channel Full Range
- Class D
- 2 - 4 Ohm Stable
- 4 X 150 Watts @ 4 Ohm
- Power / Clip / Protection Indicator
- Compact
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
ION1000.4D
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
4 x 150W
RMS Power @ 2 ohm
4 x 250W
RMS Power @ 1 ohm
N/A
RMS Power @ 4 ohm Bridge
2 x 500W
Audio
Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
59dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
LPF/HPF/FULL
X-Over Filter Range
40Hz-2KHz
Bass Boost Range
NO
Bass Boost Frequency
45Hz
Features
Amplifier Class
Digital
Amplifier Type
Full-Range Stereo
Number of Channels
4
Minimum Impedance
2 Ohm (St) / 4 Ohms (Bridge)
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
4 AWG
Fuse Size
80A (external)
Remote Level Control
No
Cooling Fan
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver
Extra Features
Hi-Level Speaker connector
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
High Efficiency Micro Digital Design
Yes
Measurement
Overall Length
6.14" / 156mm
Overall Wide
4.72" / 120mm
Overall Height
2" / 52mm
Heatsink Length
4.84" / 123mm
Gross Single Unit Weight
0.8Kg
-
Product Overview
Product Overview
DS18 ION1000.4D Introducing DS18’s ION1000.4D, the perfect digital micro amplifier addition to your car audio system for boosting performance ensuring a premium listening experience!
Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION1000.4D’s miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.
The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies. Fine tune these levels with the convenient remote level knob control!
Surface mount component technology makes this amplifier highly resistant to vibrations, ensuring stable performance even on rough terrain. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.
Safety was a top priority in the creation of DS18’s ION1000.4D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.
The ION1000.4D has power ratings of 2 X 500W at 4-ohm bridged, 2 x 250W at 2 ohms, and 4 x 150W at 4 ohms; perfect power ratings to turbocharge every component in your system!
Experience the power and precision of DS18’s ION1000.4D!
