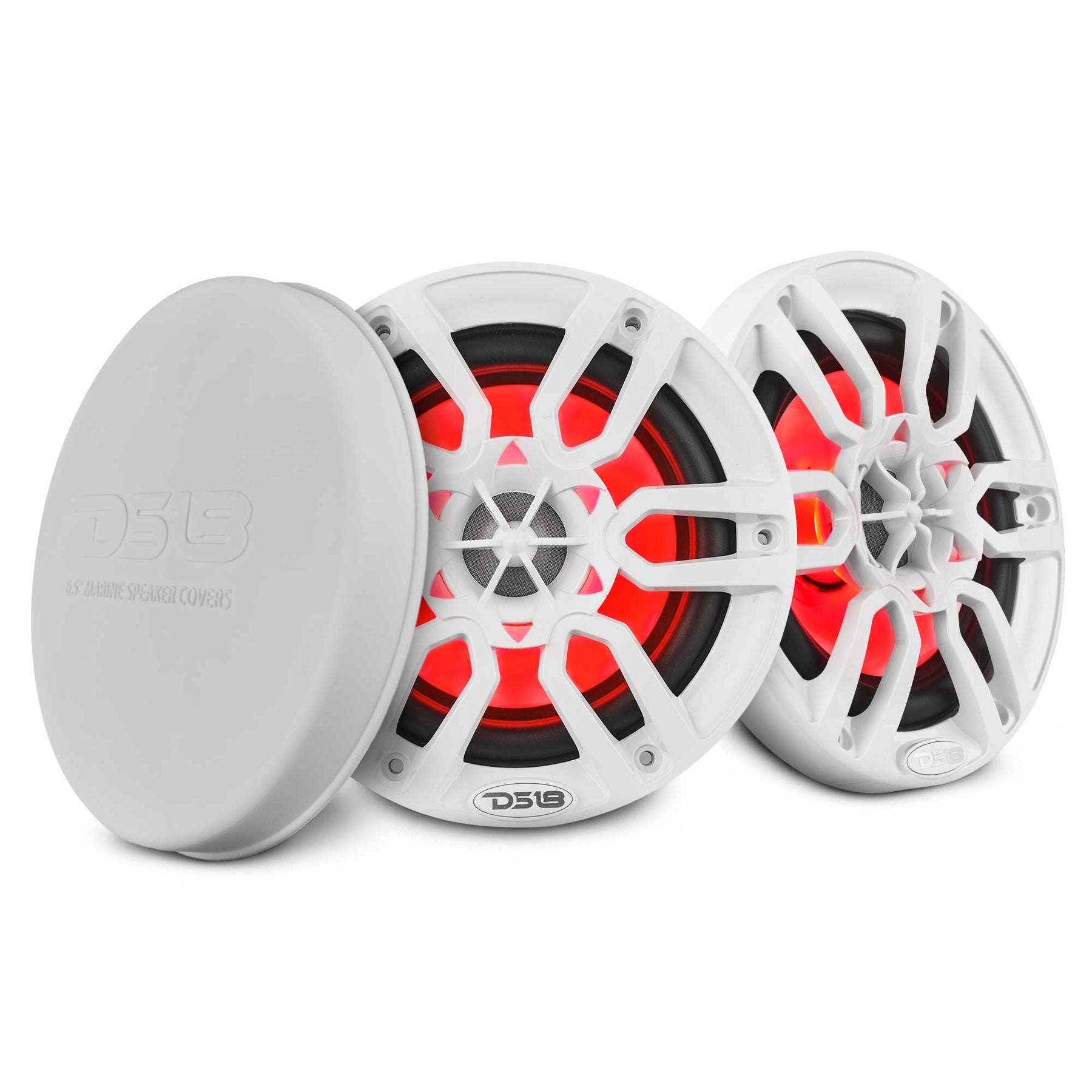

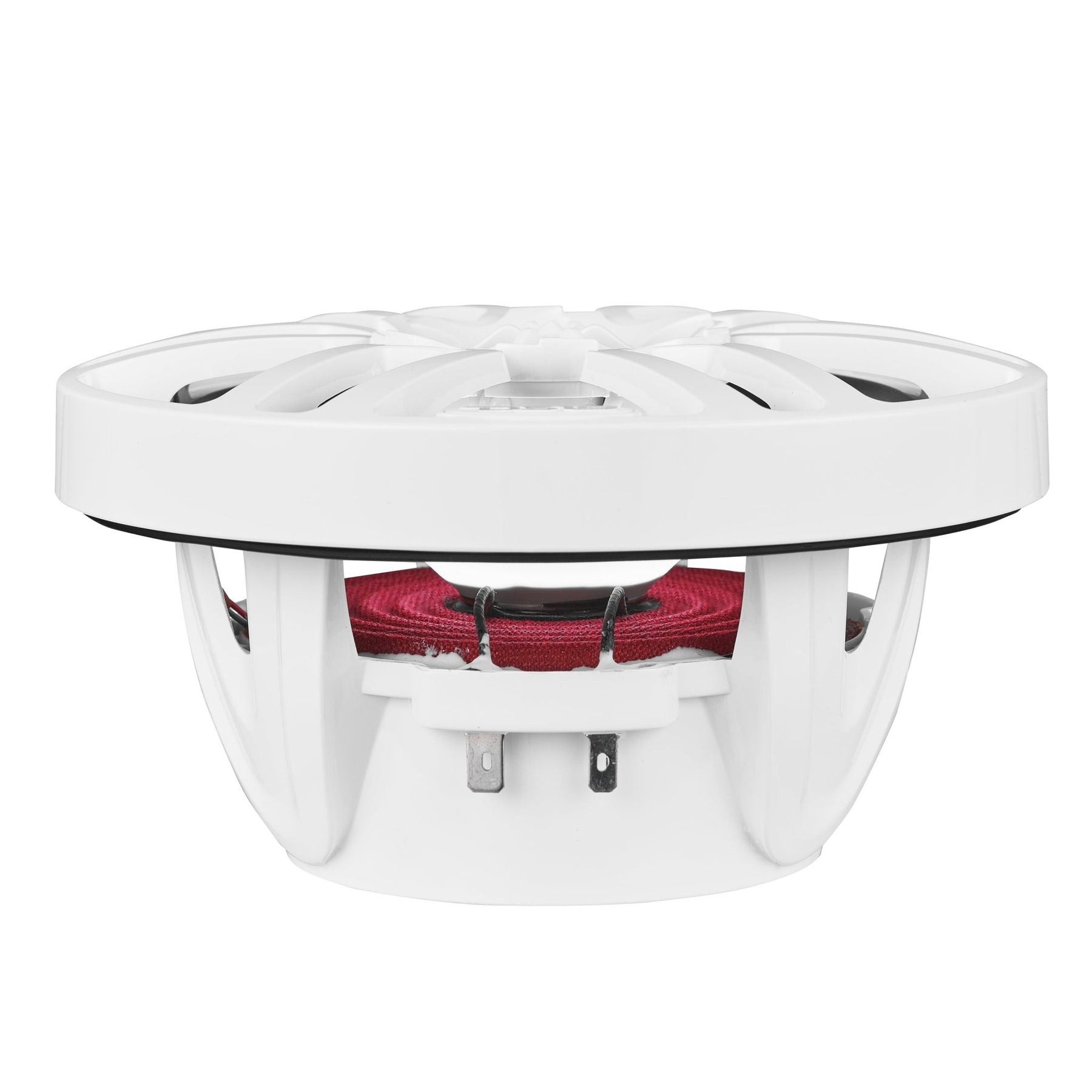

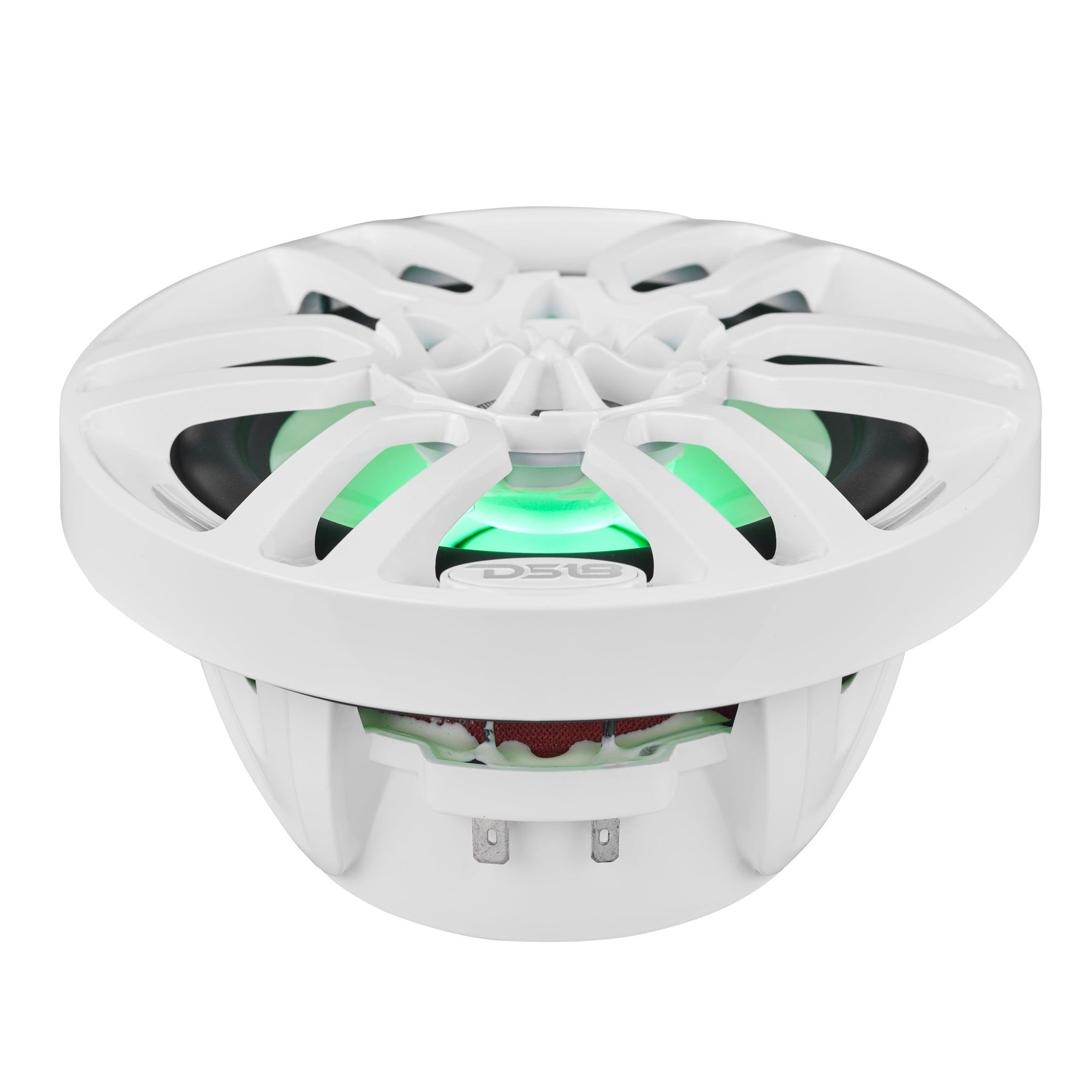

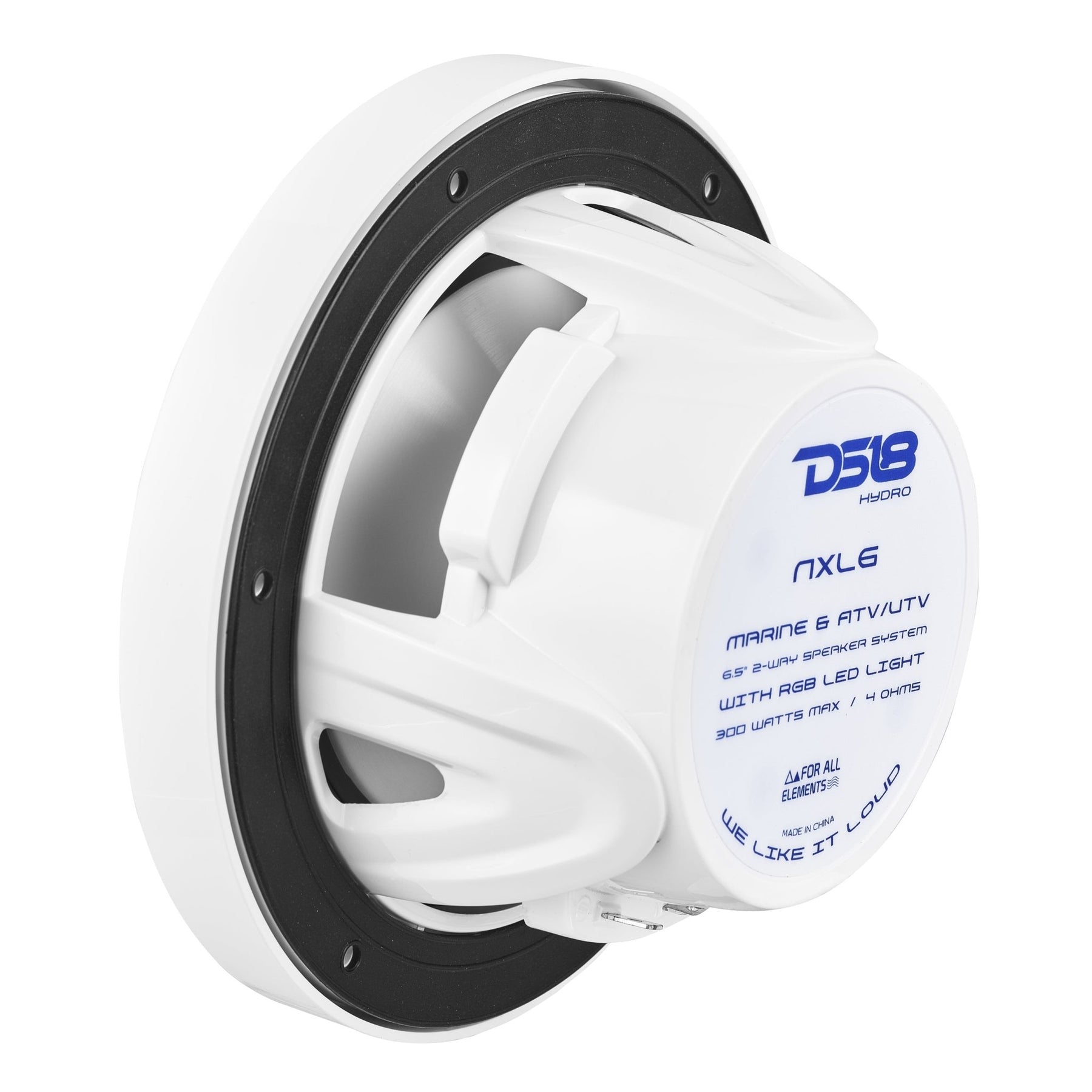

NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White

SKU: NXL-6
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White
NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White

NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - White

SKU: NXL-6

Sale price$233.95
/PAIR
Ships Free Next Business Day From Miami, FL, USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Color: White

Black
White

:

Color:

Quantity:
  • Key Features

    • 6.5" 2-Way Marine Speaker
    • RMS Power: 100 Watts / 4-Ohm
    • Ferrite & Neodymium Magnets
    • RGB LED Light
    • Water Resistant IP65

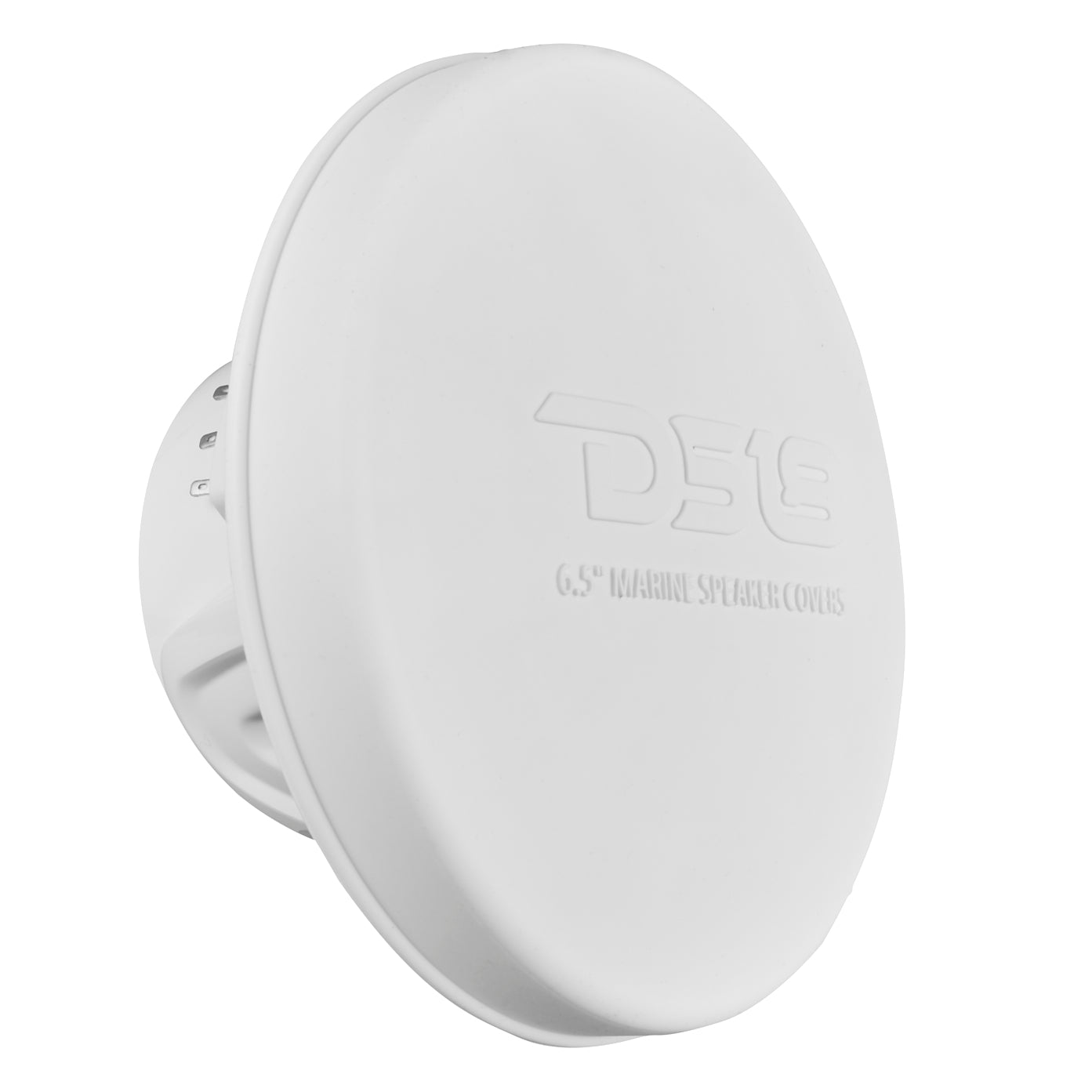

    • Silicone Covers Included
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    NXL-6/WH
    Nominal Diameter
    6.5" / 165mm
    Nominal Impedance
    4 Ohm
    RMS Power Handling
    100W
    MAX Power Handling
    300W
    Sensitivity (1w/1m)
    91dB
    Frequency Response
    45Hz-23KHz
    Recommended HI Pass Crossover
    65 Hz

    Body / Features

    UV Compliant
    Yes, 100% Stable
    Marine Grade Type
    IP65
    RGB LED
    Yes, RGB integrated
    Grill Type
    Injection Molded Composite ASA with UV Protection coating
    Pair
    Yes
    Color / Finish
    Glossy White

    Woofer Specifications

    Voice Coil Diameter
    1.2" / 30.5mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Injection Molded Polypropylene + UV Compliant
    Surround Material
    Butyl (Rubber)
    Basket Material
    High Temp Injection Molded Composite with UV Protection coating
    Magnet Material
    Ferrite+Neodymium
    Magnet Weight
    14oz + 0.32oz

    Tweeter Specifications

    Nominal Diameter
    1" / 25.4mm
    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Titanium + PEI Surround
    Magnet Material
    Neodymium (N38H)
    Magnet Weight
    0.54oz

    Thiele & Small Parameters

    Equivalent Volume Vas
    20L / 0.708ft3
    Excursion (one way) Xmax
    8.5 mm
    Free Air Resonance Fs
    75Hz
    Mechanical Factor Qms
    7.823
    Electrical Factor Qes
    1.057
    Total Factor Qts
    0.931
    Moving Mass Mms
    4.122g
    Compliance Cms
    1.081mm/N
    Bl Factor Bl
    2.41
    Voice Coil Inductance Le
    0.543mH
    Cone Area Sd
    114.99cm2
    DC Resistance Re
    3.14 ohms
    Efficiency Bandwidth Product EBP
    70.9

    Speaker Measurement

    Overall Diameter
    6.94" / 176mm
    Overall Depth
    3.72" / 94.4mm
    Front Mount Baffle Cutout
    5.31" / 135mm
    Mounting Depth
    2.5" / 63.5mm
    Motor Diameter
    3.54" / 90mm
    Gross Single Unit Weight (lb)
    7
    Single Unit Box Dimensions W x L x H (Inches)
    106.5 x 8.75 x 4.75
    Quantity of Units in Master Carton
    4
    Gross Master Carton Weight (lb)
    30.5
    Master Carton Dimensions W x L x H (Inches)
    19.75 x 17.25 x 9.75

    Load More
  • Product Overview

    Product Overview

    DS18 NXL-6/WH

    Marine-Grade 6.5” Coaxial Speakers with RGB Lights

    The NXL-6 is designed for extreme environments. With an IP65 rating and UV-coated ASA grills, these coaxial speakers are built to handle the toughest abuse. A high-temp injection-molded composite frame and added silicone cover ensure long-term durability, even in the harshest rides.

    Clean Power That Cuts Through Anything
    At 100W RMS and 300W MAX, the NXL-6 delivers crystal-clear output. A Y35 ferrite magnet combined with reverse neodymium technology drives strong mids and deep detail, while the 25mm titanium dome tweeter adds crisp highs that cut through all noise.

    True 2-Way Design for Full-Range Sound
    The integrated two-way system gives you balanced sound across the full frequency range. Built with a 4-ohm voice coil and engineered for 91dB sensitivity, the NXL-6 maximizes volume and clarity without demanding a massive amp.

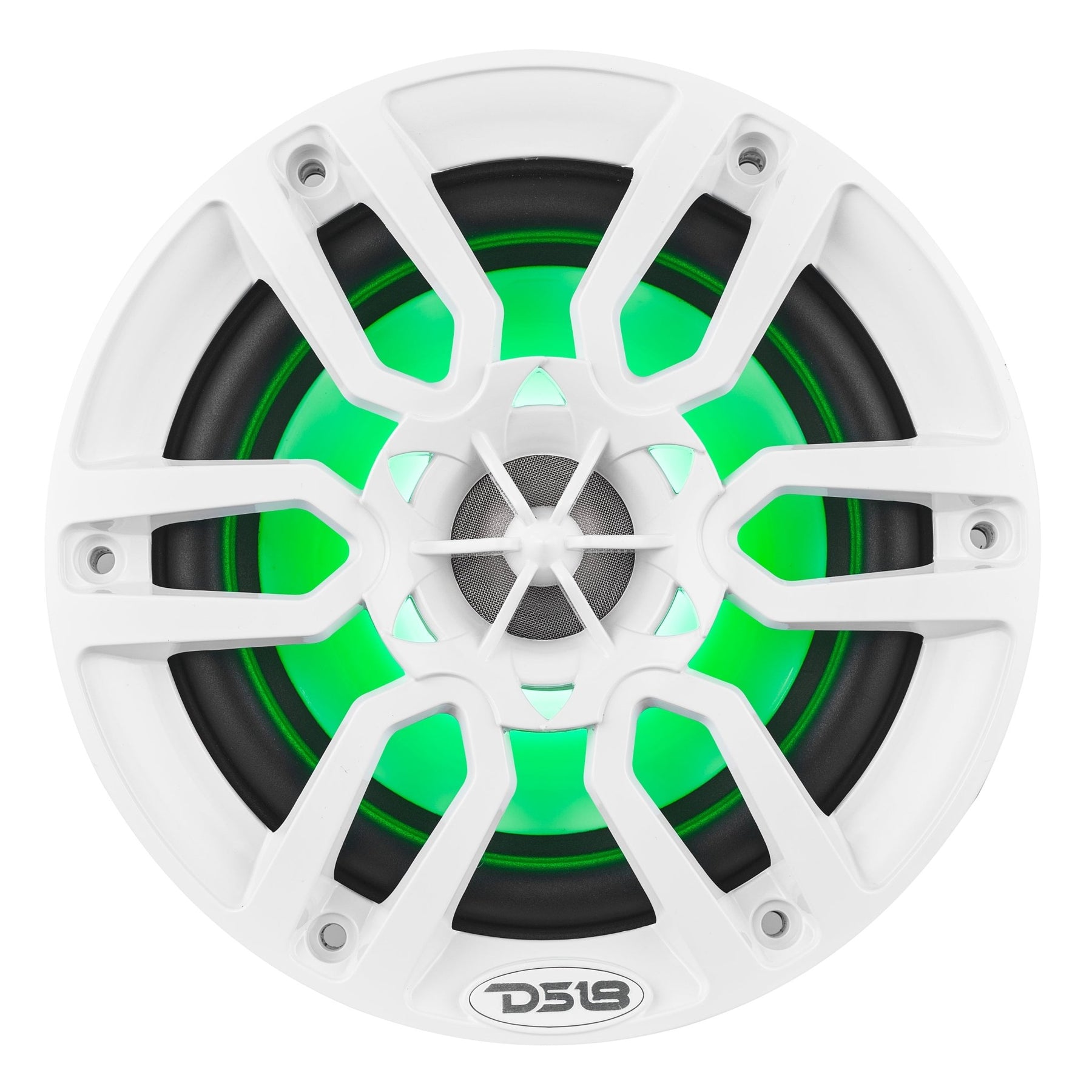

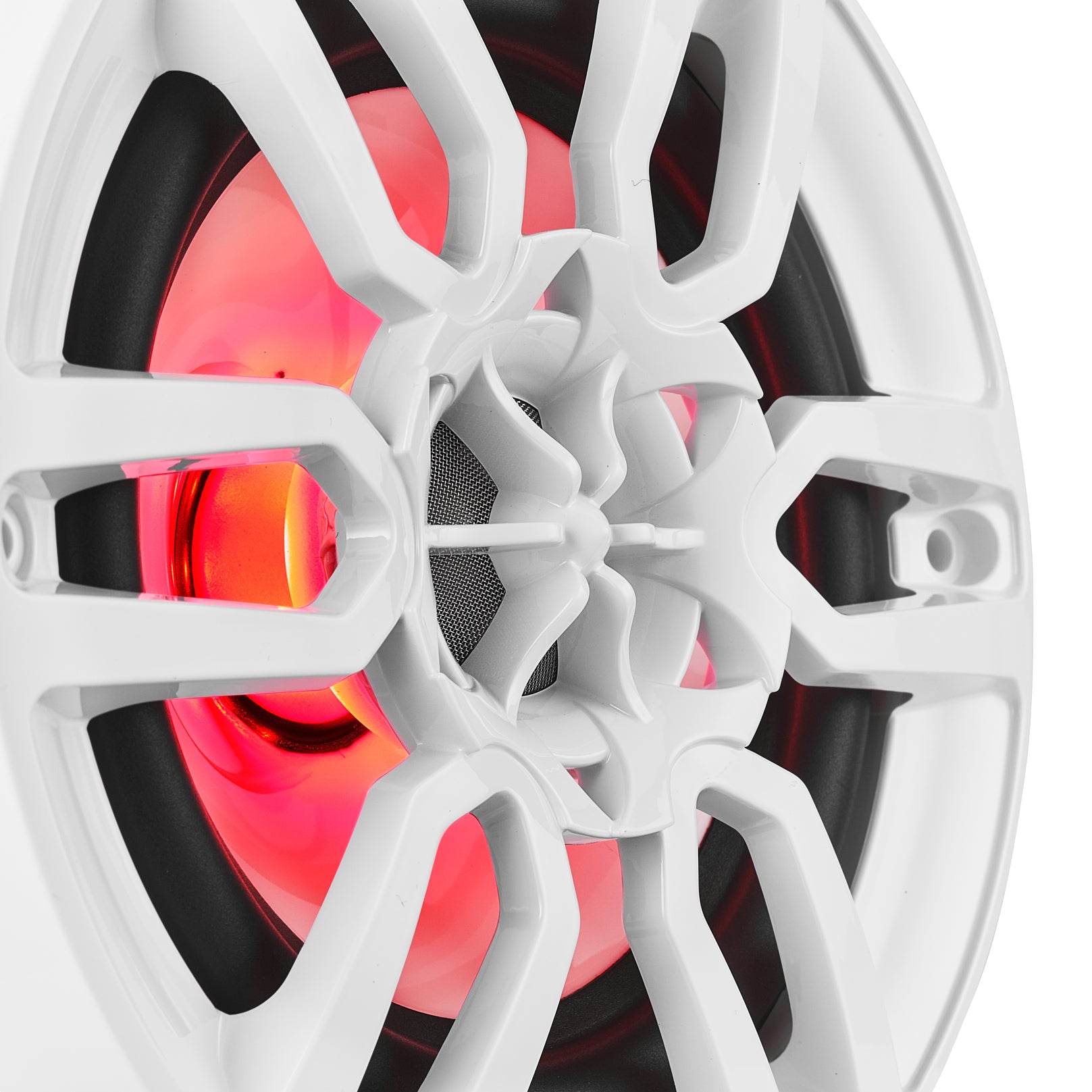

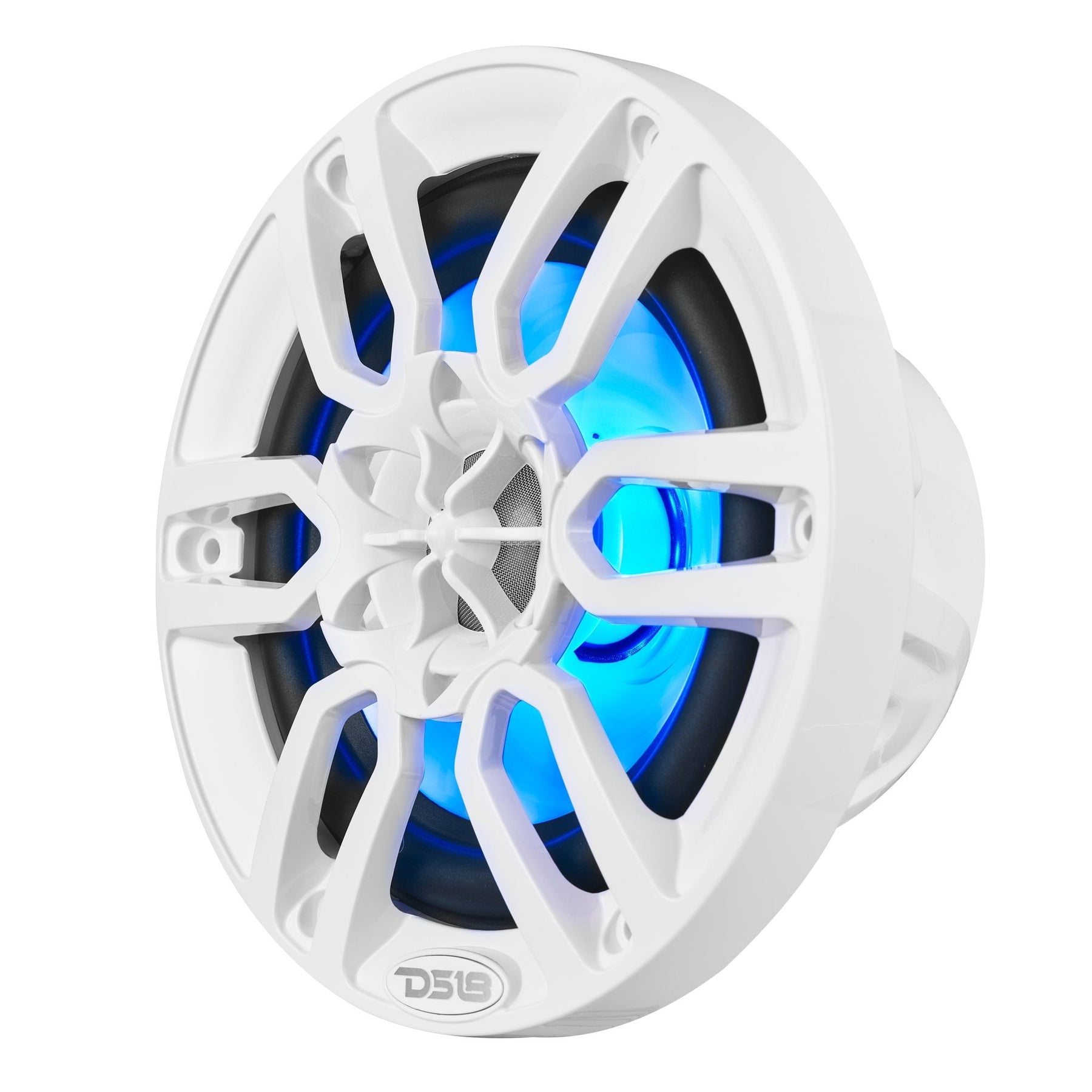

    RGB Lighting That Moves With Your Music
    Built-in RGB LED lighting behind the speaker grille lets you sync your audio with vibrant, multi-color lighting effects. Pair it with DS18’s LED-BTC Bluetooth® controller (sold separately) for full lighting control right from your phone.

    Built for Custom Installs
    The NXL-6 is the go-to marine coaxial for high-output audio in any application. Compact, weatherproof, and engineered for clean installs across all platforms.
