HOOLIGAN X 12" High Excursion Subwoofer 4000 Watts Rms 4" DVC 2-Ohm
SOLD OUT







HOOLIGAN X 12" High Excursion Subwoofer 4000 Watts Rms 4" DVC 2-Ohm
SOLD OUT
Sale $713.96 / EACH
Reg.$839.95
15% OFF FOR MOVING SALE!
-
Key Features
- 12" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 2-Ohm 4" DVC
- Ferrite Magnet
- 87dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
HOOL-X12.2DHE
Nominal Diameter
12" / 304.8mm
Nominal Impedance
2+2 ohms
RMS Power Handling
4000W
MAX Power Handling
6000W
Sensitivity (1w/1m)
87dB
Frequency Response
20-500Hz
Recommended Lo Pass Crossover
80Hz
MOTOR
Voice Coil Diameter
4” / 99.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
Carbon Fiber
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Gloss Black with Machined Aluminum
Magnet Material
Ferrite
Magnet Weight
500 OZ
Displacement Volume
4.8L / 0.169ft3
THIELE & SMALL PARAMETERS
Equivalent Volume
22.57L / 0.79ft3
Free Air Resonance
26Hz
Mechanical Factor
2.778
Electrical Factor
0.489
Total Factor
0.462
Moving Mass
512.12g
Compliance
0.072mm/N
Bl Factor
24.27
Voice Coil Inductance
42.29mH
Diaphragm Area
471.44cm2
DC Resistance
1.8+1.8 ohms
Efficiency Bandwidth Product
53.1
RECOMMENDED ENCLOSURES
Sealed Internal Volume
17L / 0.6ft3
Sealed Box Output Response
41Hz
Ported Internal Volume
42.5L / 1.5ft3
Port Size *Square (W x H x Long)
1.52" x 12.28" x 31.82" / 38.5 x 312 x 808.2 mm
Port Tunning Frequency
30Hz
Ported Box Output Response
25Hz
MEASUREMENT
Overall Diameter
12.64" / 321mm
Overall Depth
11.6" / 295mm
Front Mount Baffle Cutout
11.2" / 285mm
Mounting Depth
10" / 255mm
Motor Diameter
9.96” / 253mm
Product Weight (lb)
87.5
Dimensions L x W x H (Inches)
15 x 15 x 14
M/C Weight (lb)
87.5
M/C Dimensions L x W x H (Inches)
15 x 15 x 14
M/C Qty
1
Sold in
Single
-
Product Overview
Product Overview
DS18 HOOL-X12.2DHE HOOLIGAN 12" High Excursion Car Subwoofer 4000 Watts Rms 4" DVC 2-Ohm
Experience a new level of bass performance and power with DS18’s HOOL-X12.2DHE! The HOOLIGAN 12” High Excursion Car Subwoofer has been the top choice for enthusiasts and competitors alike, and now, it’s back with a vengeance.
The HOOLIGAN is built for power and durability. The redesigned long throw pole, larger spider, and high excursion surround, helps lower the HOOLIGAN’s FS (Resonant Frequency), making it even louder at subsonic frequencies. With an FS of 26, this subwoofer guarantees impressive low frequencies all the way down to 20Hz. Its high-powered 4" Black Aluminum voice coil can handle 4000W RMS and 6000W MAX power, making it perfect for heavy-hitting competition bass.
Versatility is key, and the HOOL-X12.2DHE can adapt to various enclosure types. Whether you prefer 4th orders, 6th orders, ported boxes, or large sealed boxes, this subwoofer will thrive in any setup that has enough room.
This version of the HOOLIGAN boasts a nominal diameter of 12" (304.8 mm) and a nominal impedance of 2+2 OHMS to amplify the performance and capabilities of this high-powered subwoofer. With a sensitivity of 87 dB and a frequency response ranging from 20Hz to 500Hz, this subwoofer ensures every beat is reproduced with staggering depth and precision.
DS18’s HOOLIGAN 12" High Excursion Car Subwoofer is the ultimate choice for car audio enthusiasts seeking extreme bass and massive power. Its unmatched performance, cutting-edge design, and versatility make it a must-have for any ground shaking audio system.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

HOOLIGAN X 12" High Excursion Subwoofer 4000 Watts Rms 4" DVC 2-Ohm
Default Title
Related products
- 12" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 1-Ohm 4" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 1-Ohm 4" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 4-Ohm 4" DVC
- Ferrite Magnet
- 87dB
- 12" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 4-Ohm 4" DVC
- Ferrite Magnet
- 87dB
- 15" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 4-Ohm 4" DVC
- Ferrite Magnet
- 88.3dB
- 15" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 4-Ohm 4" DVC
- Ferrite Magnet
- 88.3dB
- 15" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 2-Ohm 4" DVC
- Ferrite Magnet
- 88.2dB
- 15" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 2-Ohm 4" DVC
- Ferrite Magnet
- 88.2dB
- 15" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 1-Ohm 4" DVC
- Ferrite Magnet
- 87.2dB
- 15" High Excursion Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 1-Ohm 4" DVC
- Ferrite Magnet
- 87.2dB
- Re Cone Kit
- For HOOL-X12.2DHE
- Impedance: 2 Ohm DVC
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- Re Cone Kit
- For HOOL-X12.2DHE
- Impedance: 2 Ohm DVC
- Cone, Dust Cap, Spider and Voice Coil
- Easy Replacement
- Single
- 15" SPL Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 4-Ohm 4" DVC
- Ferrite Magnet
- 89dB
- 15" SPL Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 4-Ohm 4" DVC
- Ferrite Magnet
- 89dB
- 15" SPL Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 2-Ohm 4" DVC
- Ferrite Magnet
- 88.5dB
- 15" SPL Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 2-Ohm 4" DVC
- Ferrite Magnet
- 88.5dB
- 15" SPL Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 1-Ohm 4" DVC
- Ferrite Magnet
- 87dB
- 15" SPL Subwoofer
- MAX Power: 6000 Watts
- RMS Power: 4000 Watts
- Impedance: 1-Ohm 4" DVC
- Ferrite Magnet
- 87dB
I absolutely love this sub. I pair it with a Taramp 5k with a box ported box tuned to 28hz. The extended bass at low end hits hard. Excellent performance and a good looking sub indeed. Money well spent.

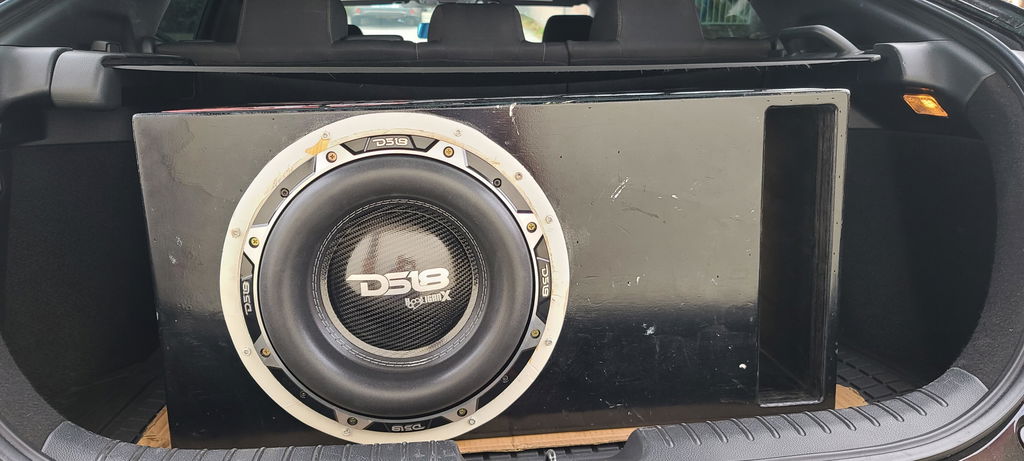

I have the ds18 hooligan 12" 2+2 in a 2013 Camaro SS convertible, powered by a deaf bonce pro 5500 watt amp. I turned the spare tire well into a ported enclosure tuned to 30 hertz, and I have to say this subwoofer bangs with the best of them , it's on par with other subs that cost $1200 and up. I'm still breaking it in and it has the whole car shaking hard and I mean hard ! When tuned correctly for your application the sound quality is as good if not better than other competitors. I have been in car audio for over 30 years doing custom installs, and believe me when I say THIS SUBWOOFER IS NO JOKE! And also make sure your electrical is up to par, because it is power hungry! One of the best competition/ street scene subwoofers for the money period!
