Hi/Lo Converter 6-Channel with 12 Volt Trigger Output (Remote out)
SOLD OUT





Hi/Lo Converter 6-Channel with 12 Volt Trigger Output (Remote out)
SOLD OUT
Sale $183.56 / EACH
Reg.$215.95
15% OFF FOR Labor Day Sale!
-
Key Features
- Line Output Converter
- 6 Channel
- 6 X Inputs
- 6 X Outputs
- Channel Summed Indicators
- Bass Knob Control
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
Maximum Speaker-Level Input
400 Watts at 4 ohms
Max Output Level
9.5 Vrms
Frequency Response
10 Hz - 22 KHz
Output Gain
+/- 12 dB
Total Harmonic Distortion
0.01 %
Input Impedance
20 Kohms
Power Supply
High Headroom PWM Switching
Power Draw
200 mA
Recommended Fuse Rating
1 Amp
Remote Trigger Output Current
1 mA
Dimensions
8? W x 6.1? D x 1.25? H
MEASUREMENT SHIPPING
Dimensions L x W x H (Inches)
10.25 x 8.75 x 2.5
Weight (lb)
3
M/C Dimensions L x W x H (Inches)
13.25 x 11.25 x 9.5
M/C Weight (lb)
15
M/C Qty
5 Pcs
-
Product Overview
Product Overview

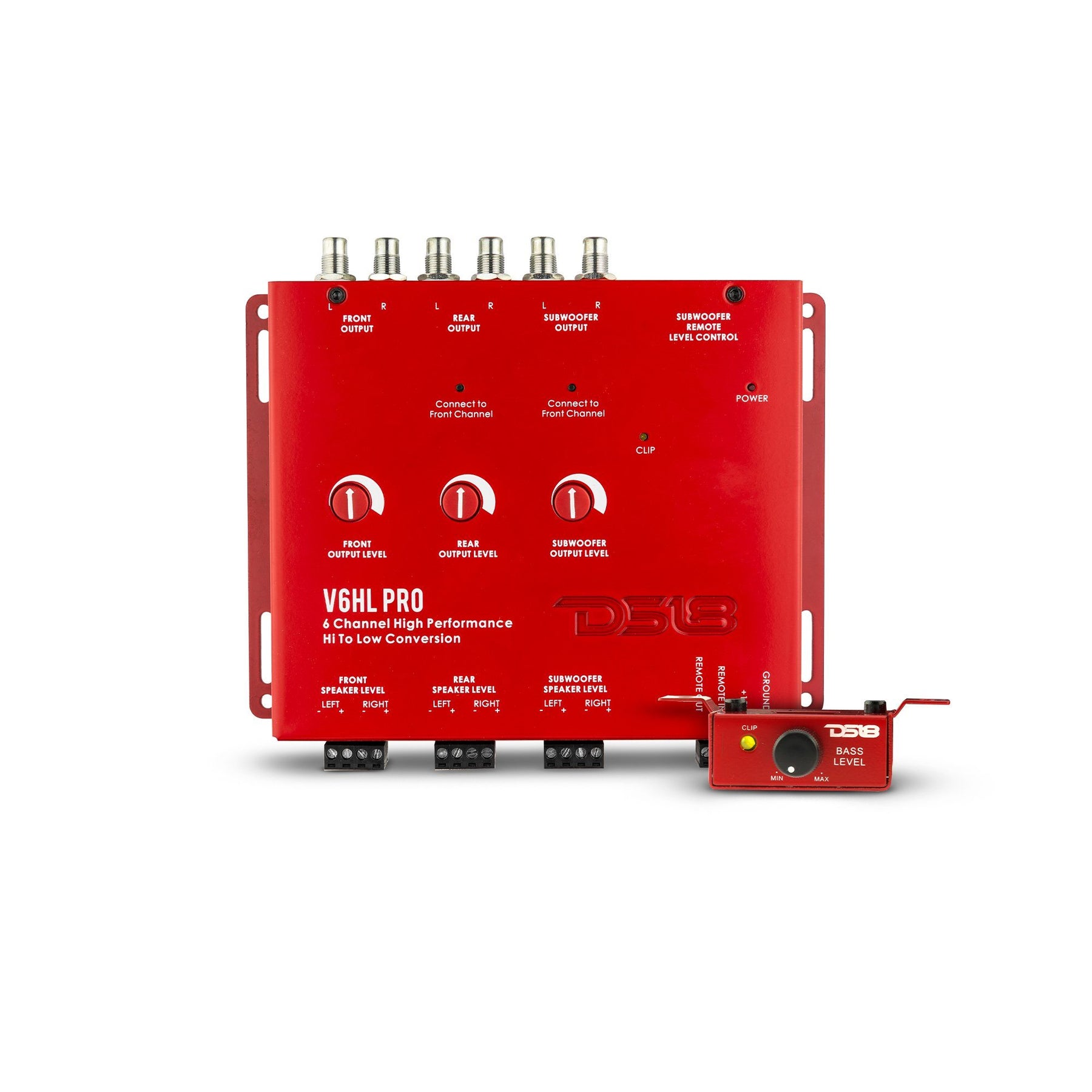

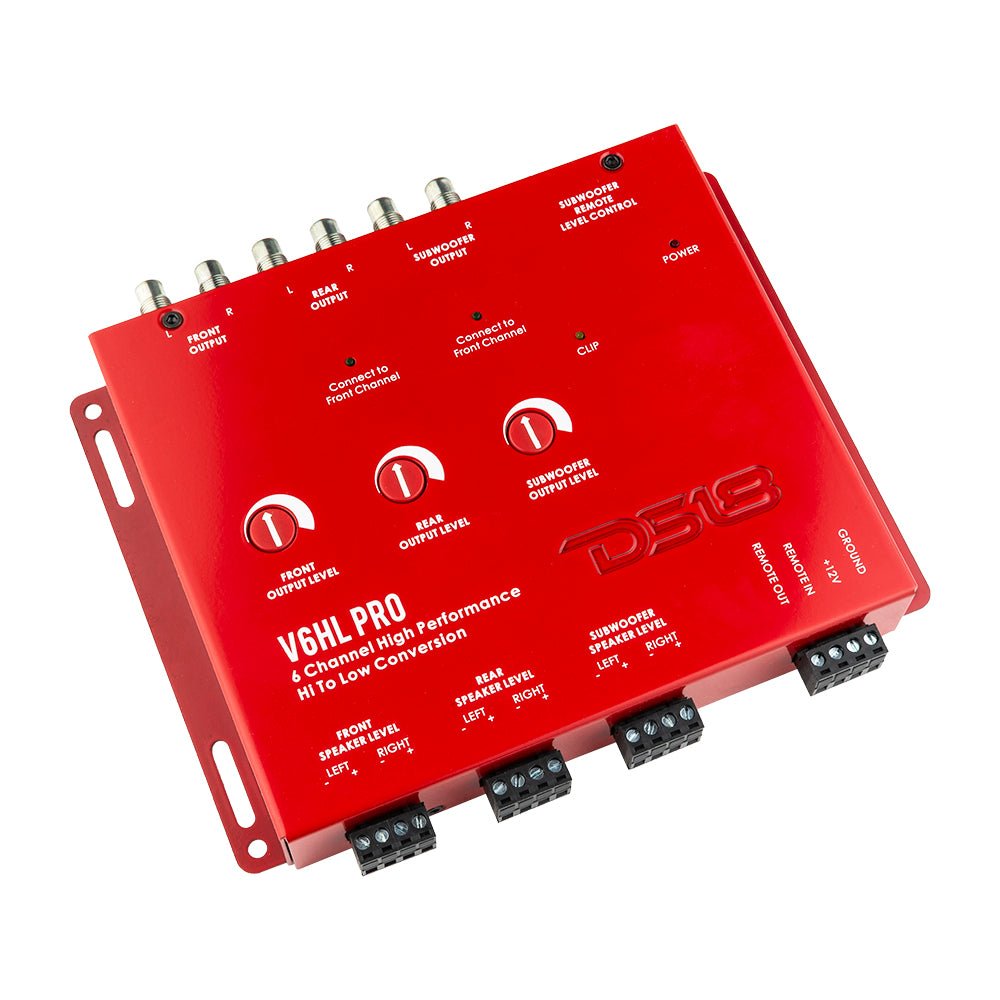

DS18 V6HLPRO Hi/Lo Converter 6-Channel with 12 Volt Trigger Output
Designed with the audiophile in mind, the V6HLPRO will elevate your sound to insane levels, helping you achieve the soundstage of your dreams!
The V6HLPRO bridges the gap between your factory setup and your aftermarket amplifier, ensuring a flawless transition from your vehicle's built-in audio to a realm of audio excellence with ease and precision.

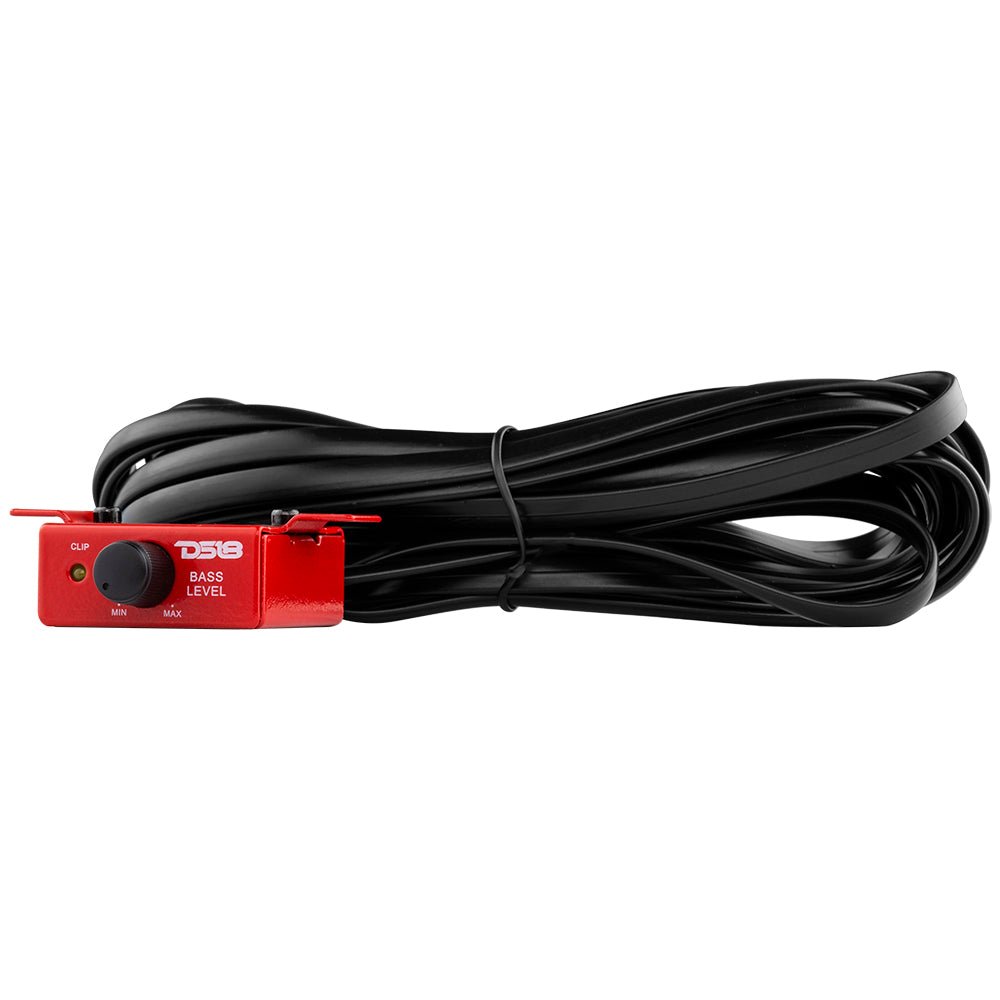

One of the standout features of the V6HLPRO is its 12 Volt Trigger Output. This remote out functionality grants you the power to control external devices, enabling you to take charge of your entire setup. Additionally, the converter includes an input for an optional Subwoofer level control, allowing you to dial in the perfect amount of bass to shake your soul.

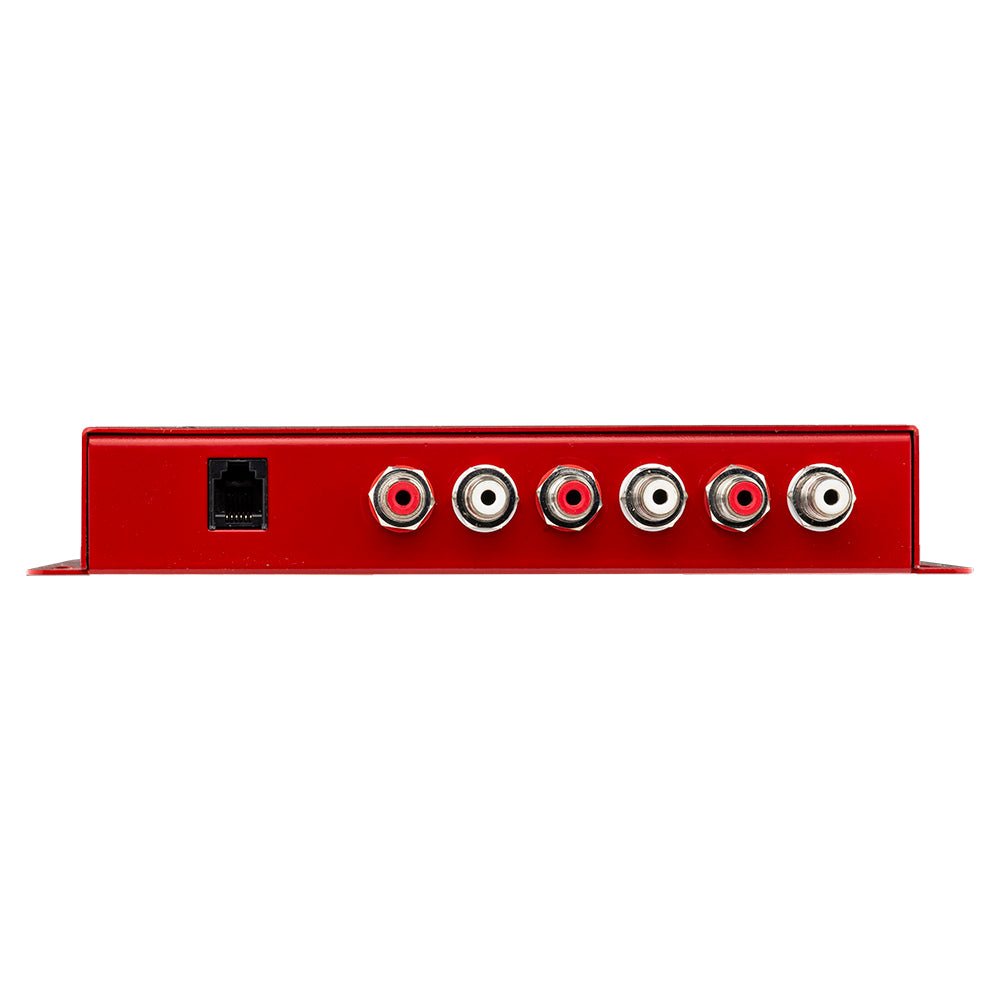

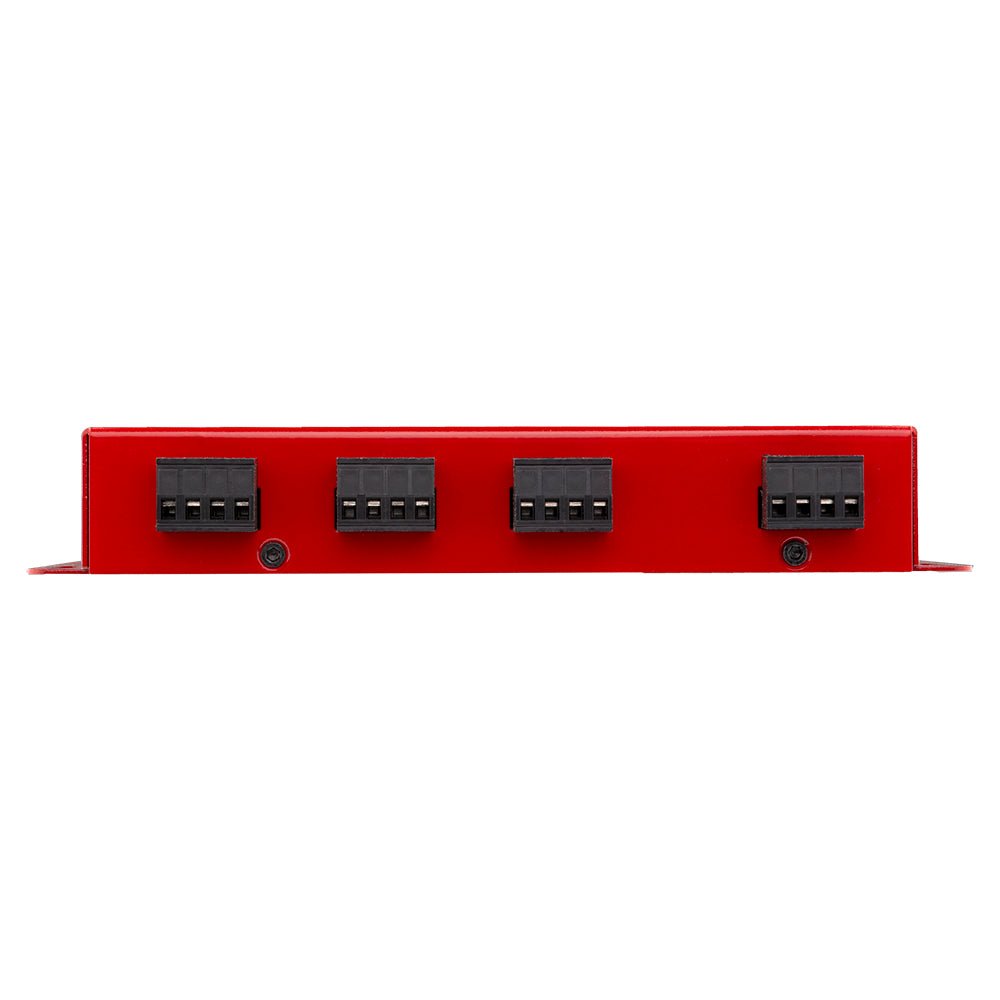

The V6HLPRO's 6-channel design harnesses the power of Hi/Lo connections, flawlessly converting the signal to RCA, the industry-standard input for most aftermarket amplifiers. With a staggering 400W MAX power handling at 4 Ohms, this converter delivers the punch and clarity you crave, without compromising on quality.
DS18 understands that true audiophiles demand perfection. That's why the V6HLPRO is equipped with an array of features that elevate its performance to unparalleled heights. Internal Channel Summing ensures that every sound frequency is perfectly distributed, creating a harmonious blend of highs, mids, and lows. Signal Sensing Inputs intelligently detect audio signals, triggering the converter to activate and bring your system to life, effortlessly syncing with your car's audio. Level Matching Controls empower you to fine-tune the audio levels to your precise liking, ensuring a balanced and immersive listening experience.
