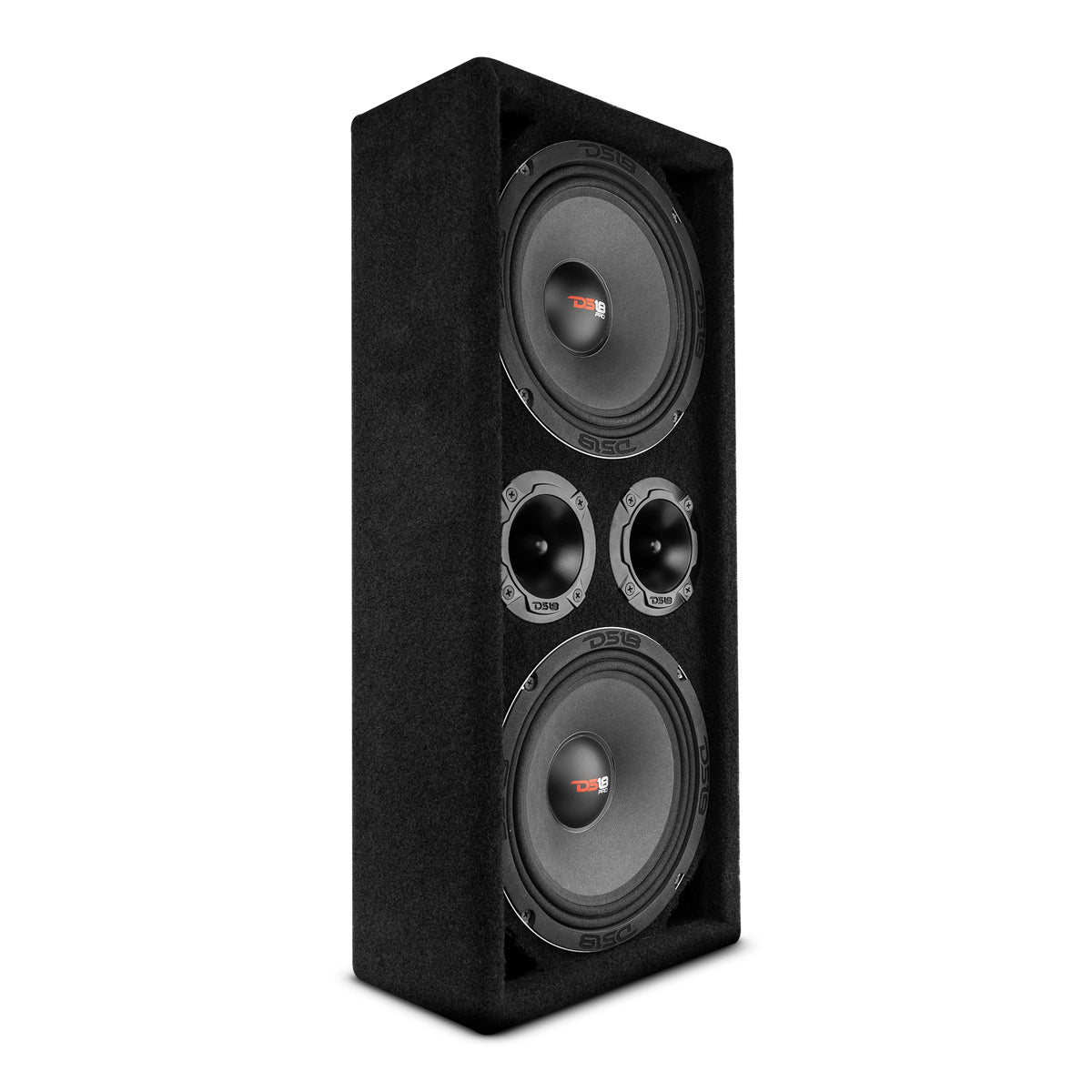

Dual 8" Loaded Ported Voceteo Box ( 2 x PRO-X8M and 2 x PRO-TWX2)
SOLD OUT
Dual 8" Loaded Ported Voceteo Box ( 2 x PRO-X8M and 2 x PRO-TWX2)
SOLD OUT
Sale $203.96 / EACH
Reg.$239.95
15% OFF FOR Labor Day Sale!
-
Key Features
- Loaded Ported Loudspeaker Enclosure
- 2 X 8" PRO-X8M
- 2 X 3.78" PRO-TWX2
- RMS Power: 550 Watts(1100 Watts Peak)
- Impedance: 4-Ohm ~ 99.5dB
- 1/2" MDF with Black Carpet
-
Technical Data - Manual
Load More Show LessGENERAL
SKU
ENS-PRO-CHX82A.LD
Speaker Type / Size
2 x 8"
Total Impedance
4 Ohm
Total RMS Power Handling
550W
Total MAX Power Handling
1100W
Sensitivity (1w/1m)
99.5dB
Frequency Response
120Hz-20KHz
Recommended Lo Pass Crossover
160Hz
Mid-Range Specifications
Model
PRO-X8M
Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
30 Oz
Tweeter Specifications
Model
PRO-TWX2
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
8 Oz
Box Specifications
Internal Volume
10L / 0.35ft3
Port Tune (Fb)
120Hz
Load Configuration
WF: Parallel / TW: Series
Box Type
Ported
Box Material
1/2" MDF
Finish Material
Black Carpet
-3Db Dropping Point (F3)
120Hz
Measurement
Height
22" / 565mm
Width
9.5" / 240mm
Depth
5.2" / 130mm
-
Product Overview
Product Overview
DS18 ENS-PRO-CHX82A.LD Ported Chuchero Box For Dual 8” Loudspeaker and Bullet Tweeter Loaded
Turn your next meet-up into a concert hall with DS18’s ENS-PRO-CHX82A.LD, a Ported Chuchero Box designed to place you at the heart of every melody.
This extraordinary box features not just one, but two 8-inch high-performance speakers (DS18’s PROX8M). With a total impedance of 4 Ohms, an exceptional RMS power handling of 550W and a MAX power handling of 1100W: this powerhouse guarantees an audio experience that ignites the soul of all spectators.
The remarkable 99.5dB sensitivity of the ENS-PRO-CHX82A.LD allows the speakers to deliver thunderous audio even with minimal power input, ensuring that every note makes an impact. Everything included in the ENS-PRO-CHX82A.LD is wired to one gold plated terminal in the back of the enclosure. The ENS-PRO-CHX82A.LD achieves the full range of frequencies with bass response as low as 120Hz and highs that soar up to 20KHz; capturing every nuance of your music with extraordinary precision.
With an internal volume of .35 cubic feet and a port tune (Fb) of 120Hz, this ported chuchero box enriches your audio with depth that fills every surrounding area. DS18’s ENS-PRO-CHX82A.LD Ported Chuchero Box is constructed with 1/2" MDF, a high-quality box material that guarantees maximum sound integrity. This premium material eliminates any unwanted resonance that could potentially compromise your audio experience, ensuring that you enjoy crisp and clear audio without any distortions.
DS18’s ENS-PRO-CHX82A.LD Ported Chuchero Box stands 22" tall, has a width of 9.5" and depth of 5.2" making it the perfect fit for your car's interior, seamlessly blending into the ambiance of your vehicle.
So, whether you're a true audiophile seeking perfection or a car audio enthusiast looking to take your sound system to the next level, the DS18 ENS-PRO-CHX82A.LD is the answer.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
Dual 8" Loaded Ported Voceteo Box ( 2 x PRO-X8M and 2 x PRO-TWX2)
Default Title
Related products
Loudspeaker Size:

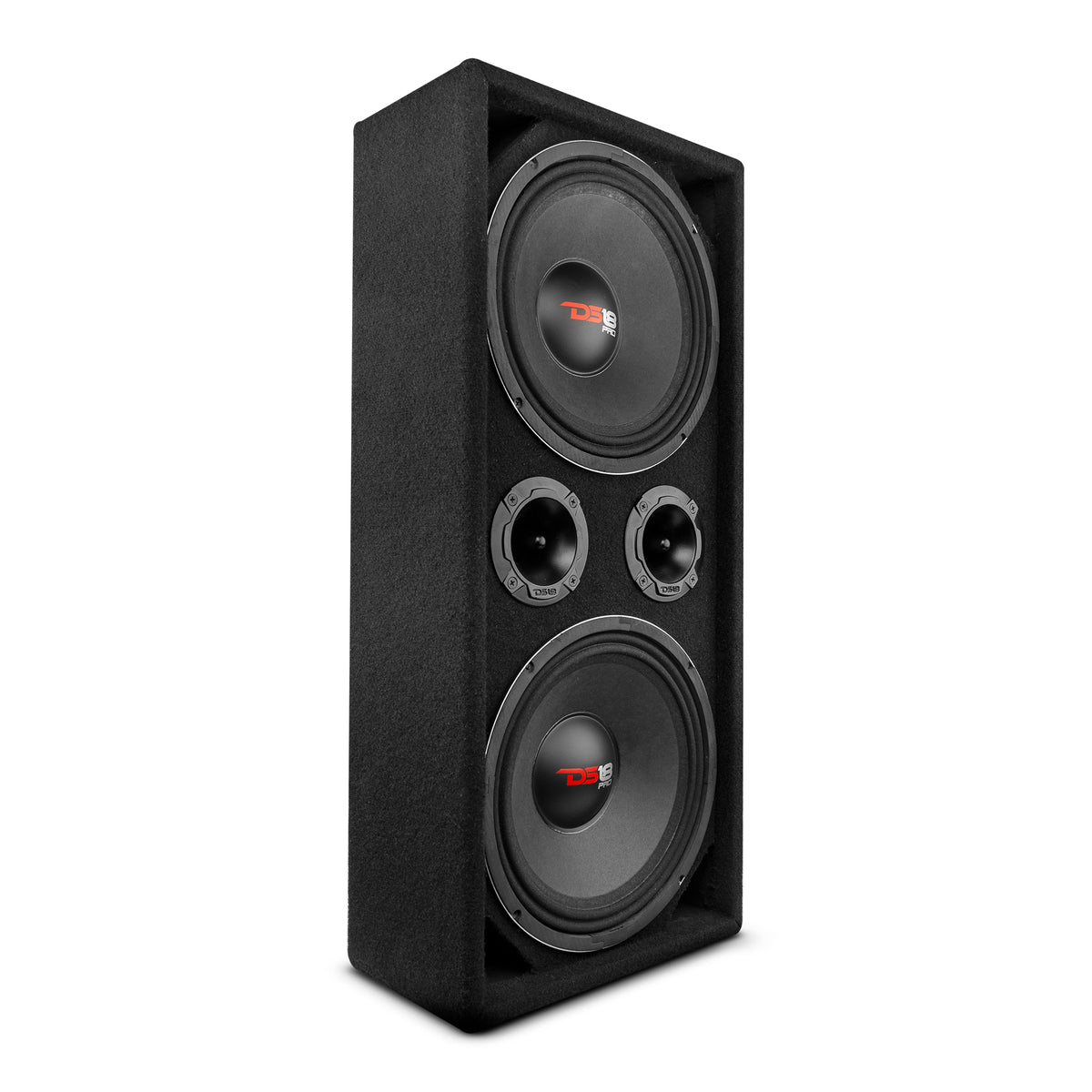

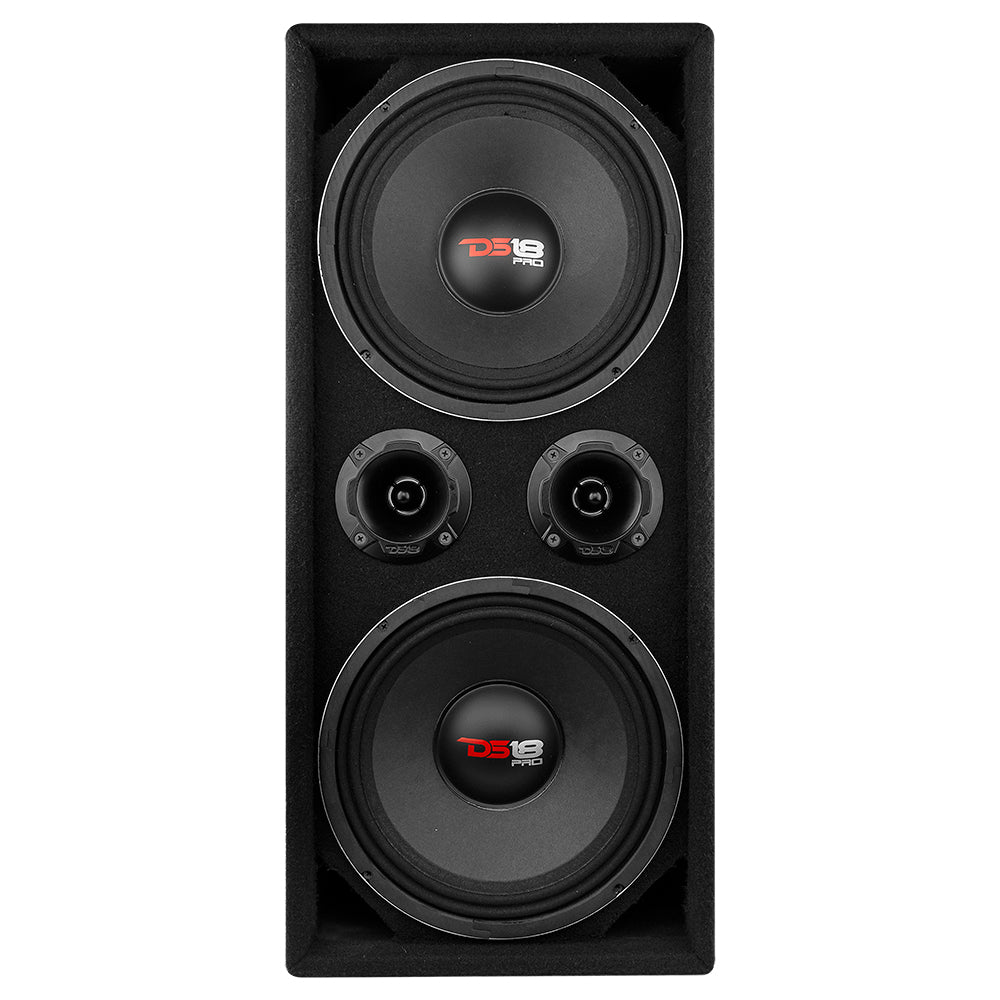

- Loaded Ported Loudspeaker Enclosure
- 2 X 10" PRO-X10M
- 2 X 3.78" PRO-TWX2
- RMS Power: 600 Watts(1200 Watts Peak)
- Impedance: 4 Ohm ~ 101dB
- 1/2" MDF with Black Carpet
- Loaded Ported Loudspeaker Enclosure
- 2 X 10" PRO-X10M
- 2 X 3.78" PRO-TWX2
- RMS Power: 600 Watts(1200 Watts Peak)
- Impedance: 4 Ohm ~ 101dB
- 1/2" MDF with Black Carpet
Loudspeaker Size:
- Loaded Ported Loudspeaker Enclosure
- 2 X 10" PRO-X10M
- 2 X 3.78" PRO-TWX2
- RMS Power: 600 Watts(1200 Watts Peak)
- Impedance: 4 Ohm ~ 101dB
- 1/2" MDF with Black Carpet
- Loaded Ported Loudspeaker Enclosure
- 2 X 10" PRO-X10M
- 2 X 3.78" PRO-TWX2
- RMS Power: 600 Watts(1200 Watts Peak)
- Impedance: 4 Ohm ~ 101dB
- 1/2" MDF with Black Carpet
Loudspeaker Size:
- Loaded Ported Loudspeaker Enclosure
- 2 X 8" PRO-X8M
- 2 X 3.78" PRO-TWX2
- RMS Power: 550 Watts(1100 Watts Peak)
- Impedance: 4-Ohm ~ 99.5dB
- 1/2" MDF with Black Carpet
- Loaded Ported Loudspeaker Enclosure
- 2 X 8" PRO-X8M
- 2 X 3.78" PRO-TWX2
- RMS Power: 550 Watts(1100 Watts Peak)
- Impedance: 4-Ohm ~ 99.5dB
- 1/2" MDF with Black Carpet

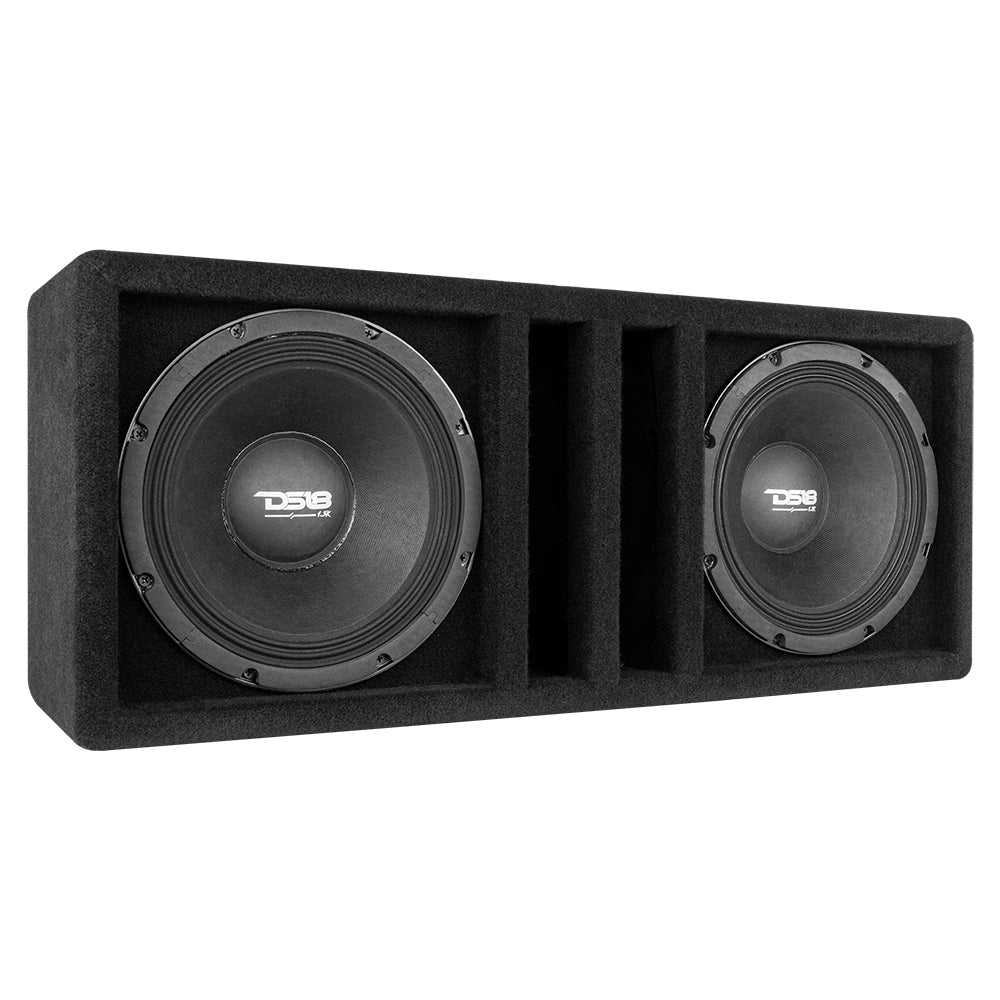

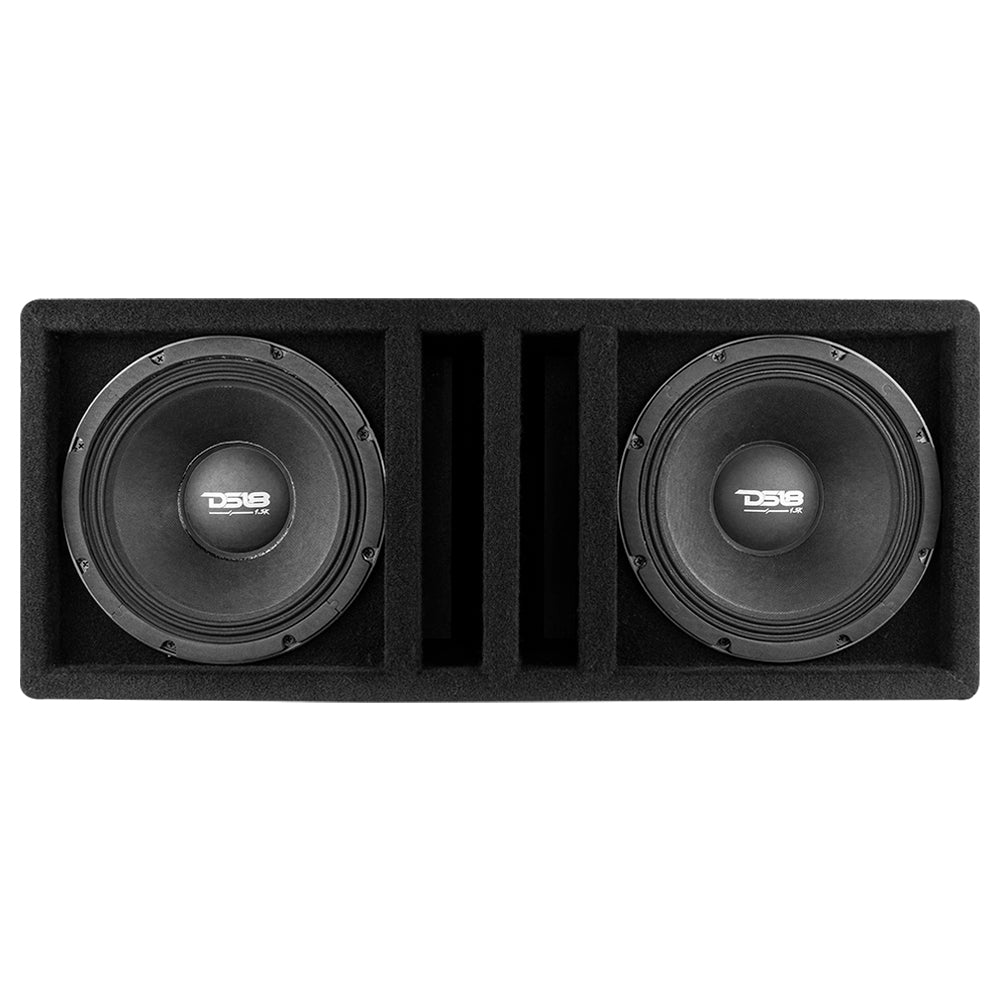

- Loaded Ported Loudspeaker Enclosure
- 2 X 10" ~ PRO-1.5KP10.4
- RMS Power: 3000 Watts(6000 Watts Peak)
- Impedance: 4+4 Ohm
- 3/4" MDF with Black Carpet
- 96dB
- Loaded Ported Loudspeaker Enclosure
- 2 X 10" ~ PRO-1.5KP10.4
- RMS Power: 3000 Watts(6000 Watts Peak)
- Impedance: 4+4 Ohm
- 3/4" MDF with Black Carpet
- 96dB

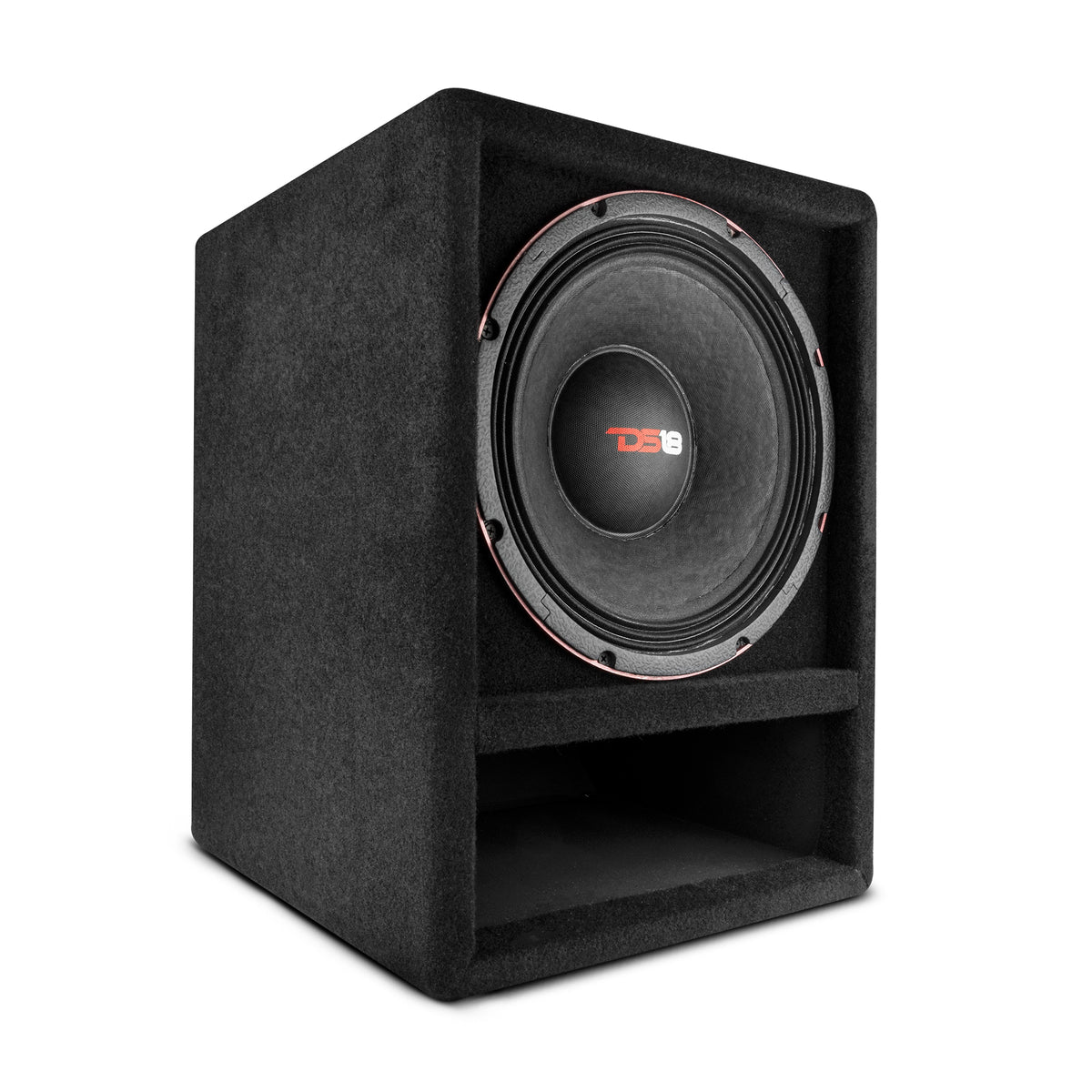

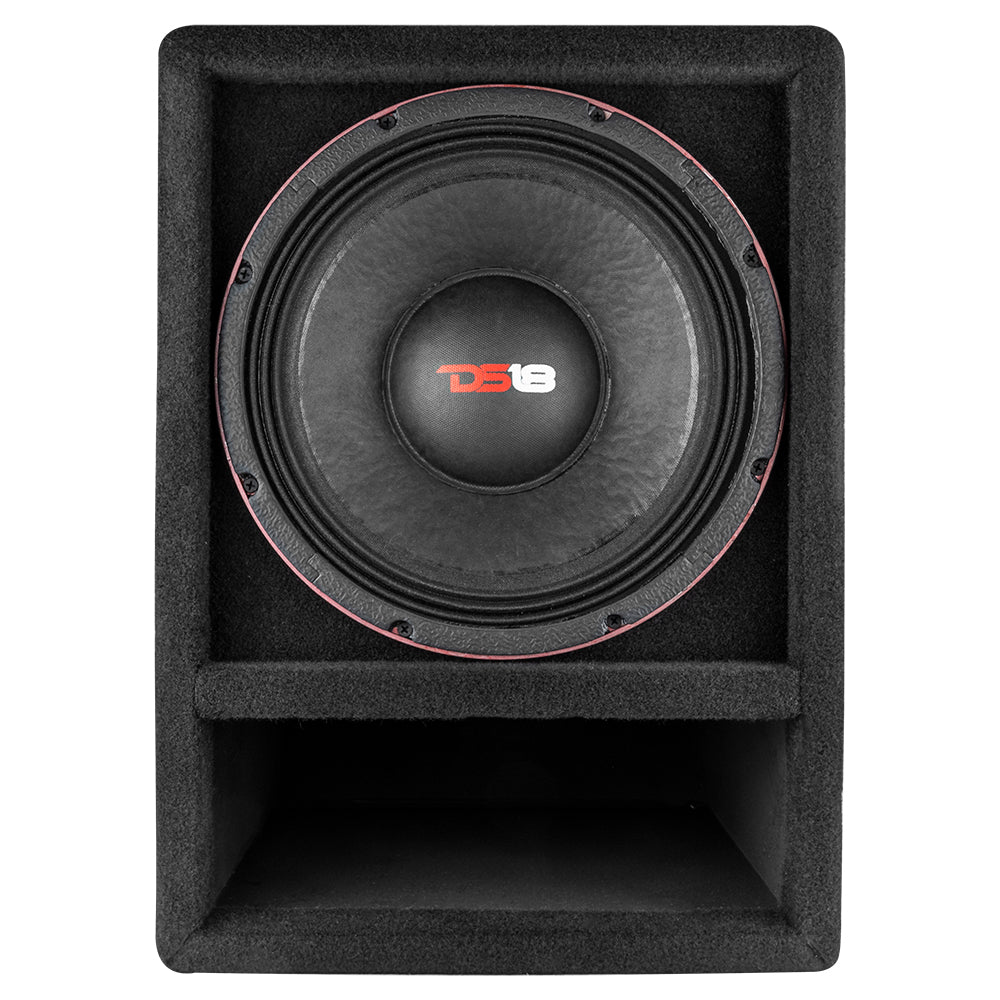

- Loaded Ported Loudspeaker Enclosure
- 1 X 12" ~ PRO-1.5KP12.2
- RMS Power: 1500 Watts(3000 Watts Peak)
- Impedance: 2 Ohm
- 3/4" MDF with Black Carpet
- 95.5dB
- Loaded Ported Loudspeaker Enclosure
- 1 X 12" ~ PRO-1.5KP12.2
- RMS Power: 1500 Watts(3000 Watts Peak)
- Impedance: 2 Ohm
- 3/4" MDF with Black Carpet
- 95.5dB

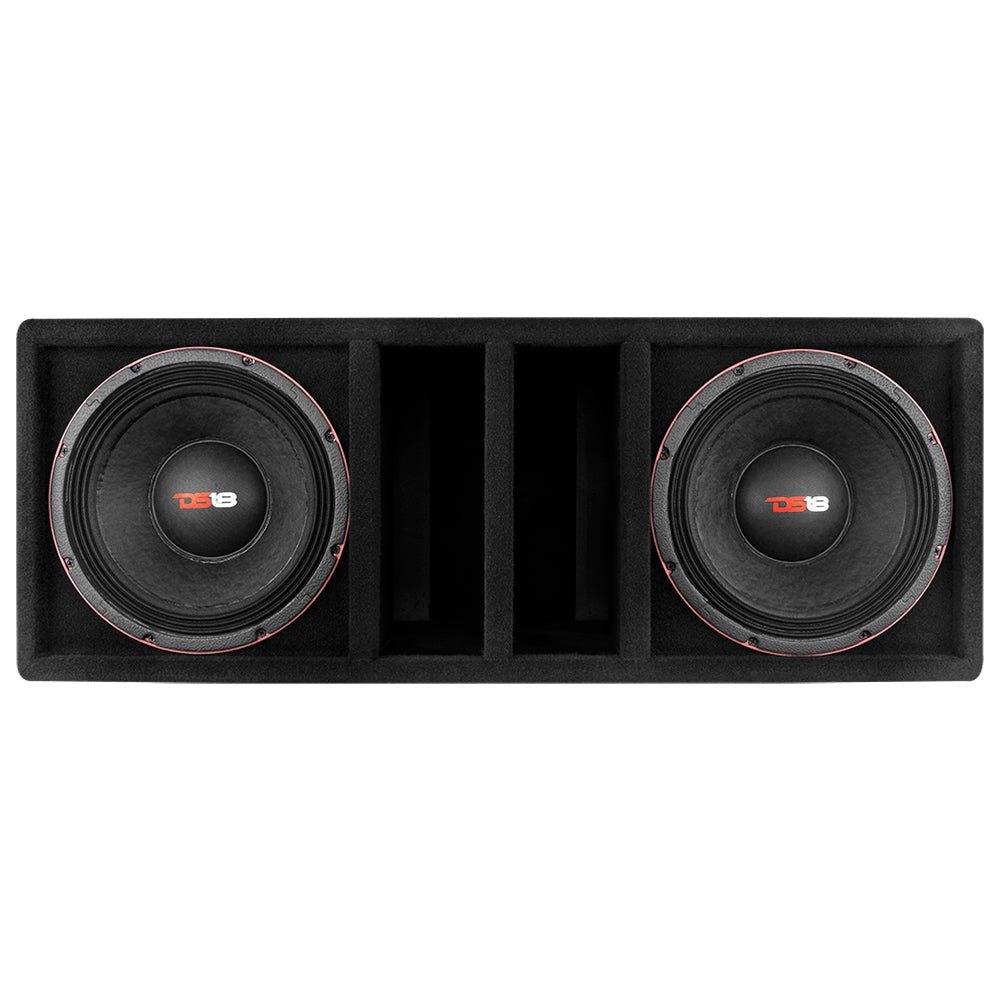

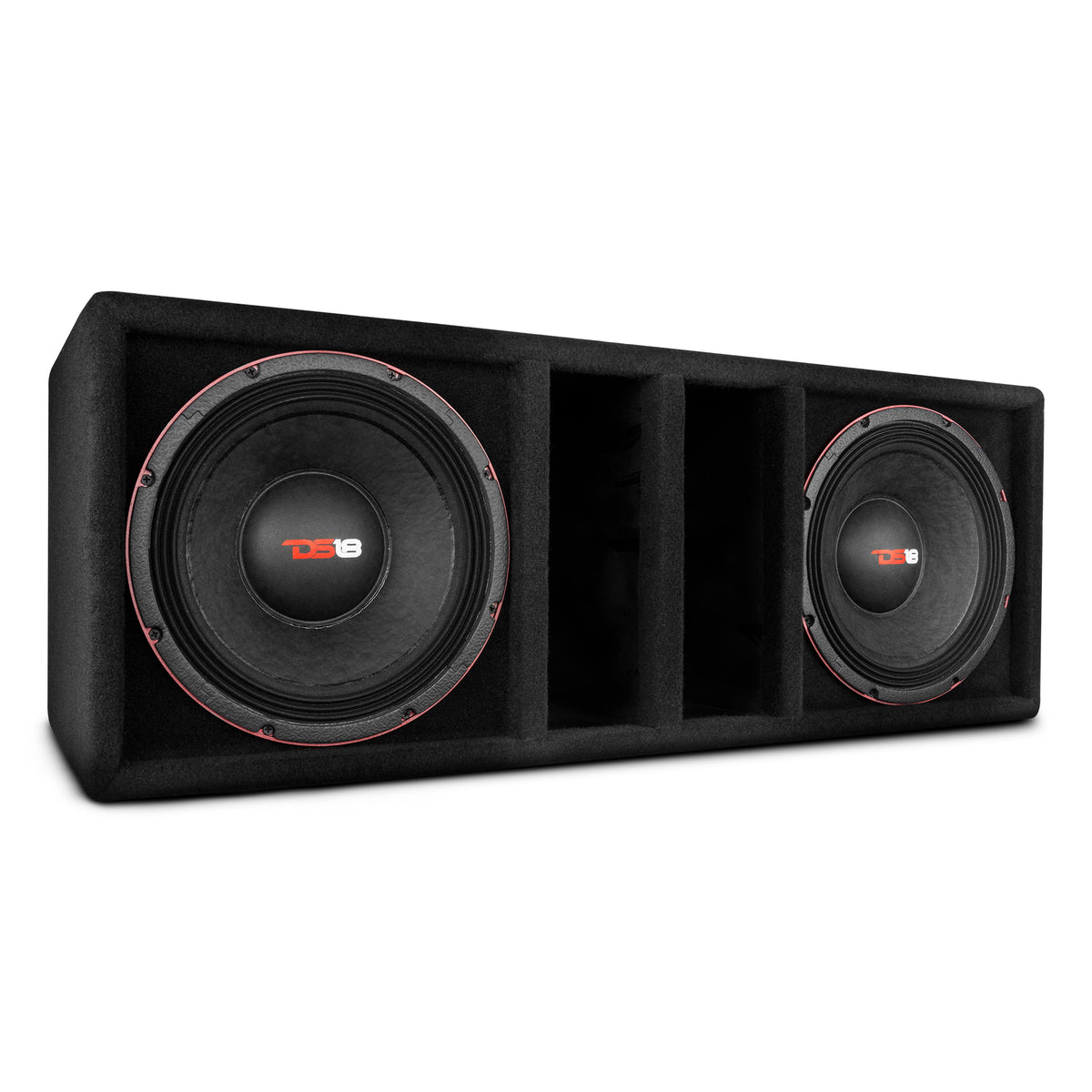

- Loaded Ported Loudspeaker Enclosure
- 2 X 12" ~ PRO-1.5KP12.2
- RMS Power: 3000 Watts(6000 Watts Peak)
- Impedance: 2+2 Ohm
- 3/4" MDF with Black Carpet
- 97dB
- Loaded Ported Loudspeaker Enclosure
- 2 X 12" ~ PRO-1.5KP12.2
- RMS Power: 3000 Watts(6000 Watts Peak)
- Impedance: 2+2 Ohm
- 3/4" MDF with Black Carpet
- 97dB

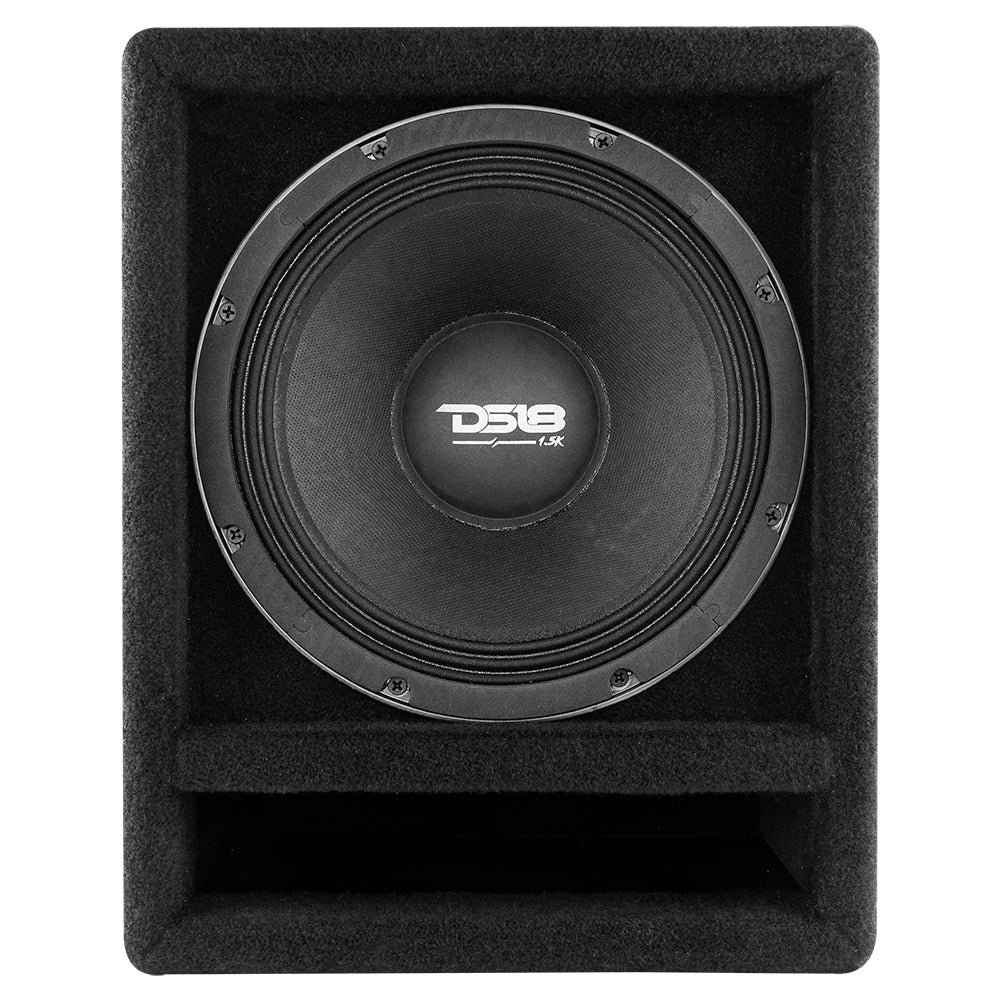

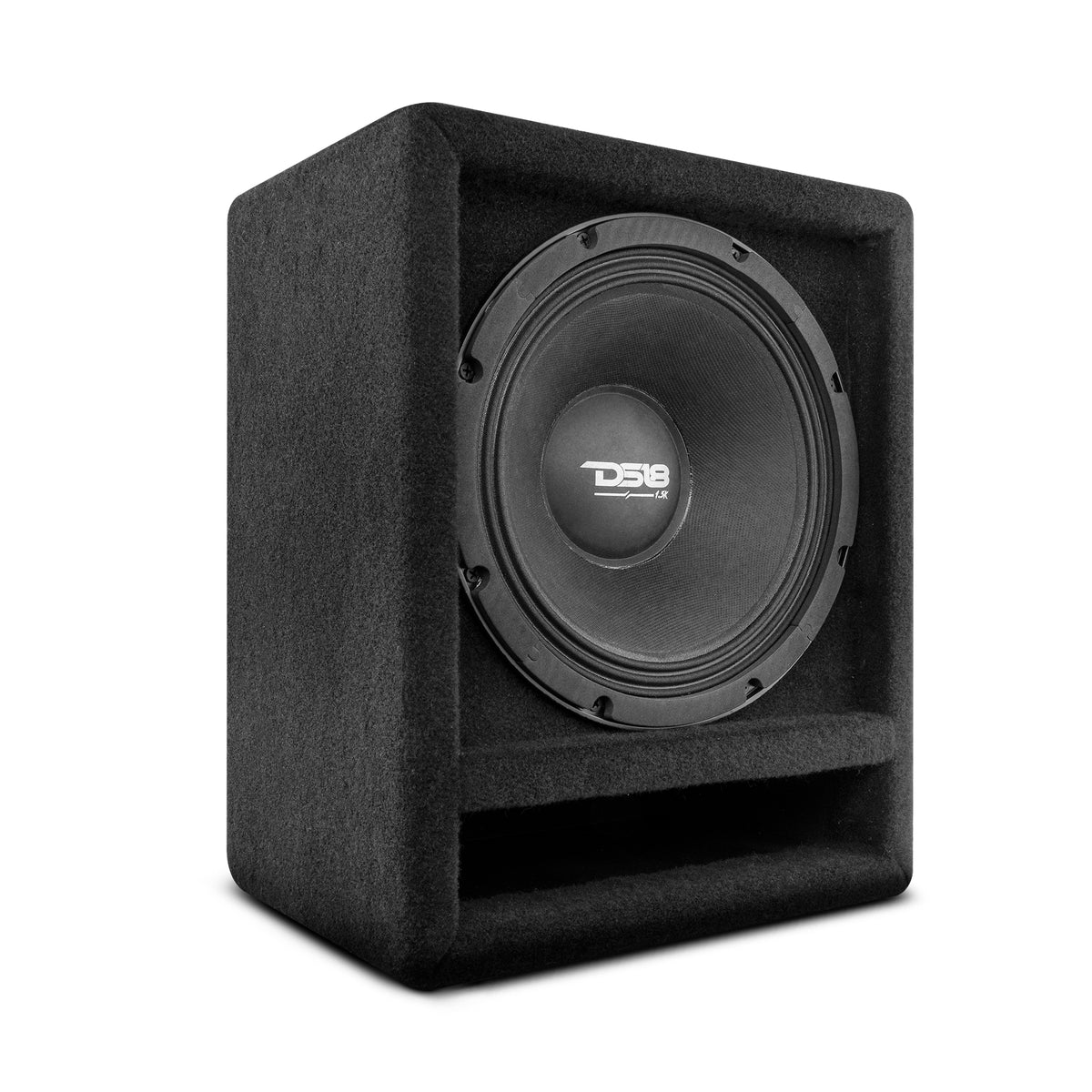

- Loaded Ported Loudspeaker Enclosure
- 1 X 10" ~ PRO-1.5KP10.4
- RMS Power: 1500 Watts(3000 Watts Peak)
- Impedance: 4 Ohm
- 3/4" MDF with Black Carpet
- 94.5dB
- Loaded Ported Loudspeaker Enclosure
- 1 X 10" ~ PRO-1.5KP10.4
- RMS Power: 1500 Watts(3000 Watts Peak)
- Impedance: 4 Ohm
- 3/4" MDF with Black Carpet
- 94.5dB

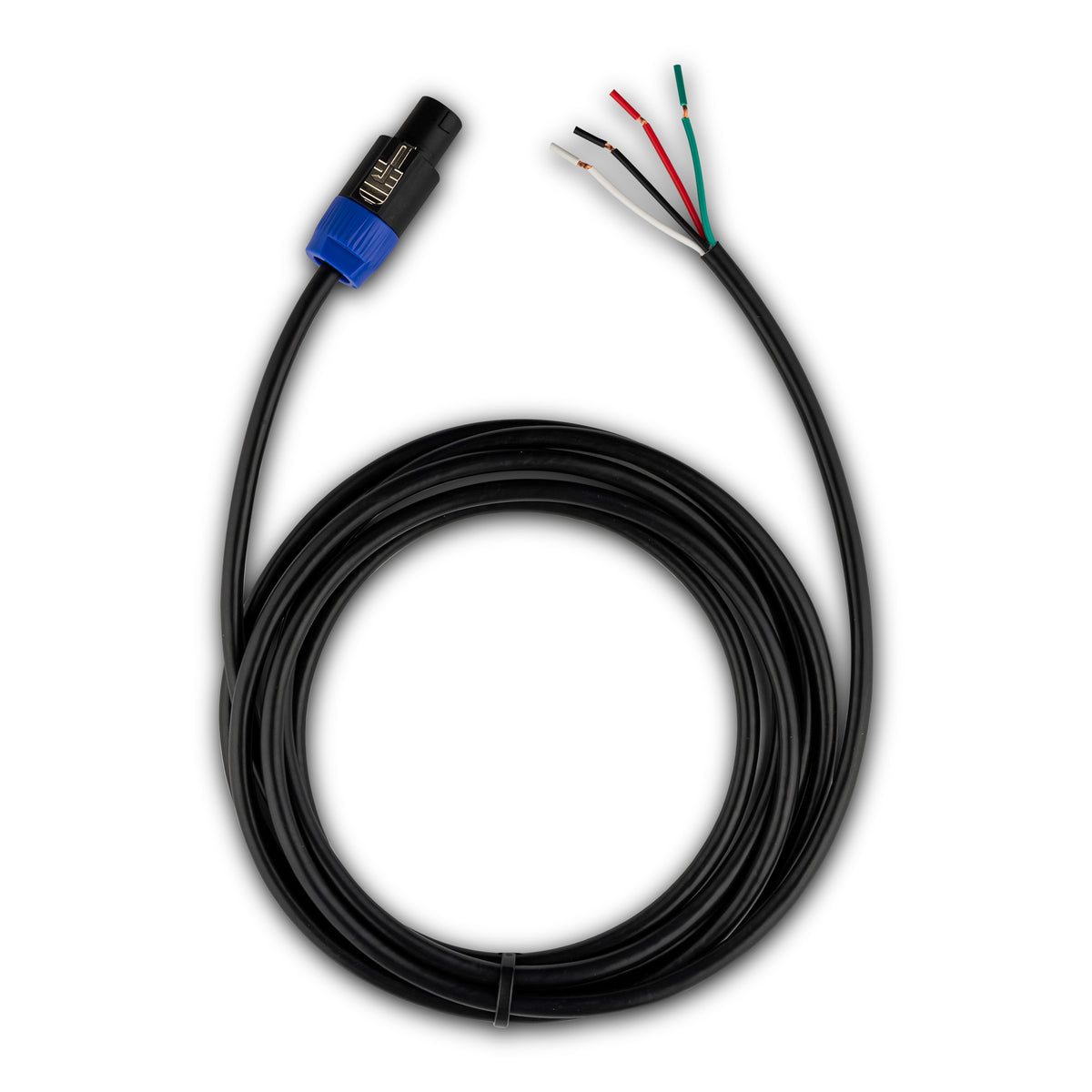

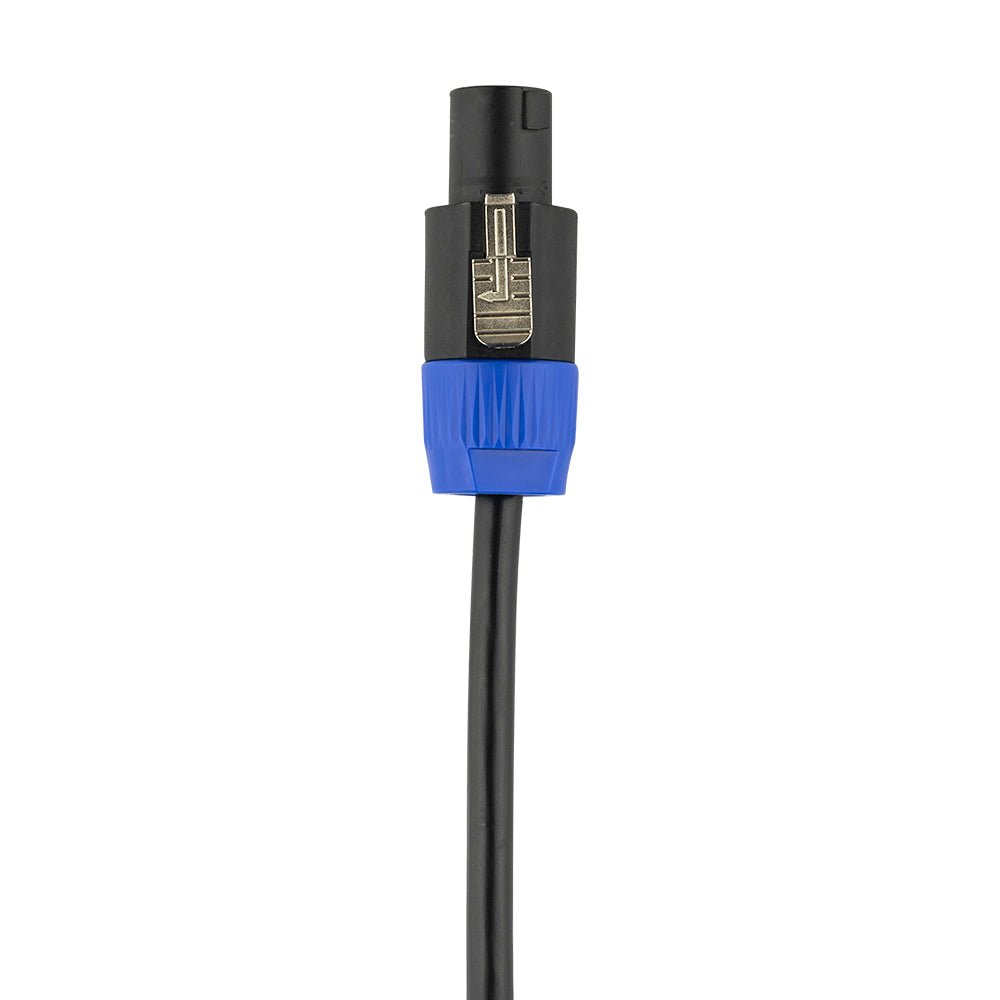

- Voceteo Cable
