Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator – Mexico Design





Digital Bass Processor With Hi to Low Signal Converter & Speaker Emulator – Mexico Design
Sale $203.96 / EACH
Reg.$239.95
15% OFF FOR MOVING SALE!
-
Key Features
- Digital Bass Restoration Processor W/ Mexico Design
- Hi to Low Converter / Speaker Emulator
- 2 Channel Preamp Input / Output
- Output Volts / Subsonic / Ground ISO / Trigger / Load Selectors
- Remote Level Control w/ Bass and Level
- Compact Design
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
General Features
SKU
DBPX200.MX
Operating Voltage
9-16V
Power Consumption
0.18A
Recommended Fuse Rating
1A
Power Input Terminal Size
16ga
LED Indicator
Power / Bass Enhancer
Ground Isolation Switch
Yes (GND/ISO/200?)
Hi-Level Speaker Input
Yes (2 Channels)
Auto Turn-on Function
Yes (Audio/DC)
Remote Turn-on (Input / Output)
Yes
Remote Level Control
Yes (Bass Enhancer/Level)
RCA Connector Type
Tiffany (Silver)
Housing Material
Aluminum
Body Color / Finish
Red / Green / White (Mexico Theme)
Audio Specifications
Frequency Response
10Hz-20kHz
S/N Ratio
95dB
THD
0.05%
Input Sensitivity (Low-Level)
<8.8V
Input Sensitivity (Hi-Level)
>15V
Input Impedance
20Kohms
Output Voltage
Selectable (5V/7.5V/10V)
Output Impedance
110ohms
Balanced Input Noise Rejection
>45dB
Stereo Separation
>50dB
Crossover Section
Subwoofer LPF Frequency Cut-off
No (Full Range Signal)
Subwoofer Infrasonic Frequency Cut-off
Selectable (Off/50Hz)
Bass Processor Section
Gain
0~8.8V
Center Frequency (Sweep)
75Hz~120Hz
Q Factor (Wide)
1~4
Extra Features
Compact Size to easy Installation for Any Applications
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
Yes
Measurements
Overall Length
6" / 153mm
Overall Width
3.7" / 95mm
Overall Height
1.1" / 28mm
-
Product Overview
Product Overview

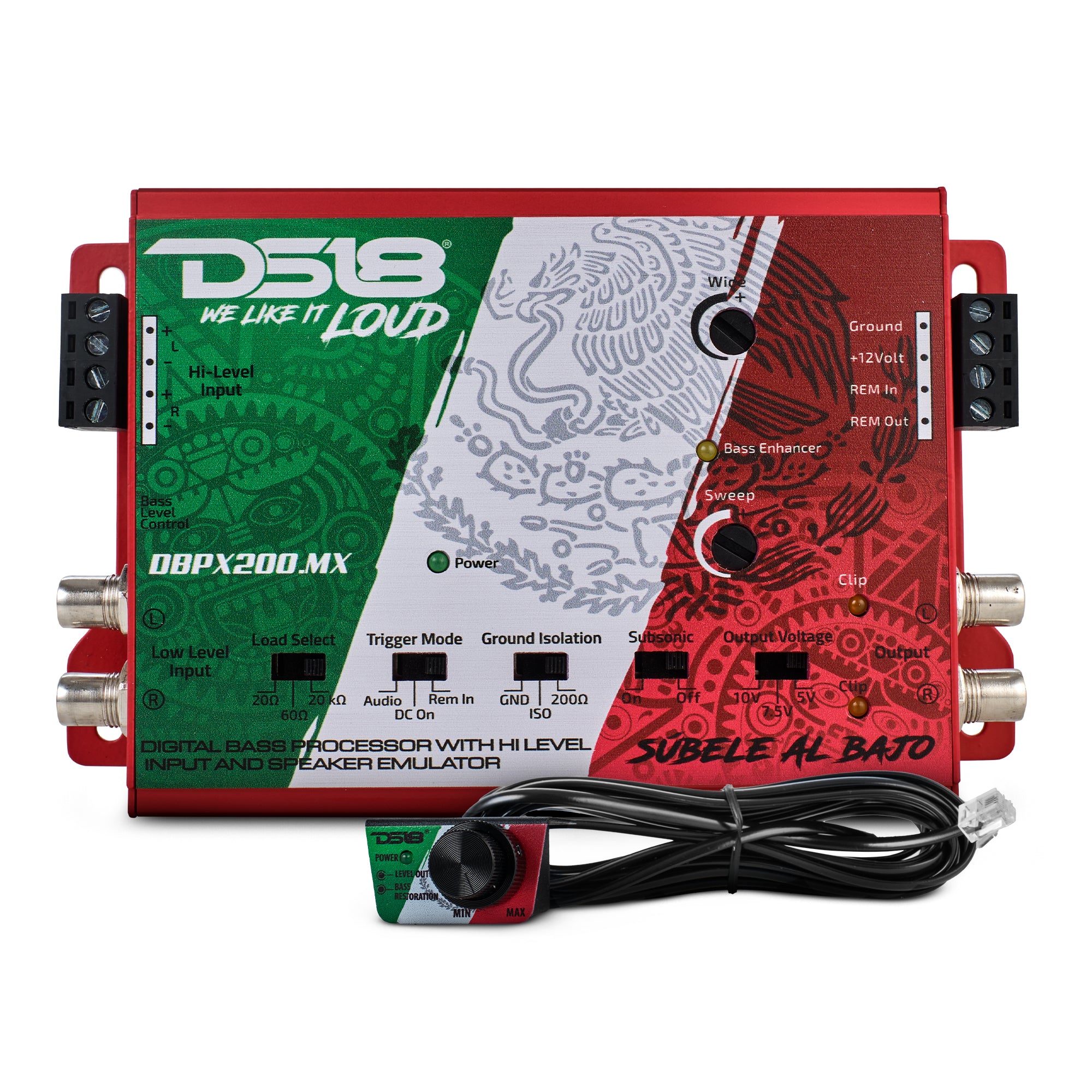

DS18 DBPX200.MX Digital Bass Processor With Hi To Low Signal Converter & Speaker Emulator – Mexico Design
Upgrade your car audio system with DS18’s DBPX200.MX to get LOUD for la cultura!
Featuring a backdrop of the Mexican flag, DS18’s DBPX200.MX is the perfect addition for anyone who wants to show their pride. Its compact design and aluminum housing make it easy to install in any application, while the PCB with anti-corrosion coating ensures long-lasting durability.
The included balanced line level input and fully adjustable bass processor creates low frequencies and maintains volume from the original source. This means you can fine-tune your bass and volume to your preference, ensuring you get the audio experience you’ve been dreaming of.
With hi-level speaker inputs for OEM integration, the DBPX200.MX seamlessly integrates with any existing car audio system. The dual knob dash mount remote control allows for convenient and easy bass and volume adjustments on the go, giving you full control over your system.
The DBPX200.MX operates at a voltage range of 9-16V and consumes only 0.18A of power. It is recommended to use a 1A fuse rating for optimal performance. The LED indicators on the knob and processor lights up to indicate power, bass enhancement, and clipping.
This DBPX200.MX also features an input load selector, subsonic filter, and selectable auto turn-on features. The PCB with anti-corrosion coating ensures durability and longevity, while the compact design allows for easy installation in any application.
Upgrade your car audio system with DS18’s DBPX200.MX and vive la vida en voz alta!
