Bass knob With Volt Meter and Temperature Display
SOLD OUT






Bass knob With Volt Meter and Temperature Display
SOLD OUT
Sale $61.16 / EACH
Reg.$71.95
15% OFF FOR Labor Day Sale!
-
Key Features
- Universal Bass Knob , Volt Meter & Temperature Sensor
- Compatible with most Head Units & Amplifiers
- Remote Amp Trigger
- Digital Volt Meter(10V-15.9V)
- Temperature Sensor(0°-125°C/32°-257°F)
- Rotary Push Turn On/Off for Amplifier Remote
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
BKVTR
Number of Channels
2 (Left/Right)
RCA Type
Regular RCA Wire
Housing Material / Color
ABS / Black
Adjustments
Voltage / F / C
Display Type
Numeric LED
Auto Turn-on
Yes, (Rem-In)
Remote Turn-on Input/Output
Yes
SPECS
Operating Voltage
10-15.9V
Frequency Response
10Hz-30KHz
Input Sensitivity
0.1-16V
Input Impedance
20K Ohms
Output Voltage
0.1-16V (Variable)
Output Impedance
20K Ohms
Temperature Sensor Range
0°~125°C / 32°~257°F
Sensor Cable Length
16ft / 5m
Measurements
Overall Width
3.26" / 83mm
Overall Height
1" / 27.5mm
Overall Depth
2.48" / 63mm
Body Width
2.32" / 59mm
Body Height
1" / 27.5mm
Body Depth
1.7" / 43mm
Flush Cut-Off Width
2.32" / 59mm
Flush Cut-Off Height
1" / 27mm
Flush Cut-Off Depth
0.5" / 13mm
-
Product Overview
Product Overview
DS18 BKVTR DS18's BKVTR is your all-in-one solution for monitoring and adjusting your system’s amplifier.
Featuring an integrated digital voltmeter and temperature sensor, this remote level controller provides real-time data on voltage levels (10-15.9V) and temperature (0°-125°C / 32°-257°F). Allowing you to stay informed about your system’s condition and adjust on the fly.
Designed for versatility, the BKVTR fits seamlessly in-dash or under-dash, making it compatible with most head units and amplifiers. Its compact, sleek ABS housing in black not only looks great but also guarantees durability. The numeric LED display is clear and easy to read, providing quick access to critical information.

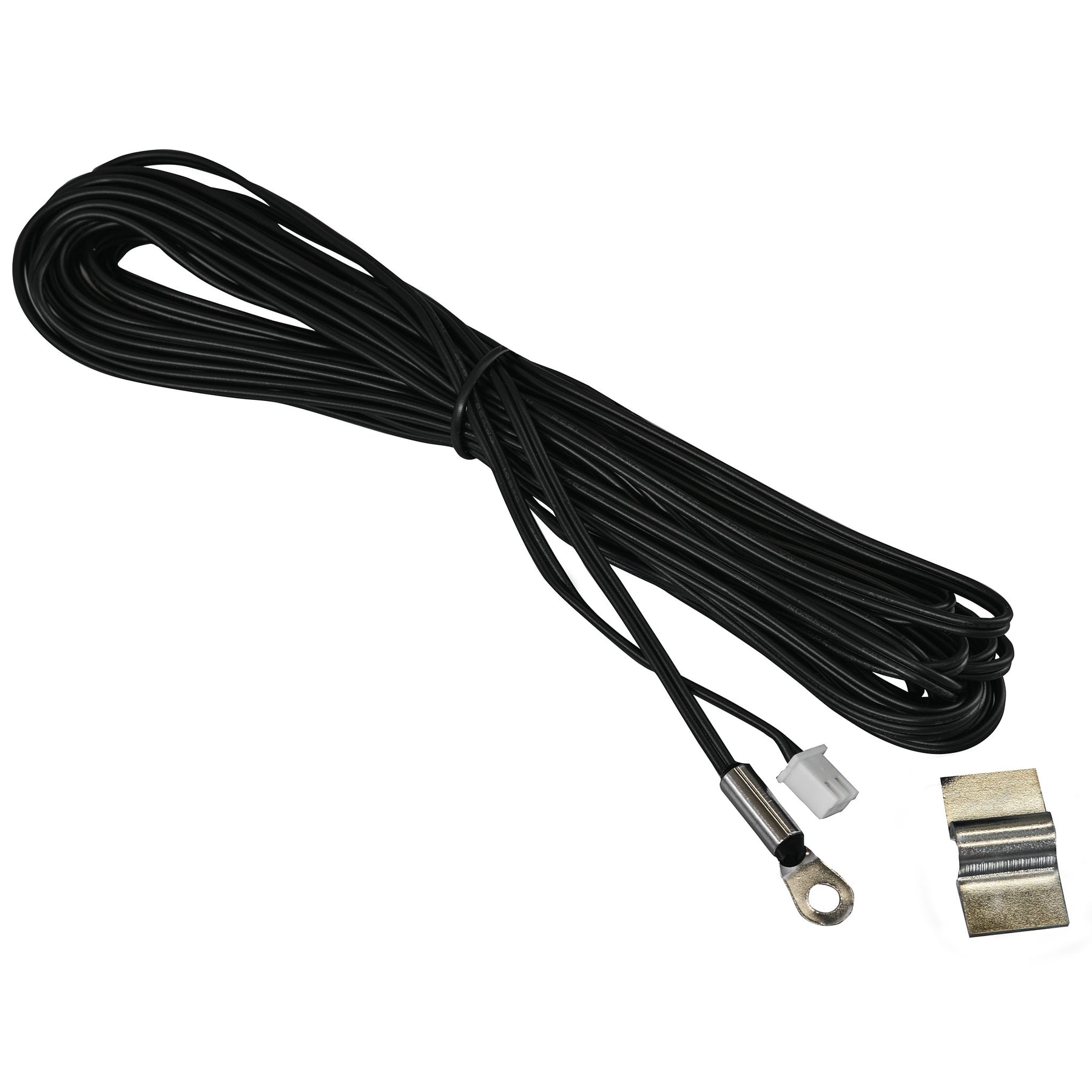

With stereo RCA line level control, the BKVTR allows precise adjustment of the amplifier gain and power. The temperature sensor cable extends up to 16ft/5m, providing flexibility in installation and accurate temperature readings from the amplifier heatsink.
The BKVTR’s combination of features—like voltage adjustment control for distance or cable compensation, auto turn-on functionality, and remote turn-on input/output—makes this controller an essential tool for anyone who likes it LOUD!
Choose DS18's BKVTR and never miss a beat again!
DISCLAIMER: Adding this to the internals of the amplifier will void your warranty. This should be done by someone that is certified for this modification.
