PRO 6.5" Slim Mid-Range Loudspeaker with Water-Resistant Cone | 200W RMS 2-Ohm
PRO 6.5" Slim Mid-Range Loudspeaker with Water-Resistant Cone | 200W RMS 2-Ohm
Sale / EACH
Reg.
20% OFF FOR CYBER MONDAY SALE!
-
Key Features
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 2-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-SM6.2
Nominal Diameter
6.5” / 165.1mm
Nominal Impedance
2-Ohm
RMS Power Handling
200 Watts
MAX Power Handling
400 Watts
Sensitivity (1w/1m)
95 dB
Frequency Response
80Hz-14KHz
Recommended Hi Pass Crossover
180 Hz
MOTOR
Voice Coil Diameter
1.5” / 38.1 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water Resistant Paper
Dust Cap Material
Water Resistant
Surround Material
Coated Cloth
Basket Material
Steel
Basket Color
Glossy Red
Magnet Material
Ferrite
Magnet Weight
20 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume
4.7L / 0.165ft3
Excursion (one way)
8 mm
Free Air Resonance
188 Hz
Mechanical Factor
6.869
Electrical Factor
1.522
Total Factor
1.246
Mechanical Mass
5.082 g
Mechanical Compliance
0.142 m/N
BL Factor
2.811
Voice Coil Inductance
0.289mH
Cone Area
153.94 cm2
DC Resistance
2-Ohm
MEASUREMENT
Overall Diameter
6.5” / 165mm
Overall Depth
2.32” / 59 mm
Front Mount Baffle Cutout
5.67“ / 144 mm
Mounting Depth
2.18” / 56 mm
Motor Diameter
4.33" / 110 mm
-
Product Overview
Product Overview
DS18 PRO-SM6.2 6.5" Shallow Water-Resistant Midrange Loudspeaker
Our PRO-SM6.2 delivers LOUD, clear midrange in open-air motorcycle or powersports applications! This shallow-mount 6.5" midrange brings volume, clarity, and durability: all in one tight package.
Designed to Cut Through ALL Noise
With a 200W RMS / 400W MAX power rating and high 95dB sensitivity, this speaker punches way above its size. The 2-ohm impedance gets full output from your amplifier without requiring bridged channels or multiple amps. Its wide 80Hz–14KHz response captures everything from deep midbass to sharp vocal clarity.Built for the Road
The PRO-SM6.2 features a water-resistant paper cone, cloth edge surround, and coated dust cap for true weather-resistant performance. A red steel basket provides strength and style, while a 1.5” Kapton voice coil and 20oz ferrite magnet keep everything running cool and consistent.Easy Fit, Universal Appeal
At just 2.18" mounting depth and a 5.67" cutout diameter, the PRO-SM6.2 easily integrates into most motorcycle and side-by-side speaker locations!Don’t let road noise kill your vibe—get LOUD with DS18’s PRO-SM6.2!
Complete your System
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
PRO 6.5" Slim Mid-Range Loudspeaker with Water-Resistant Cone | 200W RMS 2-Ohm
Related products
Channels:
Power Rating:
Size:
Impedance:
Color:
- 8" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5" Mounting Depth for Versatile Install Options
- 8" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5" Mounting Depth for Versatile Install Options
Channels:
Power Rating:
Size:
Impedance:
Color:
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 2-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 2-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
Size:
Impedance:
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
Channels:
Power Rating:
Size:
Impedance:
Color:
- 8" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5" Mounting Depth for Versatile Install Options
- 8" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5" Mounting Depth for Versatile Install Options
Size:
Impedance:
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 4-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 4-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
Size:
Impedance:
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
Channels:
Power Rating:
Size:
Impedance:
Color:
- 8” Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5” Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5” Mounting Depth for Versatile Install Options
- 8” Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5” Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5” Mounting Depth for Versatile Install Options
Size:
Impedance:
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
Channels:
Power Rating:
Size:
Impedance:
Color:
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 2-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 2-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
Size:
Impedance:
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
Channels:
Power Rating:
Size:
Impedance:
Color:
- 8" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5" Mounting Depth for Versatile Install Options
- 8" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5" Mounting Depth for Versatile Install Options
Size:
Impedance:
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 4-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
- 6.5” Shallow Midrange Speaker (400W MAX / 200W RMS)
- Water-Resistant Cone & Dust Cap
- 4-Ohm Impedance
- 95dB Sensitivity
- Slim 2.18” Mounting Depth
- 1.5” Kapton Voice Coil with 20oz Ferrite Magnet
Size:
Impedance:
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
Channels:
Power Rating:
Size:
Impedance:
Color:
- 8” Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5” Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5” Mounting Depth for Versatile Install Options
- 8” Shallow Midrange Speaker 500W MAX / 250W RMS
- 4-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (97dB) for Clear, Loud Output
- 1.5” Kapton Voice Coil with 25oz Ferrite Magnet
- 2.5” Mounting Depth for Versatile Install Options
PRO 6.5" Shallow Water-Resistant Mid-Range Loudspeaker | 200W RMS 2-Ohm

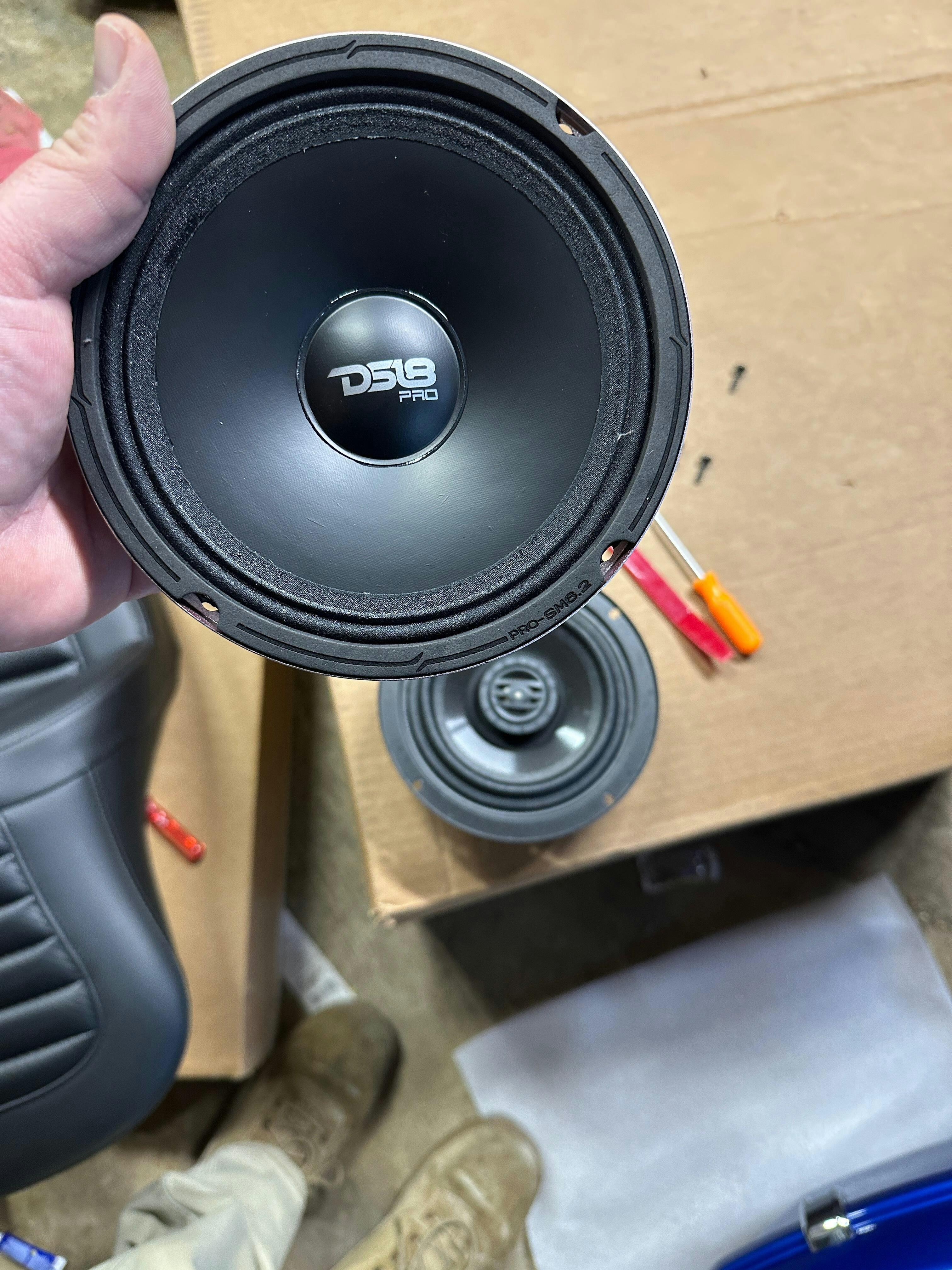

Just installed in my ultra classic and couldn't be happier. Great sound and very loud. Will definitely be buying another set for the lowers.
PRO 6.5" Shallow Water resistant Mid-Range Loudspeaker 200 Watts Rms 2-Ohm
Work tremendously great perfect at any speed on the highway, etc.
Bought these for my 2024 Road glide to replace the factory junk and let me tell ya, these did the job. If you just want to be able to hear your stereo on your RG then these will do the trick. You will need 1/4” spacers for a perfect fit but totally worth it. These are 20hm like the OEM system too.
Let customers speak for us
from 4130 reviewsThe speakers were shipped out fast, with a very fast delivery time. They sound better than I could have expected. I definitely plan on buying some more for my system!!
Had to tune it down a little. It is capable of getting to loud. Lol
Speakers sound great but don’t drop them…. I apparently had slick fingers that day and dropped it. Messed the speaker up unfortunately but still sounds ok lol. Will order another eventually
I had an issue with my amp, called customer service and he was able to walk me through the repair/return process. My amp was back to me before I knew it. Very good experience all the way around!!
Before putting my system together i watched countless hours of subwoofer reviews and read an obsurd amount of articles. I was on a budget when i went to my local wholesaler who I'd been buying car audio parts from for quite a while. He suggested these zxi12.2d subs. I wasnt sold tho, i went home looked em up and found mixed reviews. The following weekend i went back to store. Dude told me he would give me a deal on 2 of them in a matched ported ported box. I figured I'd give it a try. I hooked these bad boys up to a 2ohm 3k mono amp and was more than pleasantly surprised by how far the lows were hitting, how loud it was for just 2 12"s in a Yukon at that. The power rating seems vastly underrated as others have mentioned, i feel like i put these 2 12s on a 5k or 8k amp to really see them at full potential. Im at 3/4 max power on my amp cant turn it up anymore due to distore from the amp, not clipping on the subs. If anyone has tested these to full clipping and knows the max power they can take constitently in an everyday driver lmk pls. These guys are underrated in the bass head world. Im currently using their zxi 6.5 components on a amp as well for clear and of course loud mids and highs. Thx for the quality products.
Easy install. Great sound. Runs with JBL 2"throat and sounds the same. I do remove the phase plug. It is good at distance but not as bright
Kit is perfect. I had way more wire than needed which was great and really aided in being able to tuck everything neatly. Came with everything you’re gonna need to get ur amp goin.
Don’t even have any other upgrades yet other than these speakers and already noticed a huge difference.
Got for my dad, he said it works great and easy to wire
I recently bought the 4 speaker kit with an amp to mount on my ATV, and the included controller was far too big for me to mount. So I bought this rocker style controller and I got it on my ATV with a little modification (to my ATV not the controller) it wires up easy, and it was a good purchase.
This tweeter’s are not cheap but definitely worth the price the sound quality is amazing and they look good i was able to pair them with rockford optix controlle for the rgb
Love it
We are loading your cart...
-
-
Password Required
Please enter the password to access this page.
