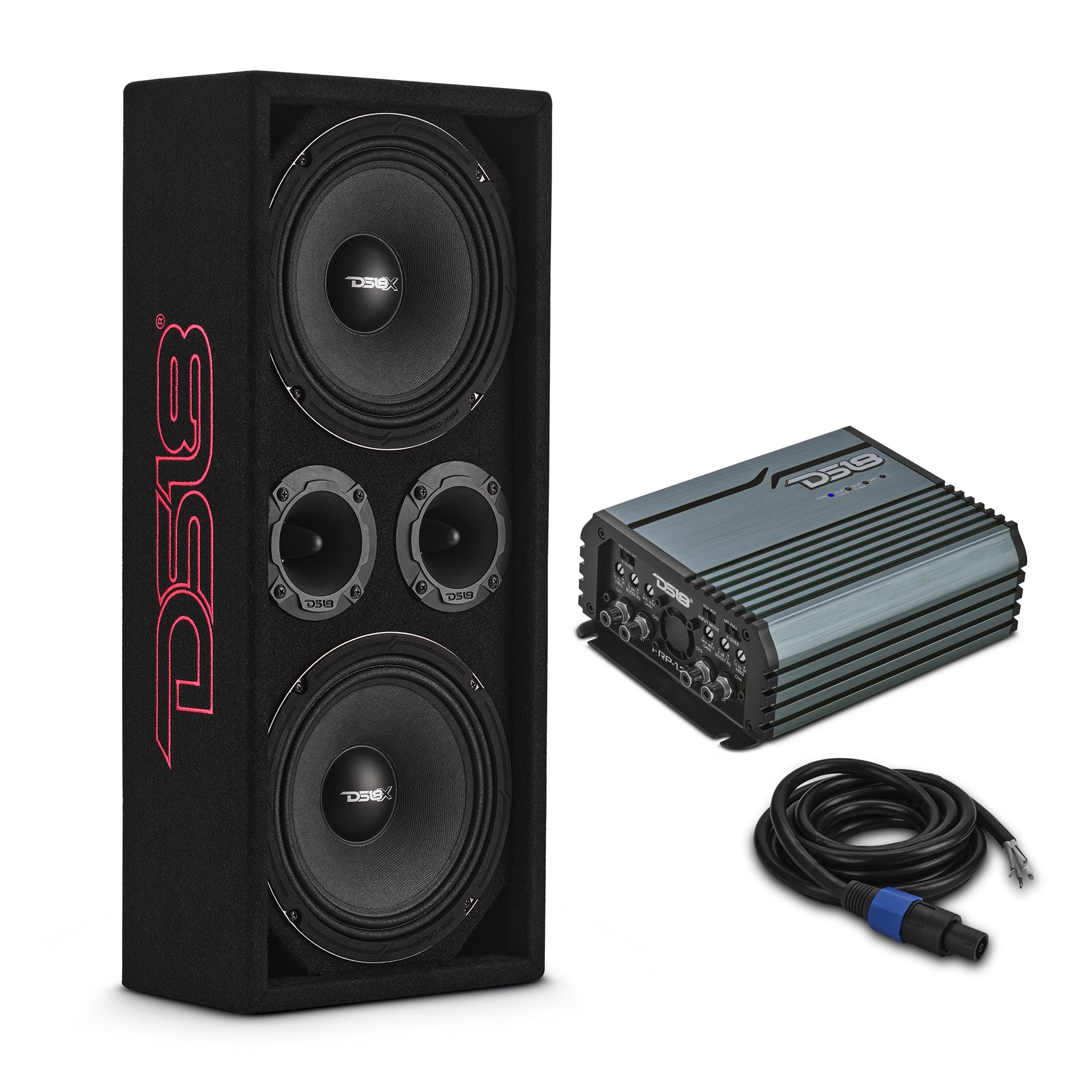

Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable

SKU: VOC8LD-PK

NEW ARRIVAL

Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable
Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable

Loaded Voceteo Enclosure with Dual 8" Speakers, Dual 3.78" Tweeters, Amplifier & Speakon Cable

SKU: VOC8LD-PK

NEW ARRIVAL

Sale price$649.95
/PACKAGE
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Enclosure: Loaded

Loaded
Empty

Size: 8"

Color:

Quantity:
  • Key Features

    • 2x 8” PRO-X8M Mid-Range Speakers
    • 2x 3.78” PRO-TWX2 Bullet Tweeters
    • RMS Power: 550W Mid / 240W Tweeter
    • Enclosure Type: Ported

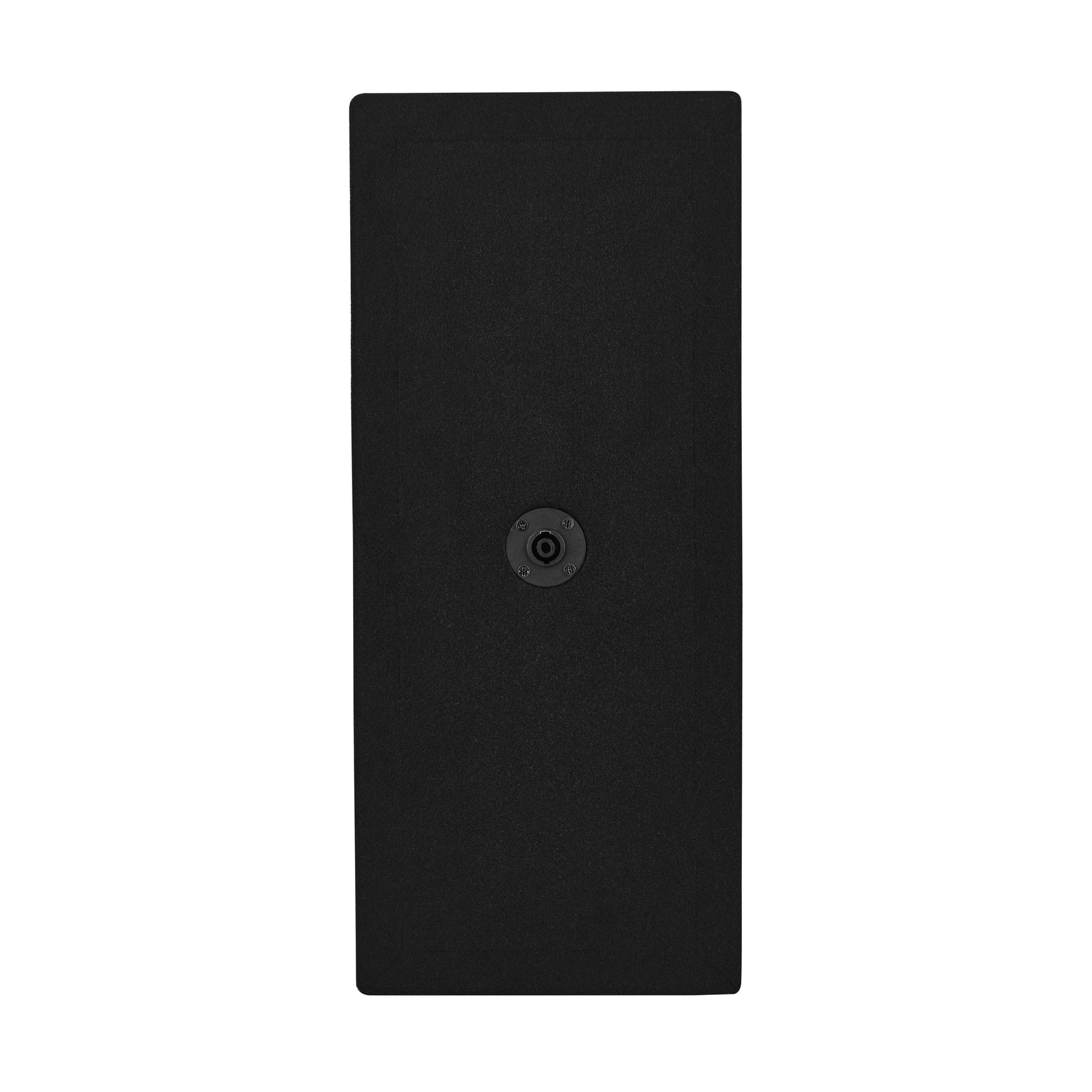

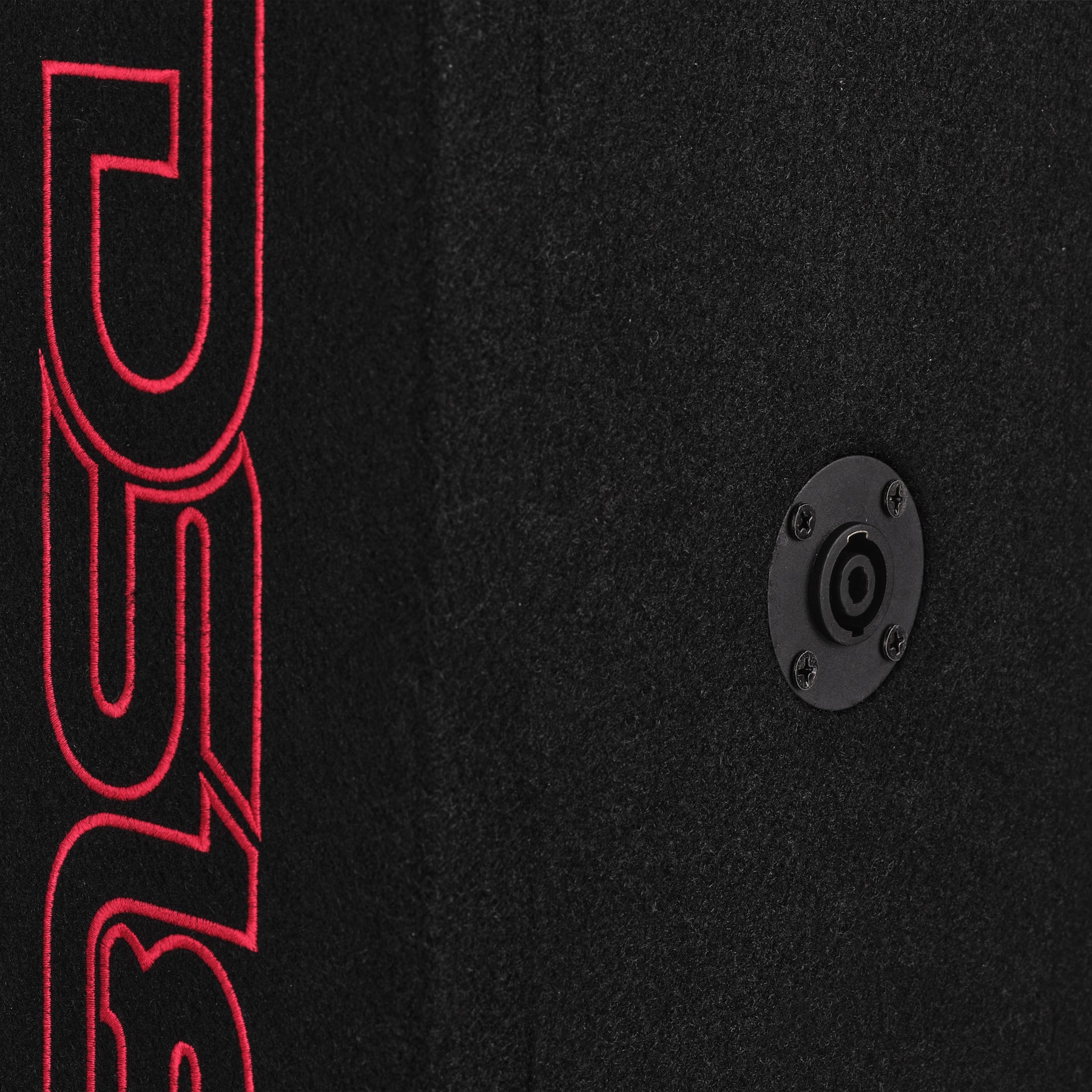

    • Speakon terminal + 12ft OFC 4-conductor Speakon cable
    • FRP-1.2K4 included
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    General

    Speaker Type / Size
    Dual 8" Mid-Range (PRO-X8M) + Dual 3.78" Tweeter (PRO-TWX2)
    Total Impedance
    4 Ohms
    Total RMS Power Handling
    275W
    Total MAX Power Handling
    550W
    Sensitivity (1W/1M)
    97 dB
    Frequency Response
    80Hz-20kHz
    Recommended High-Pass Crossover
    120 Hz

    Enclosure Specifications

    Internal Volume
    11.6L / 0.41ft3
    Port Tune (Fb)
    120 Hz
    Load Configuration
    Parallel
    Enclosure Type
    Side Ported
    Enclosure Material
    1/2" (15mm) MDF
    Finish Material
    Black Carpet
    -3dB Dropping Point (F3)
    80 Hz

    Measurements

    Height
    22.25" (565mm)
    Width
    9.5" (241mm)
    Depth
    5.25" (133mm)

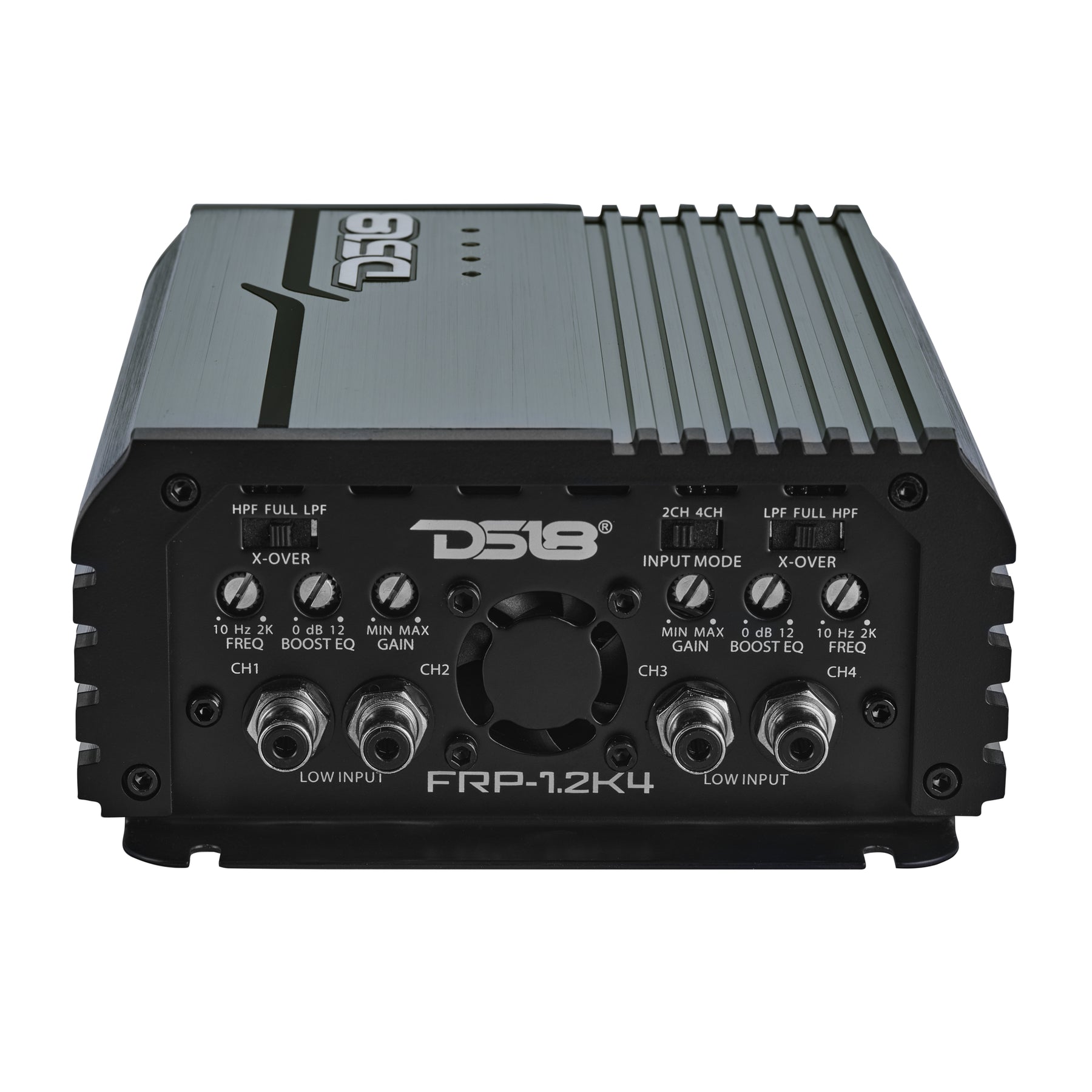

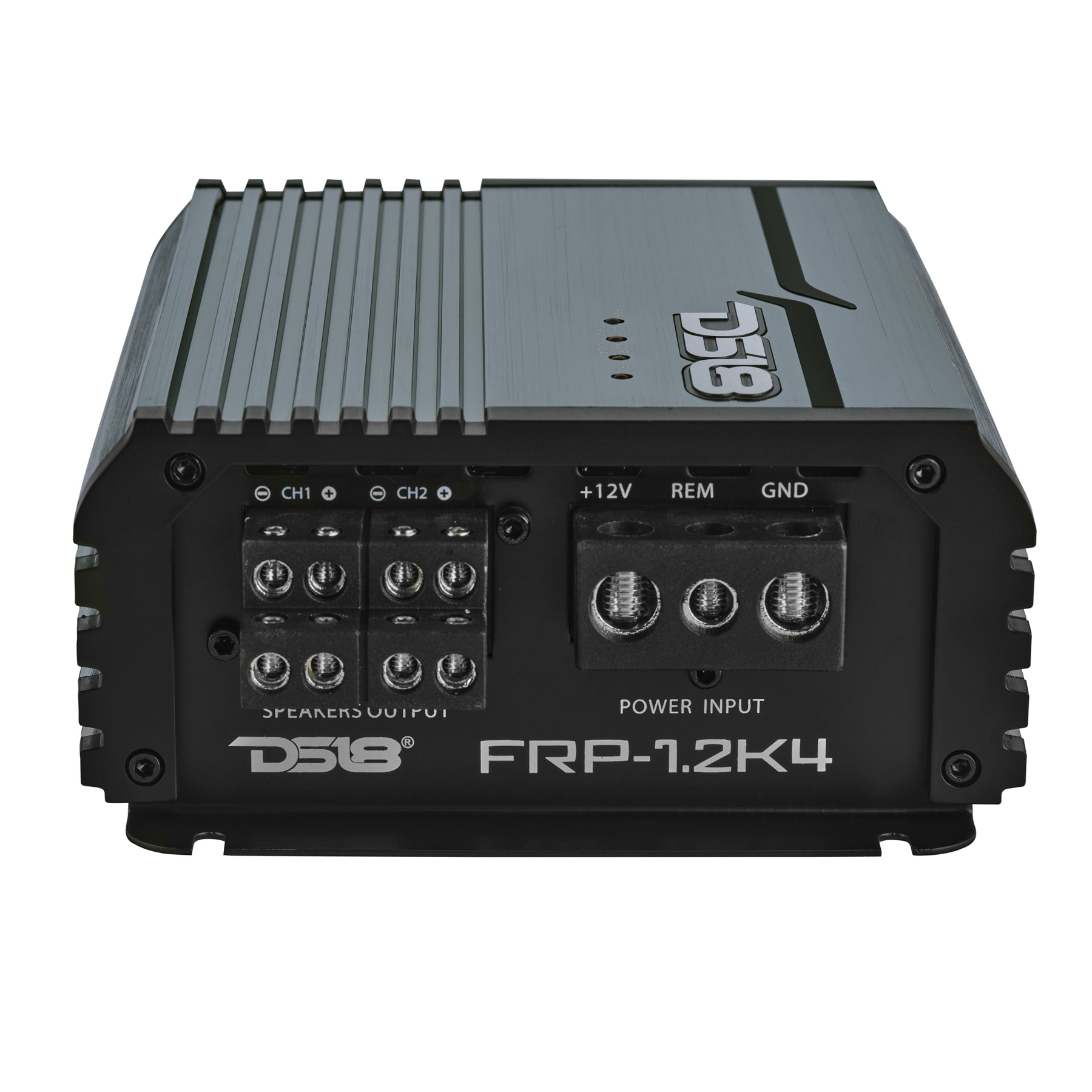

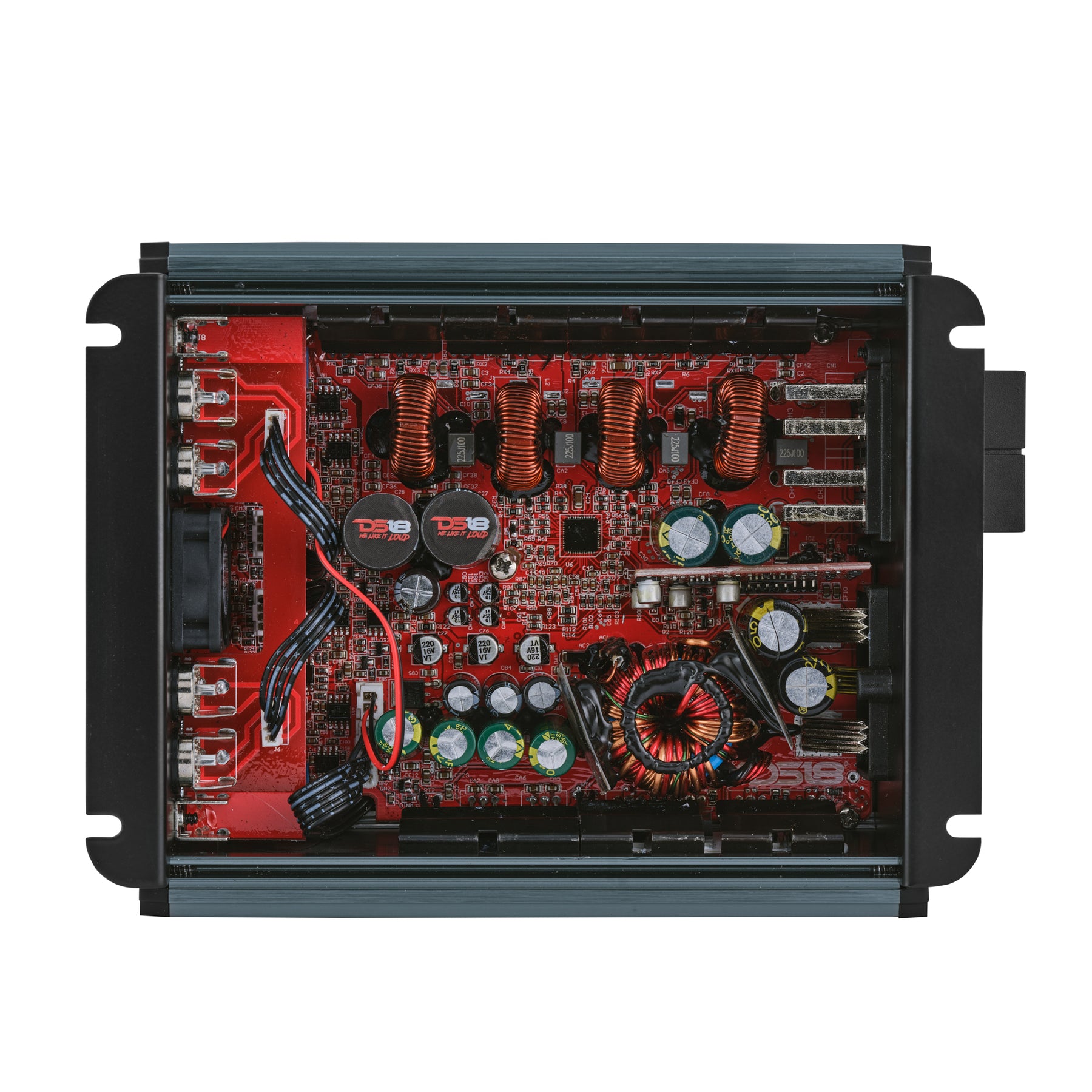

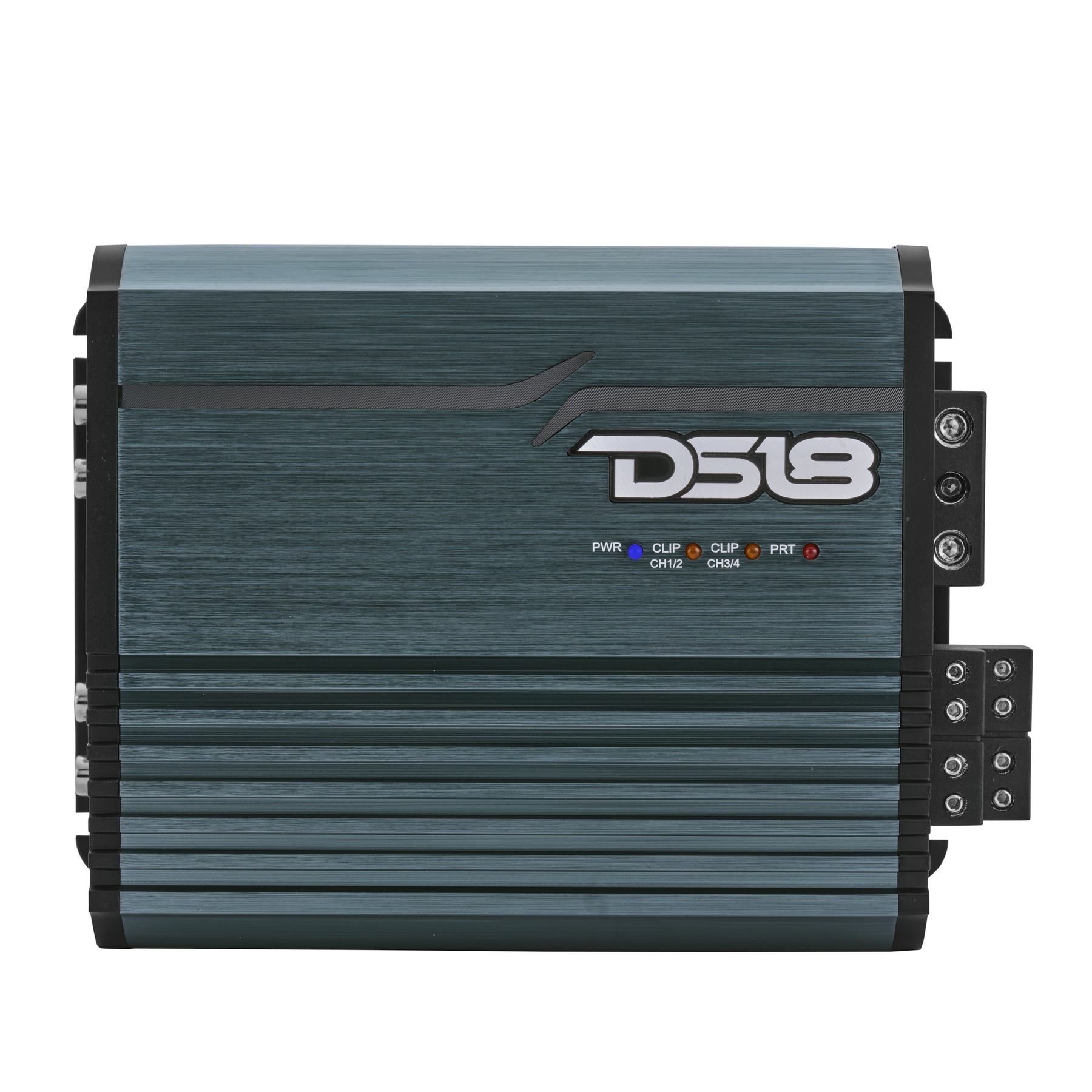

    Amplifier (FRP-1.2K4)
    Power

    RMS Power @ 4 Ohms
    4 x 120W
    RMS Power @ 2 Ohms
    4 x 200W
    RMS Power @ 1 Ohm
    4 x 300W
    RMS Power @ 4 Ohms Bridge
    2 x 350W
    RMS Power @ 2 Ohms Bridge
    2 x 500W

    Amplifier (FRP-1.2K4)
    Audio

    Frequency Response
    10Hz-20kHz
    Signal to Noise Ratio
    90dB
    Efficiency @ 4 Ohms
    97%
    Damping Factor
    90
    Input Impedance
    10k
    Total Harmonic Distortion (THD)
    0.5%
    Low-Level Input Range
    400mV-6V
    Selectable X-Over
    Yes, HPF / FULL / LPF
    X-Over Filter Range
    10Hz-2kHz
    Bass Boost Frequency
    50Hz
    Bass Boost Range
    0-12dB
    Channel Separation
    50dB

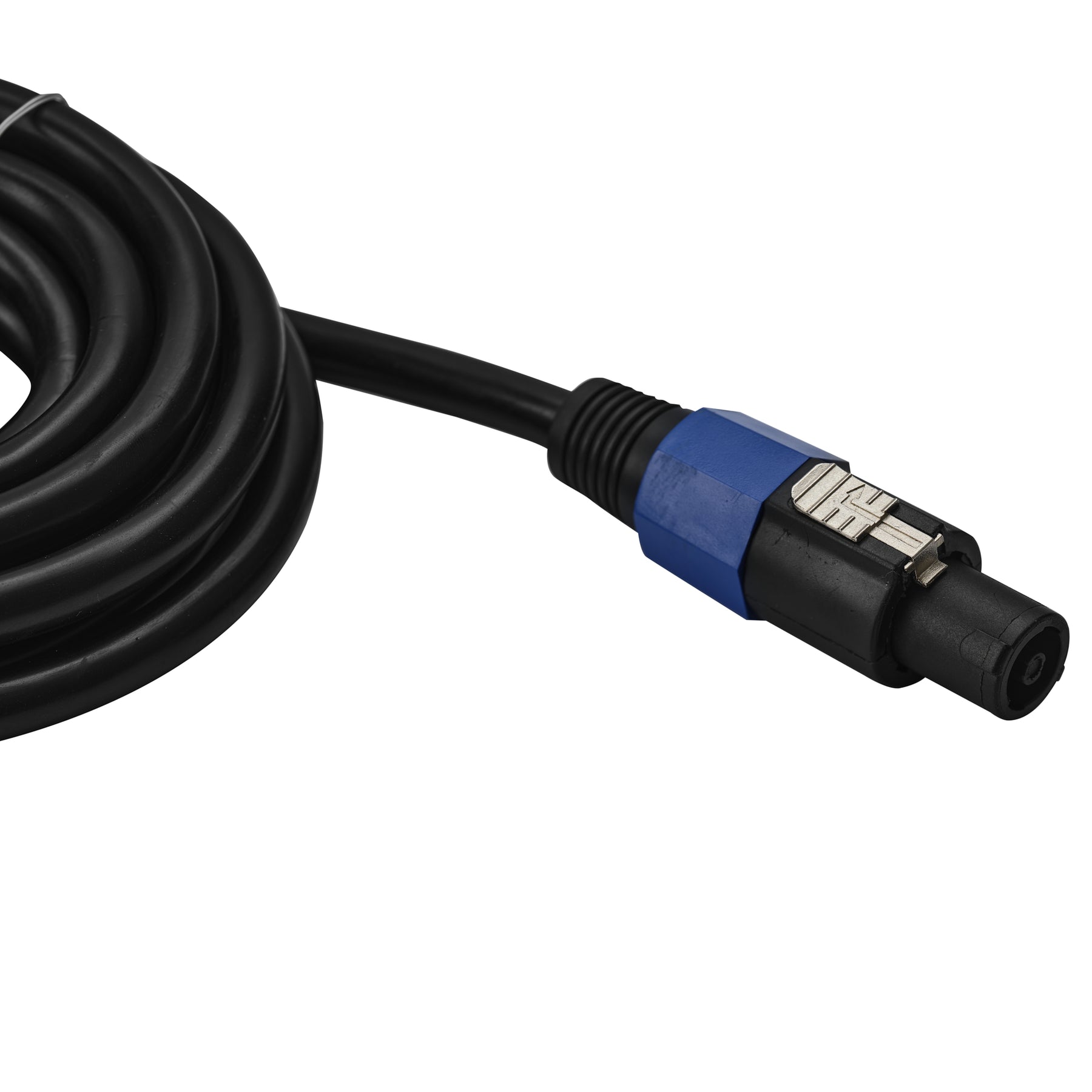

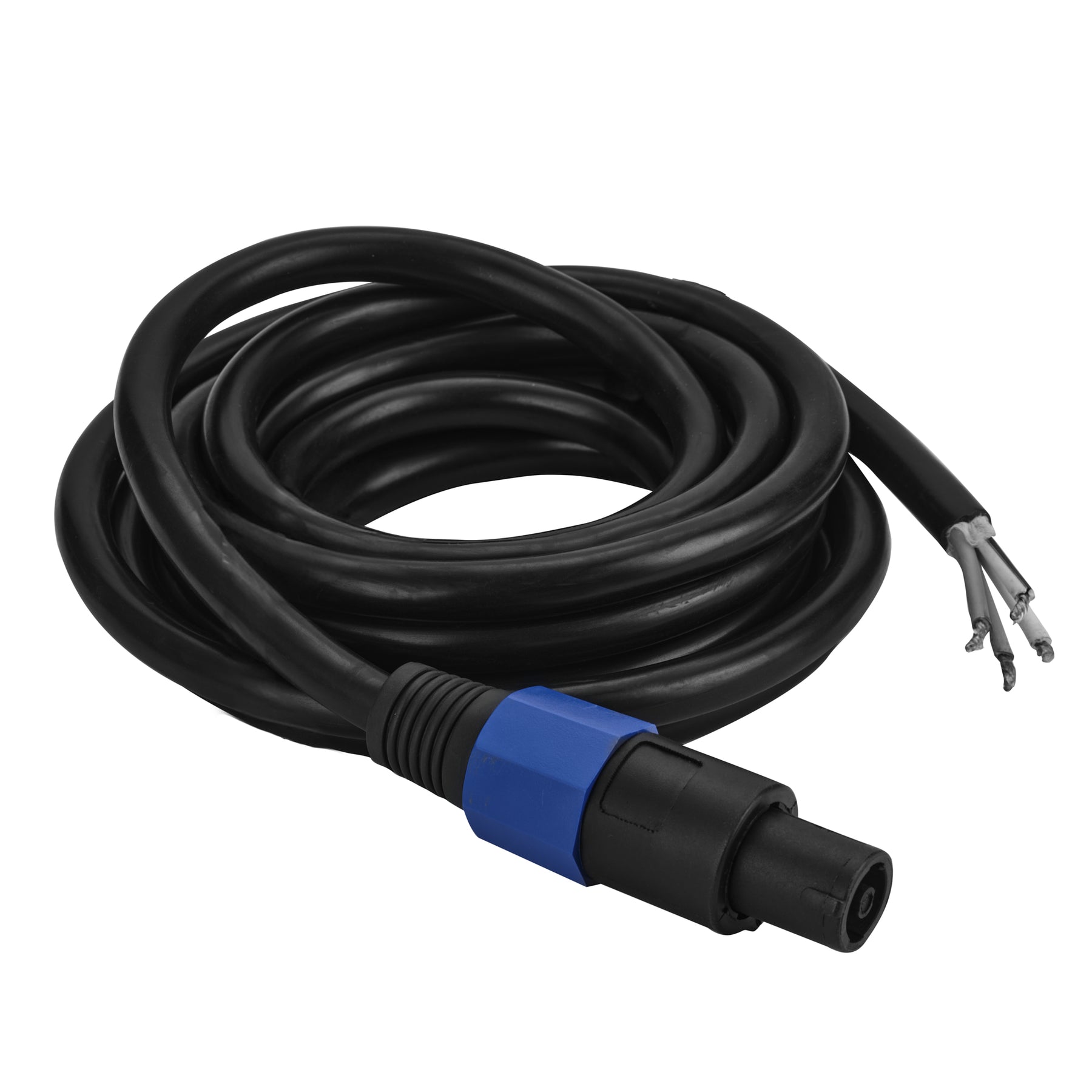

    Speaker Wires

    Type
    Speakon (Male)
    Total Length
    12ft (3.6m)
    Conductor Material
    Copper (OFC)
    Number of Conductors
    4
    Gauge
    14 AWG
    Nominal Outside Diameter
    8mm
    Cable Construction Type
    Stranded / Multi-Twist
    Shield Material / Color
    PVC / Black

    Load More
  • Product Overview

    Product Overview

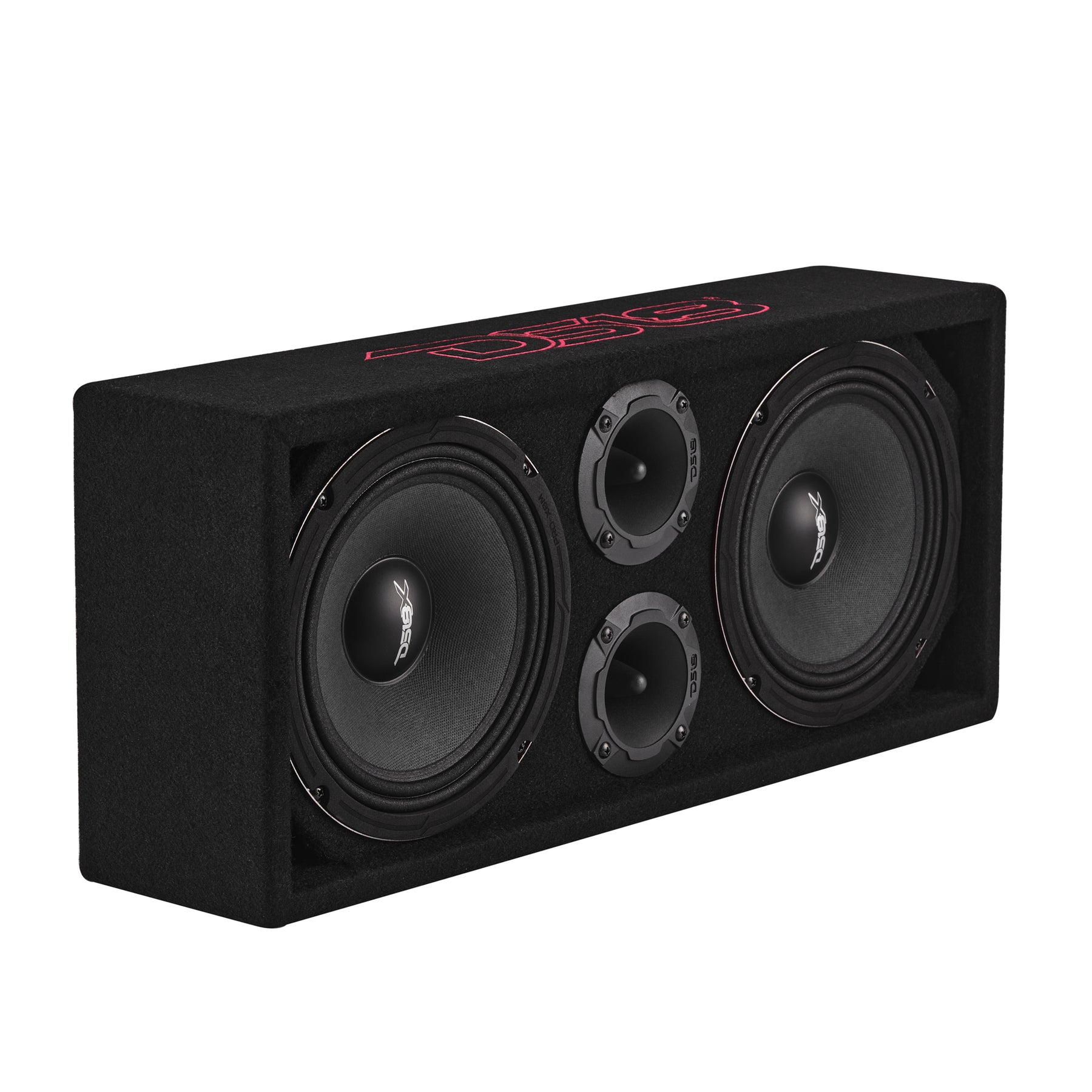

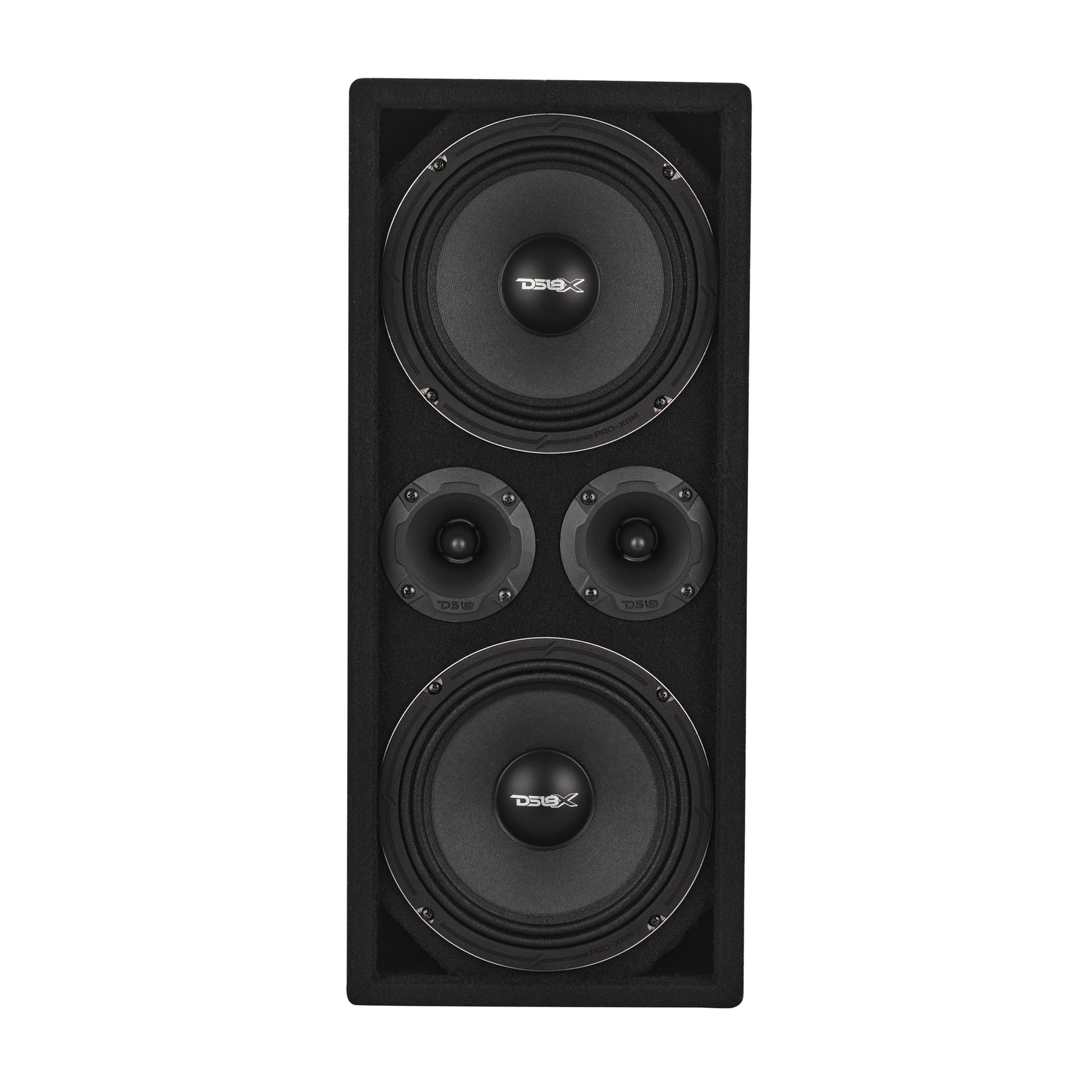

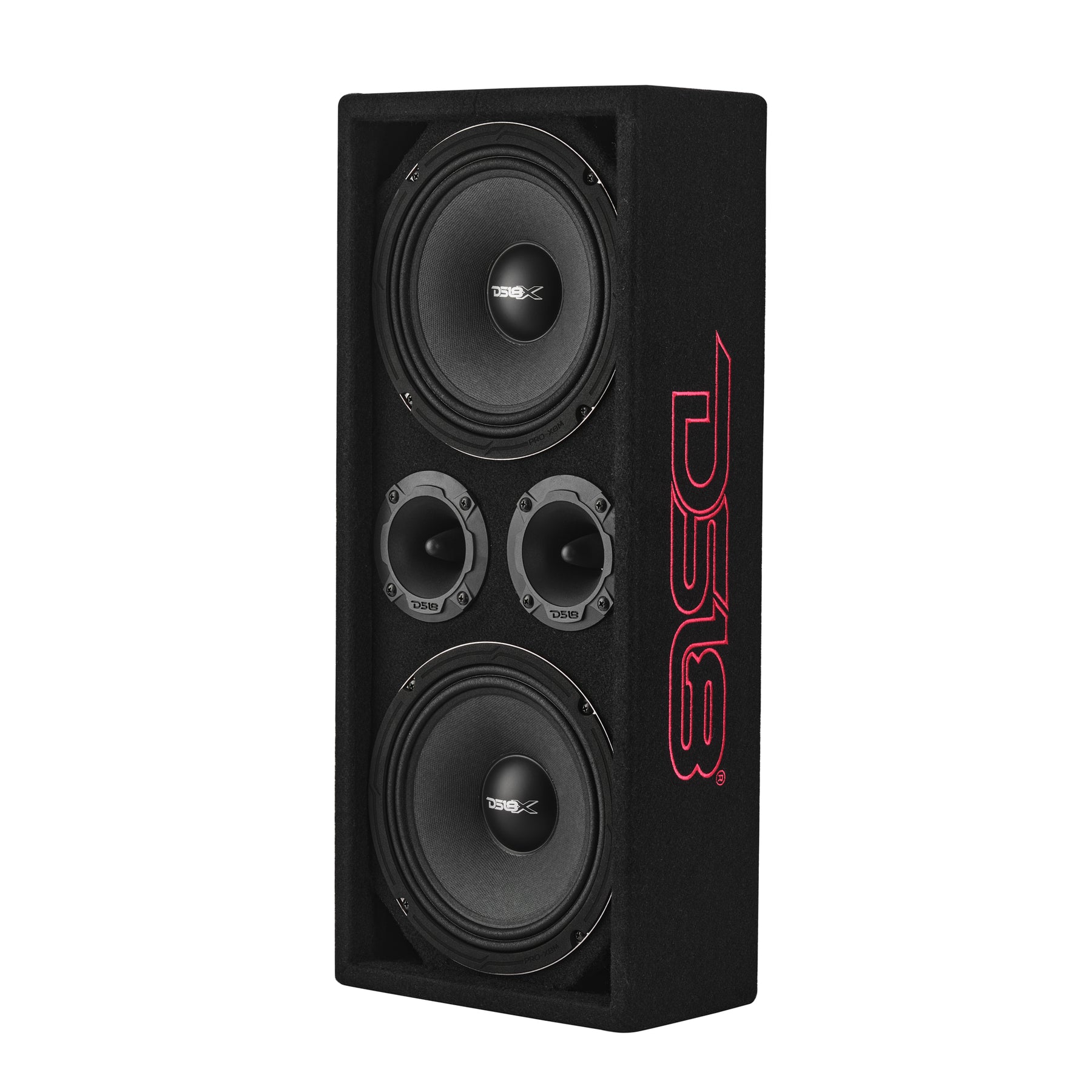

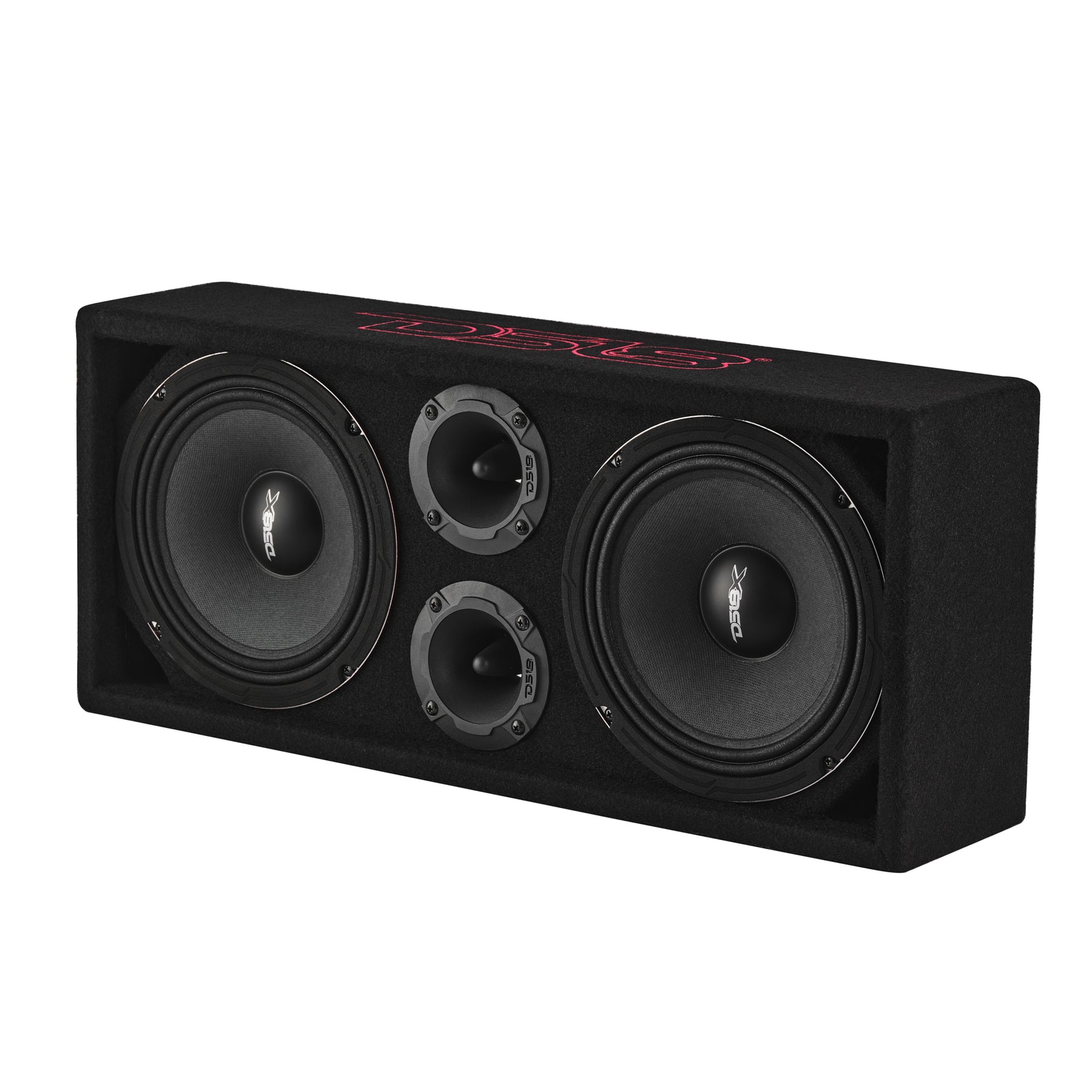

    DS18 VOC8LD-PK

    8” Loaded Voceteo Enclosure with Tweeters, Full-Range Amp & Speakon Cable

    DS18’s VOC8LD-PK brings the energy of the streets into a plug-and-play box that’s ready to get LOUD!

    Loaded with dual 8" PRO-X8M mid-range drivers, two ear-piercing PRO-TWX2 bullet tweeters, and powered by the mighty FRP-1.2K4 full-range amp—this system hits every note with serious punch.

    Turnkey Voceteo Setup
    This full-stack voceteo enclosure is built to skip the guesswork. We matched the enclosure, drivers, amp, and even tossed in a 12-foot 4-conductor Speakon cable for clean, fast setup. All you need is power.

    Built Tough
    Wrapped in sleek black carpet and made from ½” MDF, the VOC8LD-PK is road-tested and show-ready. With 550W RMS midrange power, 240W tweeter power, and a 4-ohm parallel load, it’ll keep your vocals cutting through no matter how wild the setup gets.

    Amped to Perform

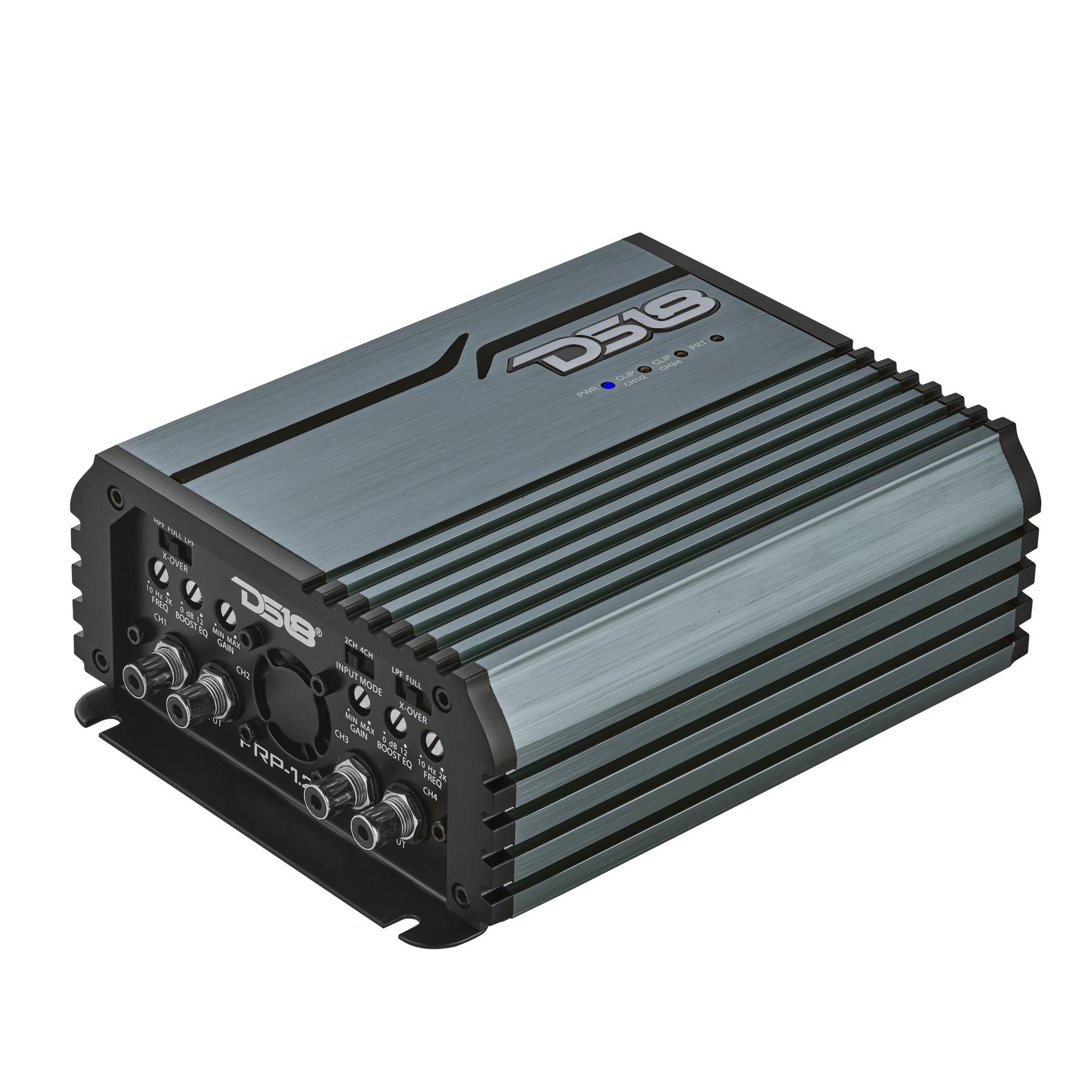

    The included FRP-1.2K4 4-channel amplifier is compact, powerful, and fully loaded with HPF/LPF/FULL crossover settings, bass boost, and smart cooling tech. It delivers clean power at 1, 2, or 4 ohms, perfectly matched to your new loadout.

    Get DS18’s VOC8LD-PK and bring the show to the streets!

    Pro Tip: For max output and proper protection, pair this setup with DS18’s OFCKIT0 amp wiring kit. You’ll get the cleanest install and the strongest signal.
