PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm

SKU: PRO-SM8.4

NEW ARRIVAL

PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm
PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm
PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm
PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm
PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm
PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm
PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm

PRO 8" Shallow Water-Resistant Midrange Loudspeaker | 250W RMS 4-Ohm

SKU: PRO-SM8.4

NEW ARRIVAL

Sale price$79.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Size: 8"

Impedance: 4-Ohm

2-Ohm
4-Ohm
Quantity:
  • Key Features

    • 8” Shallow Midrange Speaker 500W MAX / 250W RMS
    • 4-Ohm Impedance for Easy Amplifier Matching
    • Water-Resistant Cone, Dust Cap, and Cloth Surround
    • High Sensitivity (97dB) for Clear, Loud Output
    • 1.5” Kapton Voice Coil with 25oz Ferrite Magnet
    • 2.5” Mounting Depth for Versatile Install Options
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    Nominal Diameter
    8" / 203.2mm
    Nominal Impedance
    4-Ohm
    RMS Power Handling
    250W
    MAX Power Handling
    500W
    Sensitivity (1w/1m)
    97dB
    Frequency Response
    65Hz - 12KHz
    Recommended HI Pass Crossover
    160 Hz
    Pair or Single
    Single
    Grill Included
    No
    Voice Coil Water Protection
    No
    Water-Resistant Rating
    N/A

    Motor

    Voice Coil Diameter
    1.5" / 38.1mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Water Resistant Paper
    Surround Material
    Coated Cloth
    Basket Material
    Steel
    Basket Color/Finish
    Gloss Red
    Magnet Material
    Ferrite
    Magnet Weight
    25 Oz

    Thiele & Small Parameters

    Equivalent Volume
    24.96L / 0.881f3
    Excursion (one way)
    1.3 mm
    Free Air Resonance
    110Hz
    Mechanical Factor (Qms)
    8.062
    Electrical Factor (Qes)
    1.024
    Total Factor (Qts)
    0.898
    Mechanical Mass
    10.132g
    Mechanical Compliance
    0.416mm/N
    BL Factor
    3.027
    Voice Coil Inductance
    0.364mH
    Cone Area
    213.82cm2
    DC Resistance
    3.2 ohms
    Mechanical Mass w/o Air
    9.98g

    Measurement

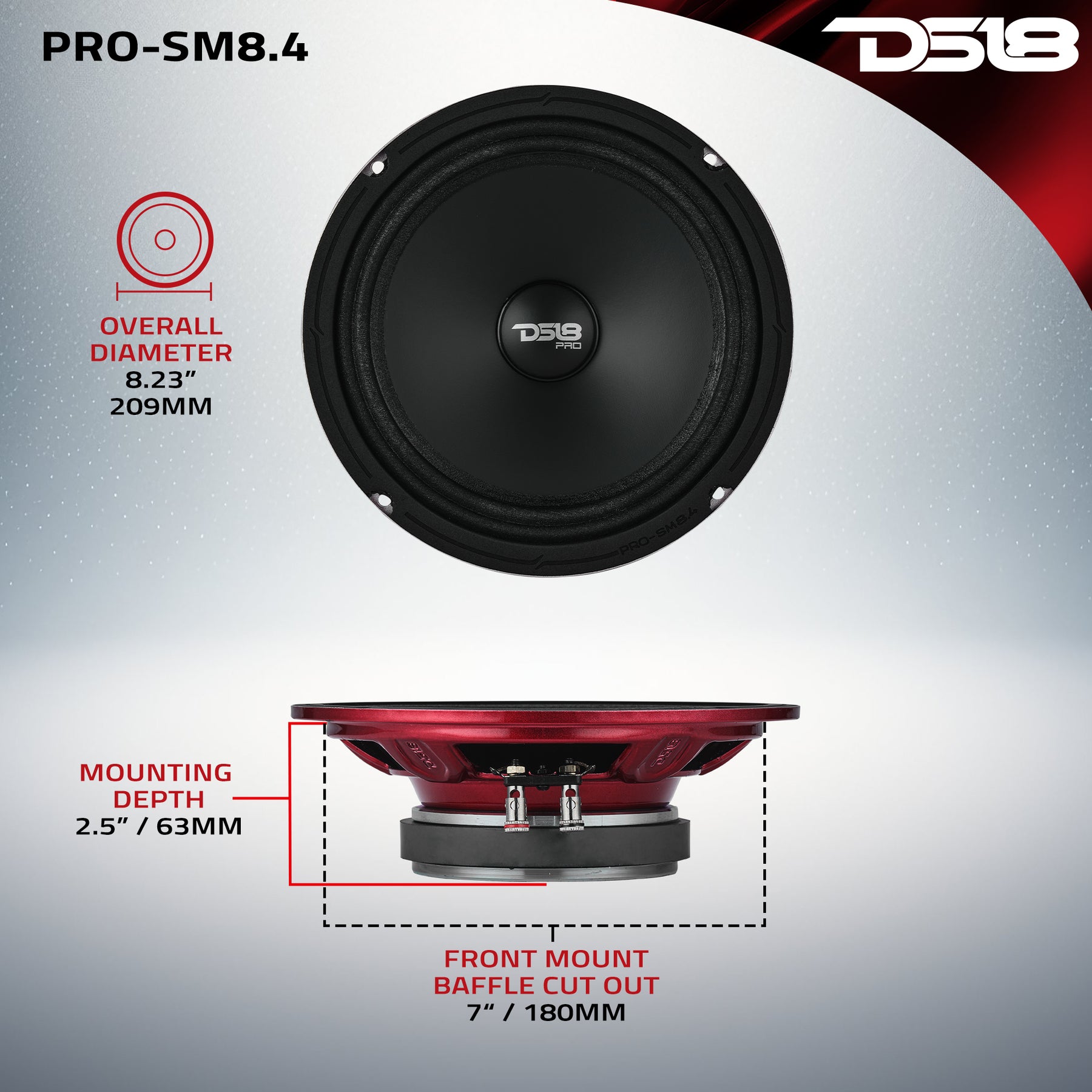

    Overall Diameter
    8.23" / 209mm
    Overall Depth
    2.7" / 69mm
    Front Mount Baffle Cutout
    7" / 180mm
    Mounting Depth
    2.5" / 63mm
    Motor Diameter
    4.72" / 120mm

    Load More
  • Product Overview

    Product Overview

    Our PRO-SM8.4 is the ultimate midrange speaker for motorcycles, powersports and off-road applications that want powerful, weather-resistant performance.

    Optimized for Outdoor Performance
    This 8” shallow-mount midrange speaker handles 250W RMS and 500W MAX at 4 ohms. With a wide frequency response of 65Hz–12kHz and a sensitivity of 97dB, it cuts through all noise easily.


    Built to Withstand the Elements
    The PRO-SM8.4 uses a water-resistant paper cone and dust cap, paired with a coated cloth surround to protect against whatever the road throws at you. At just 2.5” mounting depth and a 7” cutout diameter, it’s designed to fit tight installs without compromise.


    Get the PRO-SM8.4 and give your system the volume it needs to stand out!
