Jeep JL/JLU/JT 2018–2023 Overhead Bar System – Loaded 6.5” Plug & Play with PRO-JP6NEO & ZXI-T1





Jeep JL/JLU/JT 2018–2023 Overhead Bar System – Loaded 6.5” Plug & Play with PRO-JP6NEO & ZXI-T1
Sale $407.96 / PAIR
Reg.$479.95
15% OFF FOR Labor Day Sale!
Availability:8 Items
-
Key Features
- 150W RMS / 300W MAX power handling
- High-efficiency neodymium magnets
- Plug & play harnesses for fast installation
- Injection-molded ASA composite enclosure
- Steel protective grille with satin black finish
- Custom fit for Jeep Wrangler JL / JLU and Gladiator JT
- Includes mounting plates, cutting templates, and all hardware
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
JL-SB6
Component Set
2-Way
Nominal Speaker Diameter
6.5" / 165mm
Nominal Tweeter Diameter
1.7" / 43mm
Nominal Impedance
4 Ohm
RMS Power Handling
150 watts
MAX Power Handling
300 watts
Total Sensitivity (1w/1m)
97 dB
Total Frequency Response
60Hz-20KHz
Woofer Specifications
Nominal Impedance
4 Ohm
Total Sensitivity (1w/1m)
96 dB
Frequency Response
60Hz-10KHz
Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Steel
Magnet Material
Neodymium
Magnet Weight
3 Oz
Woofer Thiele & Small Parameters
Equivalent Volume Vas
4.46L / 0.157ft3
Excursion (one way) Xmax
1.5mm
Free Air Resonance Fs
138 Hz
Mechanical Factor Qms
4.249
Electrical Factor Qes
0.977
Total Factor Qts
0.794
Mechanical Mass Mms
7.166g
Mechanical Compliance Cms
148.927 u/M/N
BL Factor Bl
4.767
Voice Coil Inductance Le
0.08696mH
Cone Area Sd
145 cm?
DC Resistance Re
3.2 ohm
Mechanical Mass w/o air Mmd
6.159g
Tweeter Specifications
Nominal Impedance
4 Ohm
Sensitivity (1w/1m)
92dB
Frequency Response
1KHz - 20KHz
HI Pass Crossover
3.5Khz
Body Color / Material
Black / ABS
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Aluminum
Winding Material
SV
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
13g
Body / Features
Wiring / Connections
Plug & Play to factory Speaker Connector
Enclosure Material
Injection Molded ASA composite
Grill Material
Steel
Sold as Pair
Yes (Left and Right Set)
Color / Finish
Black / Satin
Measurement
Overall Wide
8.26" / 210mm
Overall Length
12.36" / 314mm
Overall Depth
3.27" / 83mm
-
Product Overview
Product Overview

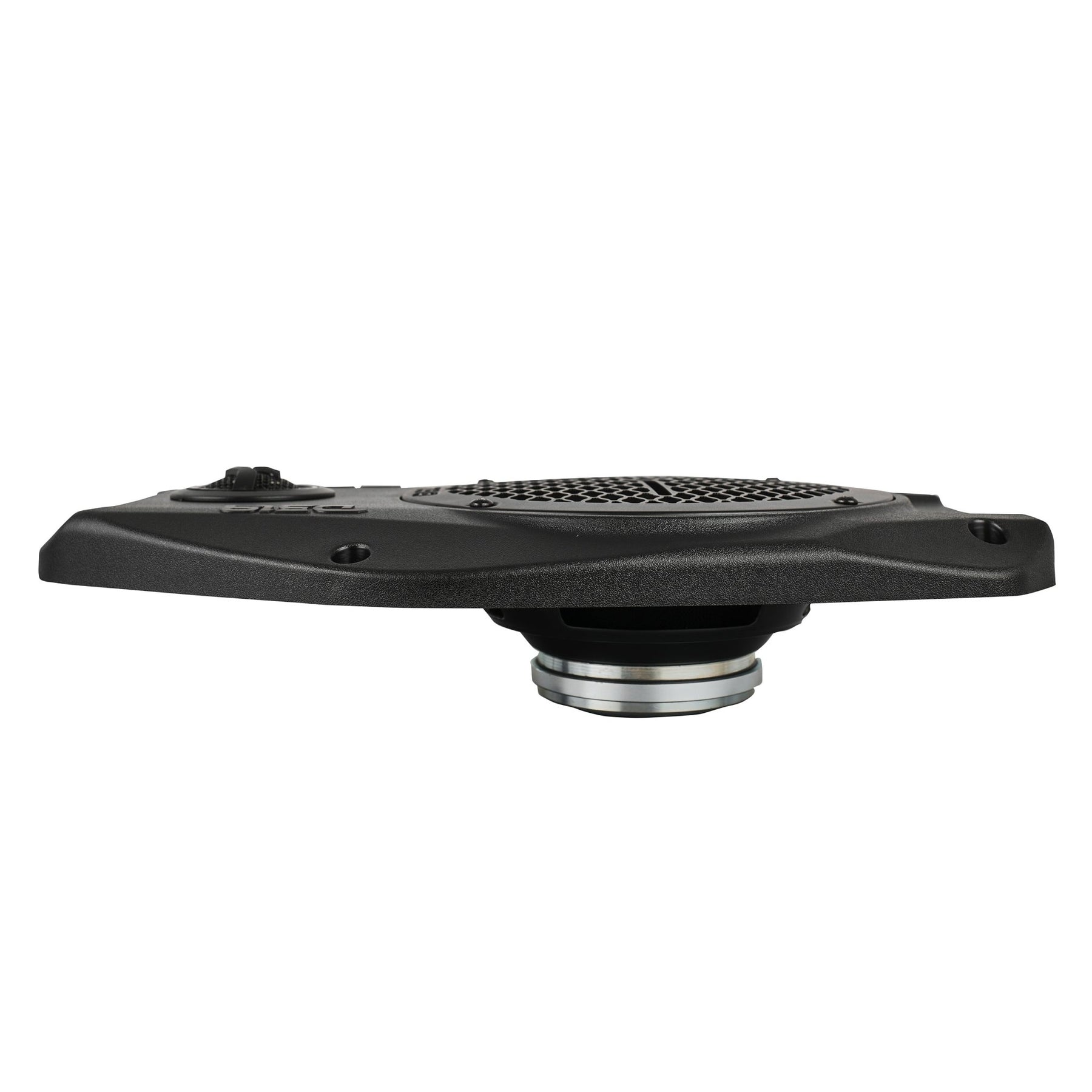

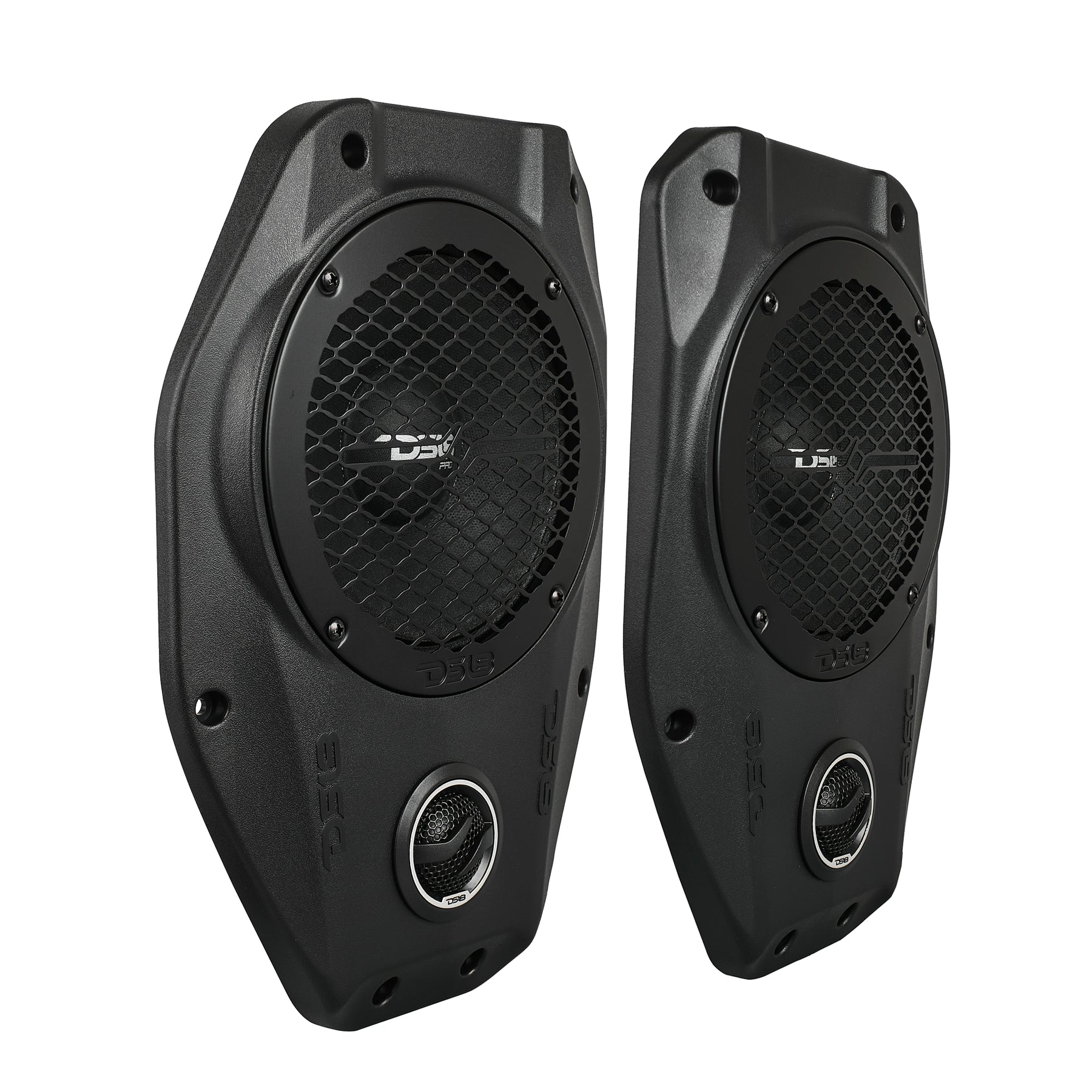

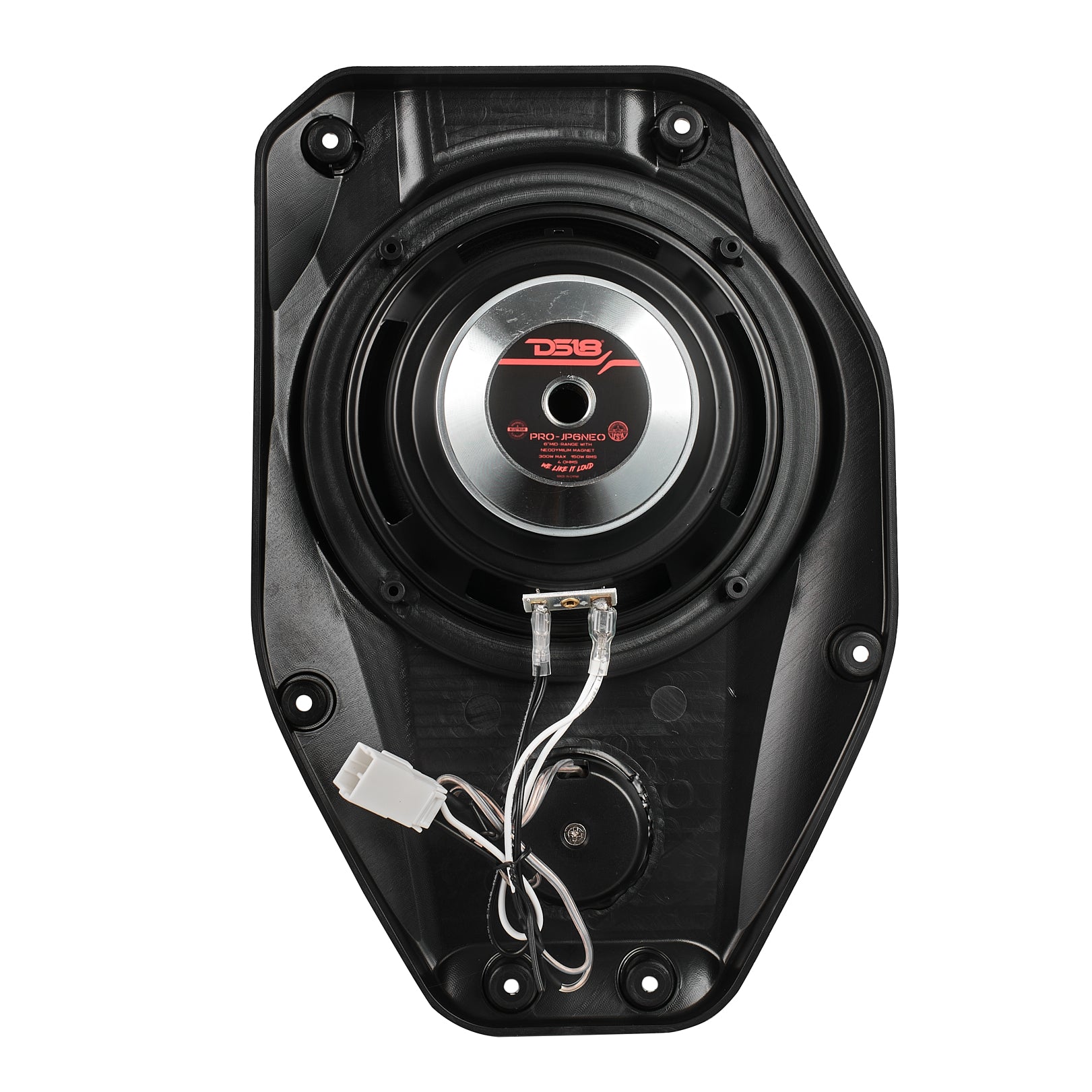

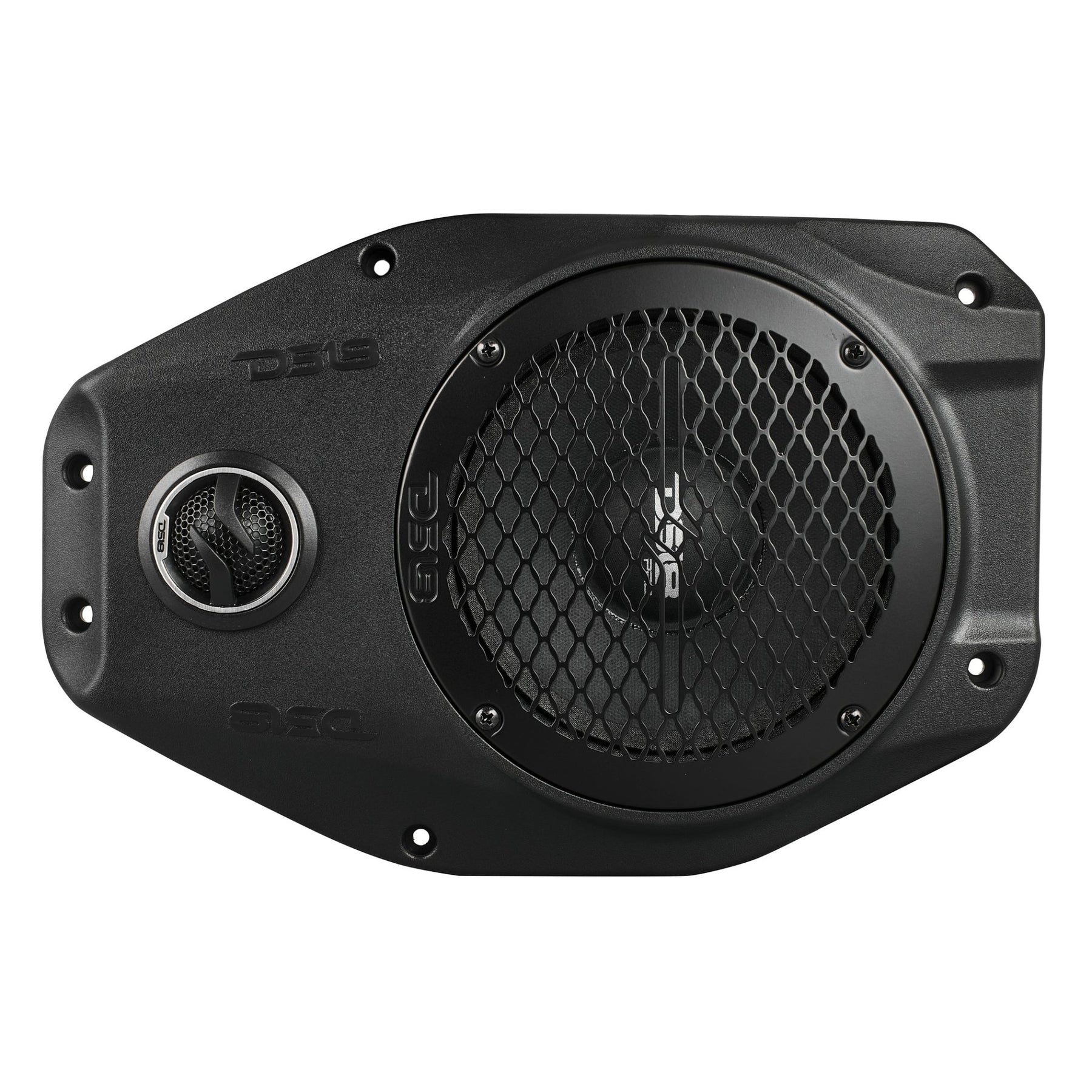

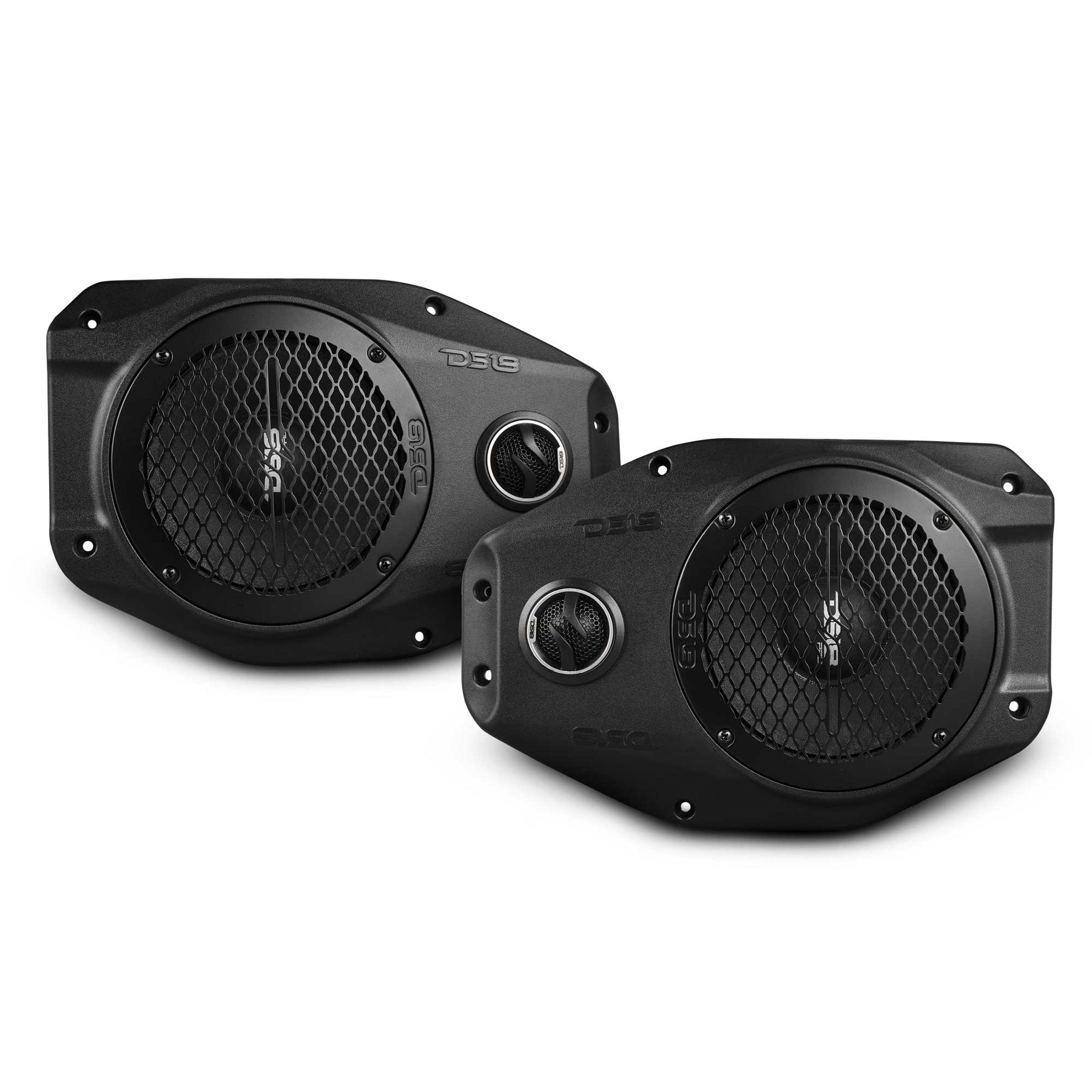

DS18 JL-SB6 6.5” Soundbar Upgrade Kit for Jeep Wrangler JL / JLU & Gladiator JT
DS18’s JL-SB6 delivers a high-performance soundbar upgrade replacing 4” speakers with premium 6.5” neodymium midrange speakers and 1” dome tweeters. This kit gives your Jeep the presence it needs to get LOUD on the trail or freeway!
Jeep-Ready Performance
Designed for a perfect fit in Wrangler JL/JLU and Gladiator JT models, every kit includes a precision mounting template and hardware to guide your install.Premium Build for All Conditions
Made from injection-molded ASA composite: the JL-SB6 resists heat, impact, and UV damage, so it can handle anything your Jeep does. The NEW steel grille keeps your speakers protected and adds a clean, aggressive look. Plug-and-play connectors make wiring seamless, and with both left and right side upgrades you get a complete soundbar transformation.Cutting Required
Cutting of the stock soundbar is required. We include everything—cutting templates, grille mounting plates, screws, and plug-and-play harnesses—to make the install as clean and easy as possible.Take your Jeep to the next level with DS18’s JL-SB6 upgrade!
