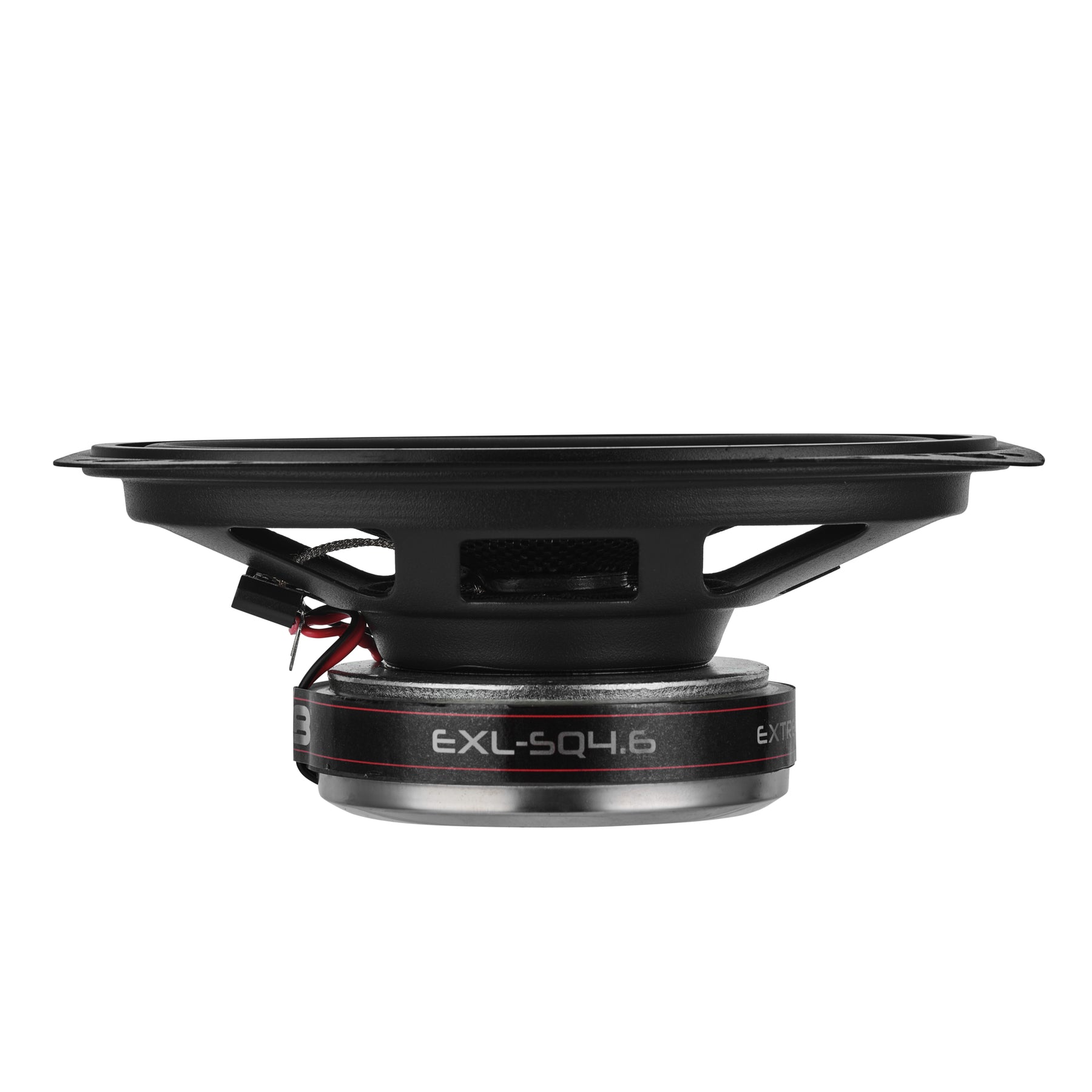

EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm

SKU: EXL-SQ4.6

NEW ARRIVAL

EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm
EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm

EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm

SKU: EXL-SQ4.6

NEW ARRIVAL

Sale price$89.95
/PAIR
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Size: 4x6"

:

Color:

Quantity:
  • Key Features

    • 4x6" 2-Way Coaxial
    • MAX Power: 260 Watts
    • RMS Power: 60 Watts
    • Impedance: 3-Ohm
    • Barium & Neodymium Magnets
    • Pair ~ 87dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    General Specifications

    Nominal Diameter
    4x6" / 101.6x152.4mm
    Nominal Impedance
    3 ohm
    RMS Power Handling
    60W
    MAX Power Handling
    260W
    Sensitivity (1w/1m)
    87 dB
    Frequency Response
    80Hz - 22KHz
    Recommended HI Pass Crossover
    100Hz
    Number of ways
    2-way
    Pair or Single
    Pair
    Grill Included
    No

    Woofer Specifications

    Voice Coil Diameter
    1? / 25.5mm
    Voice Coil Former Material
    ASV
    Winding Material
    Copper
    Cone Material
    Glass Fiber
    Surround Material
    Rubber
    Basket Material
    Steel
    Basket Color/Finish
    Black
    Magnet Material
    Barium
    Magnet Weight
    9 Oz

    Thiele & Small Parameters

    Equivalent Volume
    3.6L / 0.12ft3
    Free Air Resonance
    96Hz
    Mechanical Factor
    4.964
    Electrical Factor
    1.136
    Total Factor
    0.924
    DC Resistance
    2.8 ohm

    Tweeter Specifications

    Nominal Diameter
    0.8? / 20.3mm
    Voice Coil Diameter
    0.5" / 13mm
    Diaphragm Material
    Mylar
    Magnet Material
    Neodymium

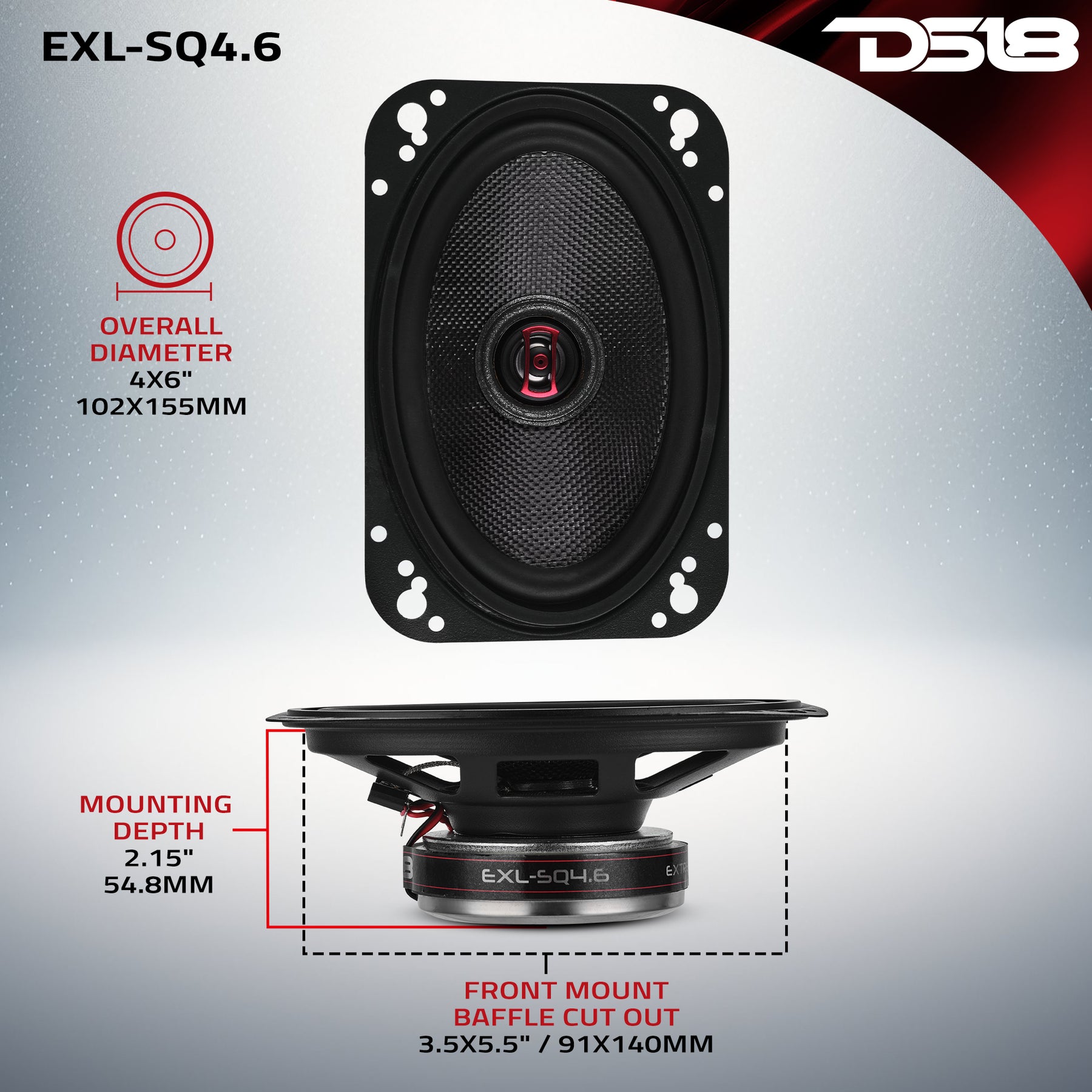

    Speaker Measurement

    Overall Diameter
    4x6" / 102x155mm
    Overall Depth
    2.37" / 60.4mm
    Front Mount Baffle Cutout
    3.5x5.5" / 91x140mm
    Mounting Depth
    2.15" / 54.8mm
    Motor Diameter
    3.14" / 80mm

    Load More
  • Product Overview

    Product Overview

    The EXL-SQ4.6 is your new weapon of choice for smooth detail that slices through road noise with ease.

    Tuned for Precision
    Handling up 60W RMS and 260W MAX, the EXL-SQ4.6 transforms any ride into a rolling soundstage. With a frequency response from 80Hz to 22kHz, you’ll hear every detail like never before.


    Built with Purpose
    The EXL-SQ4.6’s glass fiber cone and rubber surround deliver responsive low-end with pro-grade clarity. The 1” ASV voice coil stays cool under pressure, while the 9oz barium magnet drives smooth, consistent sound.


    Clear Highs That Cut Through
    Equipped with a 0.8” neodymium tweeter and a Mylar diaphragm, the highs stay bright and distortion-free — even at high speeds.


    Rugged by Design
    Housed in a black steel basket, the EXL-SQ4.6 is built tough for the road. And yes, the grilles are included.


    Level up your setup with DS18’s EXL-SQ4.6!
