NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 4 x 150 @ 4-Ohm and 1 x 600 @ 2-Ohm Watts Rms
NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 4 x 150 @ 4-Ohm and 1 x 600 @ 2-Ohm Watts Rms
Sale / EACH
Reg.
20% OFF FOR CYBER MONDAY SALE!
Channels: 5-Channel
Power: 4 x 150W RMS & 1 x 600W RMS
-
Key Features
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessGENERAL SPECIFICATIONS
SKU
NXL-X1200.5D
Total Watts (Peak)
2800W
RMS Power @ 4 ohm
4 x 150W +1 X 350W (SUB)
RMS Power @ 2 ohm
4 x 200W + 1 X 600W (SUB)
RMS Power @ 4 ohm Bridge
2 x 400W
AUDIO
Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4Ω
> 85dB
Efficiency @ 4 ohm
85%
Input Impedance
20K OHM
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.05%
Low Level Input Range
200mV-5V
Selectable X-Over
(HPF/Full/LPF) / LPF Fixed (SUB)
X-Over Filter Range
40Hz-2KHz / 50Hz-250Hz (SUB)
Bass Boost Range
0-18dB (SUB)
Bass Boost Frequency
42Hz (SUB)
Infrasonic Filter
10Hz-55Hz (SUB)
FEATURES 1
Amplifier Class
Digital
Amplifier Type
Stereo Full Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 Ohm (Stereo) / 4 Ohm (Bridge) / 2 Ohm (Sub)
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC
FEATURES 2
Fuse Size
2 x 50A (100A)
Thermal Protection
Yes (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum
EXTRA FEATURES
2Ch / 4Ch Input Selector
Yes / Dedicated SUB input
RCA Audio Output
No
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes
Marine Grade Fuse Holder
Yes
MEASUREMENT
Overall Length
12.67" / 322mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11.87" / 301.7mm
Gross Single Unit Weight
2.4kg
Product Weight
6.5 lbs
Product Dimensions
16 x 9 x 3.75
M/C Weight
33.5 lbs
M/C Dimensions
19.25 x 16.75 x 10
M/C QTY
5
Sold In
Piece
-
Product Overview
Product Overview
DS18 NXL-X1200.5D 5-Channel Marine Waterproof Amplifier - Class D 4 x 150 Watts RMS @ 4 Ohm
DS18’s NXL-X1200.5D offers exceptional performance in a small, waterproof package.
This full range amplifier can be used with subwoofers, mid-ranges, and tweeters, providing crystal clarity at any volume level. Fine-tune your speaker choice with the high pass and low pass filters for an unparalleled audio experience.
Featuring stable and reliable 4-layer PCB layouts, an IP67 waterproof rating for power sports, and an ultra-compact size for easy installation, this NXL Marine Amplifier ensures optimal performance in any environment.
DS18’s NXL-X1200.5D is the perfect companion for outdoor enthusiasts who crave superior sound quality while exploring trails or enjoying water activities. However, please note that these amplifiers are not suitable for submersible use as it will void the warranty.
Highlighted features of the DS18 HYDRO NXL-X1200.5D include a marine-grade fuse and fuse holder for ultimate protection against the elements, a 2-channel or 4-channel input selector, and a direct power harness design with marine-grade OFC tinned wires.
The latest digital amplifier design with SMC technology ensures high-quality sound reproduction and efficient power usage. DS18’s NXL-X1200.5D is perfect for marine applications, off-road adventures, and DIY projects.
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT
Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 4 x 150 @ 4-Ohm and 1 x 600 @ 2-Ohm Watts Rms
Related products
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 1 Channel
- 1 X 1500 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 2 Channel
- 2 X 180 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
- Marine Full Range
- 5 Channel
- 4 x 150 Watts @ 4 Ohm
- 1 x 600 Watts @ 2 Ohm
- Built in Crossover ~ Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 6 Channel
- 6 X 150 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 8 Channel
- 8 X 150 Watts @ 4 Ohms
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Mono Block
- 1 Channel
- 1 X 1000 Watts @ 1 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
Channels:
Power:
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 X 200 Watts @ 4 Ohm
- Built in Crossover
- Class D
- Water Resistant IP67

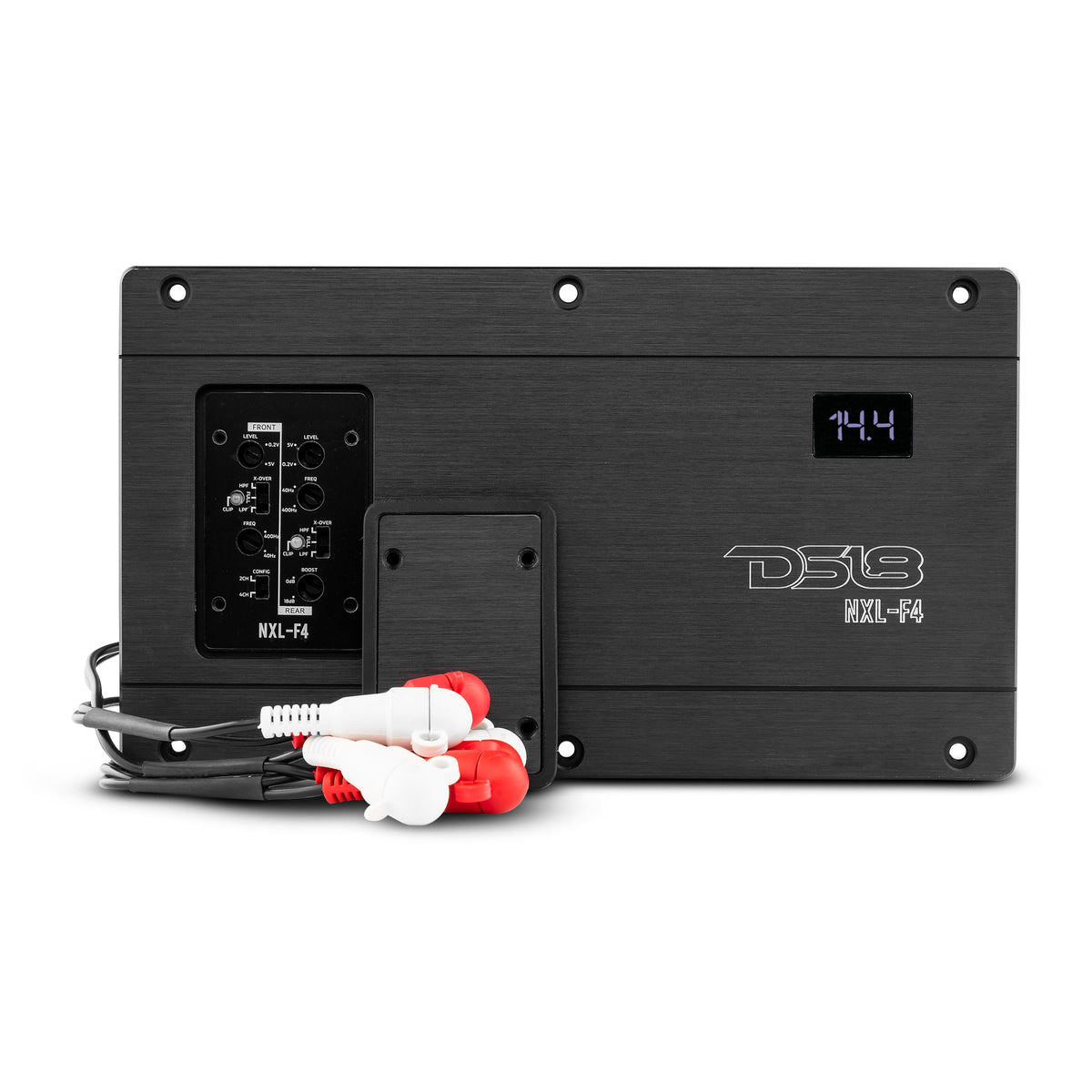

- Marine Full Range
- 4 Channel
- 4 x 100 Watts @ 4 Ohm
- Class D
- Flush Mount
- Water Resistant IP67
- Marine Full Range
- 4 Channel
- 4 x 100 Watts @ 4 Ohm
- Class D
- Flush Mount
- Water Resistant IP67
Happy with the results and output of this amp. It is smaller in size than I thought it was going to be. Hooking up was pretty straightforward. The one issue was that the amp controls was not immediately obvious and it also wasn't in the instructions. Therefore I had to call to confirm the location and ability to adjust the amp for improved output.
Got this baby hooked up and am very happy with the sound quality that is being pushed through the speakers.
NXL 5-Channel Full-Range Class D IP67 Marine and Powersports Amplifier 4 x 150 @ 4-Ohm and 1 x 600 @ 2-Ohm Watts Rms
Really woke my system up and took some stress off my worrying about ruining my other amp
Very nice wuality
Let customers speak for us
from 3992 reviewsThe Pro CF 6x9 is a well built beautifully looking and sounding speaker! Very happy with DS18 and the product they sell!
Thank you DS18!
i love them i got them to complete my 6 speaker rack and now everyone looks at me when driving
This amp has been nothing short of amazing. I have it powering the DS18 shallow mount 10 and it’s very powerful.
YESSAH BOY I GON RUN DIS ON MY 80A STOCK TAHOE ALTERNATOR AND STOCK ELECTRICAL BECUZ DIS GON TURN ALL THE CHICKS HEADS DAS ALL DAT MATTERS
Shetty horns my stunt wall better with QF and JN bc i like to hop on trends
I heard quinns setup with these while i was cruising in my clapped out corolla and now i cant hear out of my left ear
The DS18 PRO-DKH4 is absolutely worth it if you’re chasing serious volume, clarity, and pro-audio level performance. This driver uses a massive 4-inch titanium voice coil and a heavy-duty bolt-on horn that delivers extremely loud, crisp highs without breaking a sweat. With high sensitivity and real power-handling capability, it cuts through road noise, crowds, and outdoor environments effortlessly. The build quality is on another level — the materials and weight alone show it’s made for competition setups, big systems, and anyone who needs their mids and highs to stay clean even at extreme volumes. It’s not meant for casual stock upgrades or soft, warm sound; this is a driver built for people who want aggressive, high-output vocals and instruments that project like a concert speaker. If your system is designed for loud, clean performance and you want a top-tier horn driver that can keep up with big amps and big bass, the PRO-DKH4 is worth every dollar.
made ears bleed bought 5 of them for my churro
These scream, must buy never buying another horn.
I thought my Walmart tweeters was crisp until I ordered these they took my sound to another level
if you are having someone install this for you its the best you can get for this price. im very very happy with the product.
however i was thinking the install would be a lot more plug and play as far as mounting the door speakers and tweeters. other than that no issues at all
ION Compact Full Range Class D 4-Channel Amplifier 4 x 240 Watts RMS @ 4-ohm
ION Compact Full Range Class D 4-Channel Amplifier 4 x 150 Watts RMS @ 4-ohm
Better than reviews!!
We are loading your cart...
Password Required
Please enter the password to access this page.
