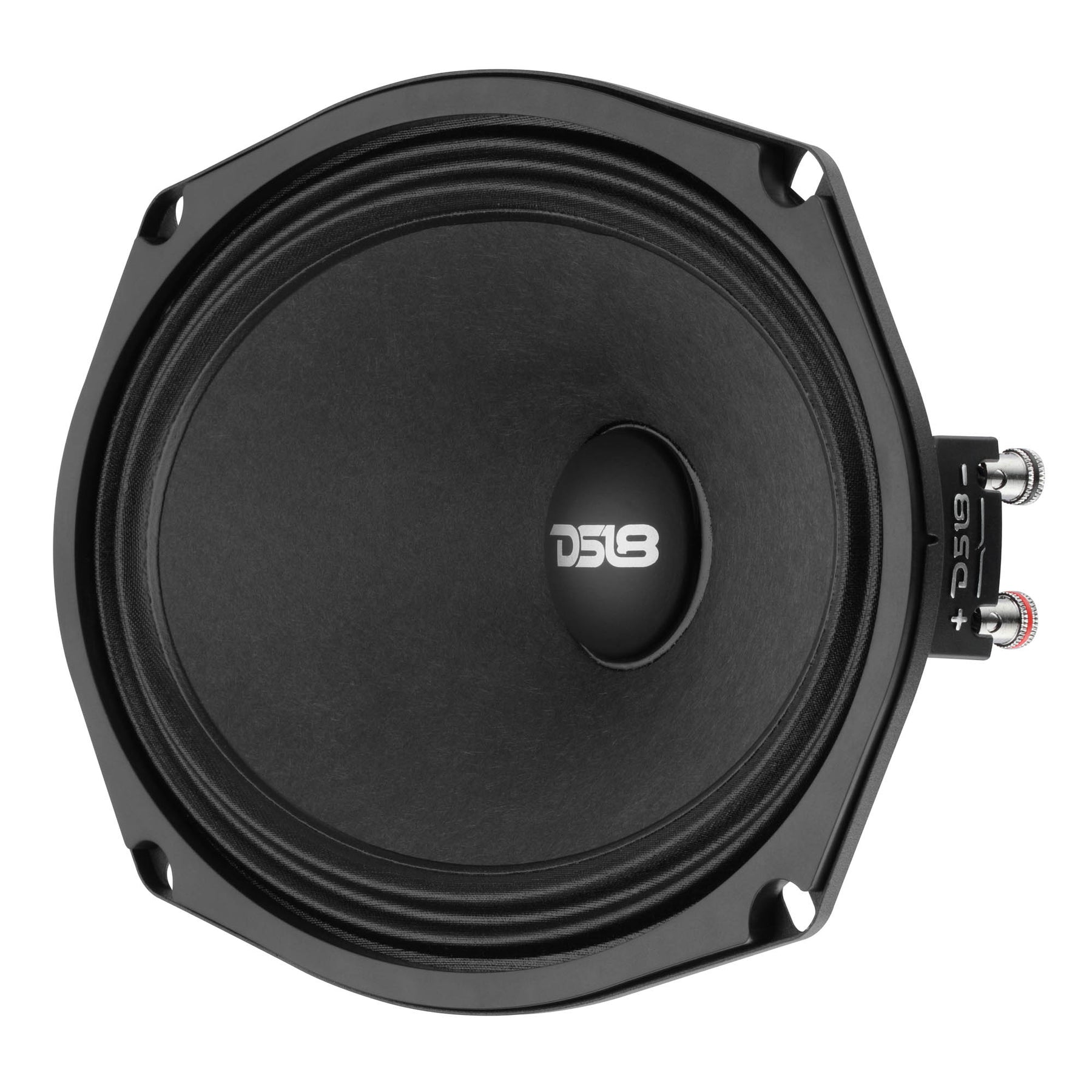

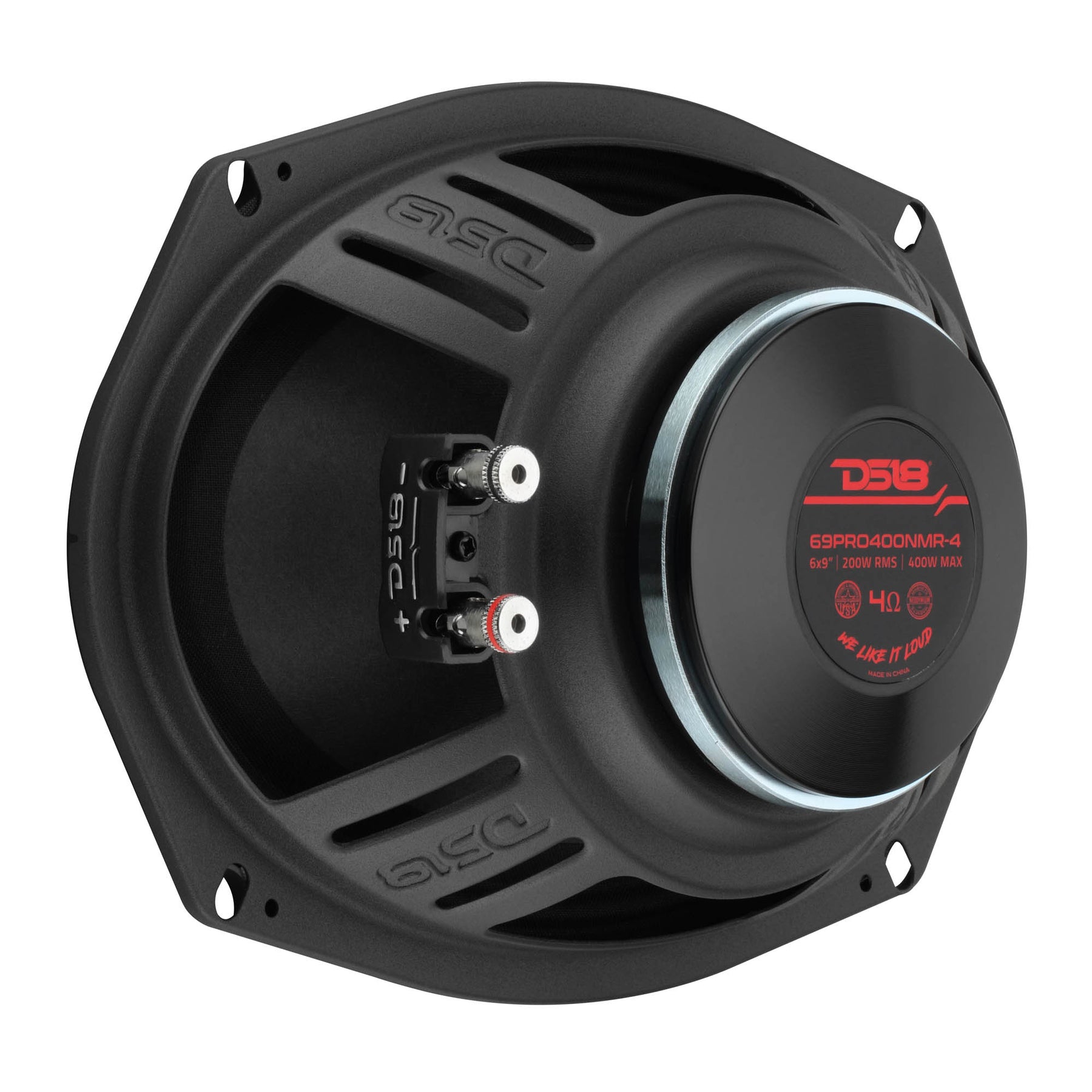

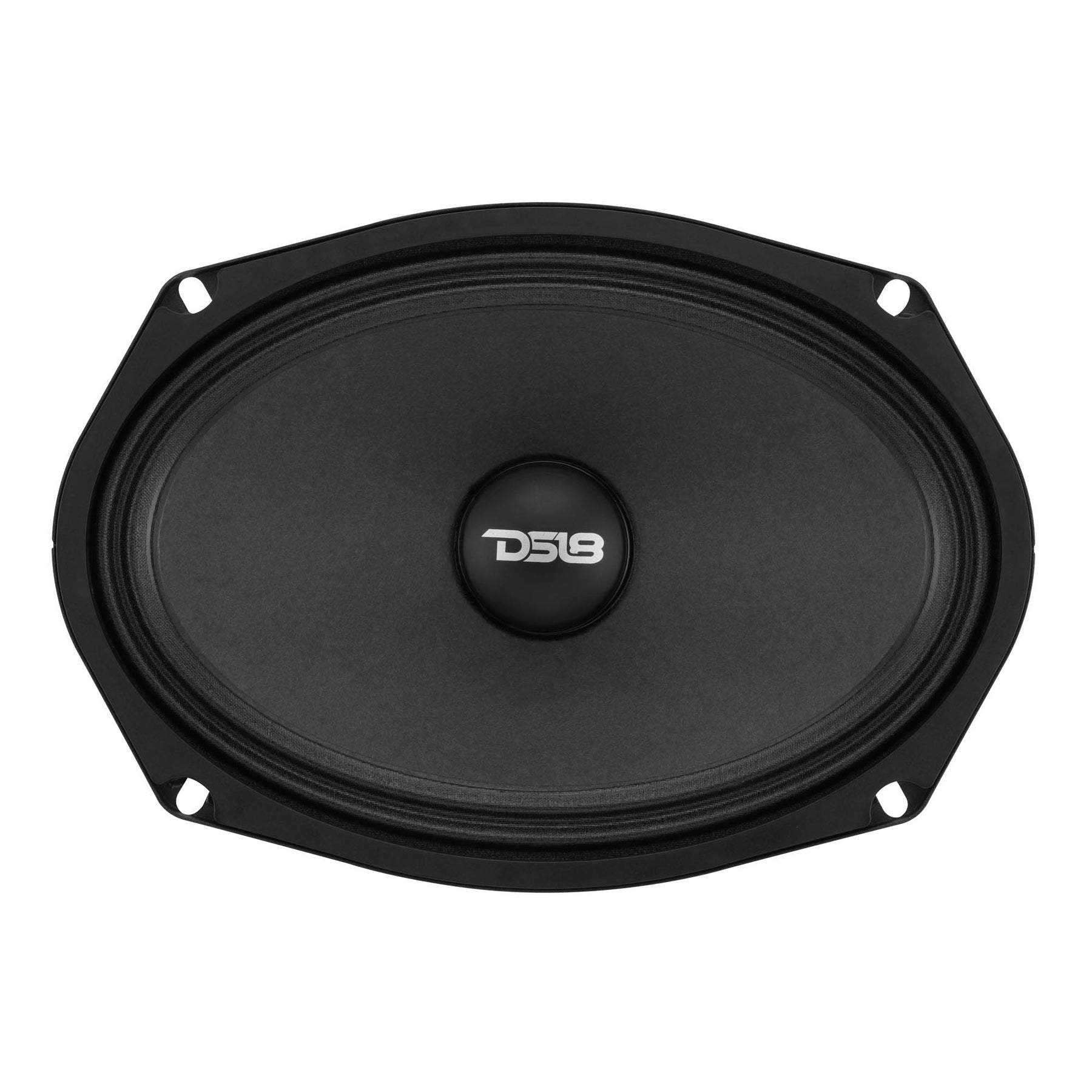

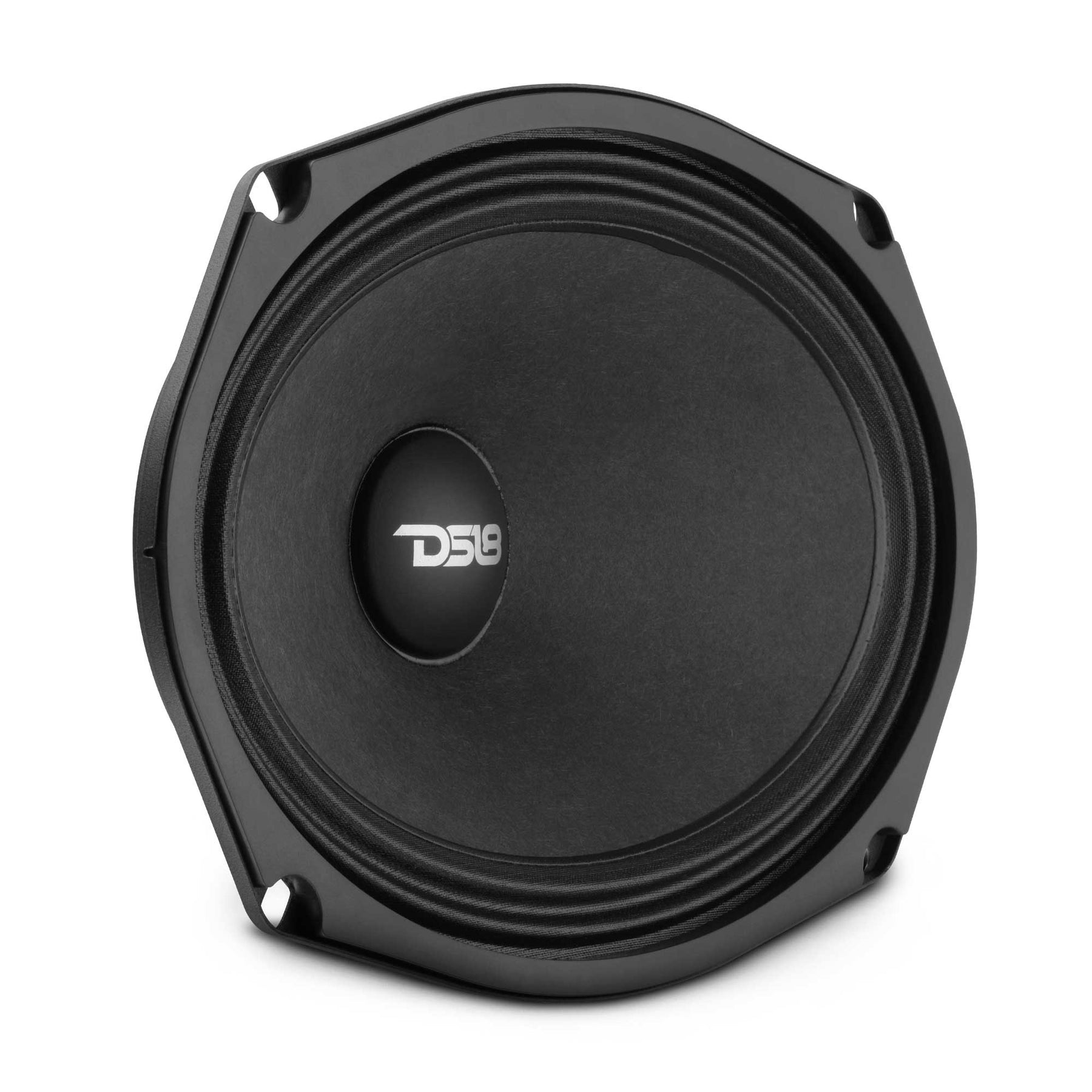

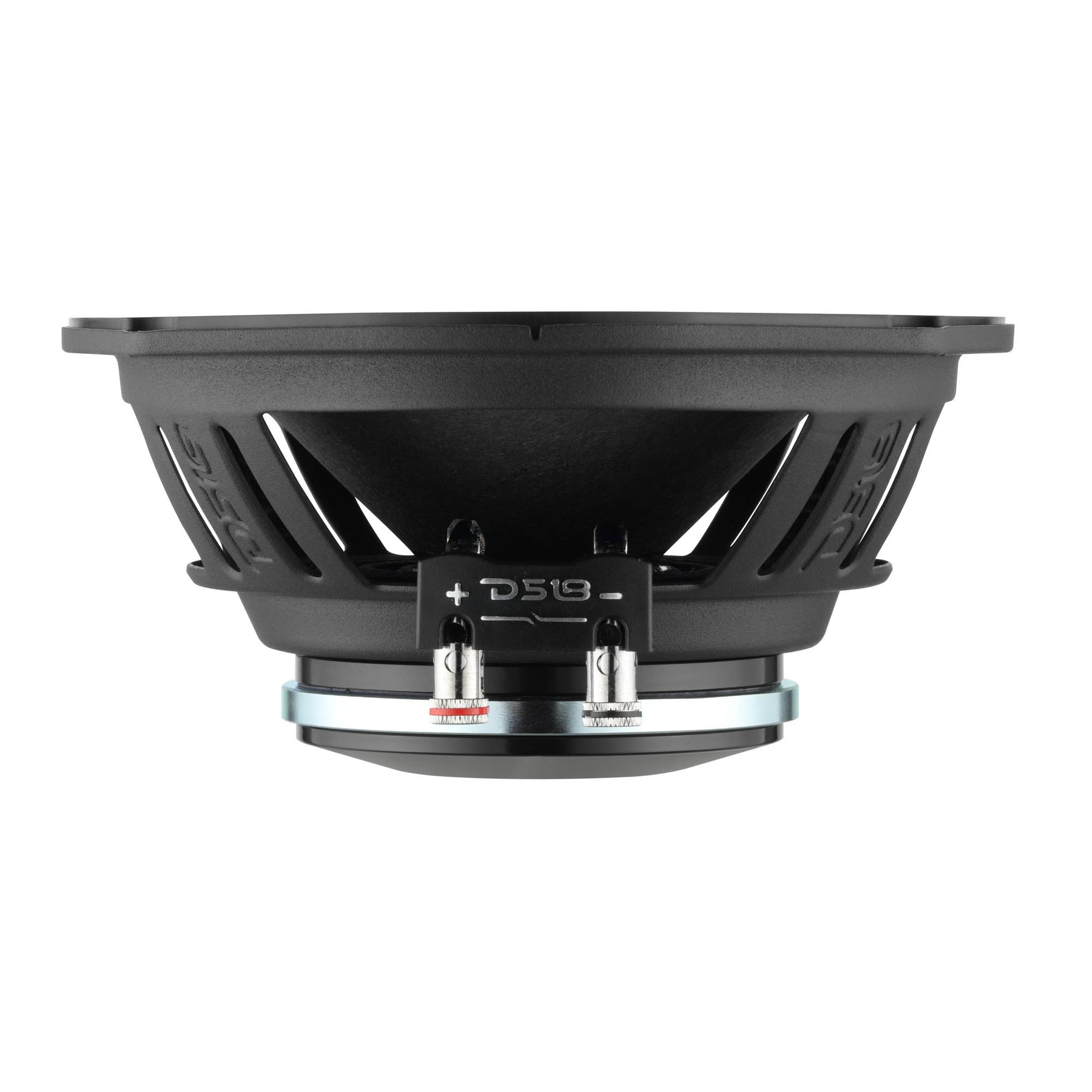

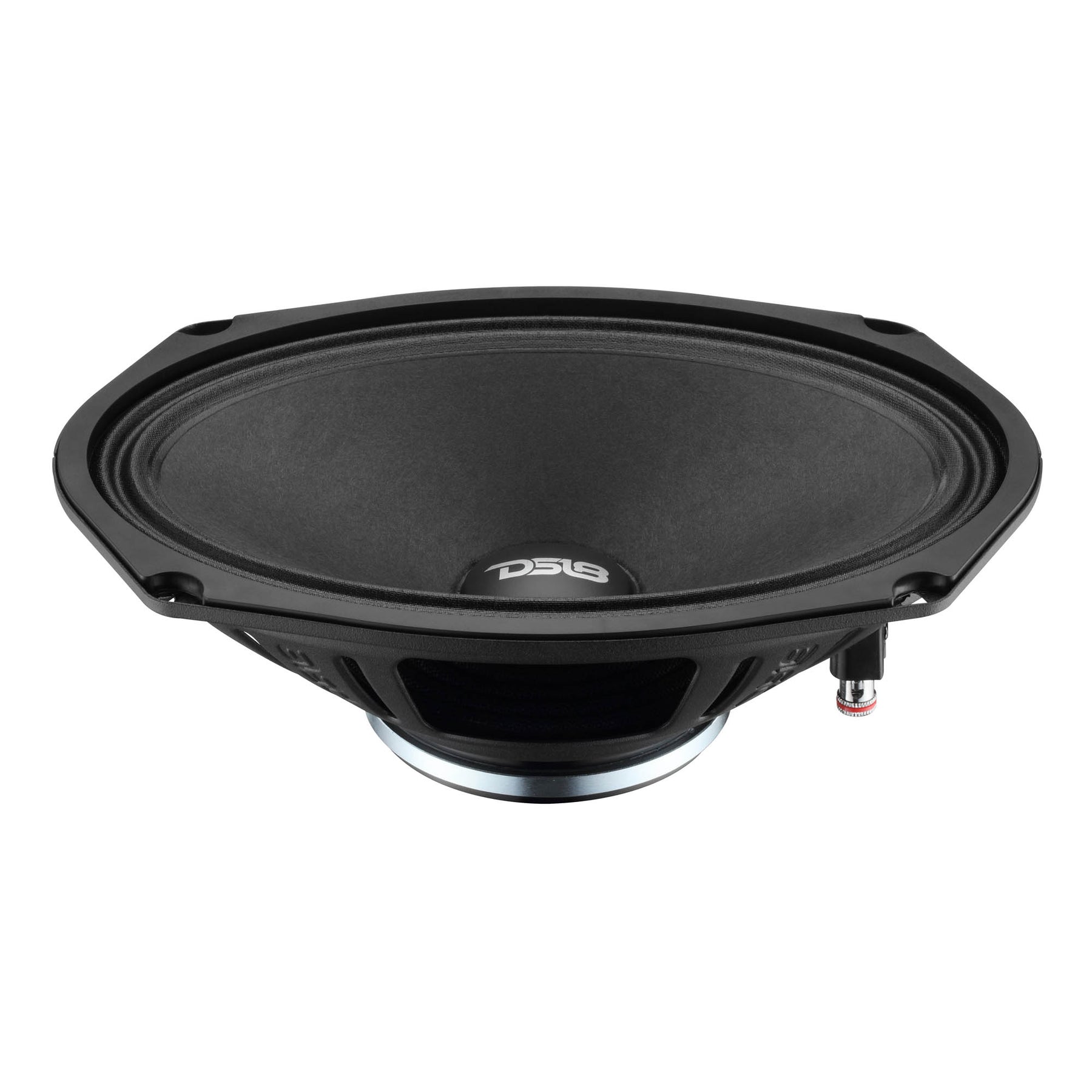

6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm

SKU: 69PRO400NMR-4

NEW ARRIVAL

6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm
6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm

6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet | 200W RMS 4-Ohm

SKU: 69PRO400NMR-4

NEW ARRIVAL

Sale price$144.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Size: 6x9" 200W RMS

Quantity:
  • Key Features

    • 6x9” High-Sensitivity Midrange Speaker (100 dB Output)
    • 200W RMS / 400W Peak Power Handling
    • Neodymium Magnet for Lightweight, High Efficiency
    • 100 Hz–17 kHz Frequency Range for Clear Vocals
    • Aluminum Basket with High-Performance Voice Coil
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    Nominal Diameter
    6x9" / 152x228mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    200W
    MAX Power Handling
    400W
    Sensitivity (1w/1m)
    100dB
    Frequency Response
    100Hz-17kHz
    Recommended High-Pass Crossover
    120Hz
    Sold as
    Single unit
    Demodulating Rings
    Copper Ring
    Cone Shape
    Curvilinear
    Speaker Terminals
    Push 16ga

    Motor

    Voice Coil Diameter
    1.5" / 38.6mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Paper
    Dust Cap Material
    Paper
    Surround Material
    Cloth
    Leads Connection Type
    Spider Crossed
    Basket Material
    Aluminum
    Basket Color/Finish
    Black
    Magnet Material
    Neodymium
    Magnet Weight
    8 Oz

    Thiele & Small Parameters

    Equivalent Volume
    11.89L / 0.419ft3
    Excursion (one way)
    1.65mm
    Free Air Resonance
    117Hz
    Mechanical Factor
    1.980
    Electrical Factor
    0.34
    Total Factor
    0.29
    Mechanical Mass
    10.49g
    Mechanical Compliance
    0.17mm/N
    BL Factor
    5.58
    Voice Coil Inductance
    0.37mH
    Cone Area
    221.67 Cm2
    DC Resistance
    3.6 Ohms

    Measurement

    Overall Diameter
    6.4"x9.2" / 164x234mm
    Overall Depth
    3.1" / 79mm
    Front Mount Baffle Cutout
    5.7"x8.5" / 145x218mm
    Mounting Depth
    2.9" / 74.8mm
    Motor Diameter
    3.5" / 90mm

    Load More
  • Product Overview

    Product Overview

    6x9” High-Sensitivity Professional Midrange Loudspeaker with Neodymium Magnet

    Projection Power

    The 69PRO400NMR-4 is a 6x9” high-sensitivity professional mid-range built for aggressive output. With 200W RMS and 400W MAX power handling at 4 ohms, this speaker delivers strong, forward mids that cut through loud, high-output systems.

    High Sensitivity
    Powered by a neodymium motor, the 69PRO400NMR-4 achieves 100 dB sensitivity with a 100 Hz–17 kHz frequency response. Its 6x9” cone area increases surface coverage, giving vocals and instruments more presence and projection.

    Durable Construction
    The steel basket provides solid structural support for daily or high-output builds. The cloth surround ensures durability under heavy demand. With a 2.9” mounting depth, this speaker offers versatile installation across a wide range of applications.

    Built for Clean Output
    A 1.5” Kapton voice coil with CCAW winding improves efficiency and heat management. The integrated copper demodulating ring reduces distortion, keeping your mids tight, controlled, and competition-ready.

    Designed to Be Heard
    Engineered for serious sound enthusiasts, the 69PRO400NMR-4 delivers projection, efficiency, and reliability. Available in 6”, 8”, and 6x9” options to match your system’s needs.
