SKU: SDX-P100

Sale price$179.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Model: DSP

:

Color:

Quantity:
  • Key Features

    • All-in-One Digital Media Receiver
    • Advanced DSP for Precision Tuning
    • High-Voltage 8-Channel Preouts (6V)
    • Smart Connectivity & Hands-Free Control
    • 48-band graphic equalizer
    • Customizable RGB Display & Modern Interface
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    SPECS

    SKU
    SDX-P100
    Nominal DIN Size
    1-DIN
    Rated Power Voltage
    14.4V
    Voltage Operation
    9.6-15 Volts
    Maximum Current Consumption
    15A
    Temperature Operation
    0~60°C / 32~140°F
    Screen Size
    4" / 104mm
    Display Type
    LCD Dots
    Buttons / Controls
    ABS
    Backlight Illumination Type
    RGB / 3 Zones
    Body Material / Color / Finish
    Steel / Bronze

    Audio Specifications

    Maximum Power Output (Peak)
    4x40W
    Continuous Power Output (RMS)
    4x15W
    Minimum Impedance
    4 Ohms
    Frequency Response
    20Hz-20KHz
    Pre-Output Level (RCA)
    3V / 3.5V (Subwoofer)
    Equalizer Bands
    48 Bands
    Equalizer Gain
    + / - 9dB
    Crossover
    3-Way
    Crossover Slope
    6 / 12 / 24 dB/Oct
    Time Alignment
    0~25ms / 0~850cm
    Audio Control
    Subwoofer Level, Fader, Balance, Loudness

    Tuner & BT Specifications

    Frequency Range (FM)
    87.5 - 108.0 MHz
    Frequency Range (AM)
    522 - 1620 KHz
    Presets Memory
    18 FM / 12 AM
    Region
    Europe, America, Asia, Russia
    Sensitivity Adjustment
    Local / DX
    Version
    4.2
    Services
    Hands Free Calls, Audio Streaming, APP Remote Control
    Audio Protocols
    A2DP, AVRCP, HFP
    Range
    32ft / 10m

    USB / SD Player Specifications

    Type / Class
    2.0, 3.0 / FAT 16, FAT32
    Format Files Supported
    FLAC (16 Bit), WAV, AAC, APE, MP3
    Max Memory Size Reader
    64 Gb
    Max Current USB Charger
    1A
    Number of Ports
    1 (Front)

    Connectivity Specifications

    A/V Aux Input
    Yes, Front 3.5mm Jack (2V Max)
    Microphone
    Yes, Built-In / External Mic Input
    Remote Control (SWC)
    Yes, 3.5mm Jack Input
    Remote Control (Handset)
    Yes, Card Type with Rubber Buttons
    APP Control
    Yes, (Android Devices)

    Measurements

    Overall Width (Chassis)
    7" / 178mm
    Overall Height (Chassis)
    1.96" / 50mm
    Overall Depth (Chassis)
    4" / 104mm
    Overall Width (Bezel Frame)
    7.4" / 188mm
    Overall Height (Bezel Frame)
    2.2" / 58mm
    Overall Depth (Bezel Frame)
    0.98" / 25mm

    Load More
  • Product Overview

    Product Overview

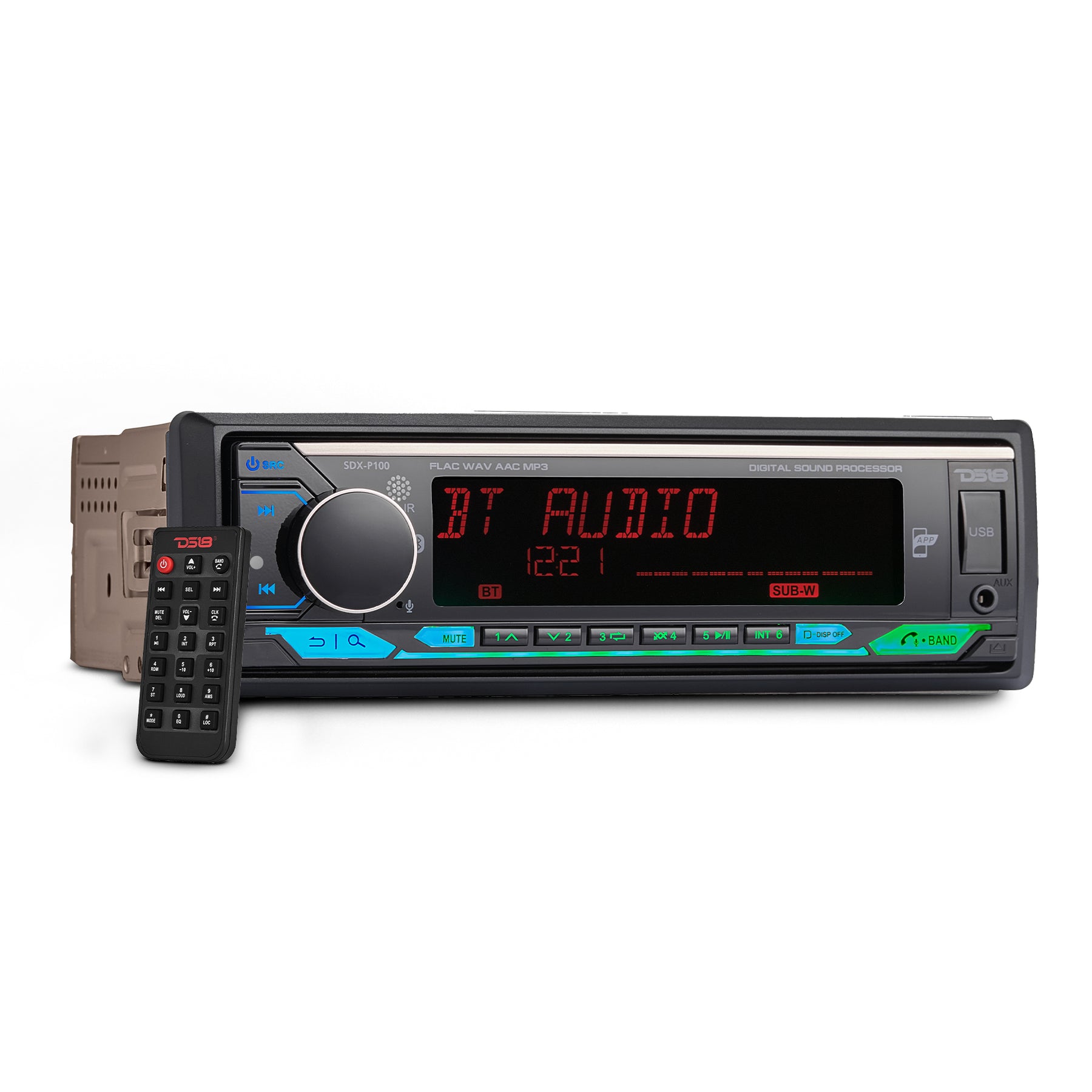

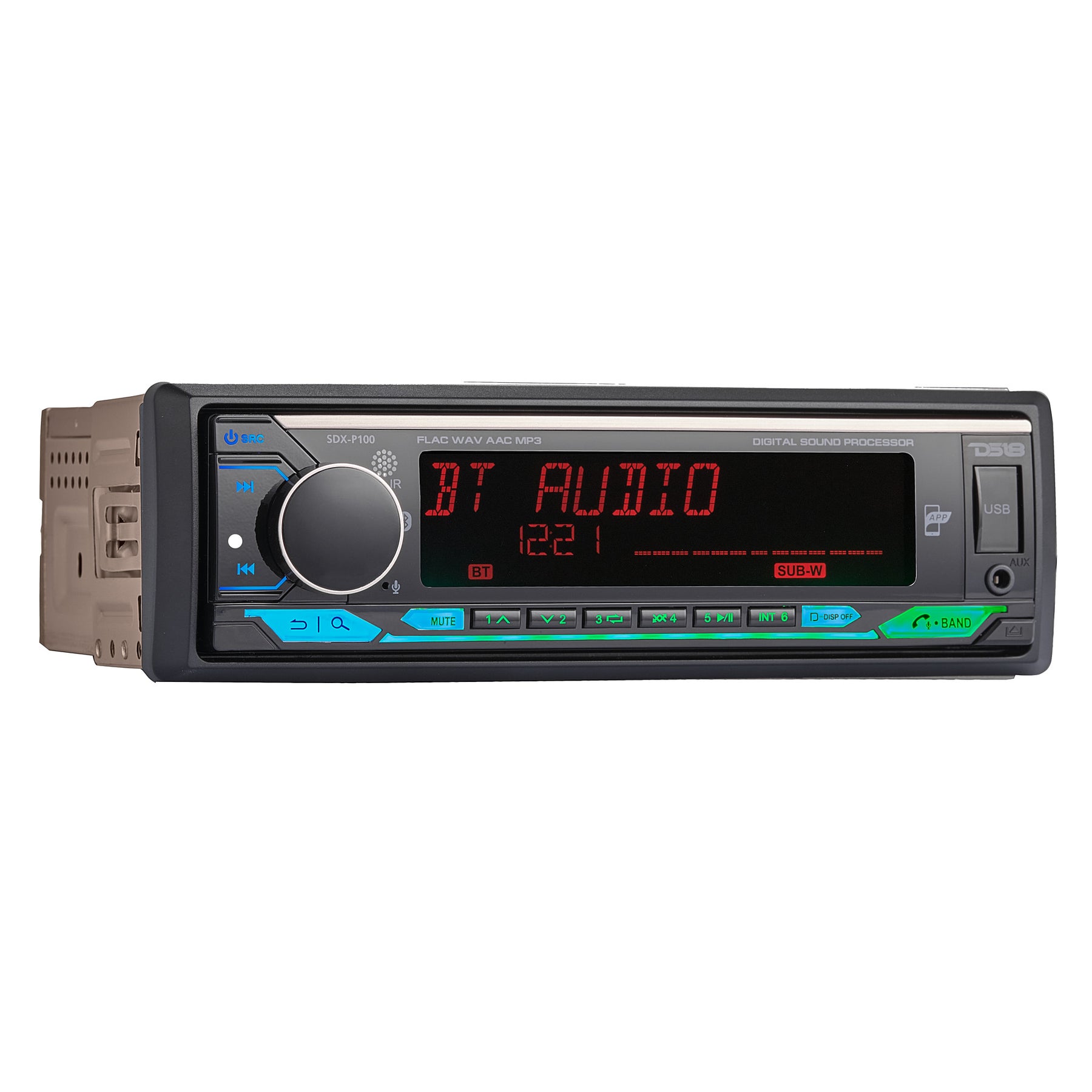

    Single DIN Digital Media Receiver With DSP / BT / USB / APP / AUX

    Ready for the ultimate in-car audio experience? DS18’s SDX-P100 offers a full audio command center in a sleek single DIN design that’s easy to install and fully loaded with features.

    Connect Your Devices

    The SDX-P100 keeps your music at your fingertips. Enjoy 30 preset AM/FM stations, plus USB playback supporting high-quality audio formats including FLAC, WAV, AAC, APE, and MP3. Bluetooth lets you wirelessly stream your favorite playlists and take hands-free calls on the go.

    Customize Your Sound

    With 8-channel 6-volt RCA pre-outputs and a built-in DSP, the SDX-P100 gives you complete control over your system. Fine-tune your setup with time alignment and 4-way crossover capability for precise tuning. Shape your soundstage with a 48-band graphic equalizer and adjust volume, subwoofer level, balance, and fader to create a personalized listening experience.

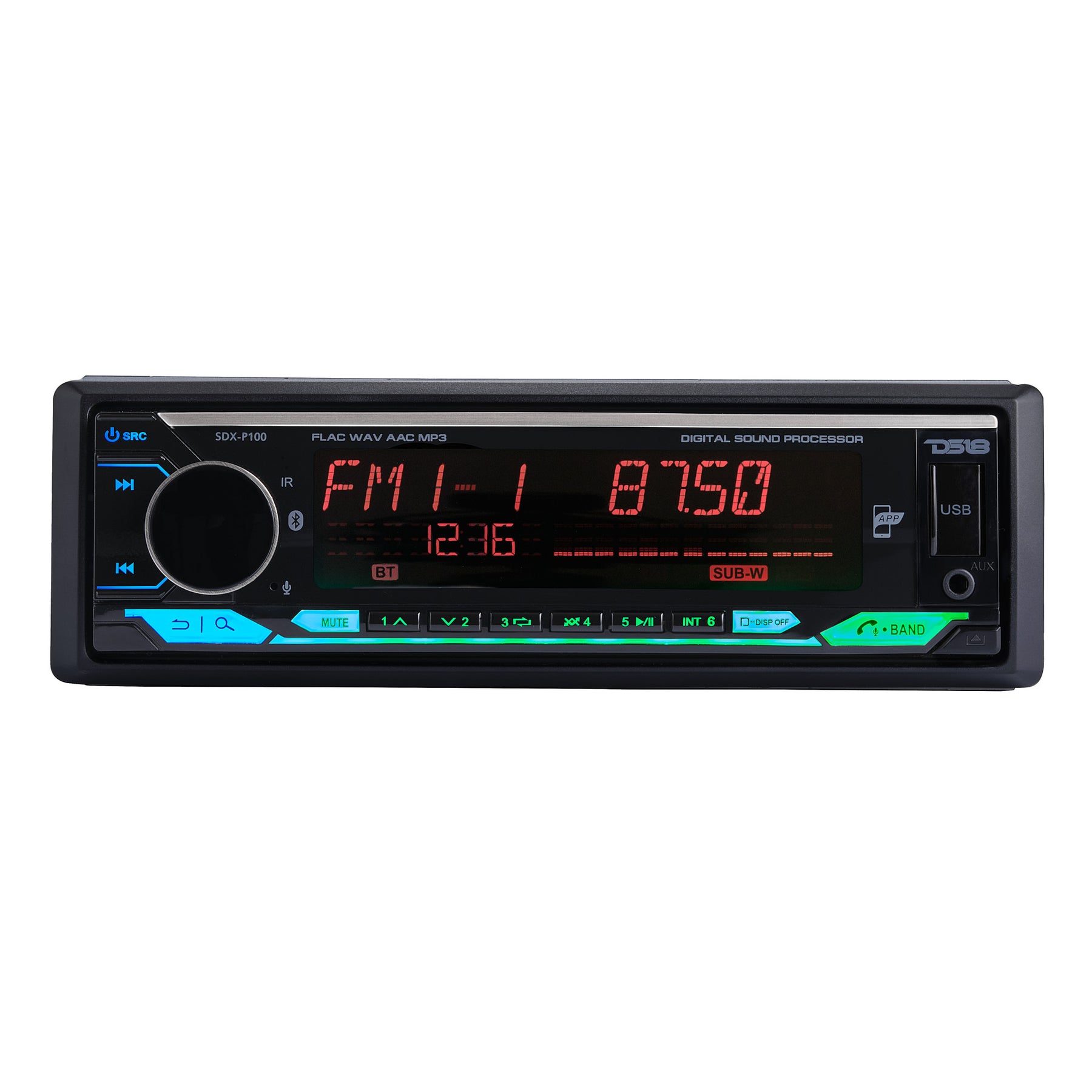

    Vibrant Display

    The vibrant 4" LCD screen delivers clean, easy-to-read visuals. Dynamic multi-color LED backlighting with 3-zone RGB illumination lets you set the vibe to match your ride.

    Powerful Performance

    The SDX-P100 pumps out up to 40W x 4 MAX power and a solid 13W x 4 RMS, delivering audio that hits harder and cleaner than ever before.

    Control at Your Fingertips

    Download the DS18 SDX Remote Control App for iOS or Android and manage your receiver settings, DSP features, and audio controls directly from your smartphone. You can also use the included wireless remote to control your system without needing a steering wheel interface.

    The SDX-P100 is engineered to give your dash a serious audio upgrade that’s built to outlast and outperform.
