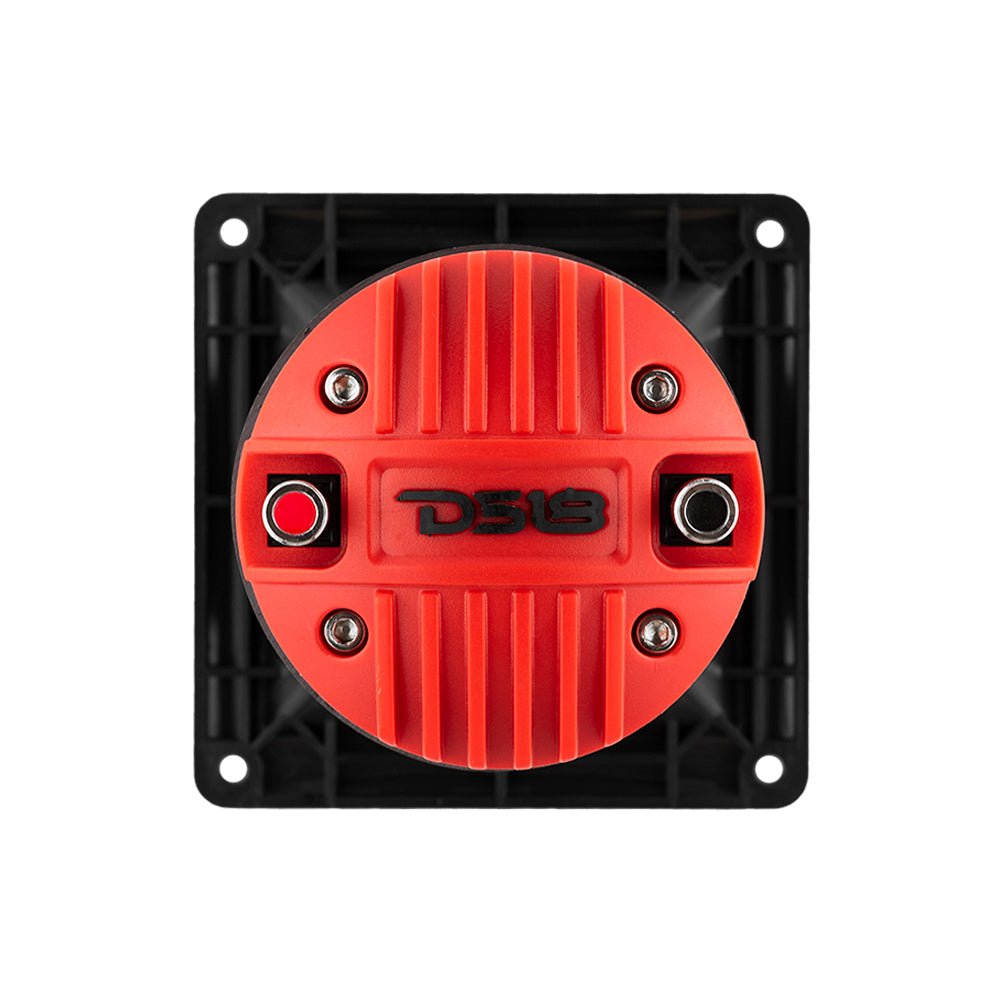

DS18 PRO-DR1PK44 1" Throat Twist On Compression Driver with 1" Phenolic Voice Coil and PRO-H44/BK Horn 240 Watts 8-ohm

Screaming onto the scene is DS18's PRO-DR1PK44 that has an all new design and has been tweaked for maximum performance and loudness. This horn driver sports a 1" 8-ohms CCA voice coil to absorb the 240w Peak power and is designed to really make it loud with efficiency.

This driver comes with an attached square shaped screw on throat that makes it very versatile while also enhancing acoustics and decibel levels. This driver has a 107.3 dB sensitivity so the potential of screaming loudness is easily obtainable with the right combination of power. This driver's frequency range is very wide starting at 800 Hz all the way up to ear drum shattering 20 KHz!

The PRO-DR1PK44 is sure to complete your pro audio system and complement all your other speakers with crisp and clear high range sound.

Highlights

  • Utilizes a CCA 1" voice coil to maximize loudness per watt.
  • 240w Peak power and 120w Program power will make these compliment your entire system
  • Mounting depth of only 4.56 which gives them extreme mounting versatility.
  • Removable voice coil so if you happen to need to repair on the go, it can be done in minutes.
  • Wide frequency response of 800Hz to 20KHz so you won't miss one high-hat or cymbal crash.
Download PRO-DR1PK44 Product Manual
Throat Diameter 1"
Horn Diameter 3.14 x 3.14"
Horn Depth 2.36"
Installation Type Screw Down
Nominal Impedance 8 Ohms
Peak Power Handling 240W
Program Power Handling 120W
AES Power Handling 60W
Sensitivity with Horn (1w/1m) 107.3dB
Frequency Response 800Hz - 20KHz
Recommended HI Pass Crossover 900Hz
Motor
Voice Coil Diameter 1"
Voice Coil Former Material Kapton
Winding Material CCA
Diaphragm Material Phenolic
Magnet Material Ferrite
Magnet Weight 0.38 oz
Measurements
Overall Diameter 4.52"
Overall Depth 4.88"
Bolt Pattern 3.95"
Mounting Depth 4.56"
Mounting Hole 3.26" x 3.26"


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Luis H Esquivel
Outstanding!

I been a fan of horn type midrange horns and tweeters for a long time and when I decided to upgrade the upper midrange of my 4 way custom loaded home speakers I decided to try the DS18 PRO-DR1PK44 horn. Wow!, was I delighted , this horn has an amazing sound quality, super strong presence without being harsh like some low quality horns have. It blended so well with the low midrange/ mid-bass 8 inch driver on its low end and complemented with its highs with the piezo electric tweeter in the system. I believe the crossover is feeding this driver between 1600hz and 6400hz and it just sounds delightful. Drivers that work well in this range of the sound spectrum bring alive speaker systems I'm very happy I added this horns to my cabinets they are great. Thanks DS18...
