PRO-DN 2" Throat Bolt On Compression Driver with Spacer, Neodymium Magnet 500 Watts RMS @ 8 OHM - 4" Phenolic Voice Coil
NEW ARRIVAL
PRO-DN 2" Throat Bolt On Compression Driver with Spacer, Neodymium Magnet 500 Watts RMS @ 8 OHM - 4" Phenolic Voice Coil
NEW ARRIVAL
Sale / EACH
Reg.
20% OFF FOR CYBER MONDAY SALE!
-
Key Features
- 2" Compression Driver W/ Spacer
- RMS Power: 500 Watts(1000 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet - Phenolic Diaphragm
- Bolt On
- Easily Repaired With The PRO-DN24XPH.8VC
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSpecifications
SKU
PRO-DN24XPH.8
Throat Diameter
2" / 50.8mm
Installation Type
Bolt-On
Nominal Impedance
8 Ohms
AES Power Handling
250W
Program Power Handling
500W
Peak Power Handling
1000W
Sensitivity (1w/1m)
109dB
Frequency Response
400Hz-8KHz
Recommended Hi Pass Crossover
600Hz
Sold in Pair or Single
Single
Body / Features

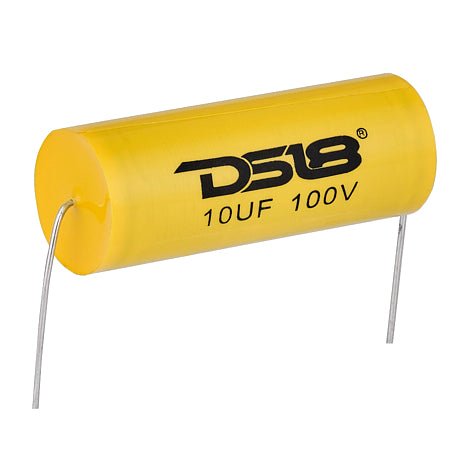

Filter (Bass Blocker)
10Uf/100V
Body Material
Aluminum
Body Color / Finish
Black / Machined
Compression Ring (Spacer)
Yes
Motor
Voice Coil Diameter
4" / 101.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Phenolic
Magnet Material
Neodymium
Magnet Weight
24.1oz
Measurement
Overall Diameter
6.06" / 154mm
Overall Depth
3" / 76mm
Bolt Pattern/Type
4xM6 - 4" /102mm
Shipping Info
Gross Single Unit Weight
4.4 kgs
Single Unit Box Dimensions W x L x H
190x188x136 mm
Quantity of Units in Master Carton
4
Gross Master Carton Weight
18.5kgs
Master Carton Dimensions W x L x H
390x200x287 mm
-
Product Overview
Product Overview
DS18 PRO-DN24XPH.8 2” Throat Bolt-On Compression Driver With Spacer (4” Phenolic Voice Coil)
DS18’s PRO-DN24XPH.8 is a powerhouse in professional-grade sound performance. Engineered for those who demand excellence, this 2" compression driver elevates in-car audio to a whole new level. With an astounding 250W AES / 500W Program Power / and 1000W PEAK, the PRO-DN24XPH.8 delivers explosive sound that is sure to impress.
Designed for precision, the PRO-DN24XPH.8 excels in the mid-high frequency range, operating smoothly from 400Hz to 8KHz. Its high sensitivity of 109 dB ensures powerful sound output with minimal energy consumption, making it both efficient and environmentally friendly. The integrated 4" phenolic diaphragm provides warm and natural sound tones, perfect for a rich audio experience.
Crafted with cutting-edge materials, this bolt-on audio driver features a lightweight yet powerful neodymium magnet speaker, ensuring robust performance without weighing down your setup. Its durable aluminum body sports a sleek black machined finish, offering elegance alongside resilience to withstand automotive heat and vibrations.

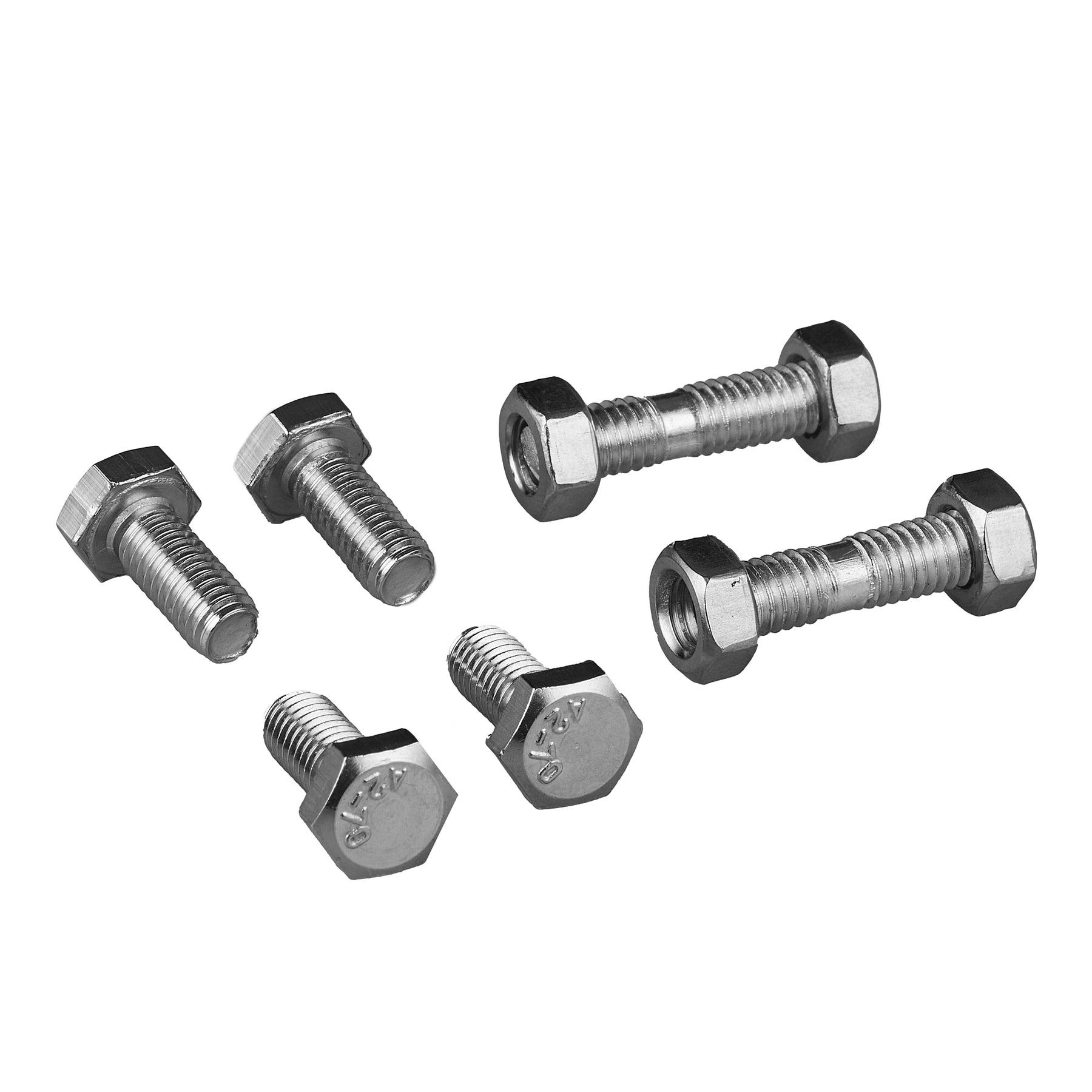

Installation is a breeze with the standard 4xM6 bolt-on pattern and included compression ring spacer, ensuring compatibility with high-end professional car sound systems. This makes it an ideal choice for car audio upgrades tailored for enthusiasts who desire pro-level customization and quality.
Dive into superior sound quality and let the PRO-DN24XPH.8 make every journey LOUD.
