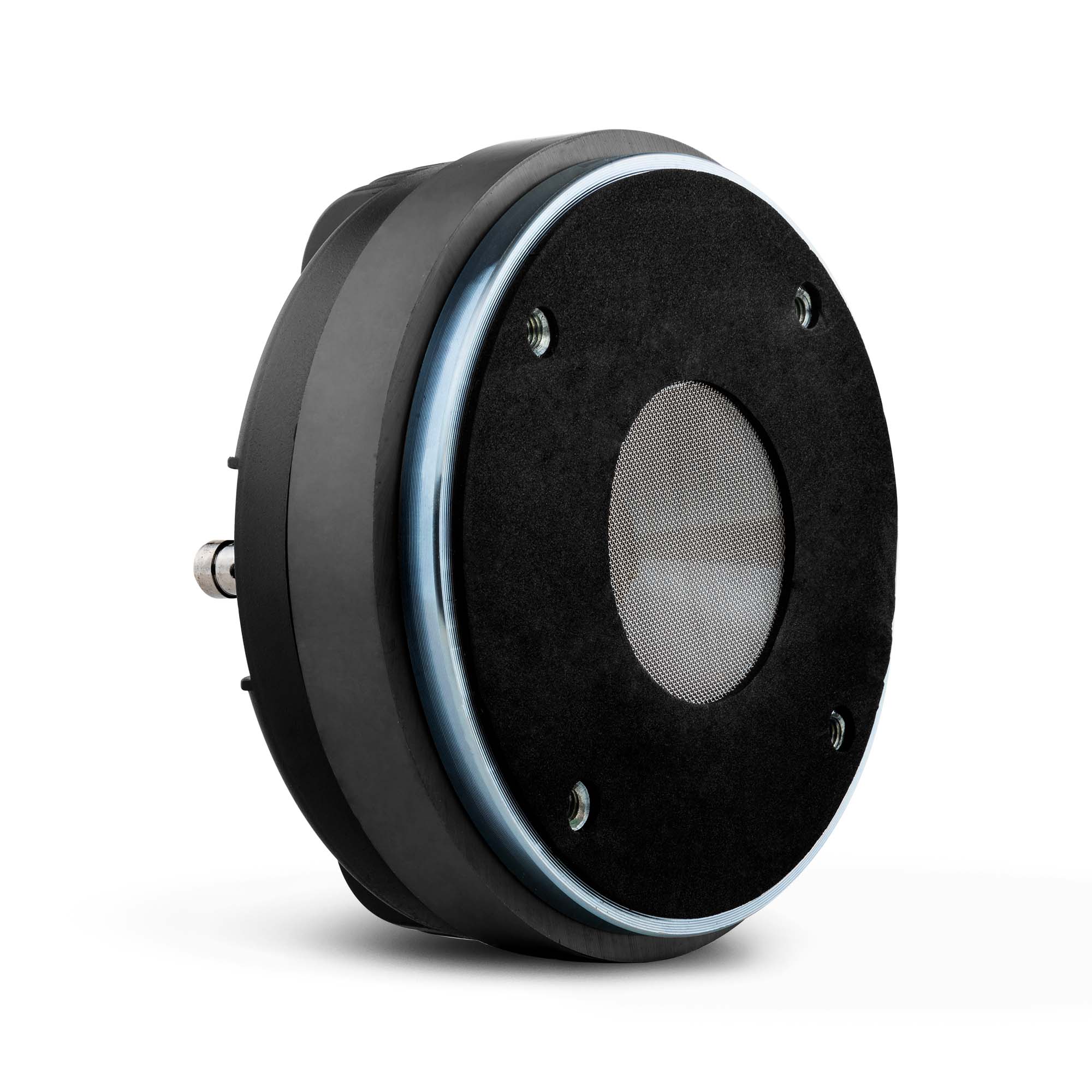

DS18 PRO-DPL1 2" Throat Bolt On Compression Driver 2" Throat Titanium Voice Coil 500 Watts 8-ohm

Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.

This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.

Highlights

  • Ferrite motor structure that provides great motor force and loudness.
  • High strength phenolic voice coil taking 160 AES watts and 640 peak watts.
  • Intense high frequency volume without sacrificing sound quality.
  • Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths

                                                  PRO-DPL1 Product Manual
SPECIFICATIONS
Throat Diameter 2" / 50.8 mm
Installation Type Bolt on
Nominal Impedance 8 Ohms
AES Power Handling 160W
Program Power Handling 320W
Peak Power Handling 640W
Sensitivity (1w/1m) 109dB
Frequency Response 630Hz-20KHz
Recommended Hi Pass Crossover 900 Hz
MOTOR
Voice Coil Diameter 2.03" / 51.5mm
VC Former Material Kapton
Winding Material CCA
Diaphragm Material Titanium
Magnet Material Ferrite
Magnet Weith 35 Oz
Body Material Plastic Cover
MEASUREMENTS
Overall Diameter 5.27" / 134mm
Overall Depth 2.4" / 61mm
Bolt Pattern - Type 4" / 102mm - M6
