Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm

SKU: NXL-LXY8/WH

NEW ARRIVAL

Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm
Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm

Luxury 8” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 175W RMS 4-Ohm

SKU: NXL-LXY8/WH

NEW ARRIVAL

Sale price$499.95
/PAIR
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Channel:

Power Rating:

Size: 8"

Color: White

Black
White

Color:

Quantity:
  • Key Features

    • 8” 2-Way Marine-Grade Coaxial Speaker
    • IP65 Water & UV Resistant Construction
    • Floating Bullet Tweeter with Neodymium Magnet
    • Digital LED Ring (LC-DRM Compatible)
    • Flush-Mount Magnetic Grille for Clean Install
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    General Specifications

    Nominal Diameter
    8" / 203mm
    Nominal Impedance
    4 ohms
    RMS Power Handling
    175W
    MAX Power Handling
    350W
    Sensitivity (1w/1m)
    96 dB
    Frequency Response
    40Hz-20KHz
    Recommended HI Pass Crossover
    50Hz
    Sold in Pair or Single
    Pair

    Body / Features

    Grill Type
    PC+Stainless Steel
    Marine Grade Type
    IP65
    RGB LED
    Yes, Digital LED integrated (behind cone)
    Digital LED Chip Type
    1815S
    Basket Material
    Injection Molded Composite ASA with UV Protection Coating
    Color / Finish
    Gloss White

    Woofer Specifications

    Voice Coil Diameter
    1.5" / 38.6mm
    Voice Coil Former Material
    Glass Fiber
    Winding Material
    CCAW
    Cone Material
    PPI
    Surround Material
    Rubber
    Basket Material
    PC
    Magnet Material
    Ferrite+Neodymium
    Magnet Weight
    24oz + 1.1 oz

    Tweeter Specifications

    Voice Coil Diameter
    1" / 25.5mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Aluminium
    Magnet Material
    Neodymium (N35H)
    Magnet Weight
    0.4oz

    Thiele & Small Parameters

    Equivalent Volume
    16.92L / 0.59ft3
    Excursion (one way)
    3mm
    Free Air Resonance
    58Hz
    Mechanical Factor
    7.599
    Electrical Factor
    0.834
    Total Factor
    0.752
    Moving Mass
    25.604g
    Compliance
    0.2875mm/N
    Bl Factor
    6.016
    Voice Coil Inductance
    1.4mH
    Diaphragm Area
    203.58cm2
    DC Resistance
    3.2 Ohms
    Efficiency Bandwidth Product
    69.5

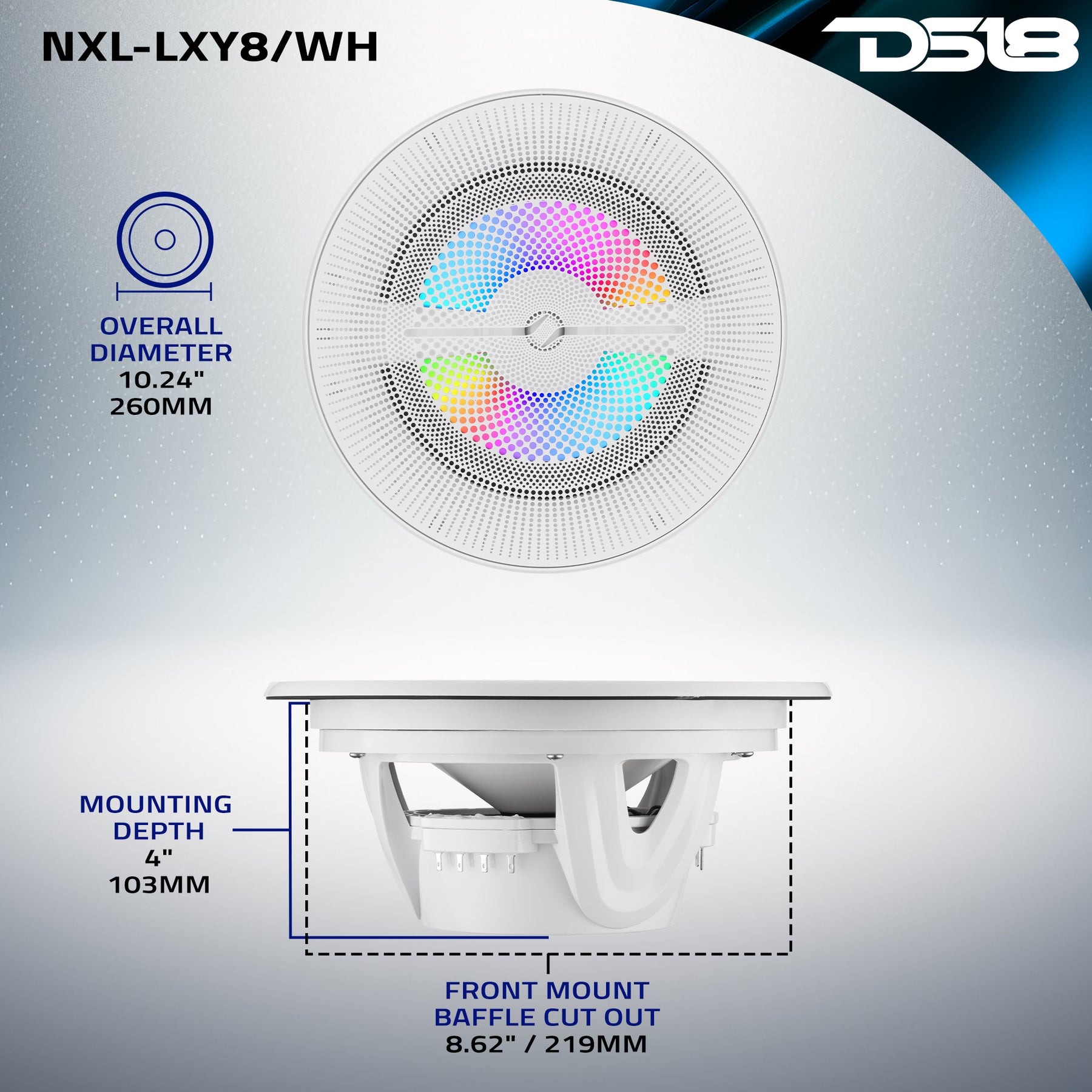

    Speaker Measurement

    Overall Diameter
    10.24" / 260mm
    Overall Depth
    4.5" / 114mm
    Front Mount Baffle Cutout
    8.62" / 219mm
    Mounting Depth
    4" / 103mm
    Motor Diameter
    4.33" / 110mm

    Load More
  • Product Overview

    Product Overview

    DS18 NXL-LXY8

    8” 2-Way Marine Coaxial with Floating Bullet Tweeter + Flush Magnetic Grille + RGB LED Lighting

    The NXL-LXY8 gives your system full-range DS18 sound, show-ready RGB lighting, and a clean, screwless flush-mount fit that holds up through anything.

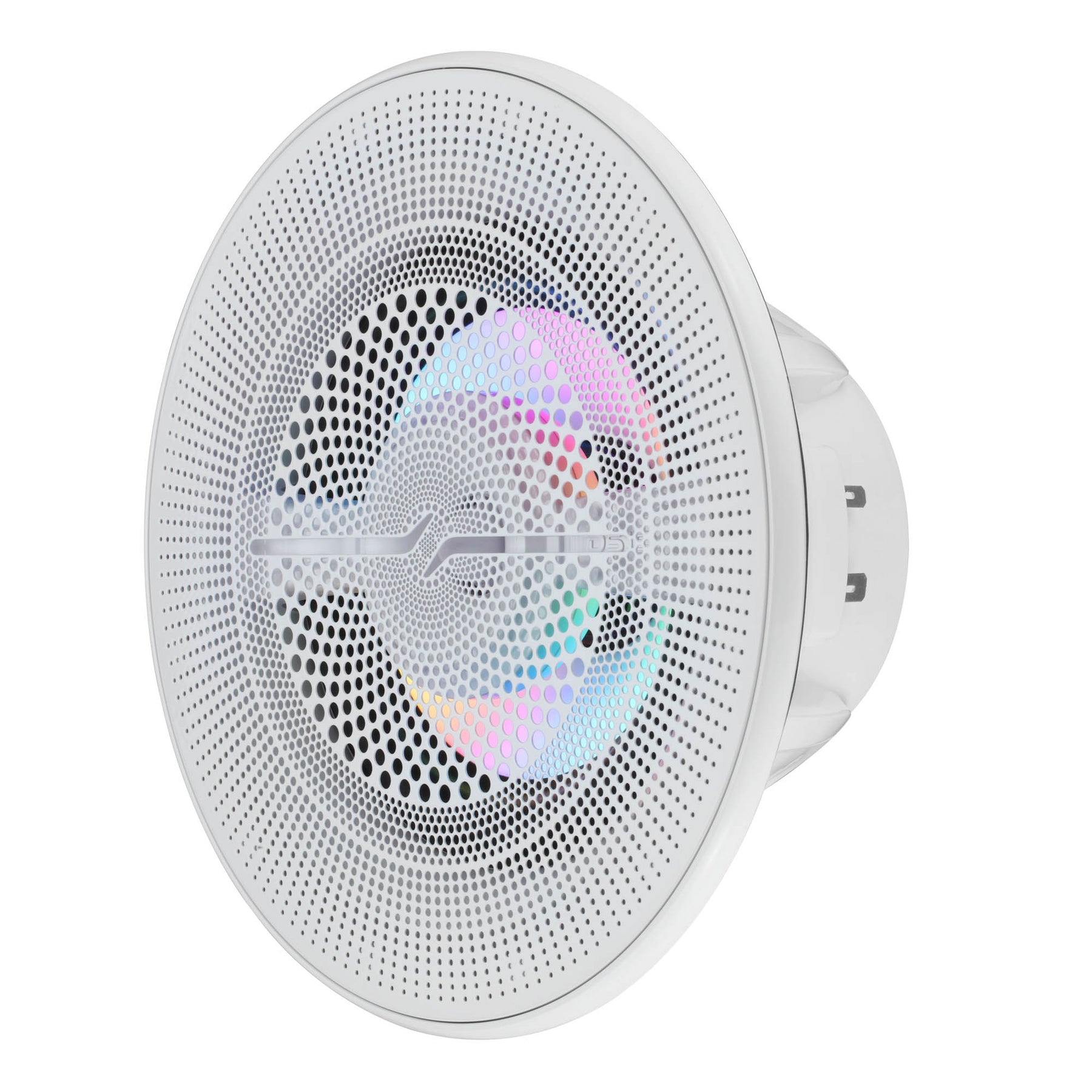

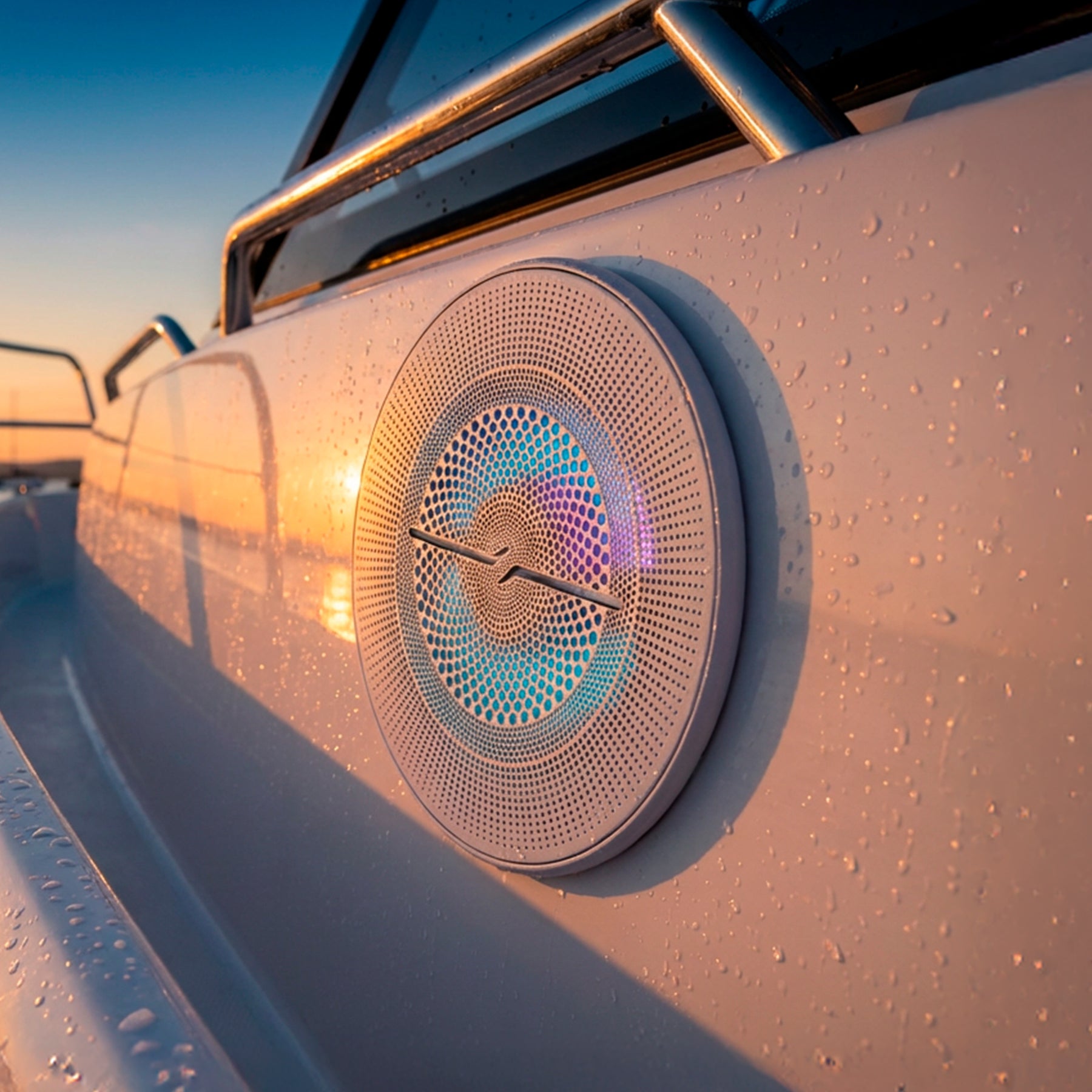

    Flush-Mount Magnetic Grille
    The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.

    Full-Range Takeover
    With a high-output neodymium-loaded tweeter suspended in front of the cone, the NXL-LXY8 gives you crisp, clean highs and tight midbass in one drop-in upgrade.

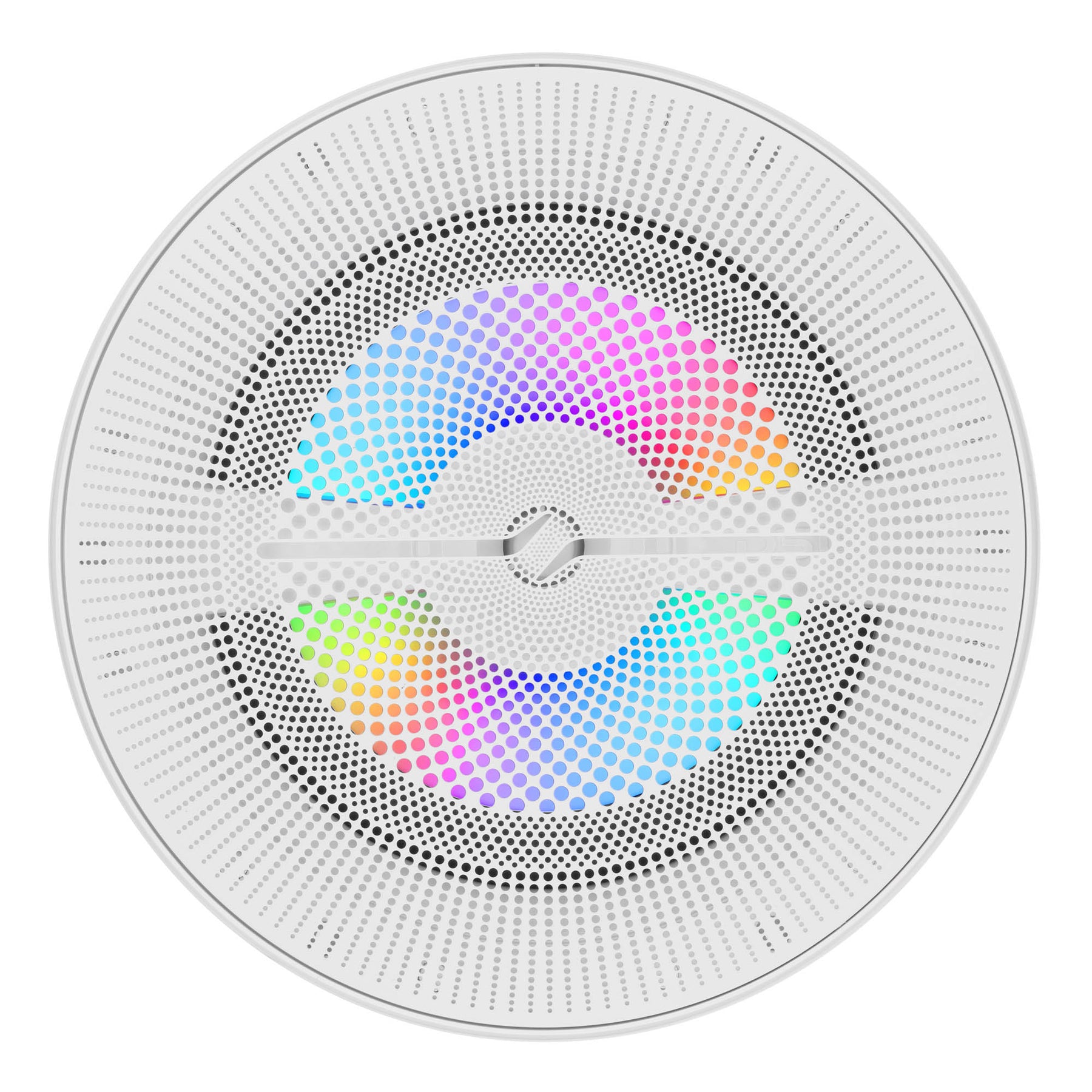

    Digital LED Glow
    A full digital LED ring sits behind the cone, creating a backlit glow that matches your vibe. Add DS18’s LC-DRM (sold separately) to unlock full color control.

    Marine-Rated Strength for All Terrains
    IP65-rated with UV-resistant housing and rubber surround, the NXL-LXY8 is built for boats, UTVs, bikes, and open-air builds that see water, salt, heat, and impact.

    Bring LOUD full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY8!
