NVY-8HDCFSL-N4

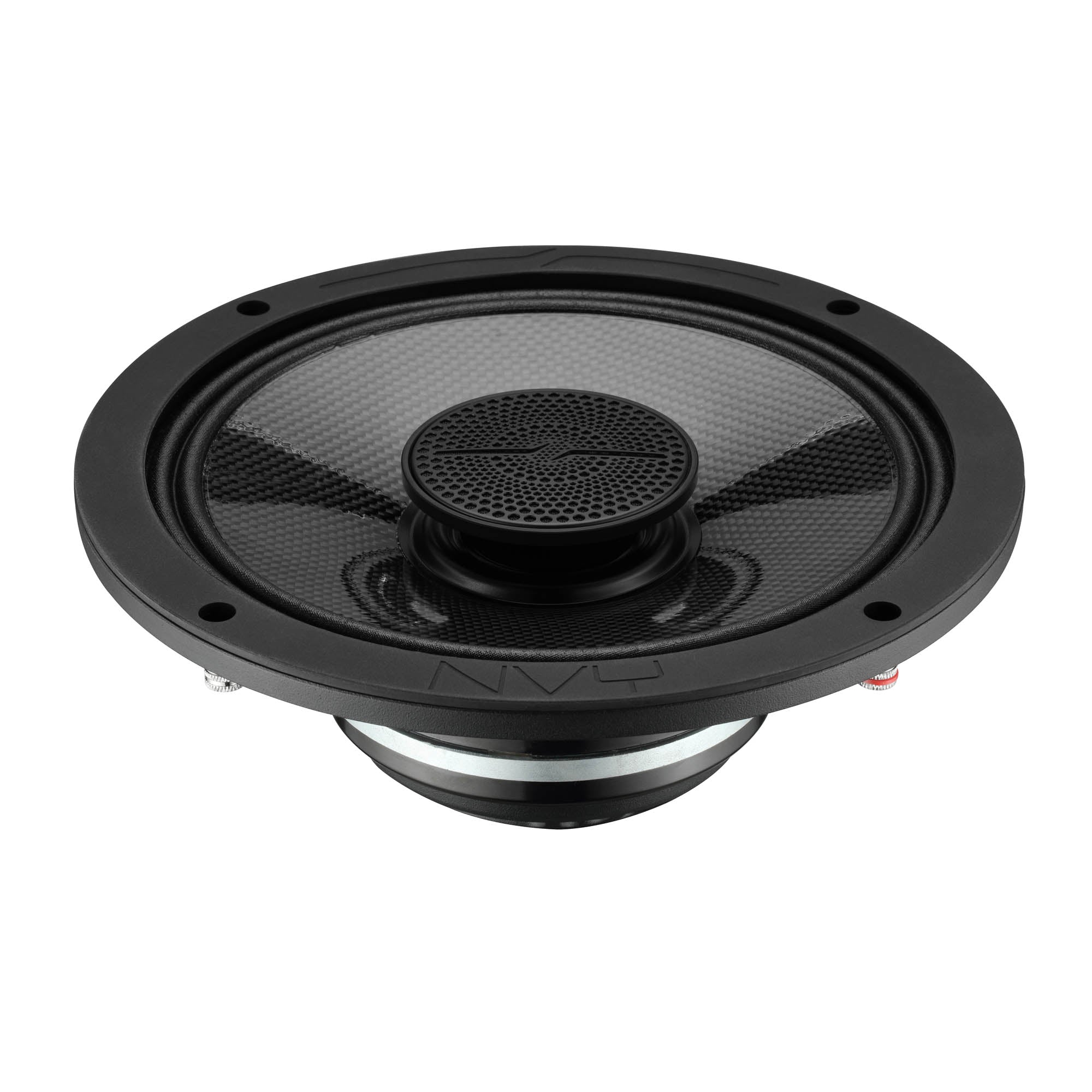

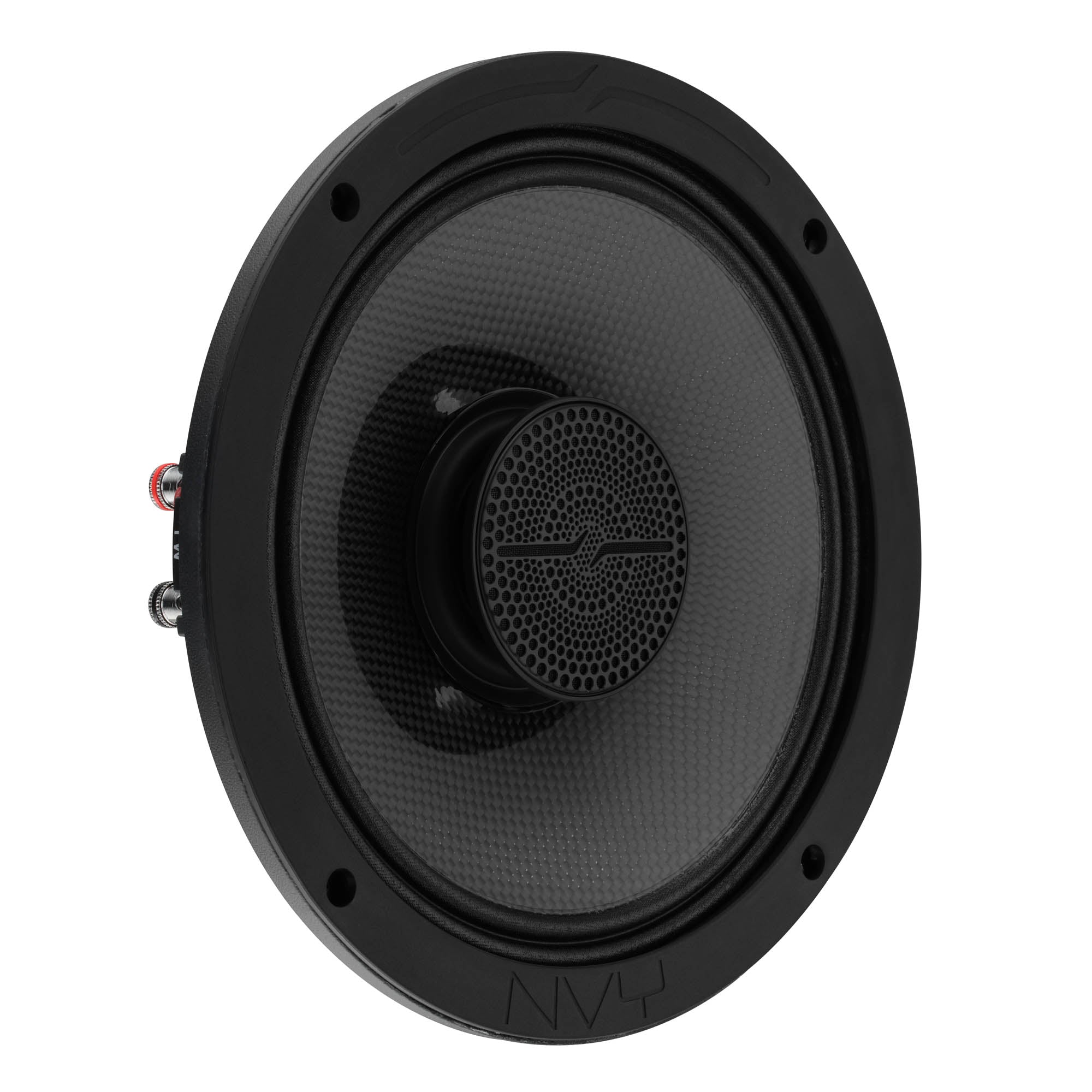

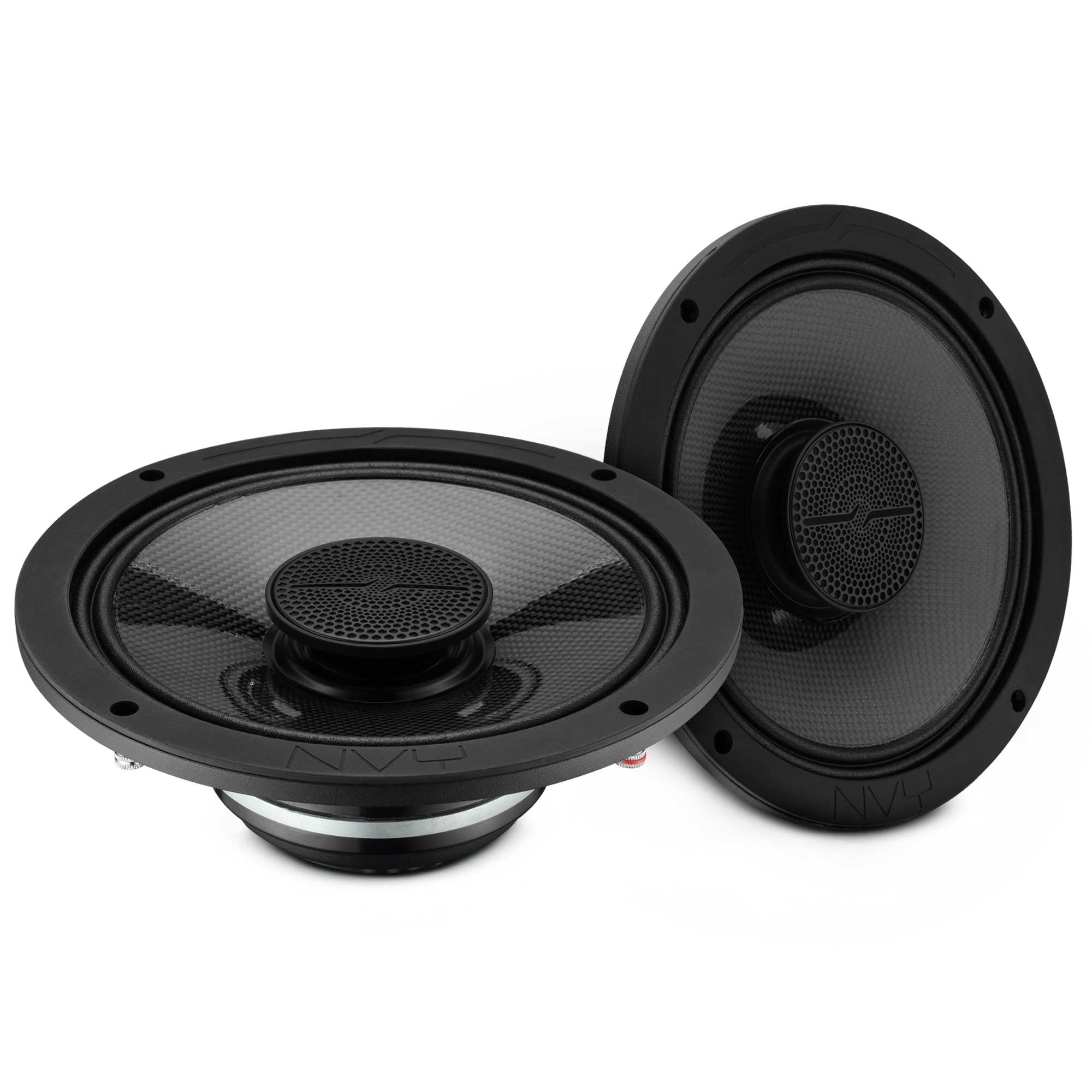

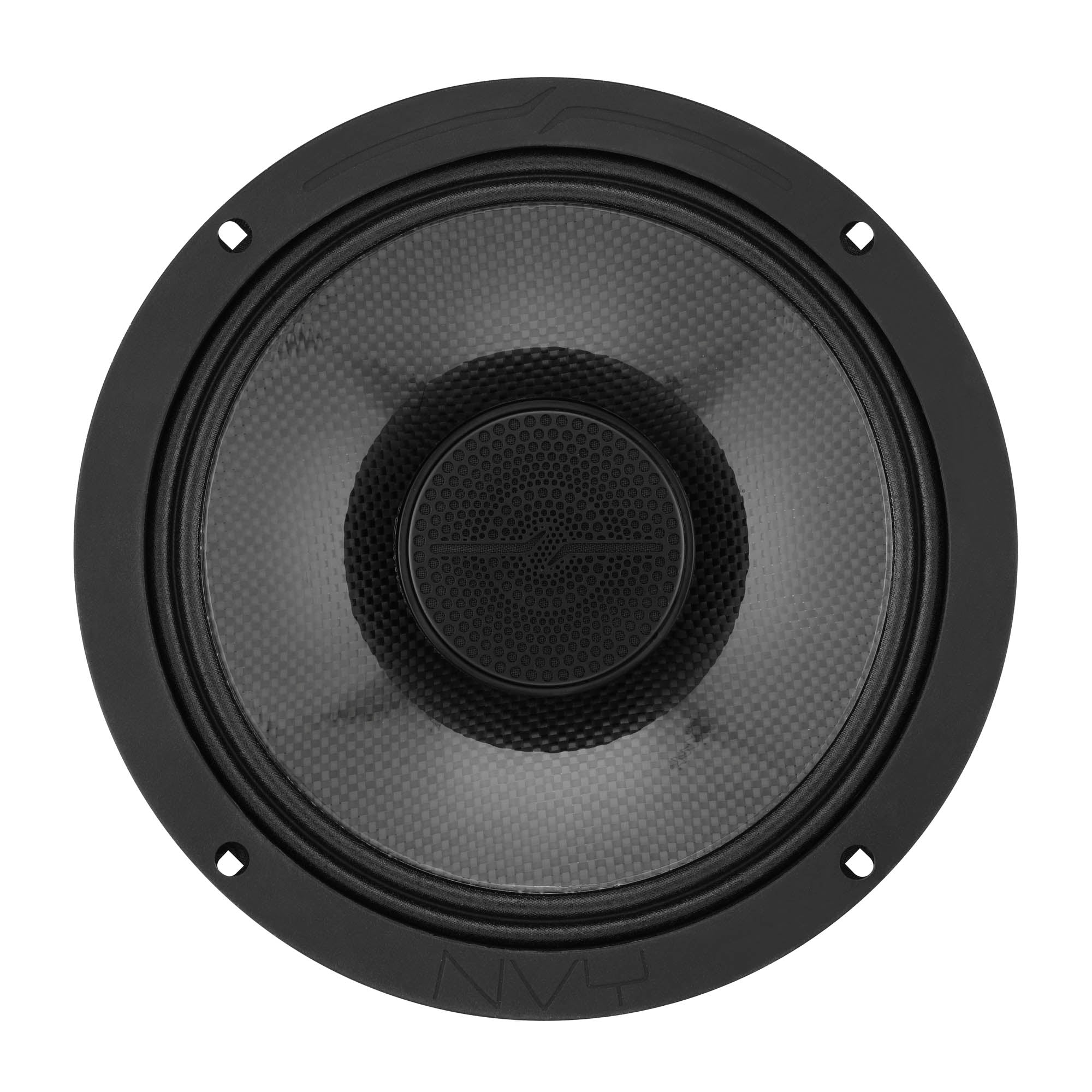

8” Slim Hybrid Loudspeakers with Compression Driver and Neodymium Magnet | 250W RMS 4-Ohm

$750.00/ PAIR

Size: 8"

6.5"
6x9"
8"

Impedance: 4-Ohm

2-Ohm
4-Ohm

KEY FEATURES

  • Carbon Fiber Cone

    Carbon Fiber Cone

  • Super Tweeter

    Super Tweeter

  • High Sensitivity

    High Sensitivity

  • Water-Resistant IP65

    Water-Resistant IP65

  • Neodymium Magnet

    Neodymium Magnet

  • Perfect for Motorcycles and Powersports

    Perfect for Motorcycles and Powersports

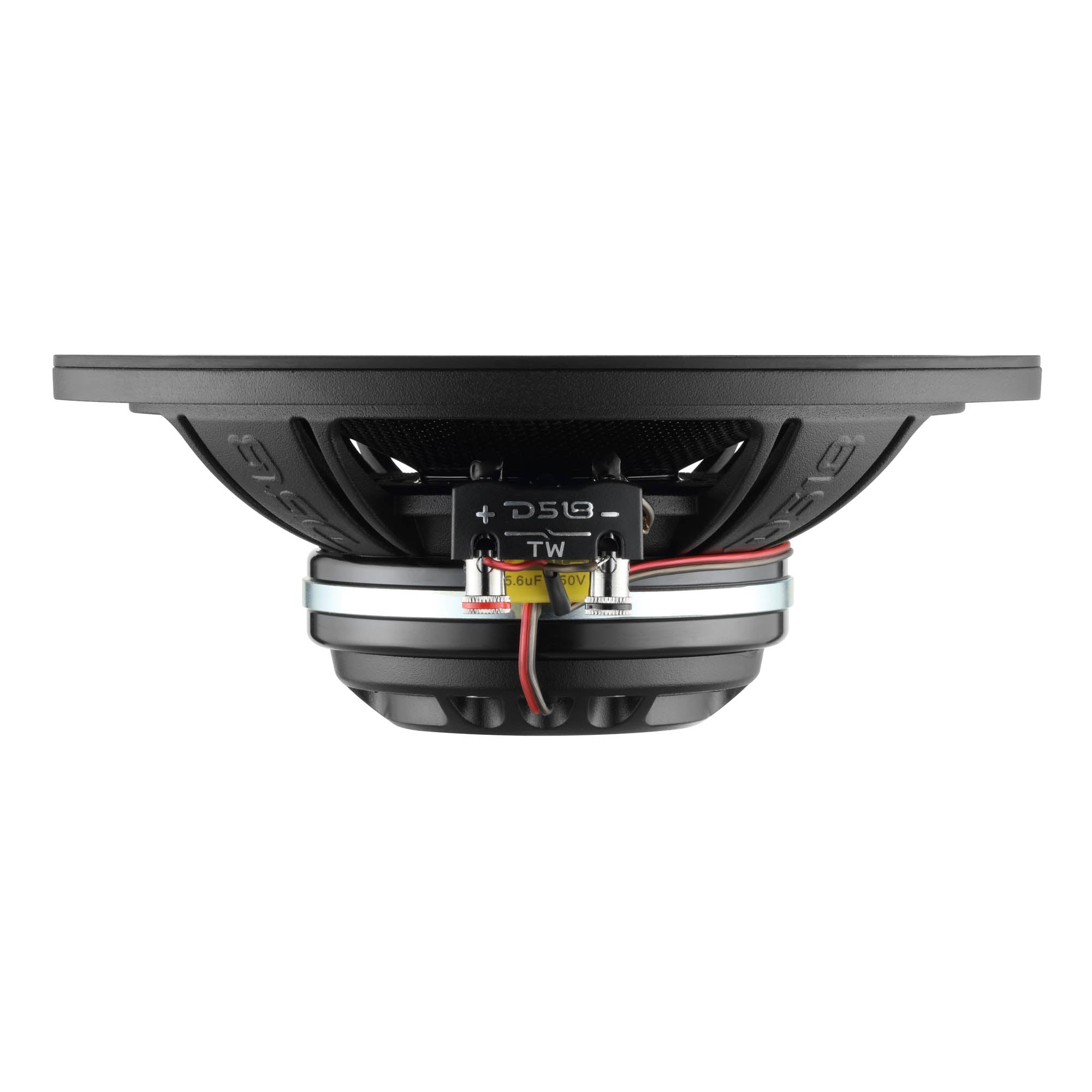

Slim Design for Tight Installations

With a shallow mounting depth of 2.74" (69.5mm), this system fits into limited-depth applications where traditional 8” speakers cannot. Perfect for motorcycle fairings, compact panels, and space-restricted enclosures.

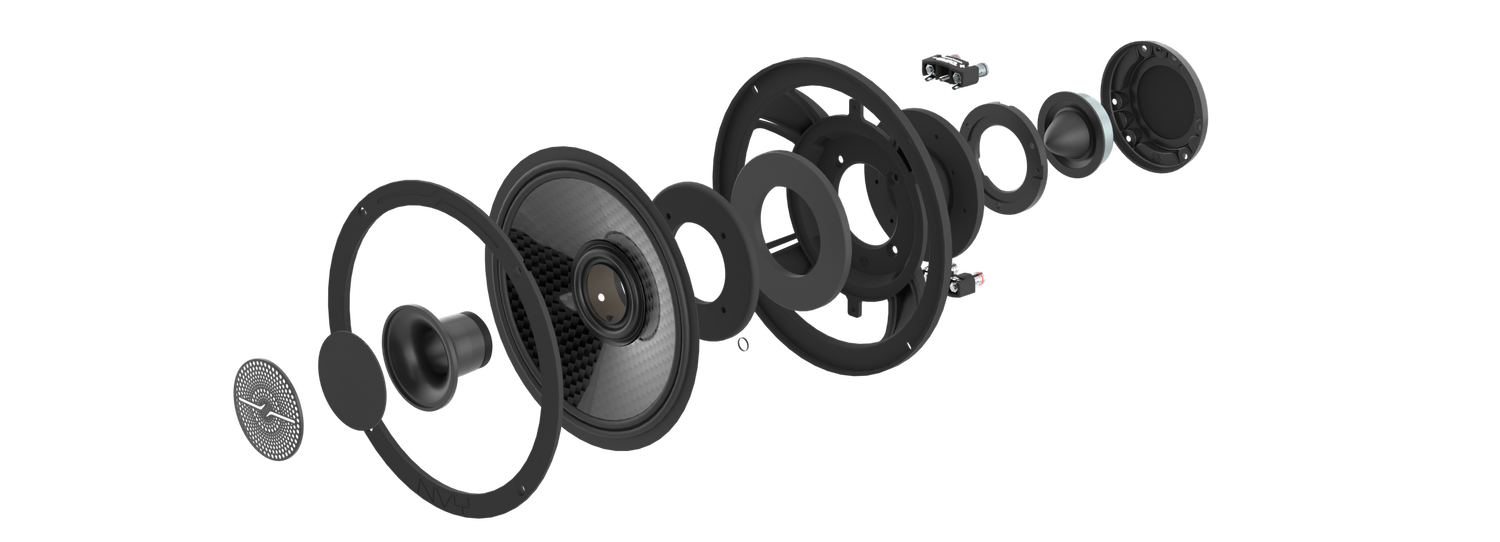

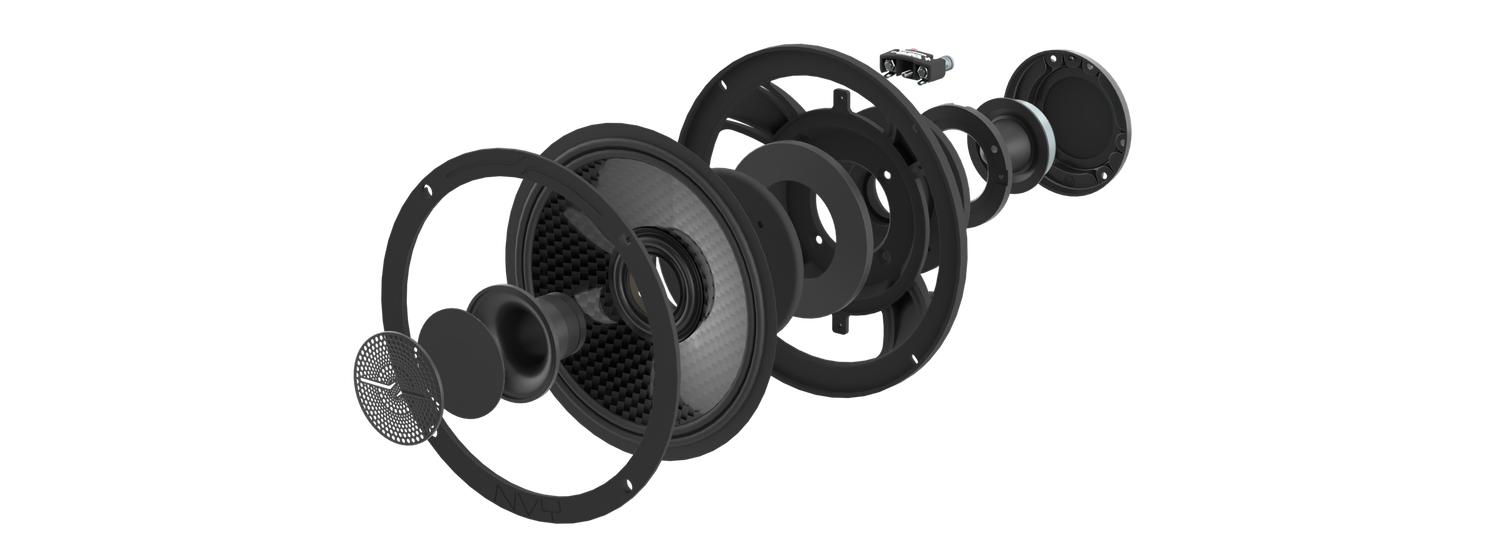

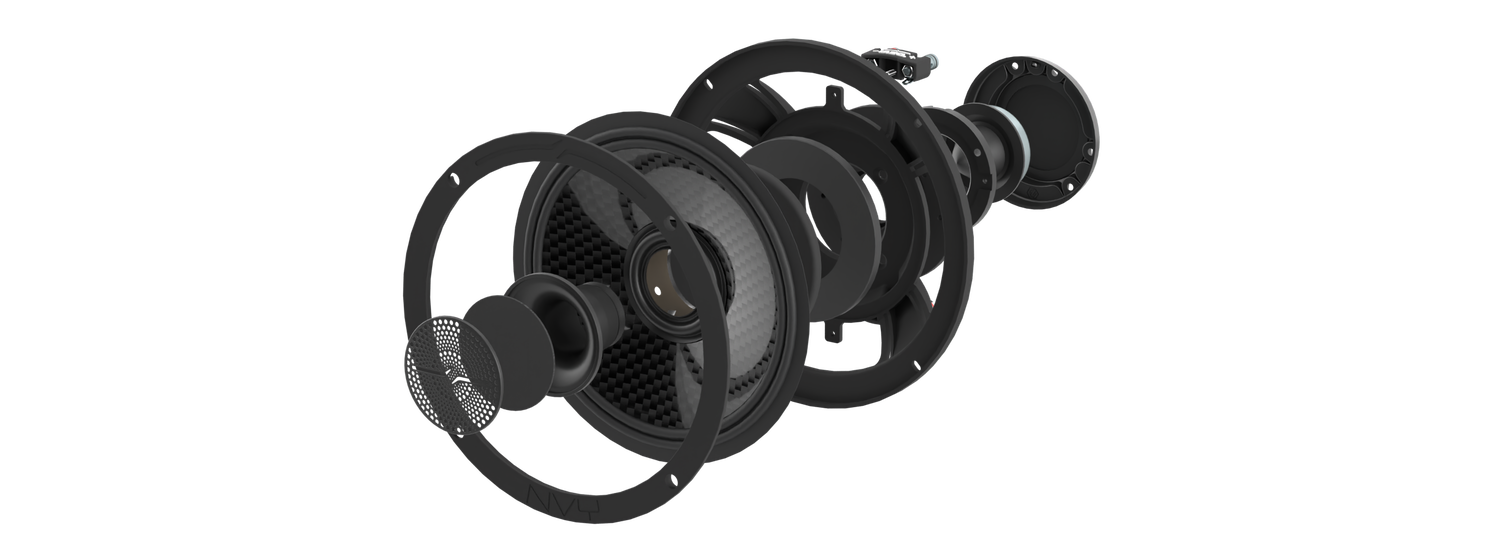

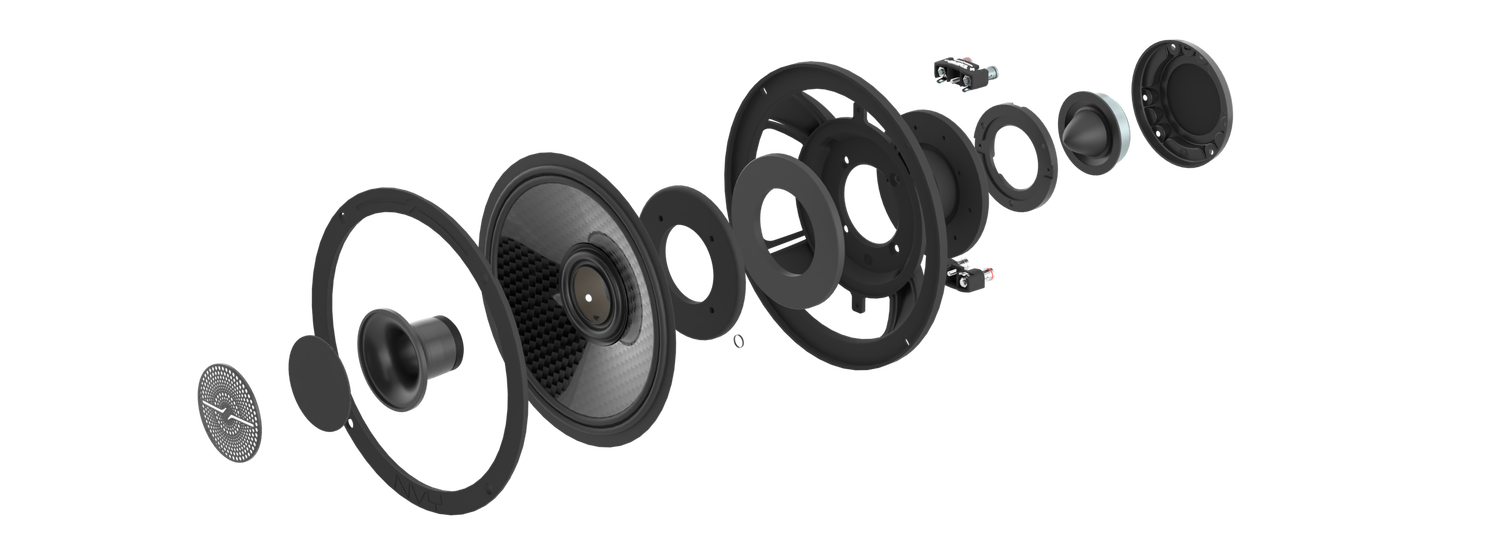

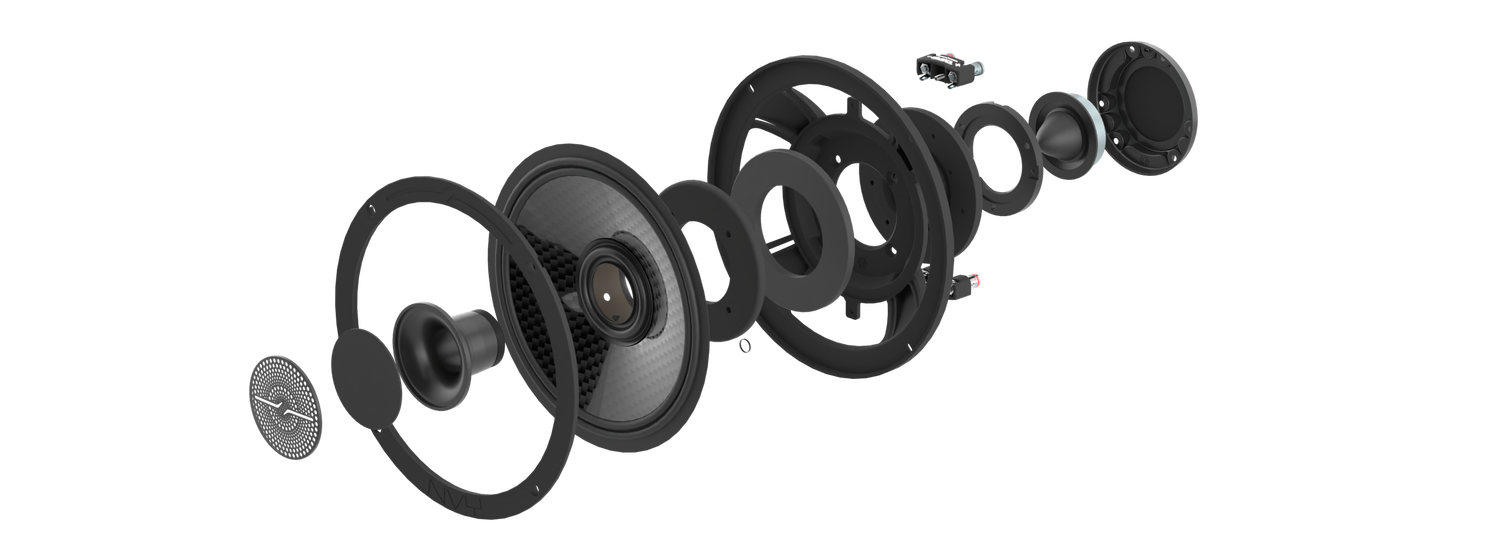

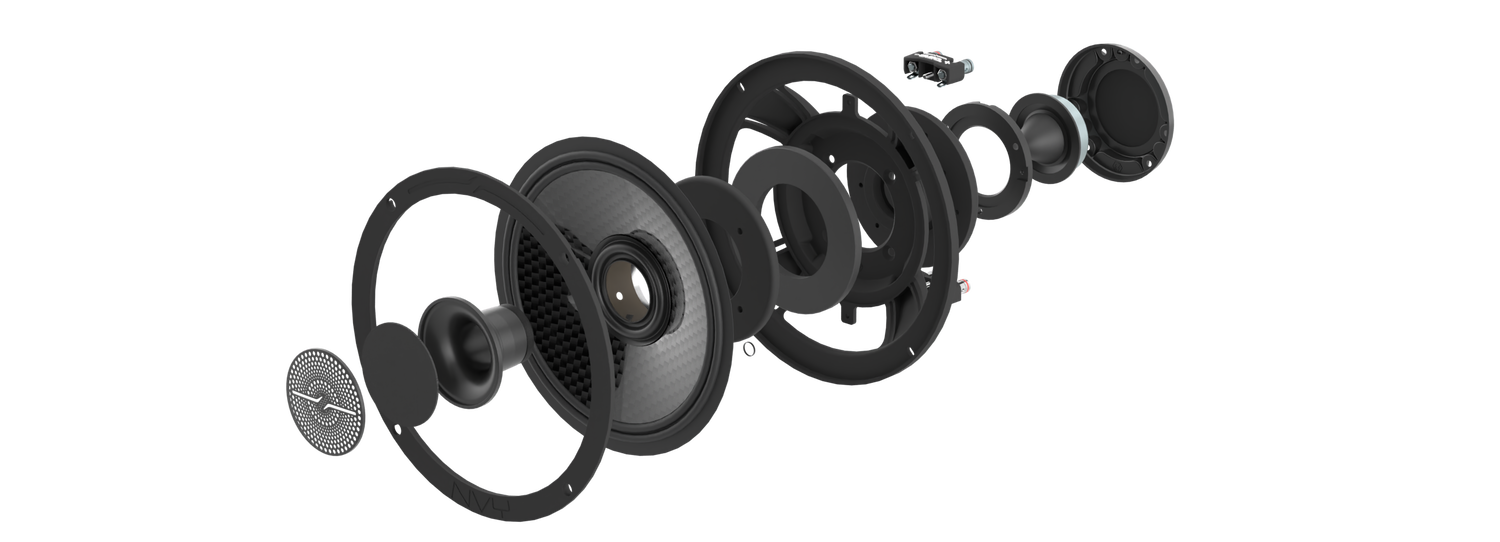

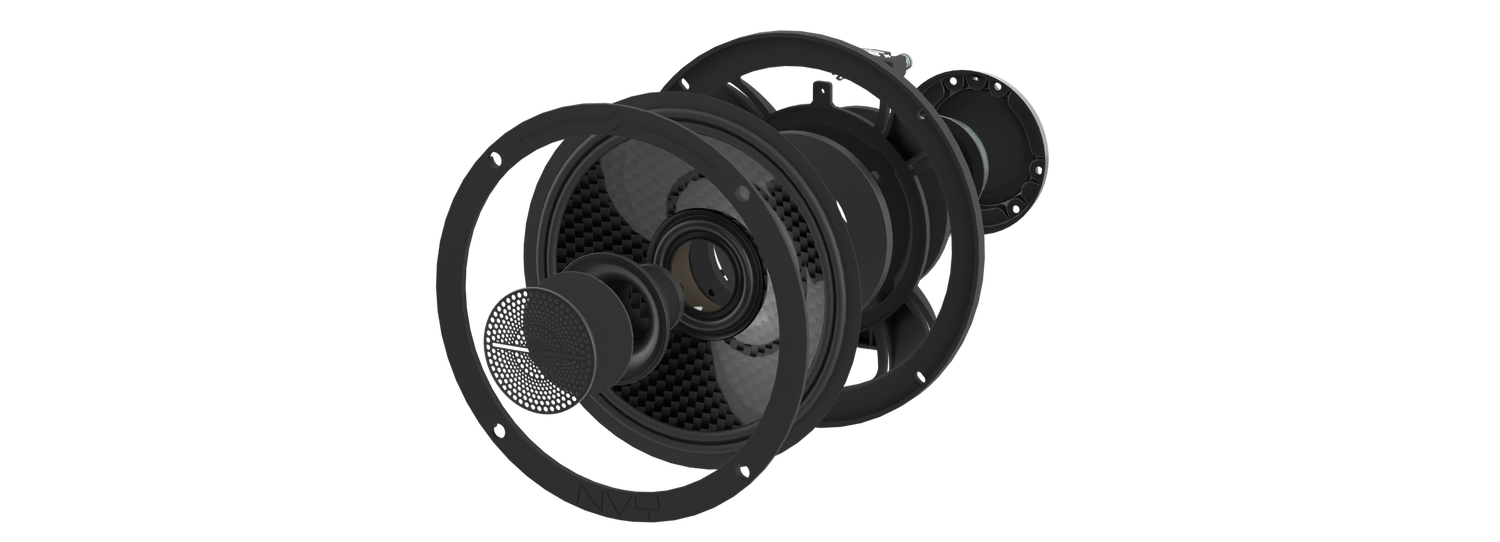

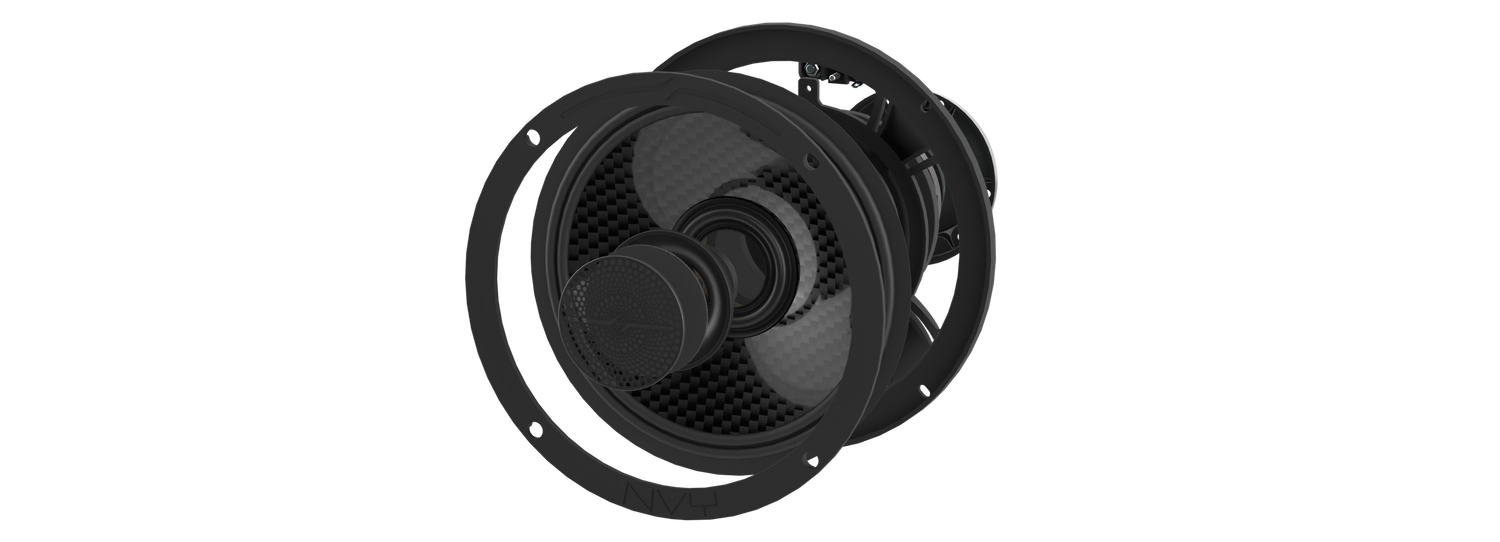

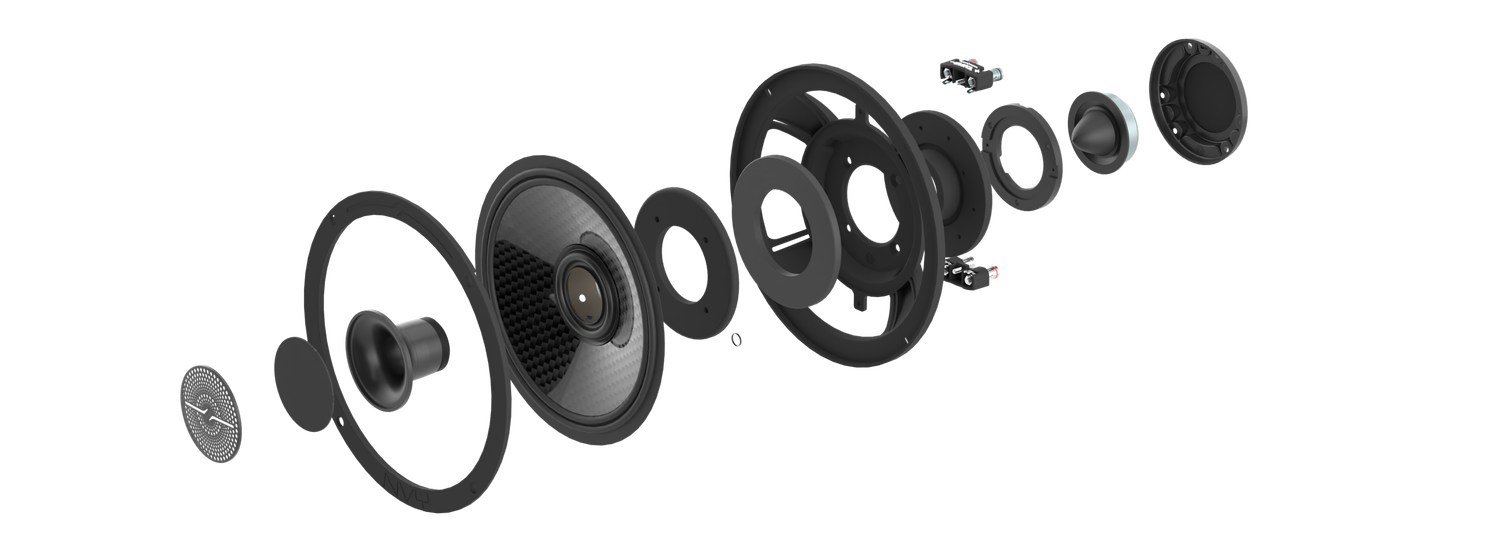

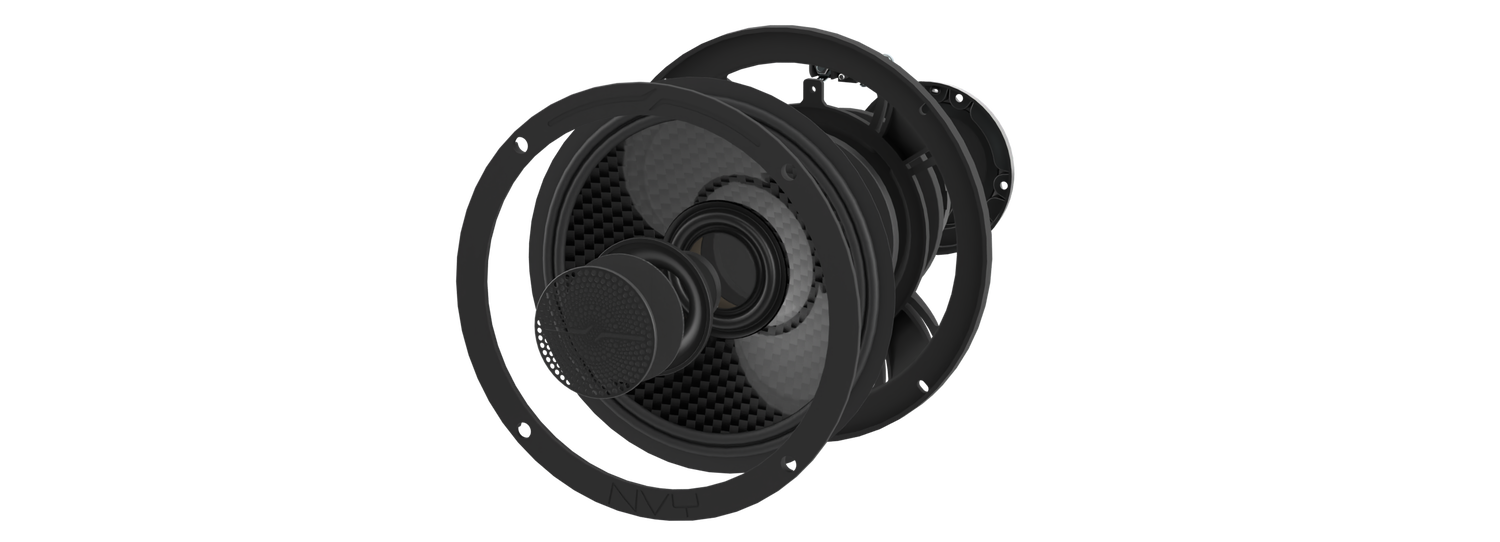

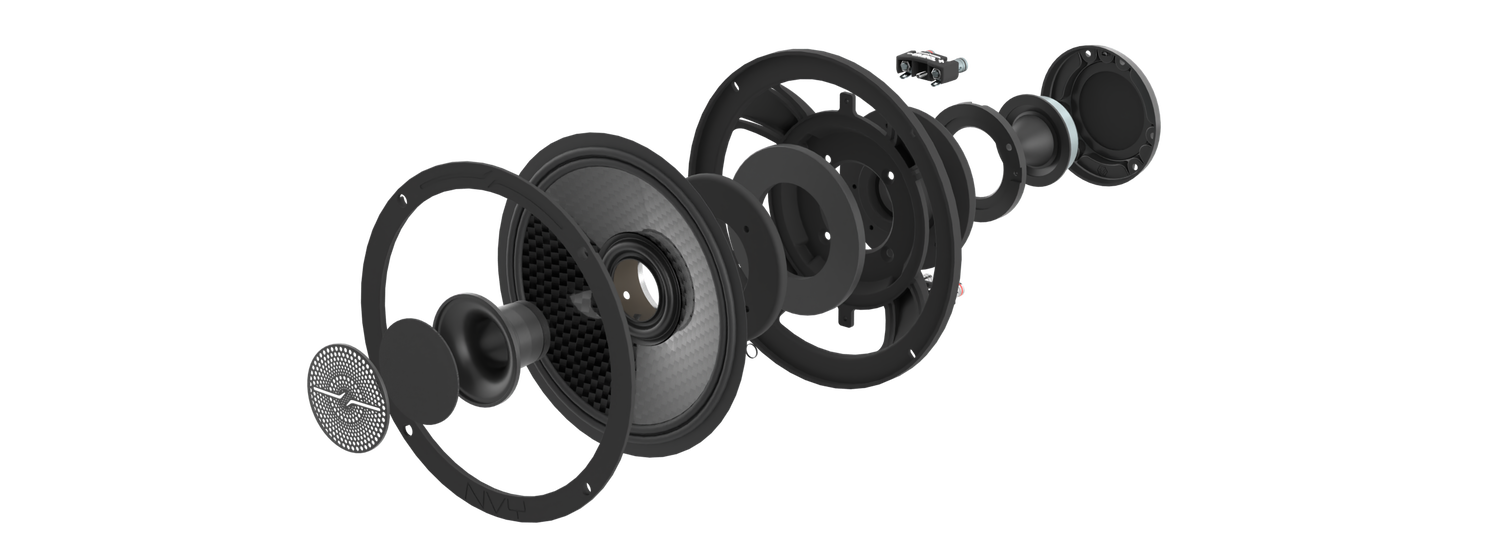

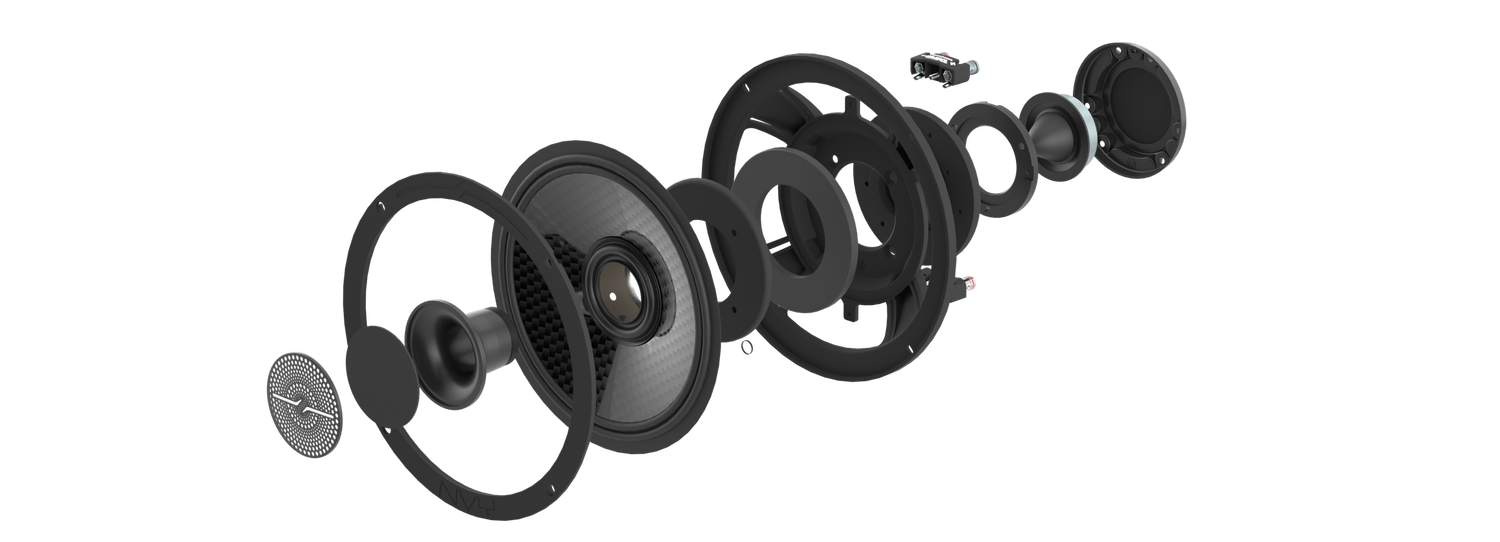

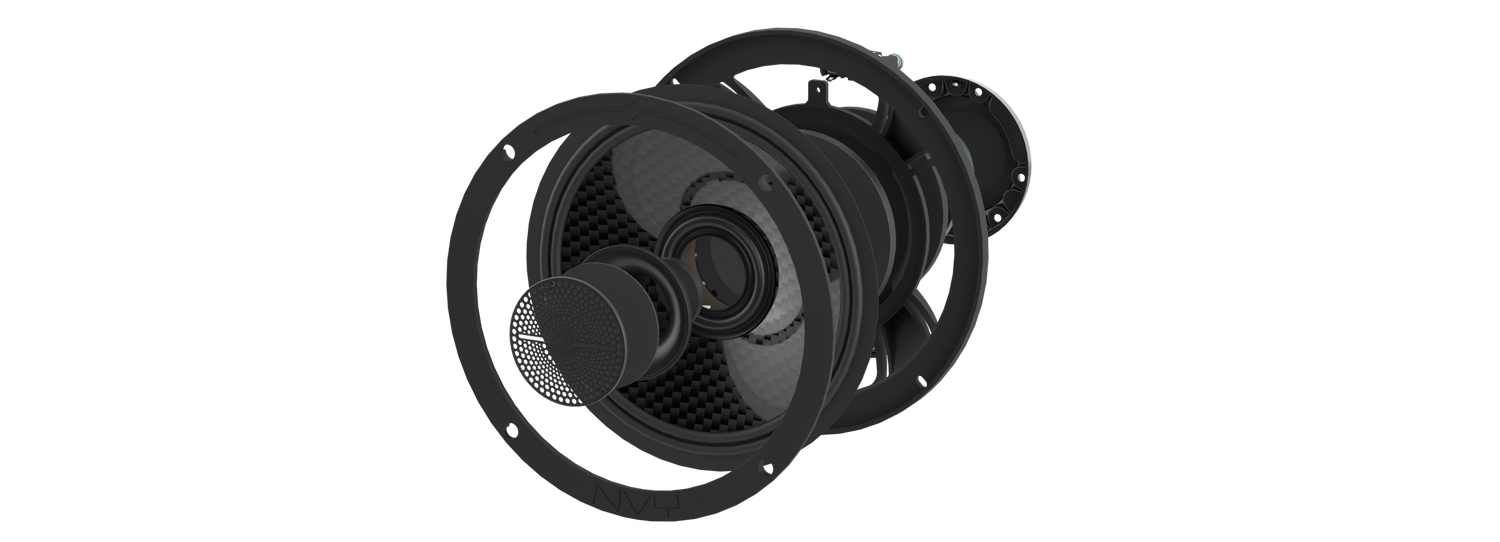

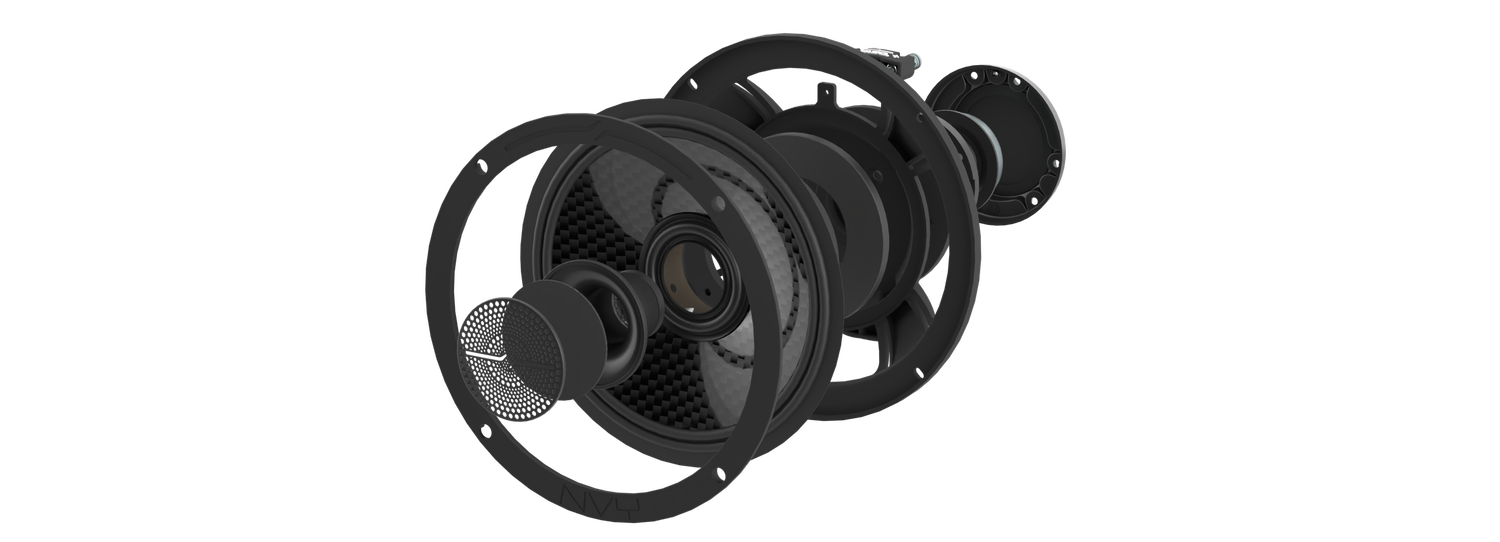

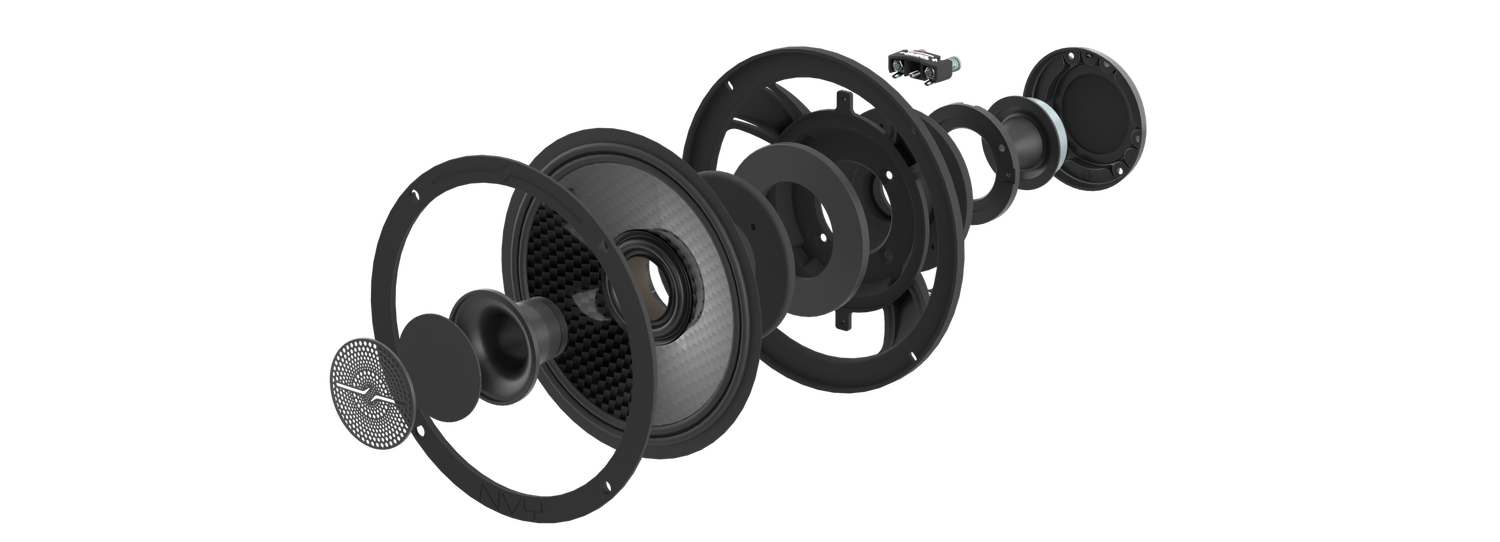

Hybrid Woofer + Compression Driver

Each speaker integrates a water-resistant carbon fiber cone woofer with a high-performance compression driver, delivering strong mids and crisp, controlled highs.

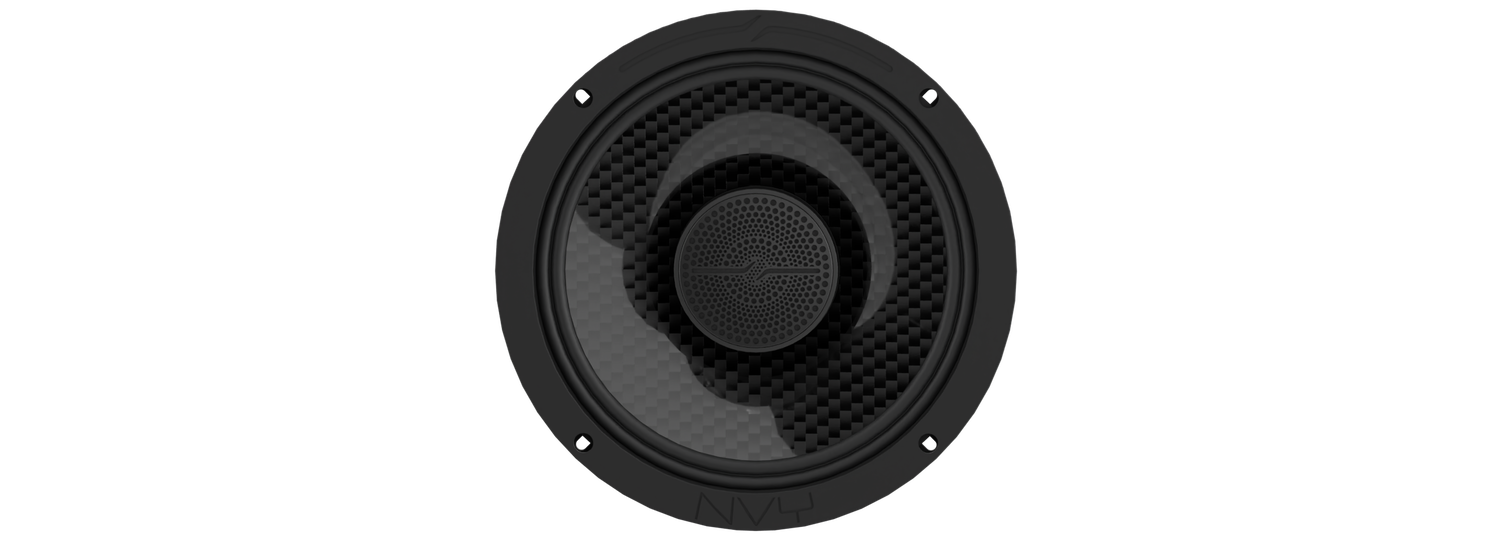

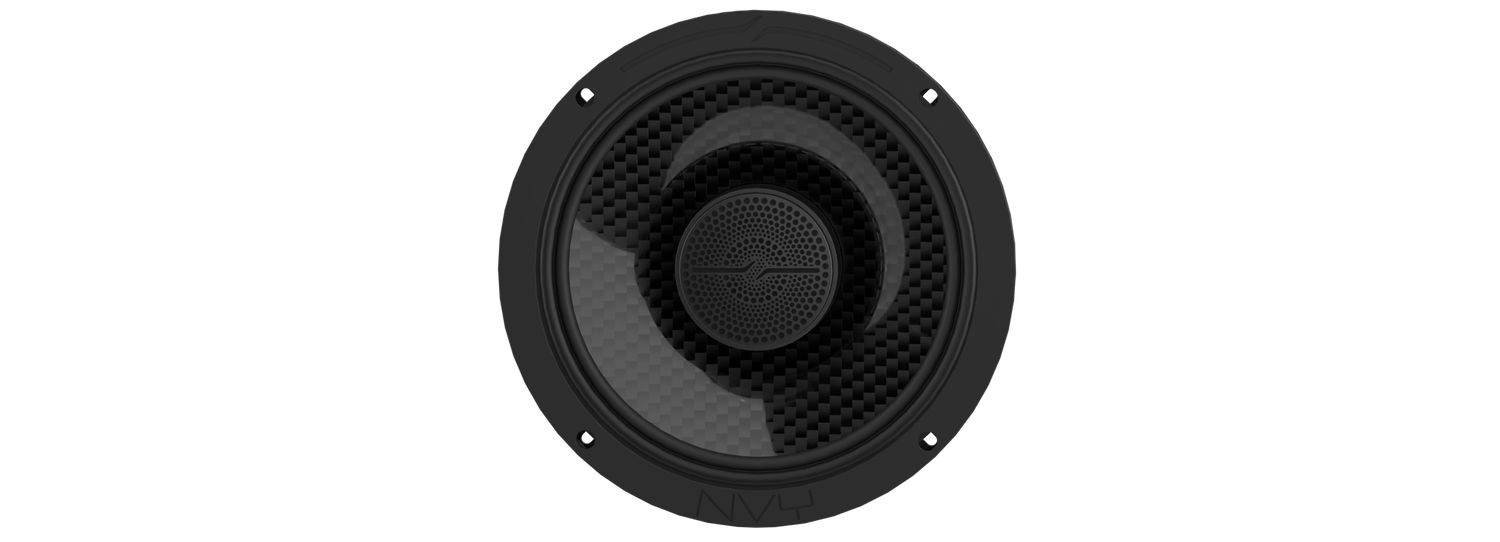

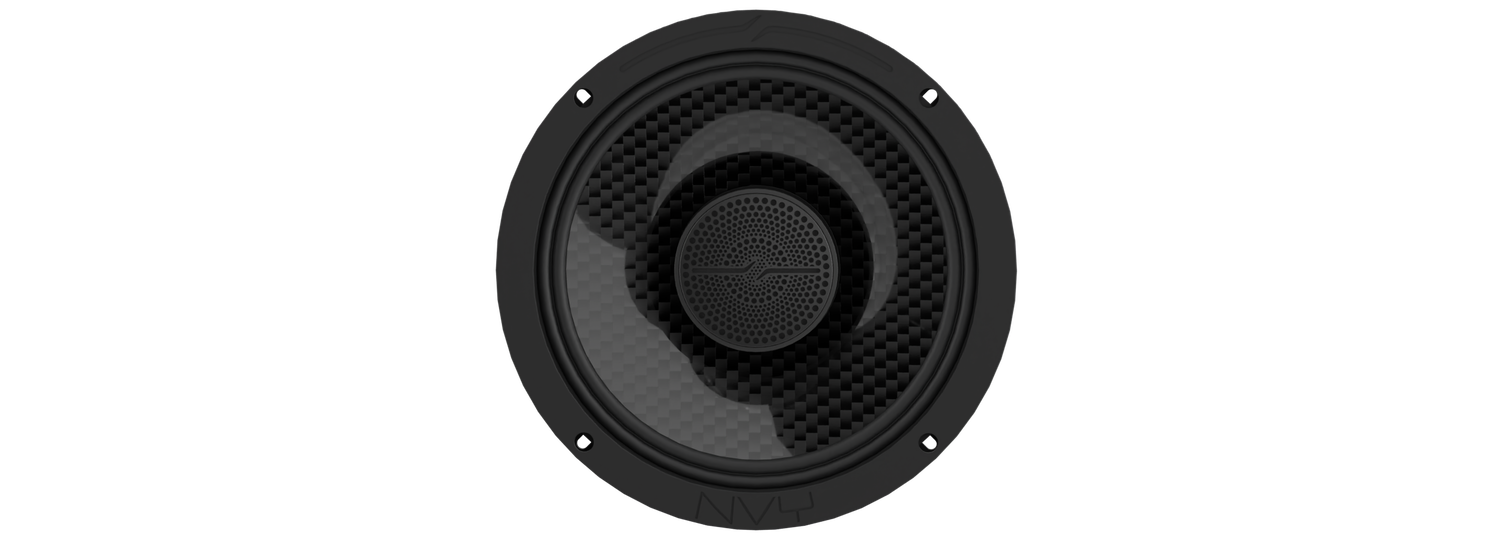

Premium Carbon Fiber Cone

The rigid carbon fiber cone improves accuracy, enhances transient response, and reduces distortion at elevated listening levels.

DOWNLOAD THE USER MANUAL

  • Specifications
  • Nominal Diameter: 8" (210mm)
  • RMS Power Handling (Combined): 250W
  • MAX Power Handling (Combined): 500W
  • Sensitivity (1W/1m) (Combined): 98dB
  • Frequency Response (Combined): 80Hz–20kHz
  • Number of Ways: 2-Way
  • Recommended High-Pass Crossover: 100Hz
  • Water-Resistant Rating: IP65
  • Configuration: Pair

  • Woofer Specifications
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 200W
  • MAX Power Handling: 400W
  • Frequency Response: 85Hz–2kHz
  • Recommended Band-Pass Crossover: 140Hz–2kHz
  • Voice Coil Diameter: 2" (52.4mm)
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Cone Material: Carbon Fiber
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color: Black
  • Magnet Material: Neodymium
  • Magnet Weight: 9.26 oz

  • Thiele & Small Parameters
  • Vas (Equivalent Volume): 6.17L (0.217ft³)
  • Xmax (One-Way Excursion): 1.2mm
  • Fs (Free Air Resonance): 117Hz
  • Qms (Mechanical Q): 8.486
  • Qes (Electrical Q): 0.472
  • Qts (Total Q): 0.448
  • Mms (Moving Mass): 19.325g
  • Cms (Mechanical Compliance): 0.095mm/N
  • BL (BL Factor): 10.100
  • Le (Voice Coil Inductance): 0.134mH
  • Sd (Diaphragm Area): 213.82cm²
  • Re (DC Resistance): 3.2 Ohms
  • Mmd (Mechanical Mass without Air): 248.31g

  • Driver Specifications
  • Nominal Impedance: 4 Ohms
  • AES Power Handling: 50W
  • Program Power Handling: 100W
  • Peak Power Handling: 200W
  • Frequency Response: 2kHz–20kHz
  • Recommended High-Pass Crossover: 2kHz
  • Voice Coil Diameter: 1.5" (37.6mm)
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Aluminum Alloy
  • Magnet Material: Neodymium (N38H)
  • Magnet Weight: 1.3 oz
  • Horn Diameter: 2.5" (65mm)

  • Measurements
  • Overall Diameter: 8.27" (210mm)
  • Overall Depth: 3.11" (79mm)
  • Front Mount Baffle Cutout: 7" (179mm)
  • Mounting Depth: 2.74" (69.5mm)
  • Motor Diameter: 4.13" (105mm
