FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS

SKU: FRP-4K4/RD

NEW ARRIVAL

FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS
FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS
FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS
FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS
FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS

FRP Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS

SKU: FRP-4K4/RD

NEW ARRIVAL

Sale price$499.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Power: 4000W RMS

Color: Red

Quantity:
  • Key Features

    • RMS Power: 4 x 400W @ 4Ω, 4 x 700W @ 2Ω, 4 x 1000W @ 1Ω
    • Bridged Power: 2 x 1200W @ 4Ω | 2 x 1800W @ 2Ω
    • Selectable HPF / LPF / Full crossover
    • Bass Boost: 0–12dB at 50Hz
    • Smart cooling fan + 4-layer PCB
    • Power, Protect, Clip LED indicators
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Power

    RMS Power @ 4 ohms
    4 x 400W
    RMS Power @ 2 ohms
    4 x 700W
    RMS Power @ 1 ohm
    4 x 1000W
    RMS Power @ 4 ohm Bridge
    2 x 1200W
    RMS Power @ 2 ohm Bridge
    2 x 1800W

    Audio

    Frequency Response
    10Hz-20KHz
    Signal to Noise Ratio
    90dB
    Efficiency @ 4ohm
    97%
    Damping Factor
    90
    Input Impedance
    10KΩ
    Channel Separation
    50dB
    Total Harmonic Distortion (THD)
    0.5%
    Low Level Input Range
    400mv-6V
    High Level Input
    No
    Selectable X-Over
    Yes, HPF/FULL/LPF
    X-Over Filter Range
    10Hz-2KHz
    Bass Boost Range
    0-12dB
    Bass Boost Frequency
    50Hz

    Features

    Amplifier Class
    Digital
    Amplifier Type
    Full-Range Multi-Channel
    Number of Channels
    4CH
    Minimum Impedance
    1ohm St / 2ohm Bridge
    Led Indicator
    Power / Protect / Clipping
    Power Input Terminal Size
    0GA
    Fuse Size (Recommended)
    500A
    Cooling Fan
    Yes (Smart Cooling x 1)
    Voltmeter
    No
    Thermal Protection
    Yes
    Over-Load Protection
    Yes
    DC Output Protection
    Yes
    Short Circuit Output Protection
    Yes
    Voltage Input Protection
    Yes
    Clipping Protection
    Yes
    Body Color / Finish
    Blue / Red / Titanium
    Compact Size to Easy Installation for Any Applications
    Yes

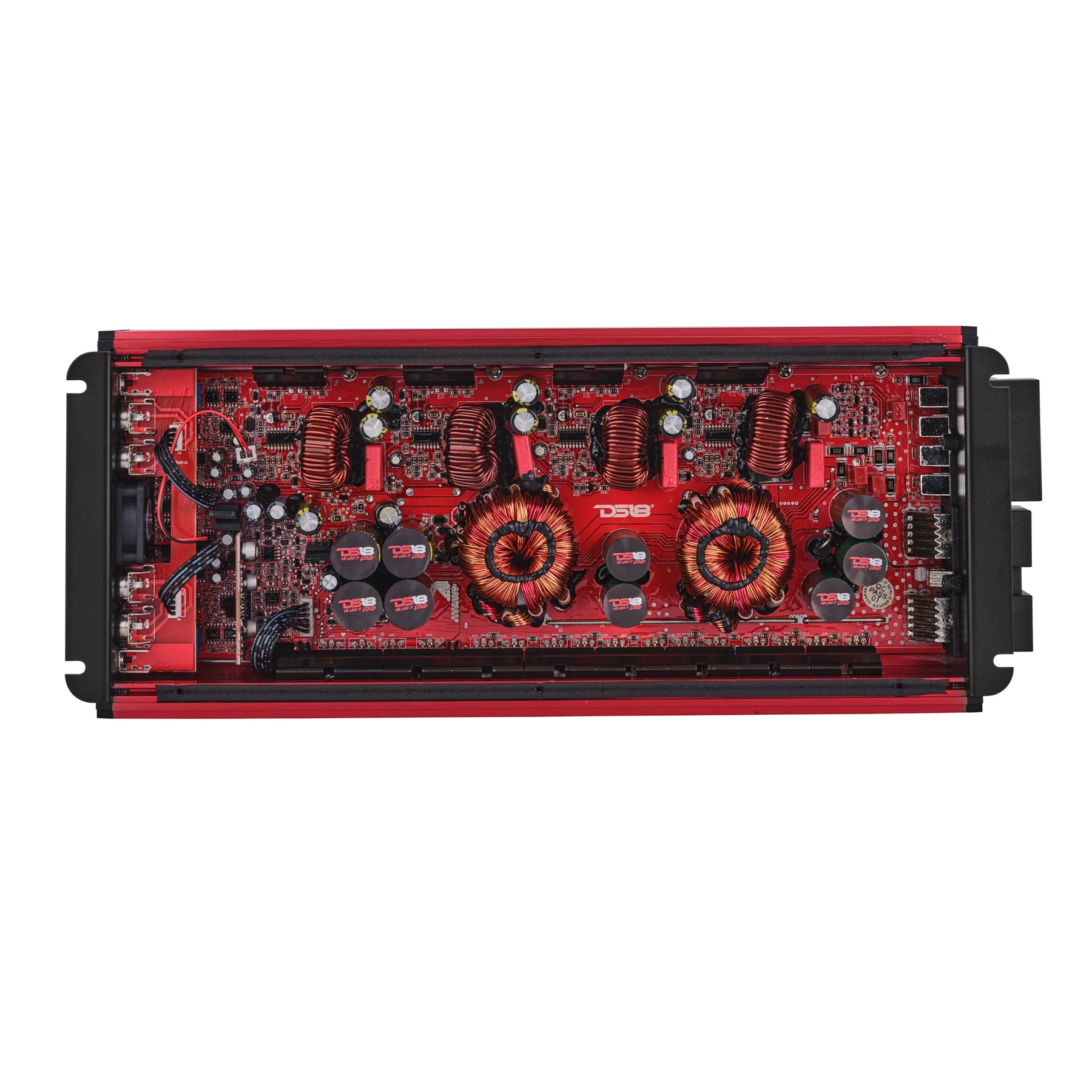

    Stable/Reliable Four Layers Traces PCB Design
    Yes
    Surface Mount Component Technology
    Yes
    Quality Control Verification using Audio Precision Instruments
    Yes
    Tiffany RCA Terminal
    Yes
    LED Clip Indicator
    Yes
    Metal Knobs with Click Steps
    Yes
    Input Selector
    Yes (2ch/4ch)
    Remote Level Control with Clip Indicator
    No
    Remote Level Control with Clip Indicator and Voltmeter
    No

    Measurement

    Overall Length
    13.4" / 340mm
    Overall Width
    5.5" / 140mm
    Overall Height
    2.4" / 63.5mm
    Heatsink Length
    12" / 307mm
    Gross Single Unit Weight
    3.2kg

    Load More
  • Product Overview

    Product Overview

    DS18 FRP-4K4

    Compact 4-Channel Full-Range Class-D Amplifier | 4000W RMS

    FULL RANGE POWER IS BACK! AND NOW IN 4-CHANNELS!

    The FRP-4K4 is DS18’s most powerful compact 4-channel amplifier yet, built to deliver up to 4000W of RMS power across your entire system!


    Built for Massive Output
    The FRP-4K4 delivers massive output: 4 x 400W at 4 ohm, 4 x 700W at 2 ohm, 4 x 1000W at 1 ohm, 2 x 1200W bridged at 4 ohm, or 2 x 1800W bridged at 2 ohm. Plenty of clean, consistent power for your full-range or pro audio builds.

    Full Audio Control
    Dial in your sound with fully adjustable high-pass, low-pass, and full-range crossovers, plus a 12dB bass boost at 50Hz to fine-tune your low end. Smart Cooling keeps temps down while built-in protection circuits and 0GA power terminals make setup and system management simple—even when pushed to the limit.

    Get DS18’s FRP-4K4 for clean full-range power without wasting space!
