Overview

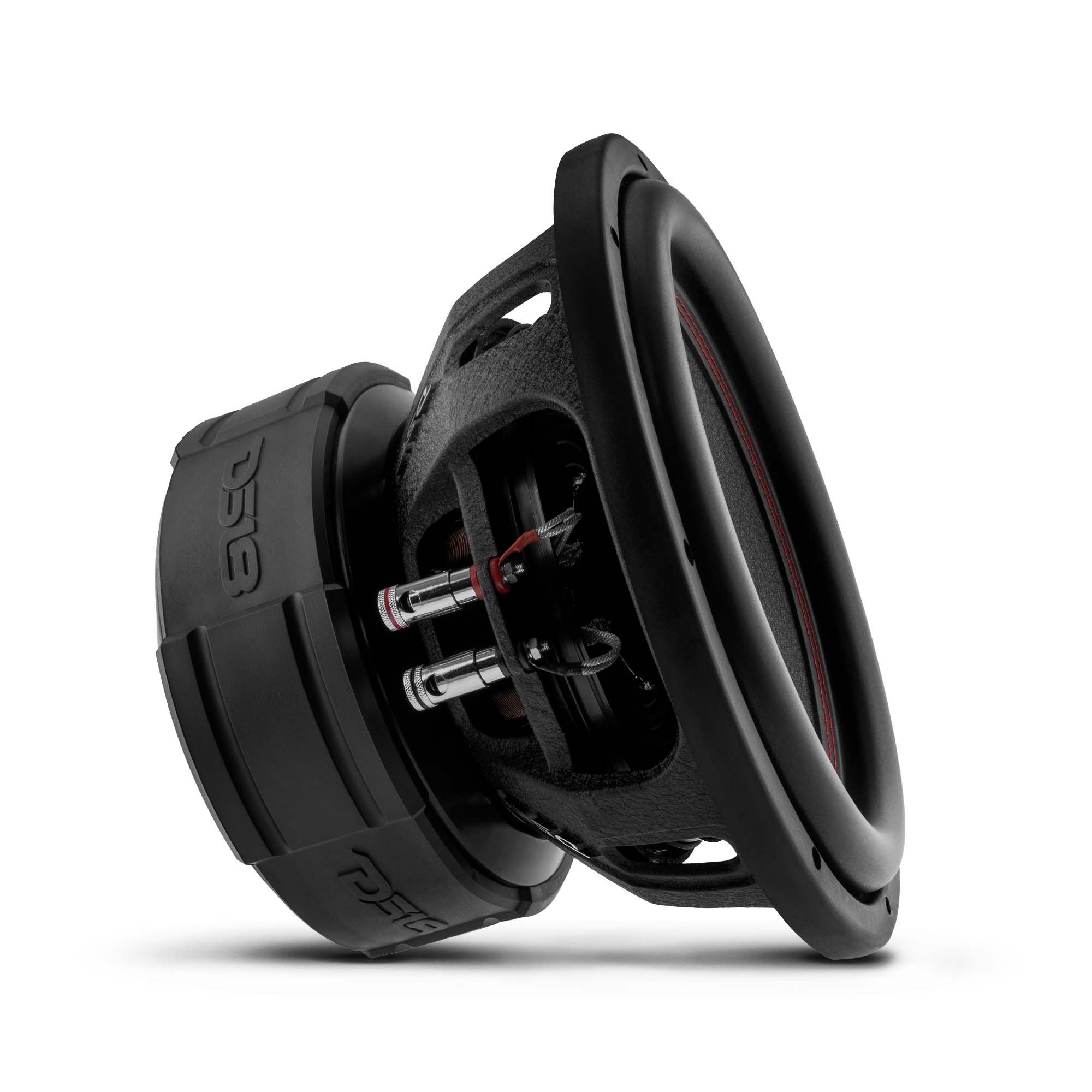

| The EXL series subwoofers have massive power handling abilities! Choosing the right materials makes the difference! Aluminum frame, paper with fiber glass cones, and a foam edge are all the makings of an all powerful subwoofer. These can be purchased in either 2 ohm or 4 ohm dual voice coil configurations. At 2,000 RMS power, the EXL-XX comes in 12" and 15" sizes respectively in order to provide more standard options of modifications and installations for our serious competitors. |
Manual
Â
Specifications
| Model: | EXL-XXB12.2D |
| Type: | Subwoofer |
| Size: | 12" |
| RMS Power: | 2000W |
| MAX Power: | 4000W |
| Impedance: | 2 + 2 |
| Voice Coil Size: | 3" |
| Magnet: | Ferrite |
| Magnet Size: | 3 x 102oz |
| Frequency Response: | 20Hz - 1.6KHz |
| Materials | |
| Frame: | Aluminum |
| Cone: | Paper with Glass Fiber |
| Surround: | Foam Edge |
| Voice Coil Former Material: | Black Aluminum |
| Diameters | |
| Mounting Cut-Out: | 11.1" (282mm) |
| Mounting Depth: | 7.87" |
| Overall Diameter: | 12.63" (321mm) |
| Net Weight: | 27kg |
