RV and Trailers Headunit 2.75" LCD screen , 2 Zones, 4 volts Output,HDMI, BT, RDS 4 X 50 Watts





RV and Trailers Headunit 2.75" LCD screen , 2 Zones, 4 volts Output,HDMI, BT, RDS 4 X 50 Watts
Sale $152.96 / EACH
Reg.$179.95
15% OFF FOR MOVING SALE!
Availability:825 Items
-
Key Features
- Digital Media Receiver
- RV & Trailers
- Custom Fit Design For Wall
- 2 Zones
- BT~USB~AUX~AM/FM~HDMI
- 2.75" LCD Screen
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
GENERAL SPECIFICATIONS
SKU
RVR1
Rated Power Source
14.4V DC (11V to 16V operation)
Maximum Current Consumption
10 Amp
Screen Size
2.75 inch / 66 x 31mm
Display Type
VA LCD
Temperature Operation
-20°C to +60°C (14°F to 140°F)
AUDIO
Maximum Power Output
50W X 4 Ch @ 4 ohms (14.4v)
Continuous Power Output
17W x 4 Ch @ 4 ohms (14.4v)
Pre-output Level
Zone 1/2: 2.5 Volts / Subwoofer: 4 Volts (14.4V)
Equalizer
2 bands (Bass: 100Hz, Treble: 10KHz) Gain: +/- 7dB
Preset EQ
Flat / Rock / Pop / Classic
Audio Control
Volume / Balance / Loudness / Bass / Treble / Zone Volume
Signal to Noise Ratio
>60dB
THD
<0.3%
Frequency Response
20Hz – 20Khz
TUNER
Frequency Range FM
87.5 ~ 107.9 MHz
Frequency Range AM
530 ~ 1710 kHz
IF FM
10.7 MHz
IF AM
450 KHz
Sensitivity FM
4uV (S/N=30dB)
Sensitivity AM
36dBuV (S/N=20dB)
Stereo Separation FM
>25dB
Presets Memory
18 Stations (FM) / 12 Stations (AM)
Region
North America "USA" and Europe
Sensitivity Adjustment
LOC/DX & ST/Mono
USB PLAYER
Type / Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
MP3, WMA, FLAC, MA
Info Display Format
ID3 Tag
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (Charging USB port)
Number of USB Ports
1 x Front (Audio / Charging)
CONNECTIVITY
BT Version / Service
V5.0 / Audio Streaming
Audio Protocol
A2DP
Aux Input
Front 3.5mm Jack Stereo Audio / Rear RCA A/V
Headphone
Front 3.5mm Jack Stereo
HDMI
Rear Output (To HDTV) / Front Input (From Source)
MEASUREMENTS
Chassis
97mm x 100mm x 150mm
Bezel frame
130mm x 112mm x 17mm
Weight
14.2Oz / 403 grams
Product Weight
1.2 lbs
Product Dimensions
6.875 x 6.25 x 4.875
M/C Weight
24 lbs
M/C Dimensions
21.5 x 19.5 x 10.5
M/C QTY
18
Sold In
Piece
-
Product Overview
Product Overview
DS18 RV.R1 RV And Trailers Digital Media Receiver
Take control of your RV's audio experience with DS18’s RV.R1! Designed specifically for recreational vehicles, the RV.R1 is packed with features that will elevate your road trip.
With its easy wall mounting, the square design of the RV.R1 makes installation a breeze. You'll have access to FM radio with RDS and 18 memory stations, allowing you to easily tune in to your favorite stations while on the go. The AM radio feature includes 12 memory stations for even more listening options.
Connectivity is key. Equipped with Bluetooth v5.0 technology, the RV.R1 allows streaming wirelessly from any compatible device, even at extreme distances. The USB port allows for music streaming and device charging, ensuring you stay connected throughout your journey. Plus, the HDMI pass-through feature enables seamless integration with your television, giving you the freedom to enjoy your favorite shows and movies from anywhere in your vehicle.
Unleash your inner enthusiast with the RV.R1's comprehensive audio control features. The 2-band equalizer provides precise control over your frequency spectrum, allowing you to fine-tune your sound to perfection. With volume, bass, treble, balance, EQ, and loudness controls at your fingertips, you have complete control over your soundstage.
Powerful yet versatile, this receiver offers 4CH x 17W continuous power output at 4 ohms, making it suitable for powering entry-level speakers. The PRE-AMP outputs deliver a maximum of 4V for subwoofers and 2.5V per zone for amplifiers, ensuring crystal-clear and distortion-free sound reproduction. Additionally, the 3 sets of preamp outputs (SUB, Front, and Rear) allow for easy configuration to suit your specific setup.
Transform your RV into a rolling concert hall and enjoy a truly immersive audio experience wherever you go.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

RV and Trailers Headunit 2.75" LCD screen , 2 Zones, 4 volts Output,HDMI, BT, RDS 4 X 50 Watts
Default Title

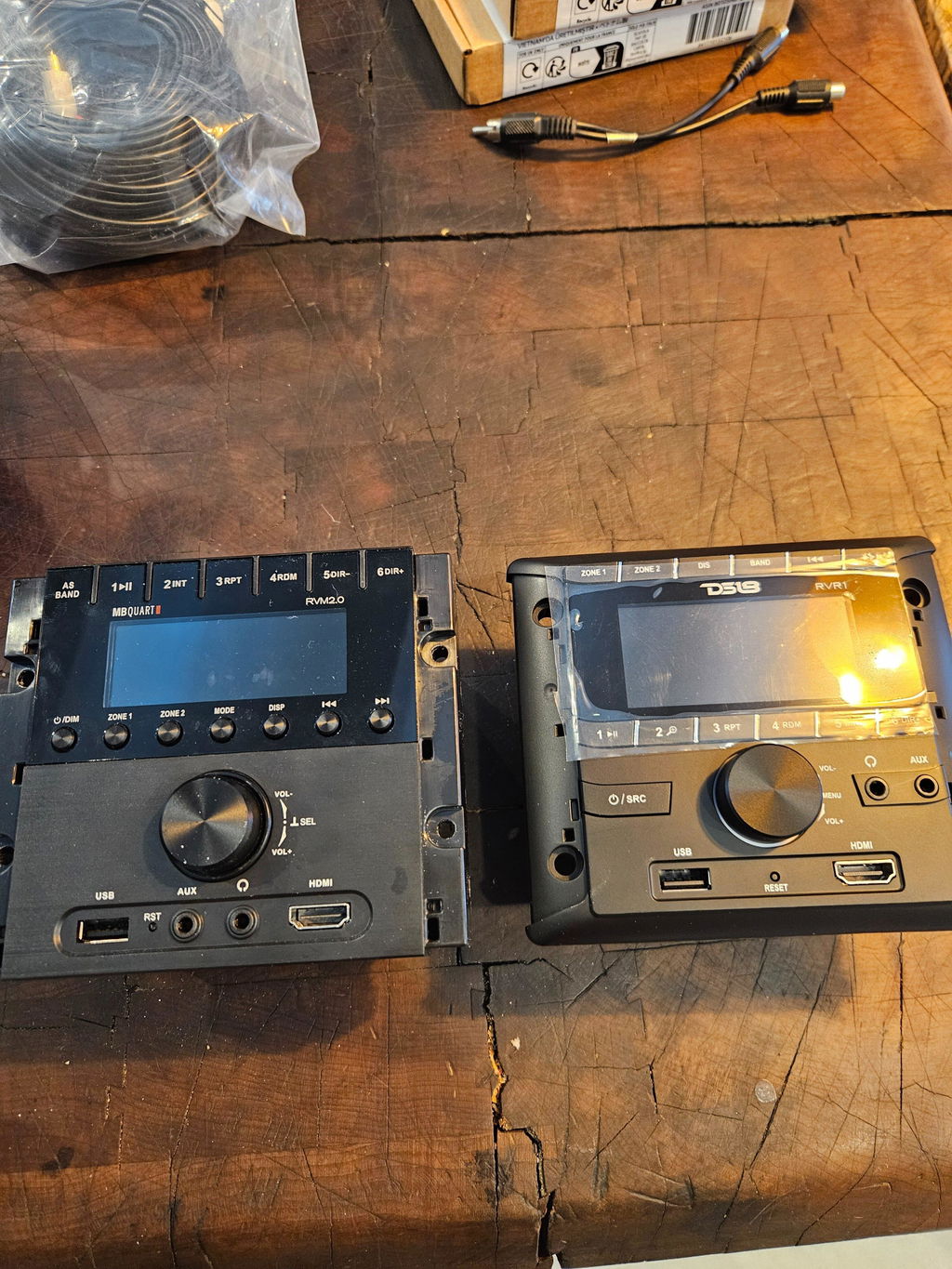

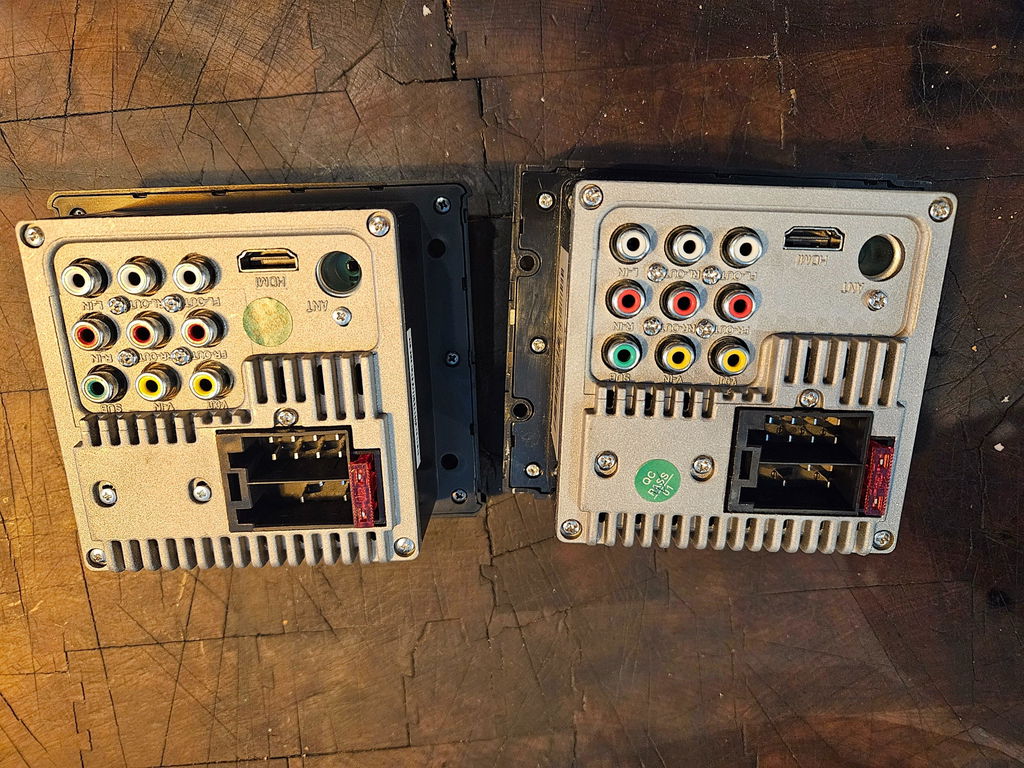

My husband took on the RV radio swap out DIY project and he hit it out of the park. He's our goto audio guy to keep people entertained at the gatherings but not the installer. He wired everything up as shown in the manual (there were a lot of wires to deal with). Then moment of truth and nothing - no sound - no power. He figured out it was a blown/broken fuse which needed replacing. Trip into town and not sure which size fuse we needed so we bought several options but his gut told him 5v was the right one. (He was right and we'll be taking the others back next time we go in to town.) He also bought butt connectors to cleanup the wiring look and quality of the install which makes it look even more professionally done. (Wish I would have taken a picture to show how well it turned out.)
We love the richer sound and bass that we get with this radio for our RV especially since we went to the trouble of upgrading all of our speakers too. Our other RV radio had trouble linking to zone 2 but this has not had that issue. Note: We haven't truly explored all the settings yet but since there were no reviews for this product we wanted to let people know that this is an upgrade you need to seriously consider.
We could have swapped out to a foreign unknown named radio (several to choose from on Amazon) but instead decided to spend a little more for a USA backed option. You won't regret upgrading to this hefty and solid quality built 2 zone RV radio!
