Deluxe 4-Channel Compact Class D Amplifier 4 X 150 Watts Rms @ 4-Ohm





Deluxe 4-Channel Compact Class D Amplifier 4 X 150 Watts Rms @ 4-Ohm
Sale $326.36 / EACH
Reg.$383.95
15% OFF FOR MOVING SALE!
Availability:125 Items
-
Key Features
- 4 Channel Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 150 Watts @ 4 Ohm
- Built in Crossover
- Compact Design
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
DX4
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
150W x 4
RMS Power @ 2 ohm
250W x 4
RMS Power @ 4 ohm Bridge
480W x 2
AUDIO
Frequency Response
10Hz - 20KHz
Signal to Noise Ratio
>98 dB
Efficiency @ 4ohm
110%
Damping Factor
>400
Input Impedance
N/A
Channel Separation
68 dB
Total Harmonic Distortion (THD)
0.02%
Low Level Input Range
350mV - 5V
High Level Input
Yes
Selectable X-Over
HPF/Full/BPF
X-Over Filter Range
20Hz-4Khz (HPF) / 50Hz-5Khz (LPF)
X-Over Slope (cut)
24 dB/Oct
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Infrasonic Filter
N/A
Phase Selector
N/A
FEATURES
Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 ohm
Led Indicator
Power / Protection
Power Input Terminal Size
4 Ga
Recommended Fuse Size
100A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
No
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (10-15v)
Clipping Protection
No
Body Color / Finish
Black Sandblasted
MEASUREMENT
Overall Length
8.2" / 210mm
Overall Wide
4.3" / 109mm
Overall Height
1.4" / 35mm
Gross Single Unit Weight
3.5Lb / 1.6Kg
Shipping Dimension L x W x H (Inches)
10.75 x 5.75 x 3
M/C Dimensions L x W x H (Inches)
14.75 x 11.5 x 6.5
M/C Weight (lb)
19.5
M/C Qty
5
EXTRA FEATURES
Auto Turn-on mode selectable
Yes (Signal/Offset/Rem)
Input Channel Selectable
Yes (3Ch/2Ch/4Ch)
State of the art 4-layer Micro Circuit board technology
Yes
Very high efficiency Digital circuit design
Yes
-
Product Overview
Product Overview
DS18 DX4 Deluxe Compact Full-Range Class D Advance Technology 4-Channel Amplifier 3000W
Introducing DS18’s DX4, our Full Range Digital Amplifier designed to deliver an untapped level of power and performance.
DS18’s DX4 defies expectations by packing a mind-blowing 3000W of power into a remarkably small package. Its compact design opens up a whole new realm of possibilities, allowing you to install it in spaces that were once thought impossible. Whether it's fitting snugly in motorcycle fairings or tight, confined spots, this amplifier effortlessly finds its place, giving you the freedom to unleash your audio dreams without any compromises.
But don't be fooled by its small size; the DX4 is a force to be reckoned with. Its components are flawlessly integrated into a cutting-edge printed circuit board (PCB), resulting in unrivaled efficiency even at low voltages. This amplifier is equipped with surge protection features like speaker overload, short circuit, and low input voltage protection, ensuring that it stands as a fortress of unyielding power. It maximizes the potential of your speakers, delivering sound that reverberates with crystal-clear clarity and unwavering precision.
When it comes to versatility, the DX4 takes the crown; offering high pass and low pass filter options, granting you complete control over your audio frequencies. With this amplifier, you can play mids, highs, and lows with unparalleled accuracy, leaving no room for compromises.
The DX4 is all about flexibility, making it a breeze to configure in 2, 3, or 4 channel setups with a simple switch. Whether you're using an RCA signal, offset voltage from speaker inputs, or a 12v remote, this amplifier effortlessly adapts to your specific needs. It's the epitome of convenience and efficiency, daring you to embrace the power of your new equipment without sacrificing any valuable space.




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

Deluxe 4-Channel Compact Class D Amplifier 4 X 150 Watts Rms @ 4-Ohm
Default Title
Perfect amp for the 4 speaker set up
For Harley . I also purchased the plug and play harness when I got the Amp , easy install . Only item
I didn’t get was the rear speaker backbone harness and ideas able to get it from Amazon . As with all the DS18’items I’ve received the quality is excellent , have a Jeep with all DS18 equipment.

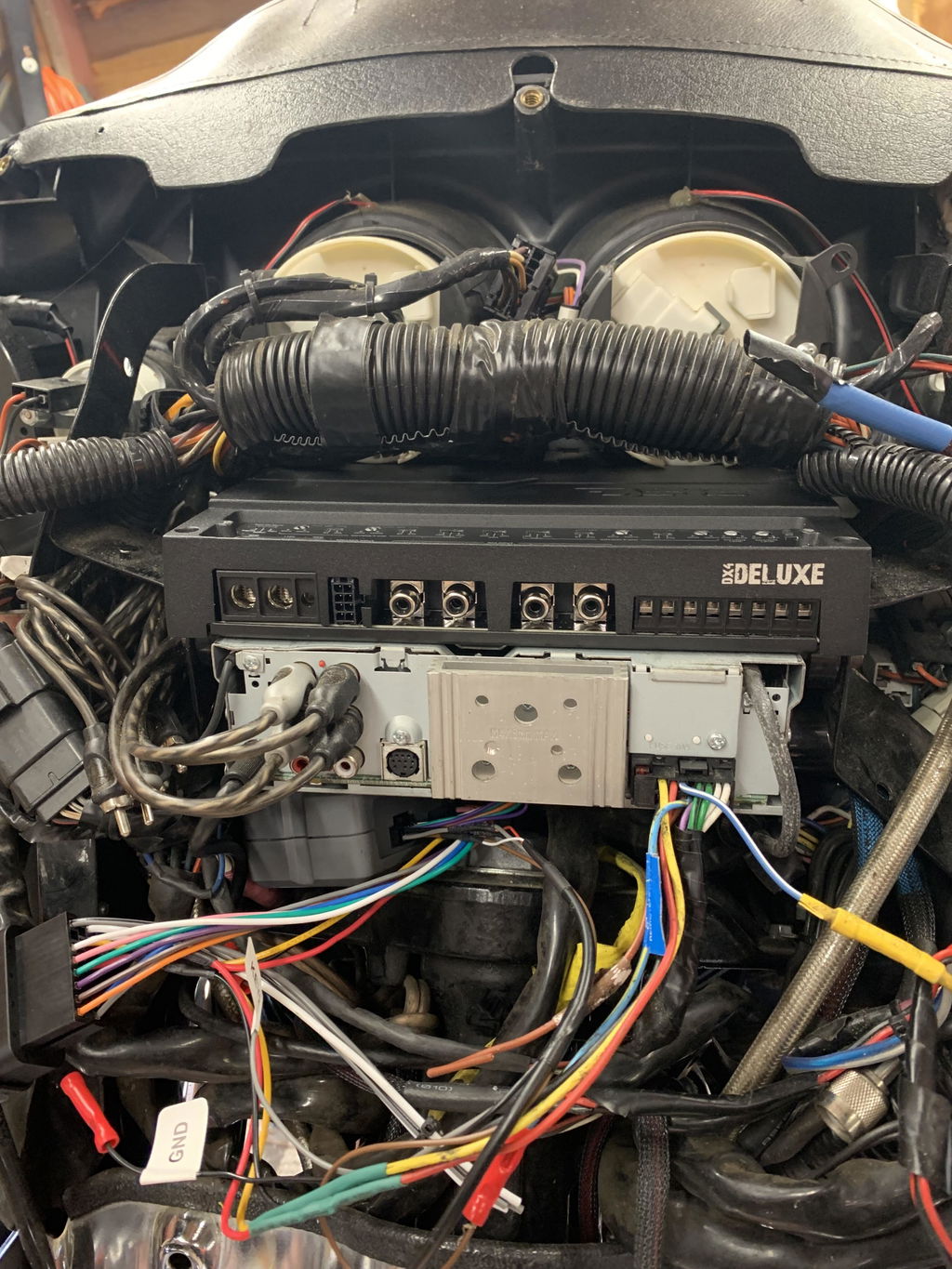

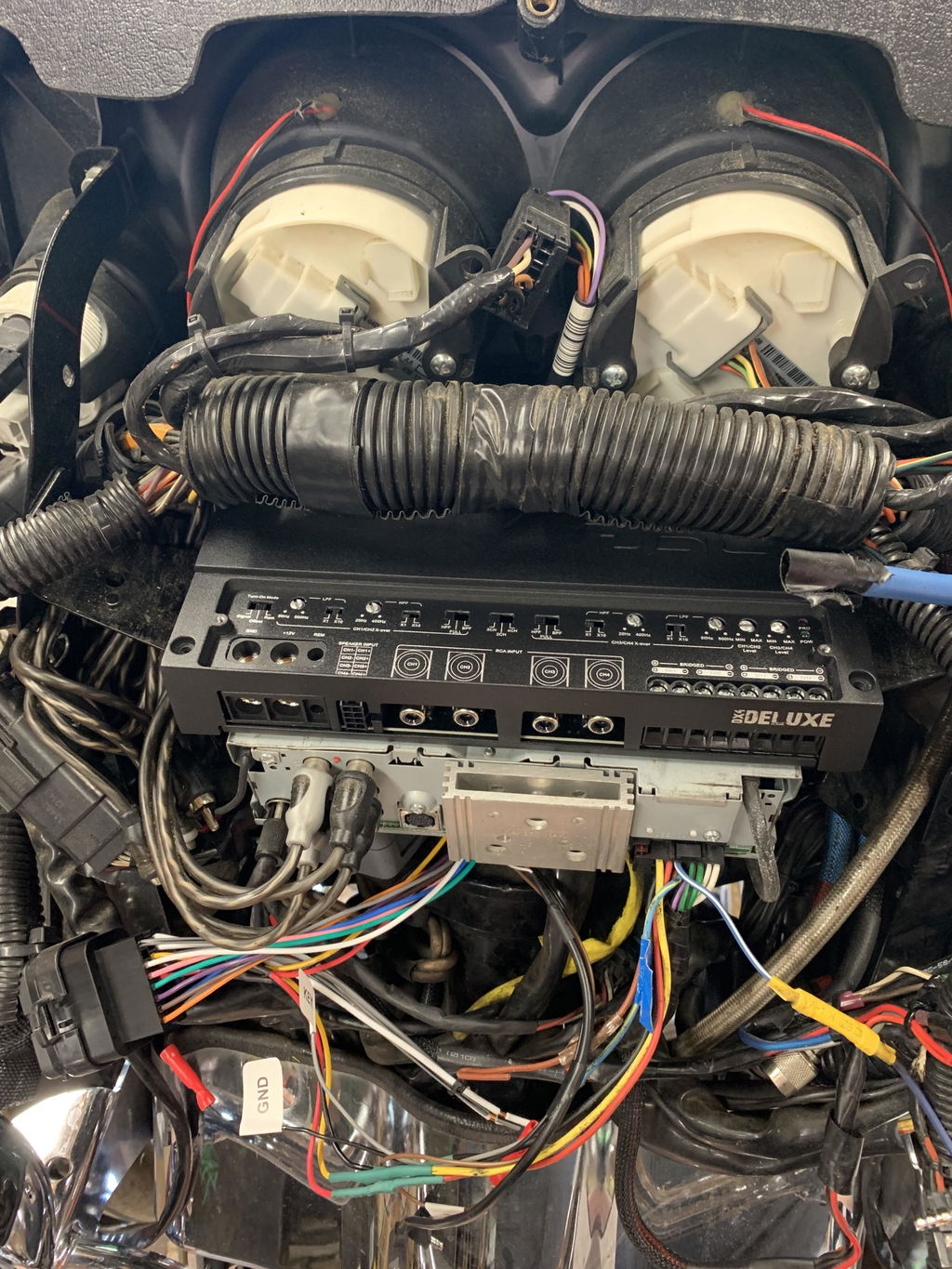

This amp fits behind the fairing on my harley. Speakers sound so much better
