Ford Bronco 6th Gen Tailgate 12" Subwoofer Enclosure with IXS12.4D
SOLD OUT








Ford Bronco 6th Gen Tailgate 12" Subwoofer Enclosure with IXS12.4D
SOLD OUT
Sale $815.96 / EACH
Reg.$959.95
15% OFF FOR MOVING SALE!
-
Key Features
- Loaded Tailgate Subwoofer Enclosure
- 6th Gen Bronco
- 1 X 12" IXS12.4D(800 Watts RMS)
- LED RGB Lights
- Water Resistant Housing IP11
- Installation Hardware Included
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
SPECS
SKU
BRO-BASS
Speaker Size
12" / 304mm
Total Impedance
2 Ohms
Total RMS Power Handling
800W
Total MAX Power Handling
1600W
Sensitivity (1w/1m)
90dB
Frequency Response
30Hz-200Hz
Recommended Lo Pass Crossover
80Hz
Features
Ported Box for High Output
Yes
Water Resistant Materials for Light Rain
Yes (IP11)
Exclusive Ford Bronco Design
Yes
Injected Molded ABS Grill with Built-in RGB LED lighting
Yes
Input Wires for RGB LED and Subwoofer
Yes, 5ft / 1.5m (6 Cores)
Subwoofer Included
Yes, 12" (IXS12.4D)
Installation Hardware Included
Yes, 3 x 6M screws / 3 x 6M rivet nut
Easy to Install
Yes, fits on the tailgate and secures using the factory bolt location
Speaker Specifications
Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Paper
Dust Cap Material
Fiberglass
Surround Material
Stitched rubber
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
62 Oz
Box Specifications
Internal Volume
34L / 1.2ft3
Port Tune Fb
45Hz
Load Configuration
Parallel
Box Type
Front Loaded Ported
Box Material
Polyethylene (PE)
Finish Material
Black
-3Db Dropping Point F3
36Hz
Measurement
Overall Height
17.81" / 452.3mm
Overall Width
27.4" / 695.6mm
Overall Depth
7.4" / 188mm
-
Product Overview
Product Overview
DS18 BRO-BASS 12” Ported Enclosure With IXS12.4D Shallow Subwoofer And RGB LED Grille For 6th GEN Ford Bronco Tailgate
Bring the Boom to your Bronco with DS18’s BRO-BASS!
The BRO-BASS comes with DS18’s IXS12.4D: a shallow subwoofer made for ported boxes and guaranteed to output heavy bass every session! The BRO-BASS was designed to maximize bass response and output without requiring a lot of rear cargo space – the IXS12.4D’s minimized mounting depth (4.33”) makes it the perfect speaker for this enclosure. These speakers reproduce frequencies as low as 30 Hz and play insanely well in this ported enclosure tuned to 45 Hz.
If you enjoy riding trails with the top down, your speaker is protected! The IPX1 Water Resistance Material used in the BRO-BASS protect it from light rain or moisture damage! However, this does not mean the BRO-BASS is WATERPROOF!
Elevate the aesthetics of your Bronco's tailgate with the exclusive DS18 design featuring an eye-catching RGB LED grille. As the sun sets and the darkness settles in, let your music take center stage as the RGB LED lighting illuminates your subwoofer with mesmerizing colors, creating a sensory experience like no other.
The power of the BRO-BASS is truly awe-inspiring. With a total RMS power handling of 800W and a MAX power handling of 1600W, this subwoofer is ready to unleash the full potential of your car audio system. The sensitivity of 90dB ensures that every note is reproduced with remarkable clarity, while the frequency response of 30Hz to 200Hz guarantees a wide range of deep and impactful bass.
This easy to install ported subwoofer enclosure fits perfectly over the rear paneling in 6th Generation Ford Bronco Tailgates! The detailed instructions in the manual will ensure a seamless installation.
Amplifier Required!




Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18

Ford Bronco 6th Gen Tailgate 12" Subwoofer Enclosure with IXS12.4D
Default Title
Related products
- Bronco Rear Roll Bar Tube
- 6th Gen Bronco
- For 2 & 4 Door Models
- 2" Diameter ~ Adjustable: 43.39" - 49"
- With Clamps
- Black
- Bronco Rear Roll Bar Tube
- 6th Gen Bronco
- For 2 & 4 Door Models
- 2" Diameter ~ Adjustable: 43.39" - 49"
- With Clamps
- Black

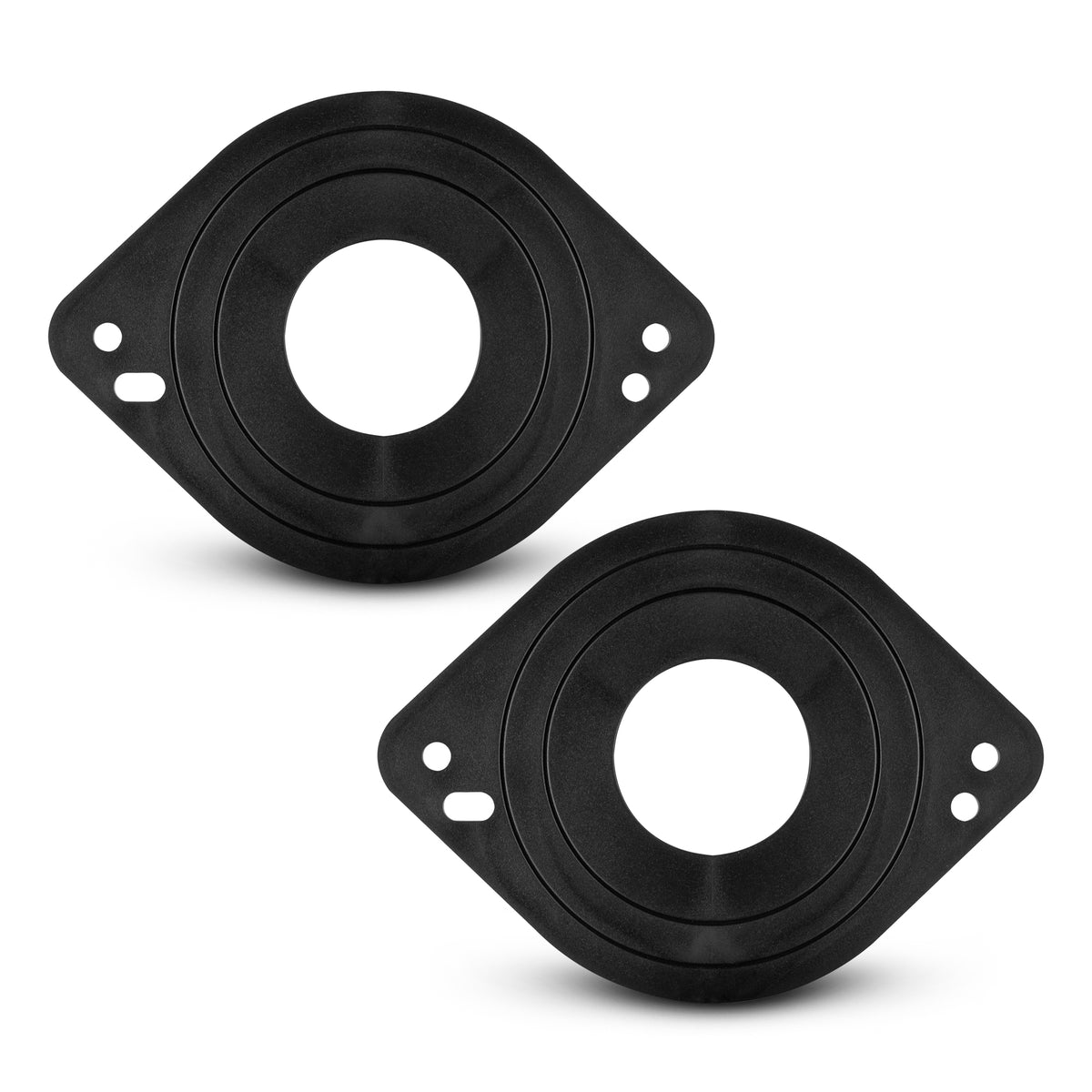

- Exclusive For 6th GEN Bronco.
- 1.7"/2.9"/3.6" Adapter
- Tweeter
- Mid-Range
- Black ABS
- OEM Replacement
- Exclusive For 6th GEN Bronco.
- 1.7"/2.9"/3.6" Adapter
- Tweeter
- Mid-Range
- Black ABS
- OEM Replacement

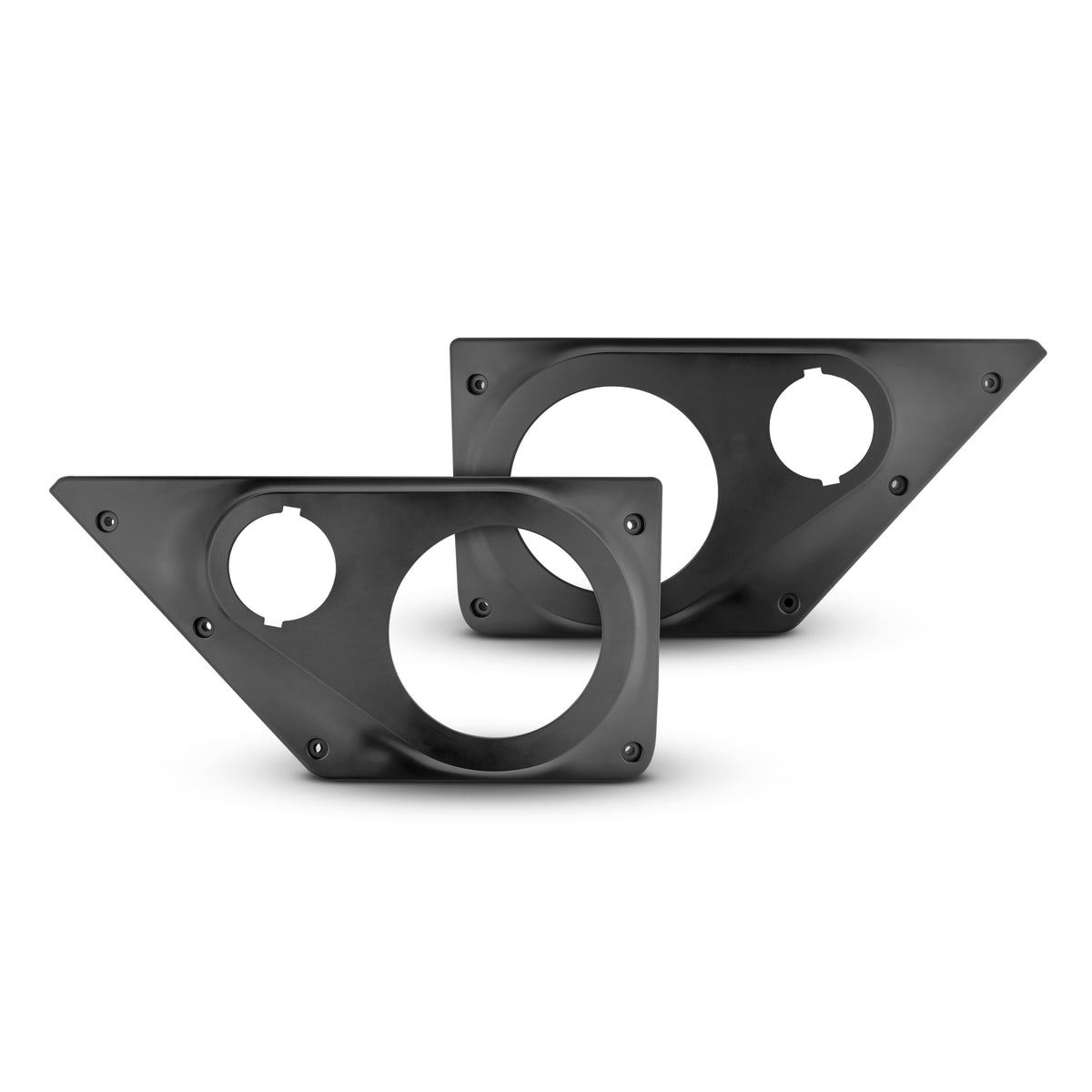

- Exclusive for 6th Gen Bronco
- 1 x 6.5" Speaker
- 1 x 3.8" Tweeter
- L & R Front Doors
- For 2 & 4 Door Models
- Black ABS
- Exclusive for 6th Gen Bronco
- 1 x 6.5" Speaker
- 1 x 3.8" Tweeter
- L & R Front Doors
- For 2 & 4 Door Models
- Black ABS

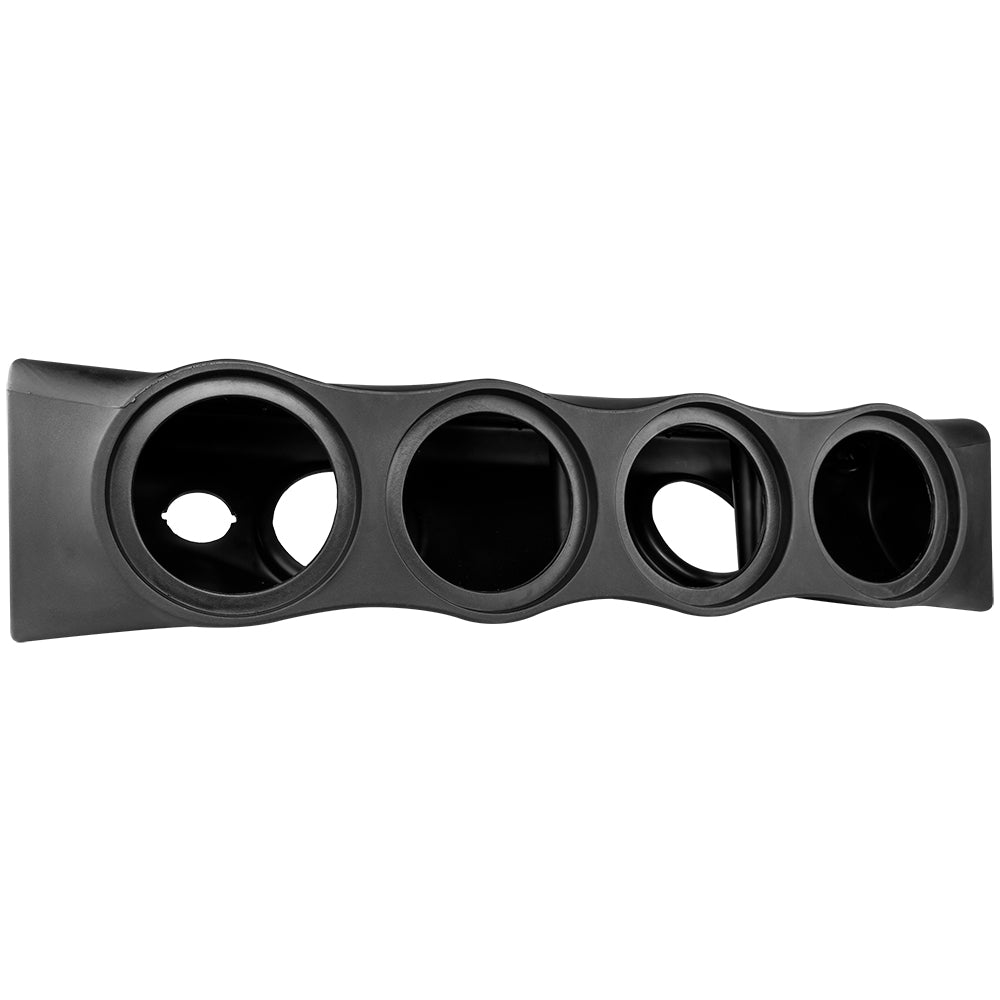

- Exclusive For 6th GEN 4-Door Bronco
- Fits 4 x 8" Speakers Rear Mount
- Fits 2 x 6.5" Speakers Front Mount
- Fits 2 x 3.78" Tweeters Front Mount
- Harness Included
- Black ABS Plastic
- Exclusive For 6th GEN 4-Door Bronco
- Fits 4 x 8" Speakers Rear Mount
- Fits 2 x 6.5" Speakers Front Mount
- Fits 2 x 3.78" Tweeters Front Mount
- Harness Included
- Black ABS Plastic
- Exclusive For 6th Gen Bronco
- 1 X 6.5" Speaker
- 1 X 2.3" Tweeter(Cut Out)
- L & R Rear Doors
- For 4 Door Models Only
- Black ABS
- Exclusive For 6th Gen Bronco
- 1 X 6.5" Speaker
- 1 X 2.3" Tweeter(Cut Out)
- L & R Rear Doors
- For 4 Door Models Only
- Black ABS

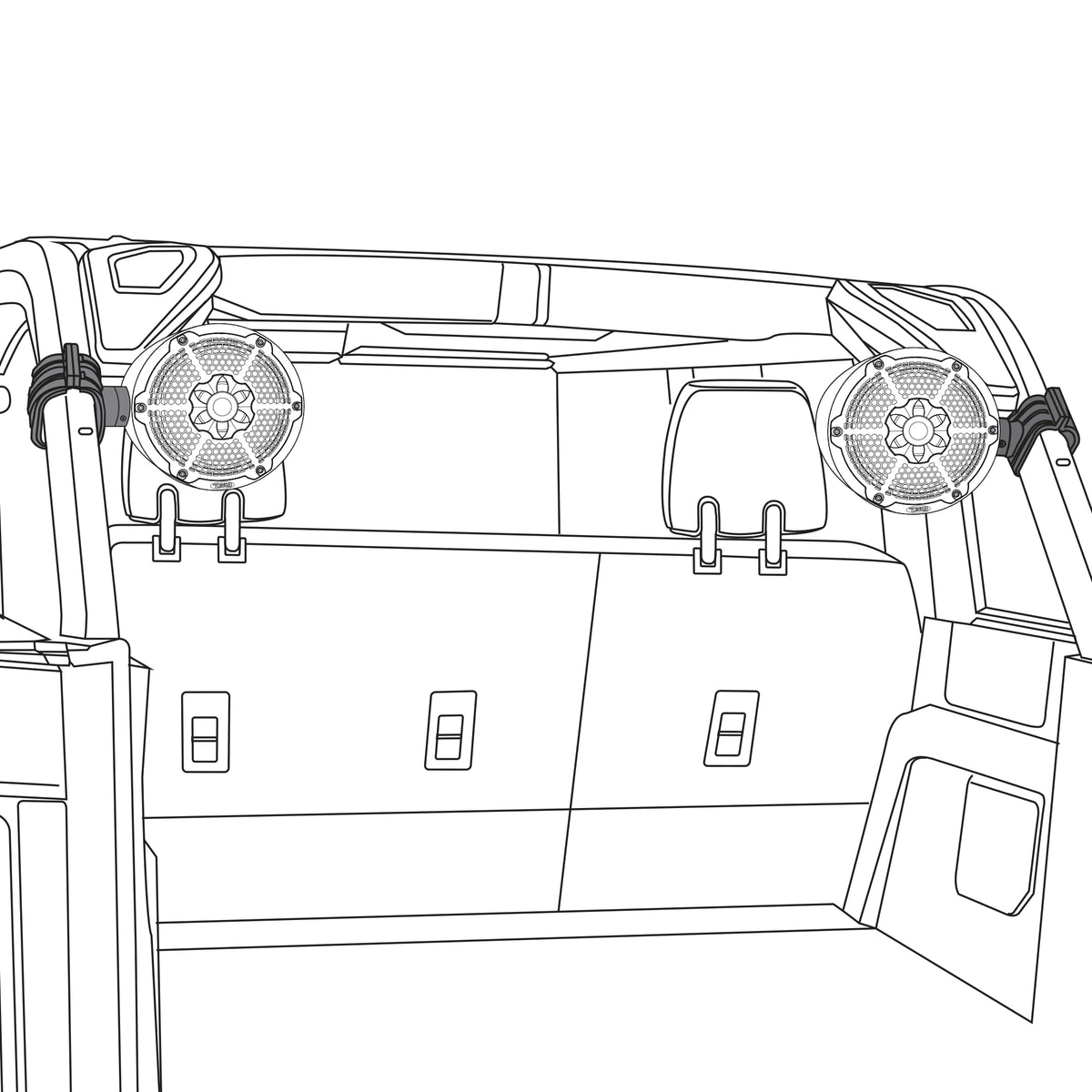

- Exclusive for 6th Gen Ford Bronco
