3.5” OEM Dashboard Loudspeaker with Neodymium Magnet | 100W RMS 4-Ohm

SKU: 35D200NO-4

NEW ARRIVAL

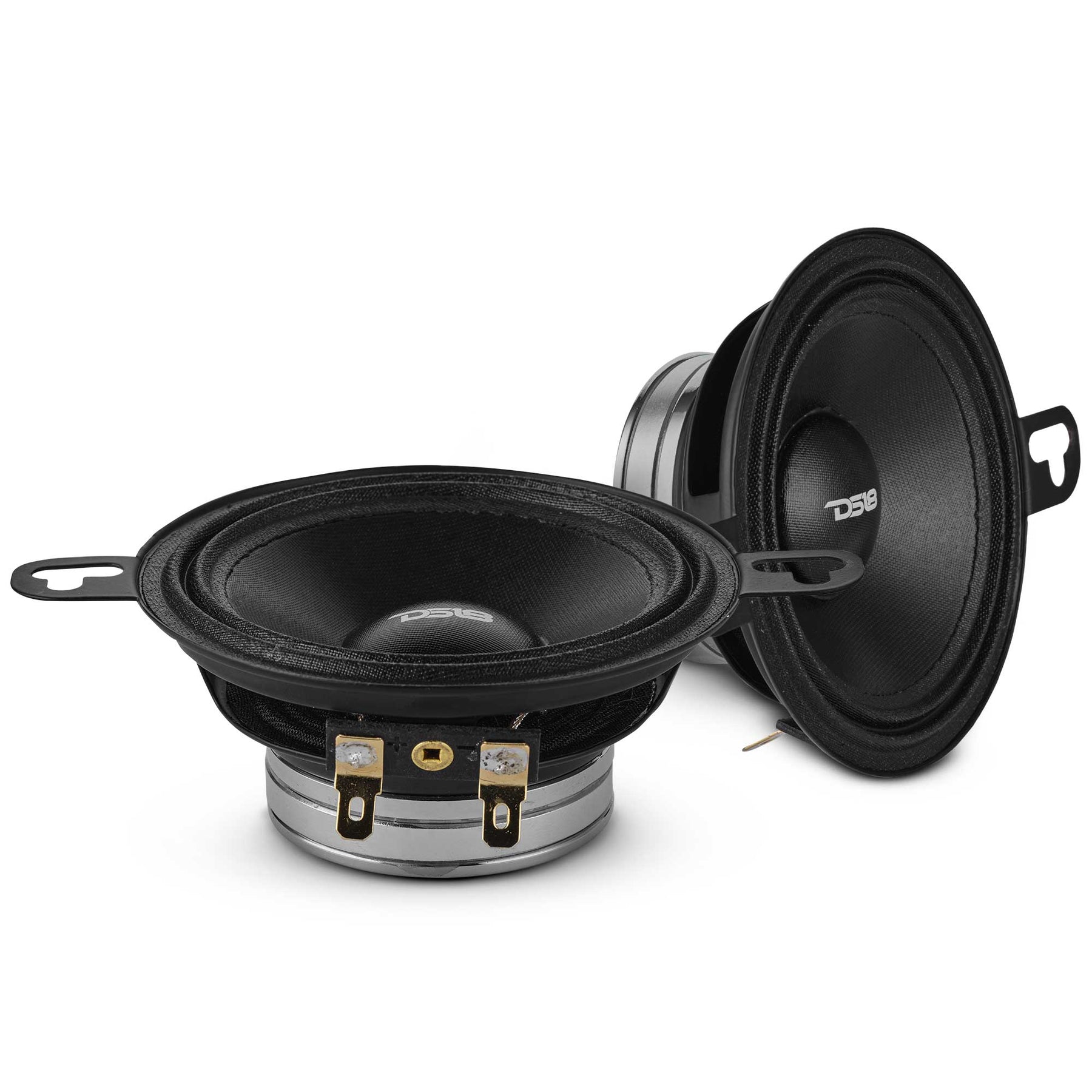

DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet – pair view

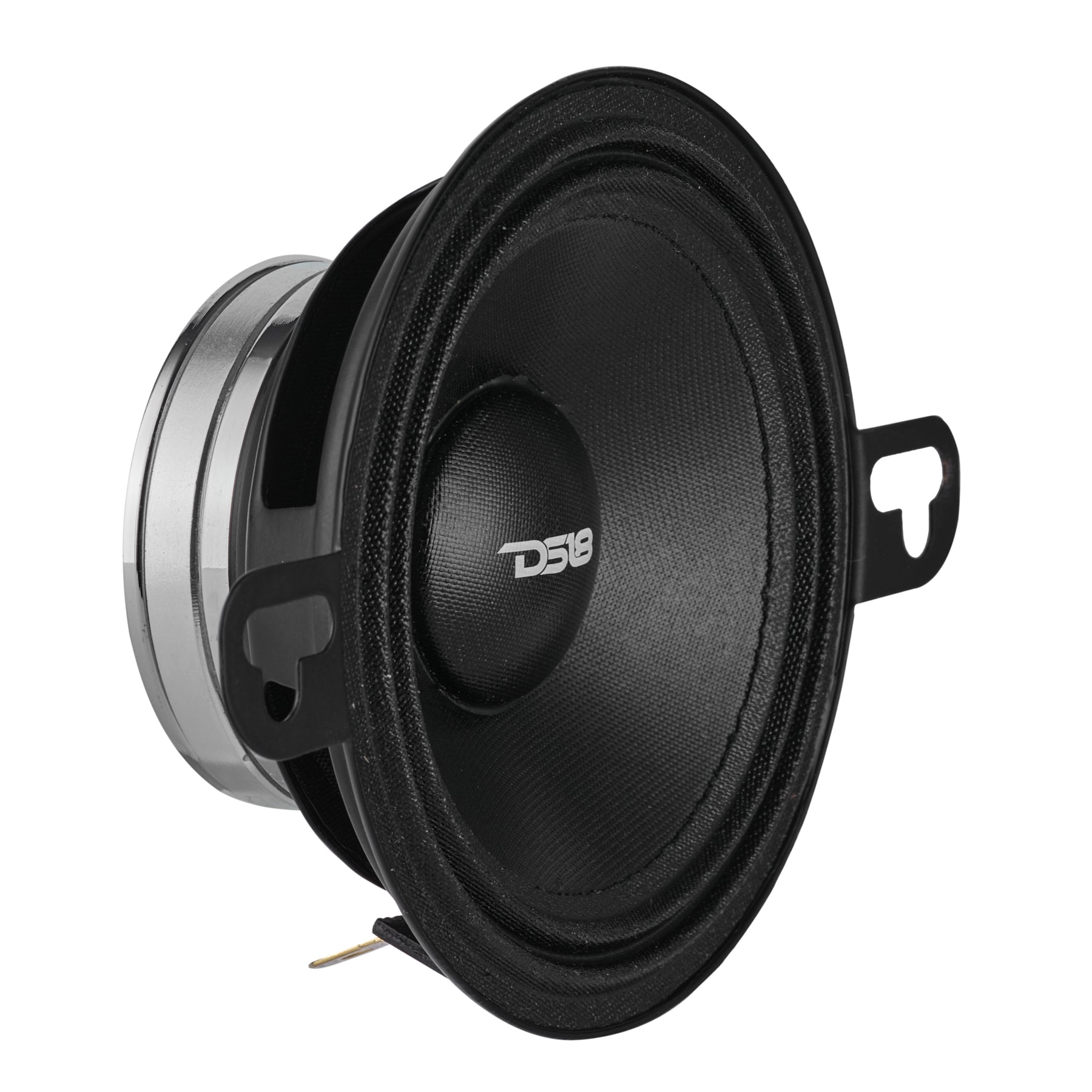

Left side view of DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet

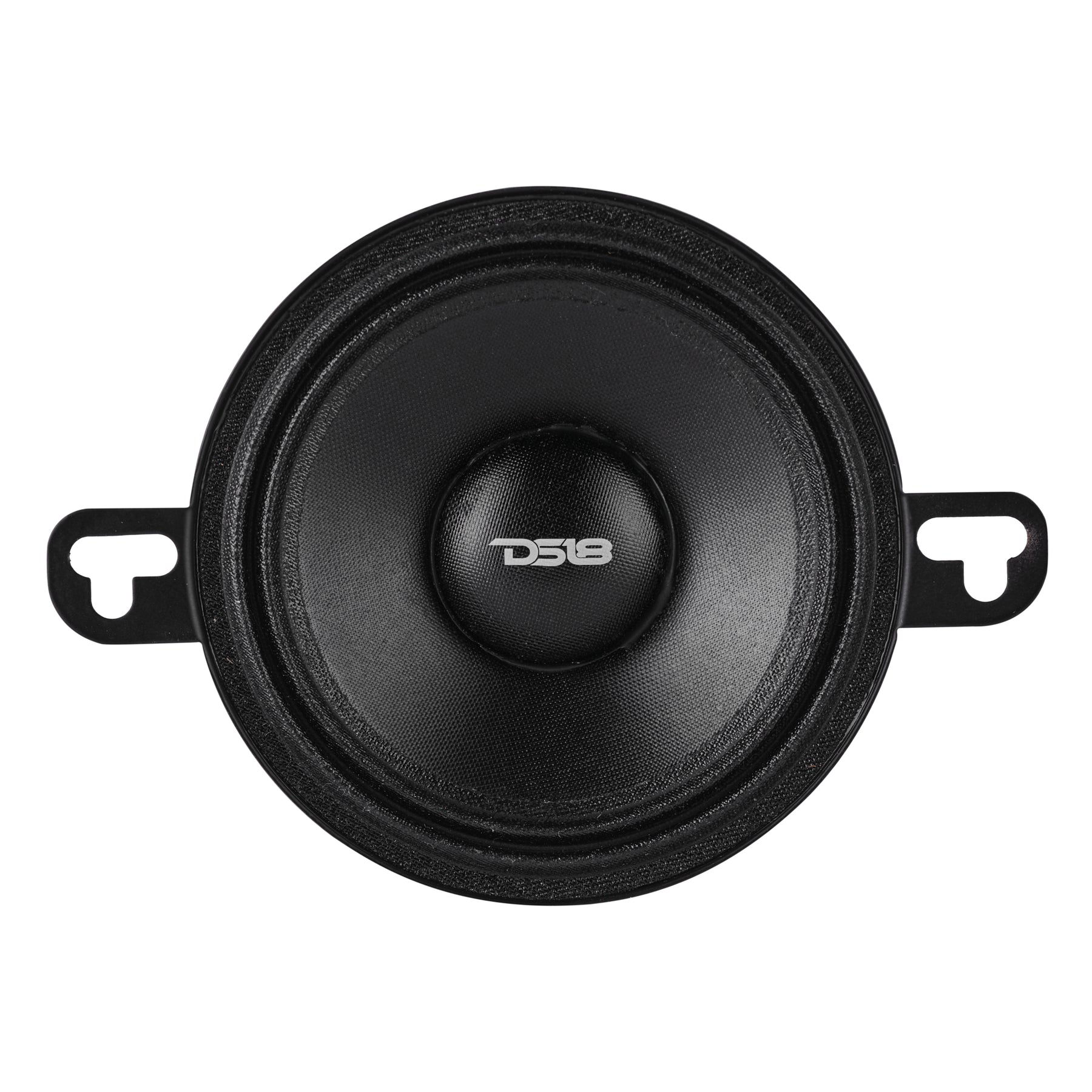

Front view of DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet

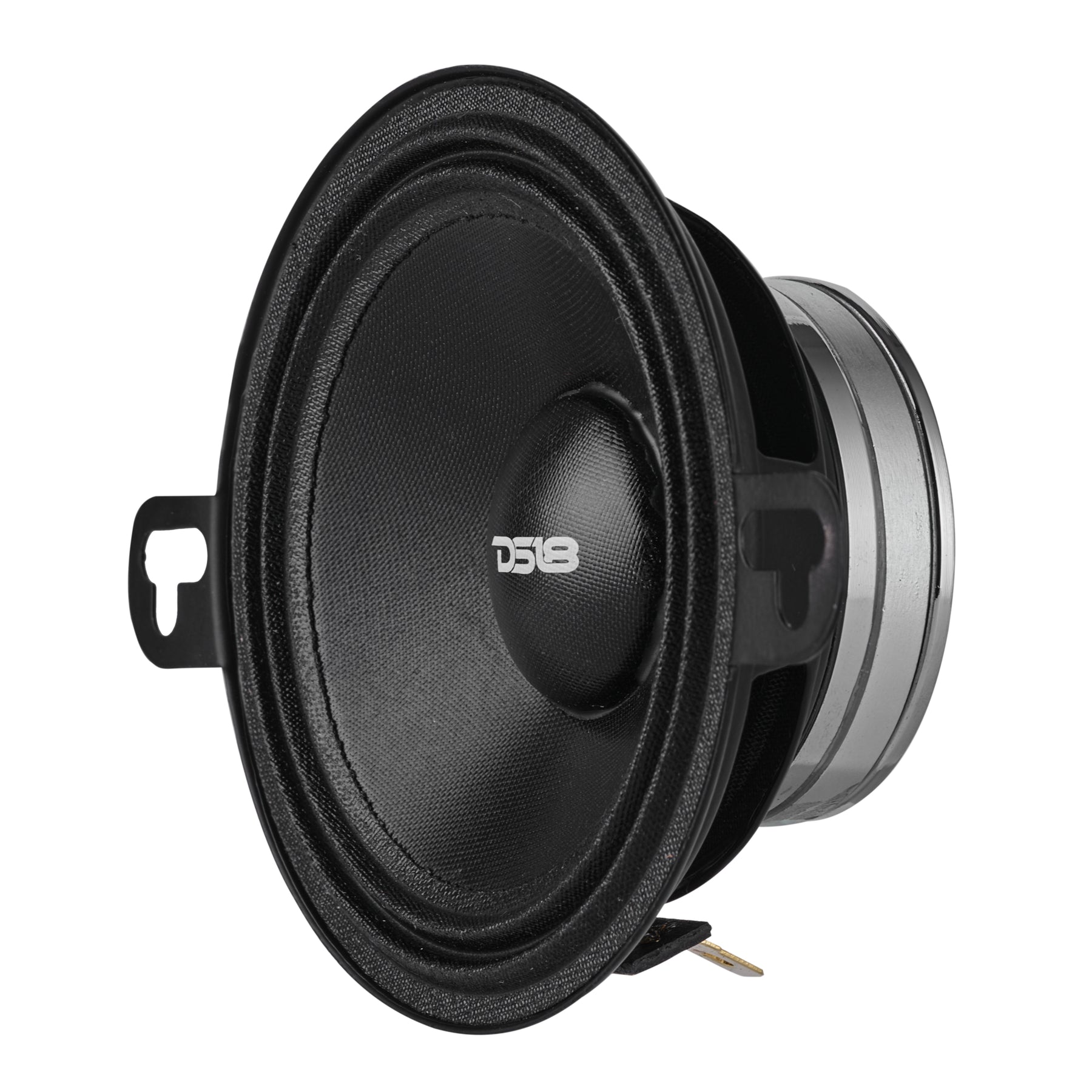

Right side view of DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet

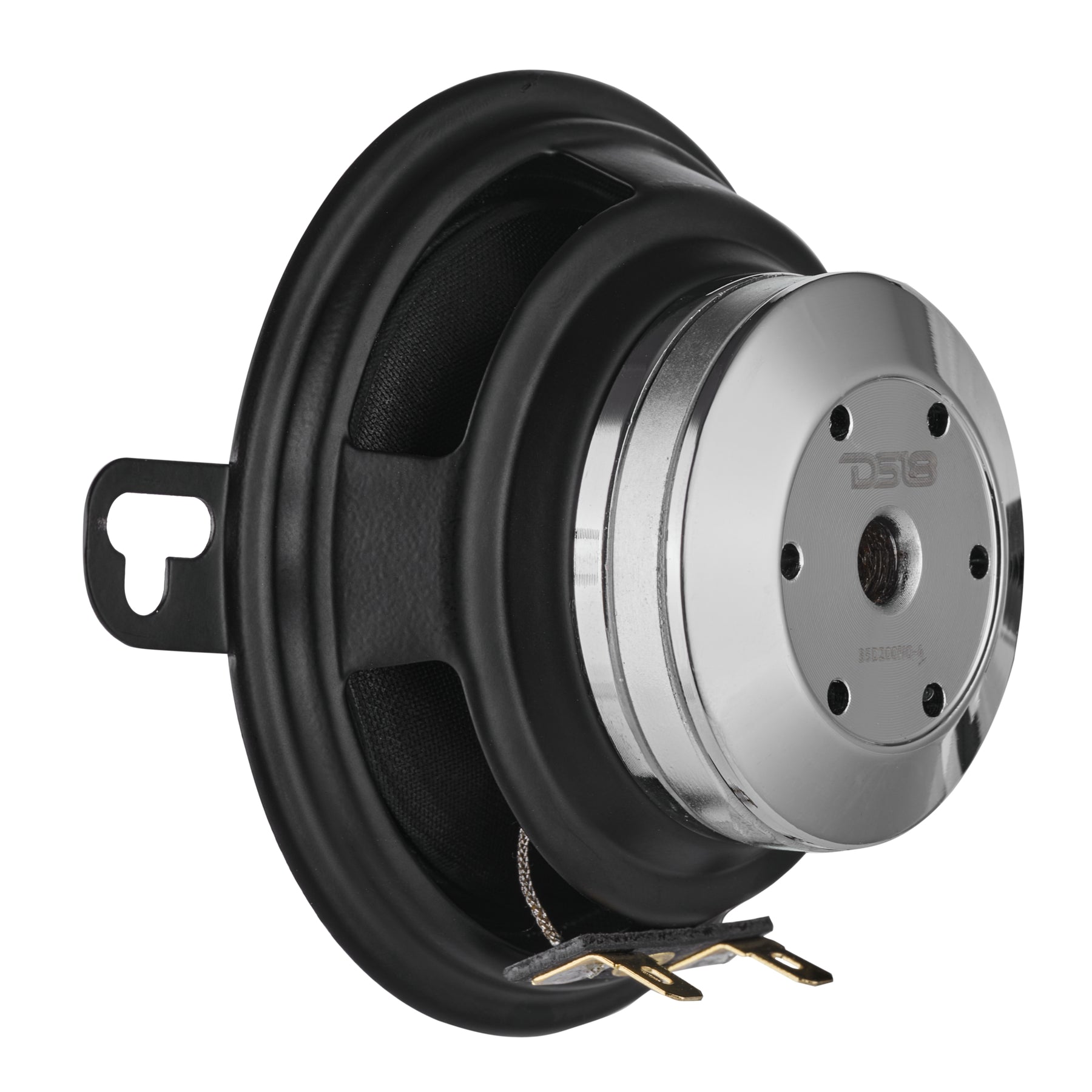

Back view of DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet

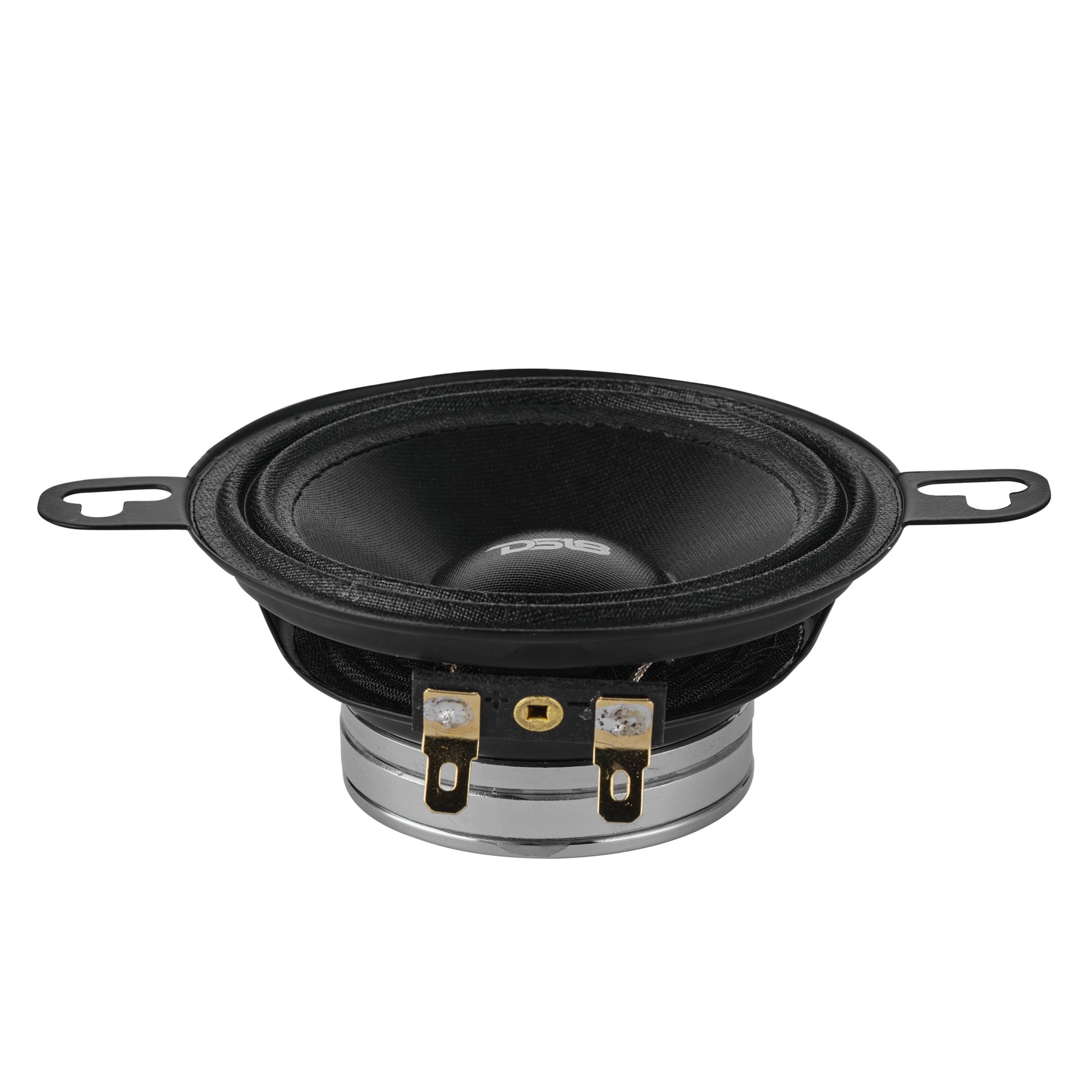

Tilted angle view of DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet

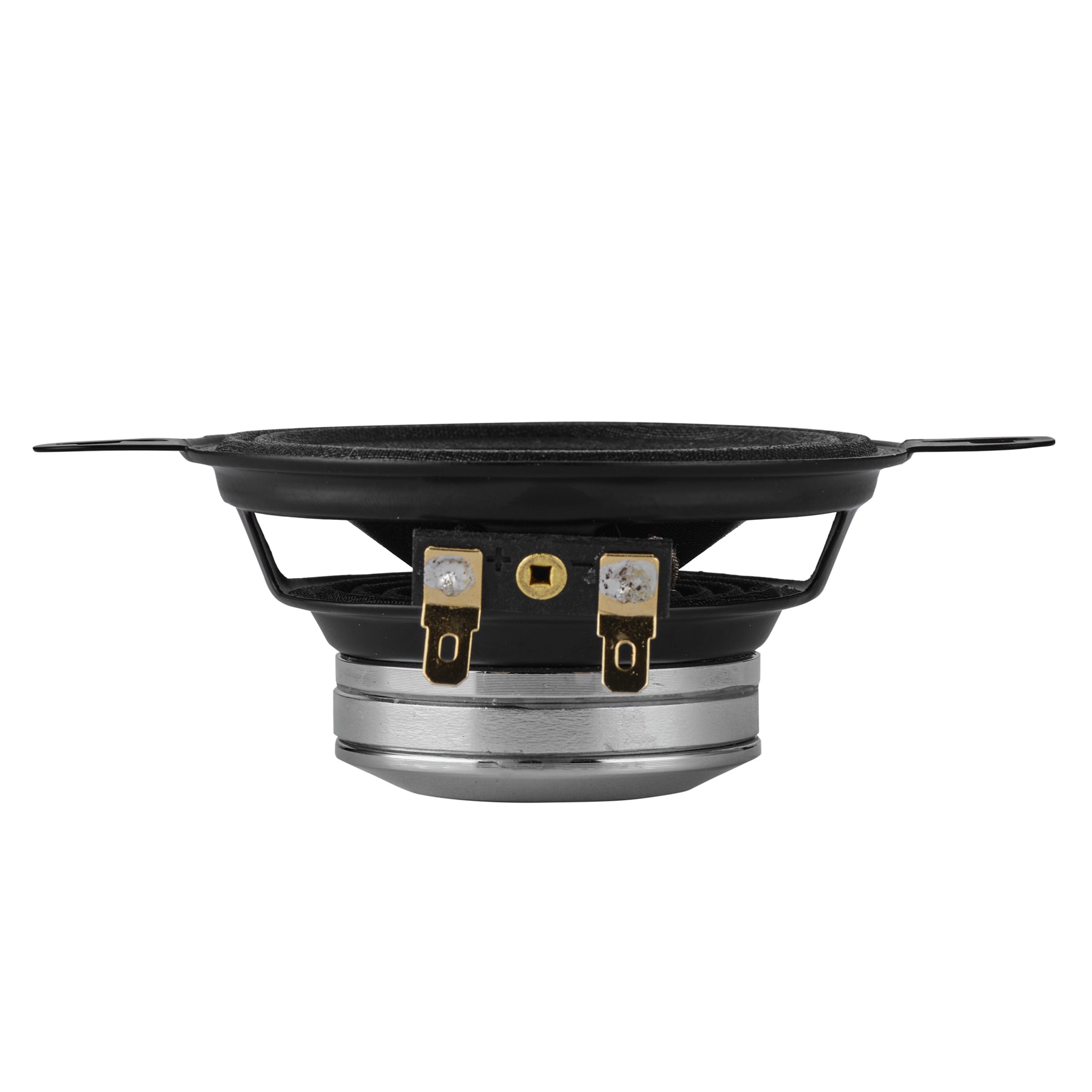

Flat lay view of DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet

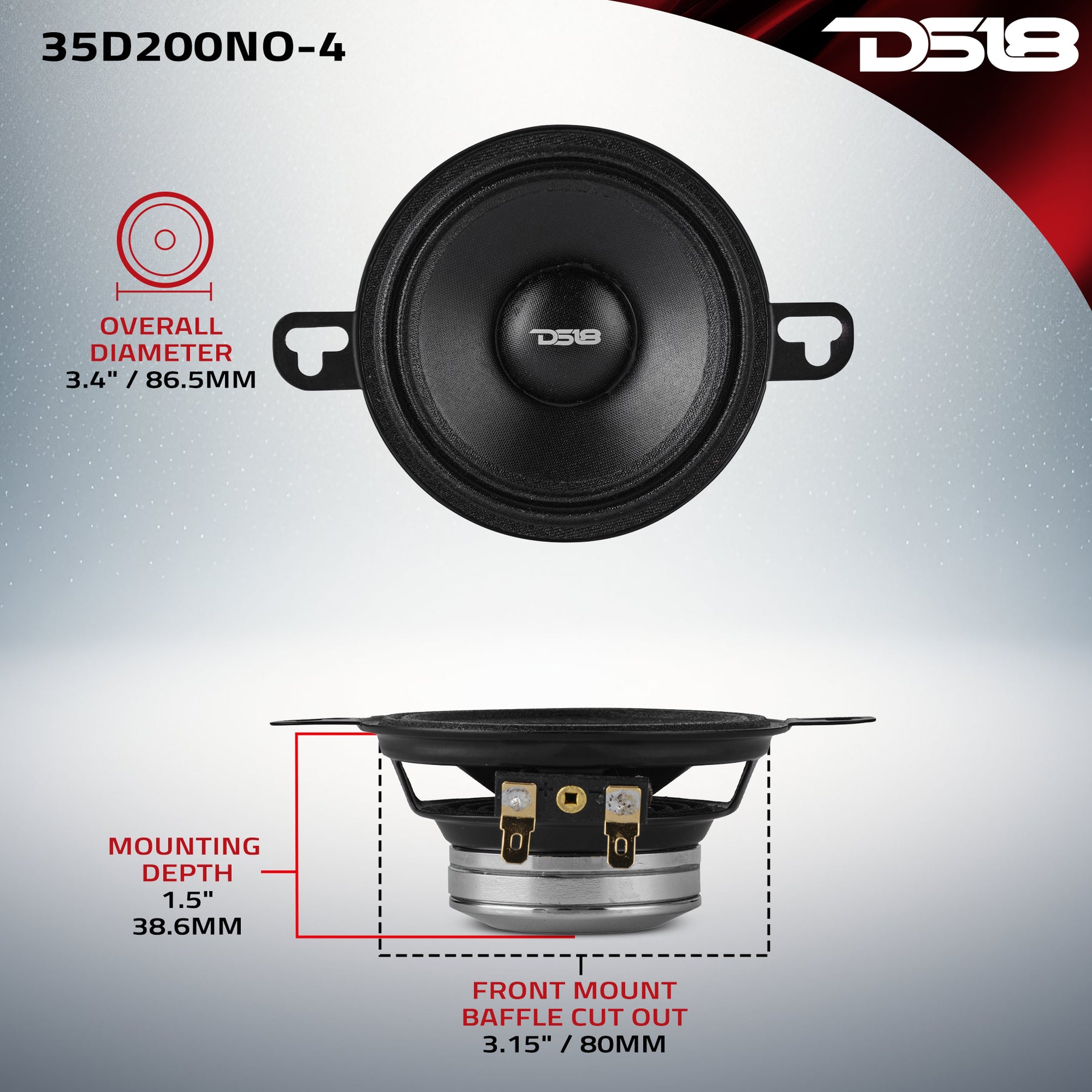

DS18 3.5" OEM Dashboard Loudspeaker with Neodymium Magnet dimensions diagram

3.5” OEM Dashboard Loudspeaker with Neodymium Magnet | 100W RMS 4-Ohm

SKU: 35D200NO-4

NEW ARRIVAL

Sale price$199.95
/PAIR
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Size: 3.5"

Quantity:
  • Key Features

    • Installs easily into most factory dashboards
    • Delivers 100W RMS and up to 200W MAX
    • Covers a wide frequency range from 120Hz to 20kHz for clear, detailed sound
    • Built with a lightweight Neodymium magnet
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    Nominal Diameter
    3.5" / 91.5mm
    Nominal Impedance
    4 Ohms
    RMS Power Handling
    100W
    MAX Power Handling
    200W
    Sensitivity (1w/1m)
    88dB
    Frequency Response
    120Hz-20Khz
    Recommended HI Pass Crossover
    160Hz
    Sold in Pair or Single
    Pair

    Features

    Improved Heat Dissipation
    Yes
    Cone Shape
    Conic
    Speaker Terminals
    Spade

    Motor

    Voice Coil Diameter
    1" / 25mm
    Voice Coil Former Material
    TIL
    Winding Material
    Copper Ribbon
    Cone Material
    Glass Fiber + Foam Composite with Resin Finish
    Dust Cap Material
    Glass Fiber + Foam Composite with Resin Finish
    Surround Material
    Cloth
    Leads Connection Type
    Direct to Coil
    Basket Material
    Steel
    Basket Color/Finish
    Black
    Magnet Material
    Neodymium
    Magnet Weight
    1.4 Oz

    Thiele & Small Parameters

    Equivalent Volume
    0.36L / 0.0951ft3
    Excursion (one way)
    2mm
    Free Air Resonance
    210Hz
    Mechanical Factor
    7.51
    Electrical Factor
    2.22
    Total Factor
    1.71
    Mechanical Mass
    4.066g
    Mechanical Compliance
    0.122mm/N
    BL Factor
    2.74
    Voice Coil Inductance
    0.046mH
    Cone Area
    38.48cm2
    DC Resistance
    3.77 Ohms
    Mechanical Mass w/o air
    3.797g

    Measurement

    Overall Diameter
    3.4" / 86.5mm
    Overall Depth
    1.65" / 42.1mm
    Front Mount Baffle Cutout
    3.0" / 78.4mm
    Mounting Depth
    1.5" / 38.6mm
    Motor Diameter
    1.96" / 50mm

    Load More
  • Product Overview

    Product Overview

    3.5” OEM Dashboard Loudspeaker with Neodymium Magnet

    The 35D200NO-4 is the perfect OEM dashboard speaker replacement

    Power and Sensitivity
    This speaker handles 100W RMS and 200W MAX, offering clear sound at 88dB sensitivity. It reproduces frequencies between 120Hz and 20kHz, for crisp mids and highs ideal for factory system upgrades.


    Durable Materials for Long Life
    Built with a glass fiber and composite foam cone with resin finish, along with a cloth surround, this driver is both durable and accurate. The neodymium magnet offers strong magnetic force while keeping weight low.


    Simple Installation
    With regular spade terminals and a black steel basket, the 35D200NO-4 installs easily into most OEM dashboard openings.


    Swap in DS18’s 35D200NO-4 for sharp, clear audio that will make your vehicles audio system feel brand new!
