NVY-8CKEVLAR-N4

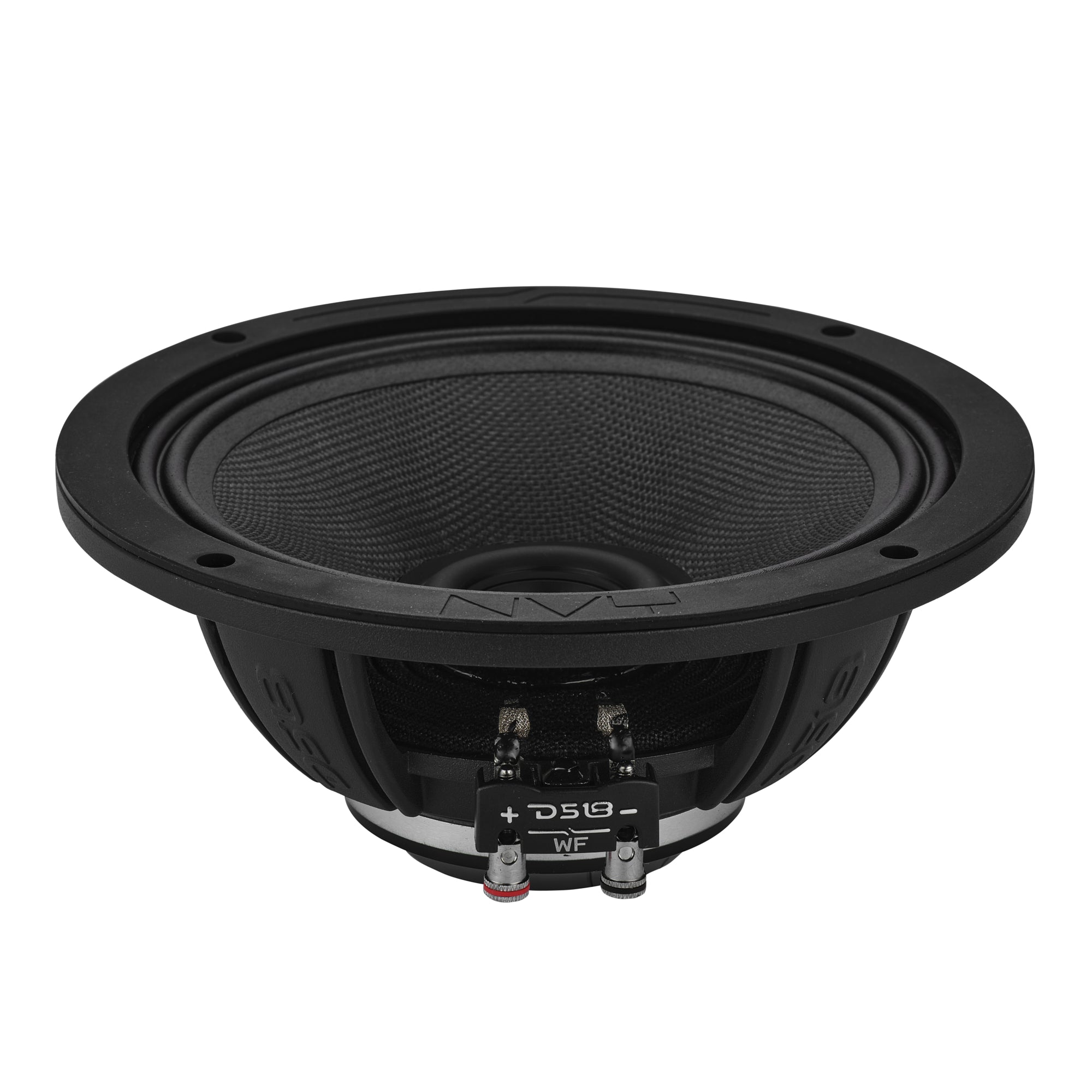

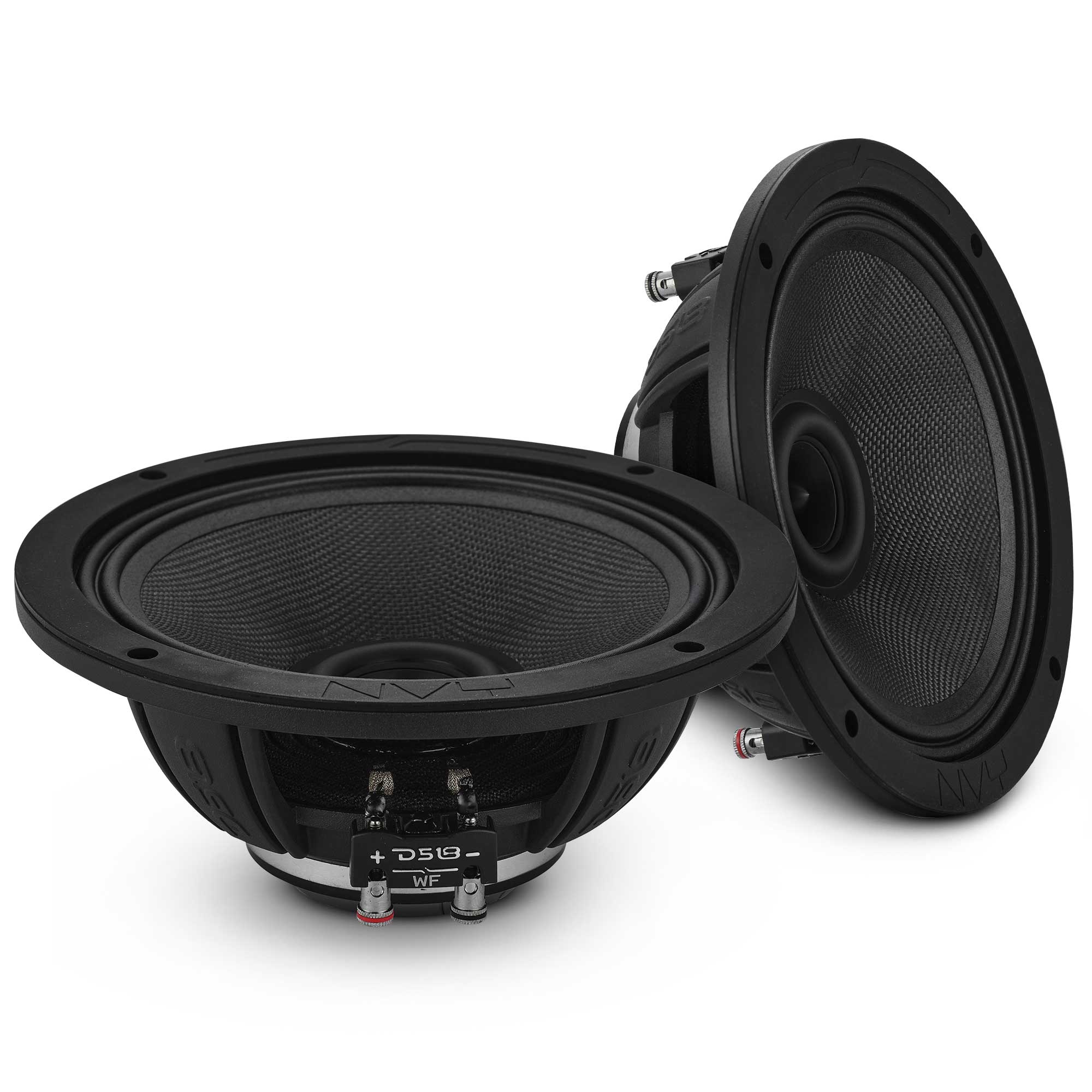

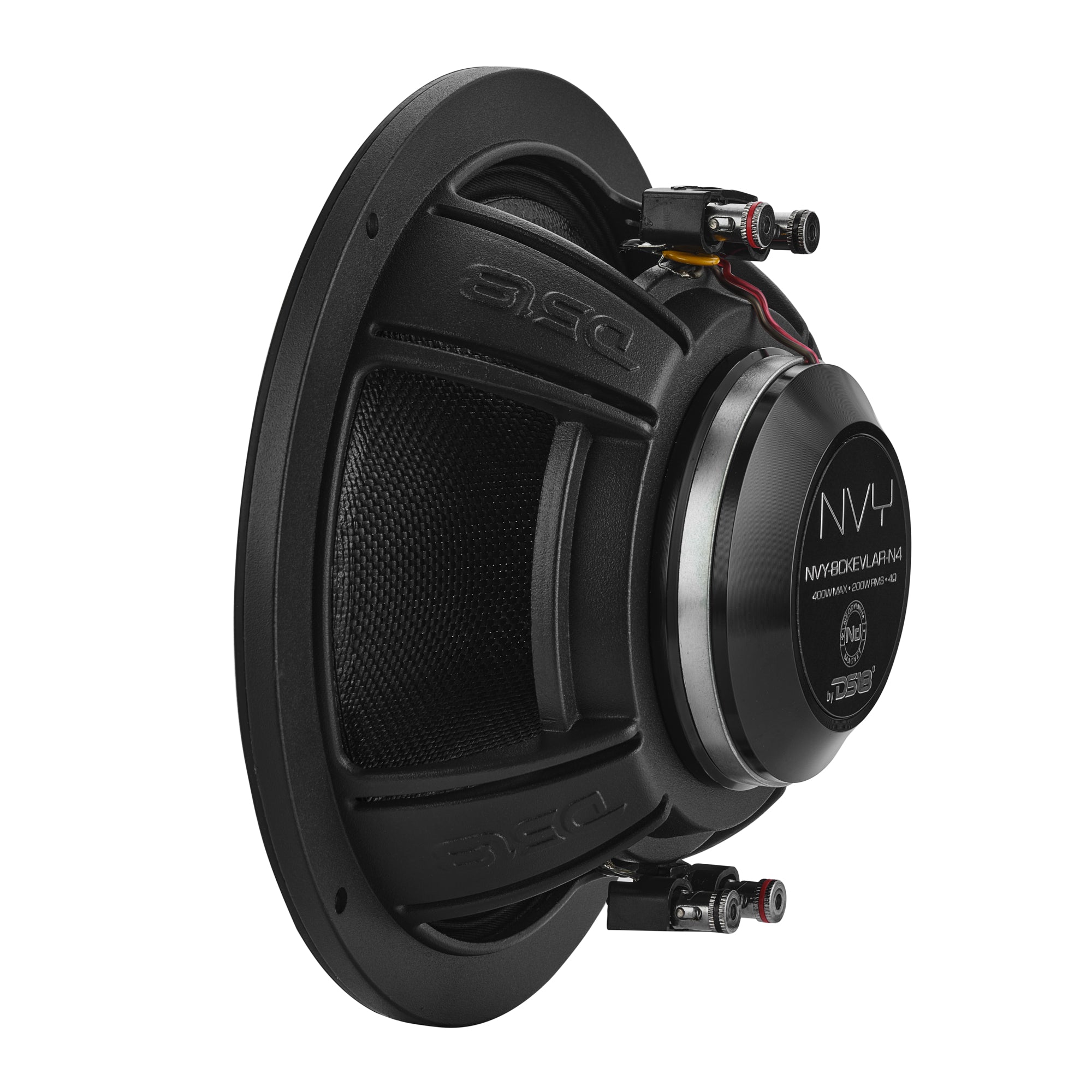

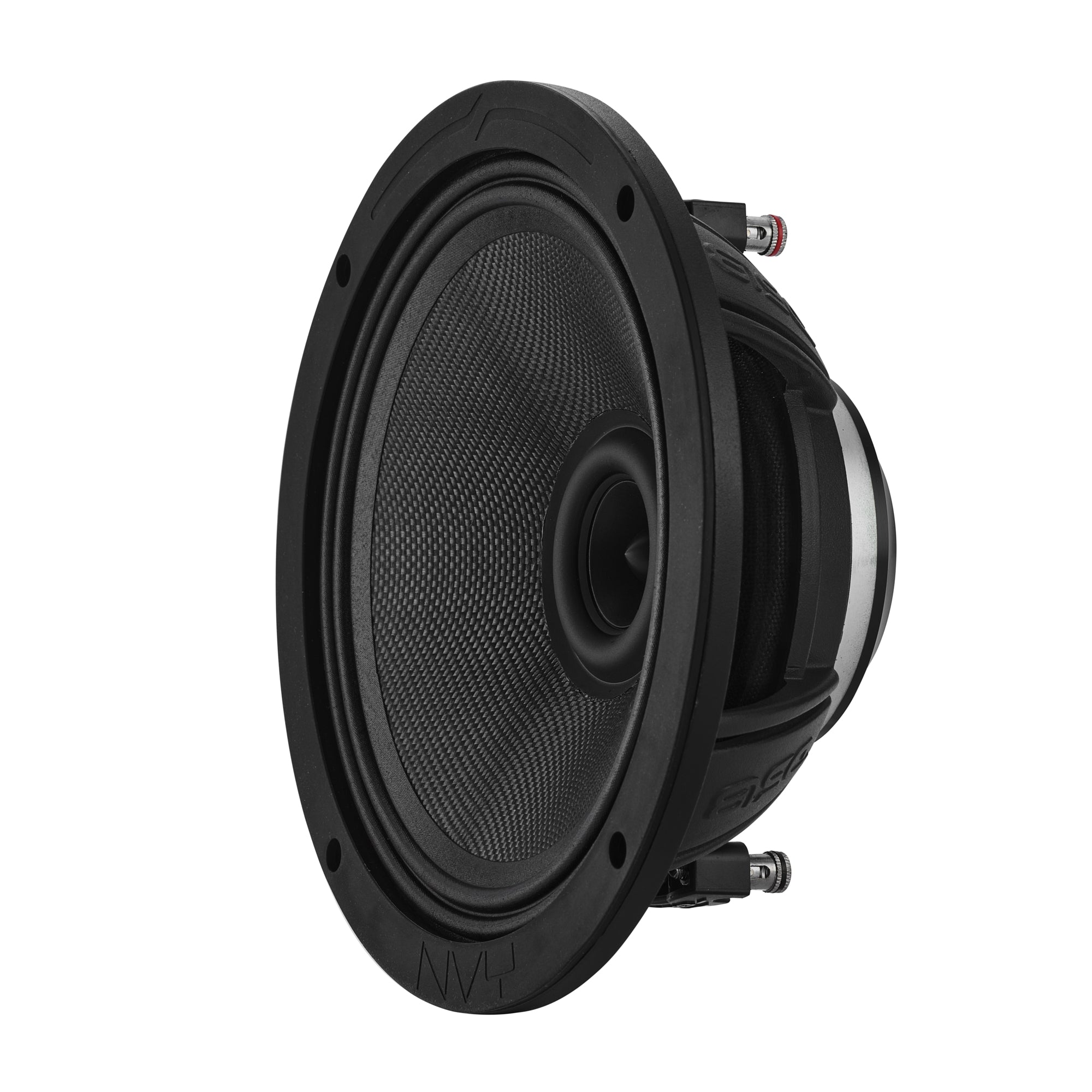

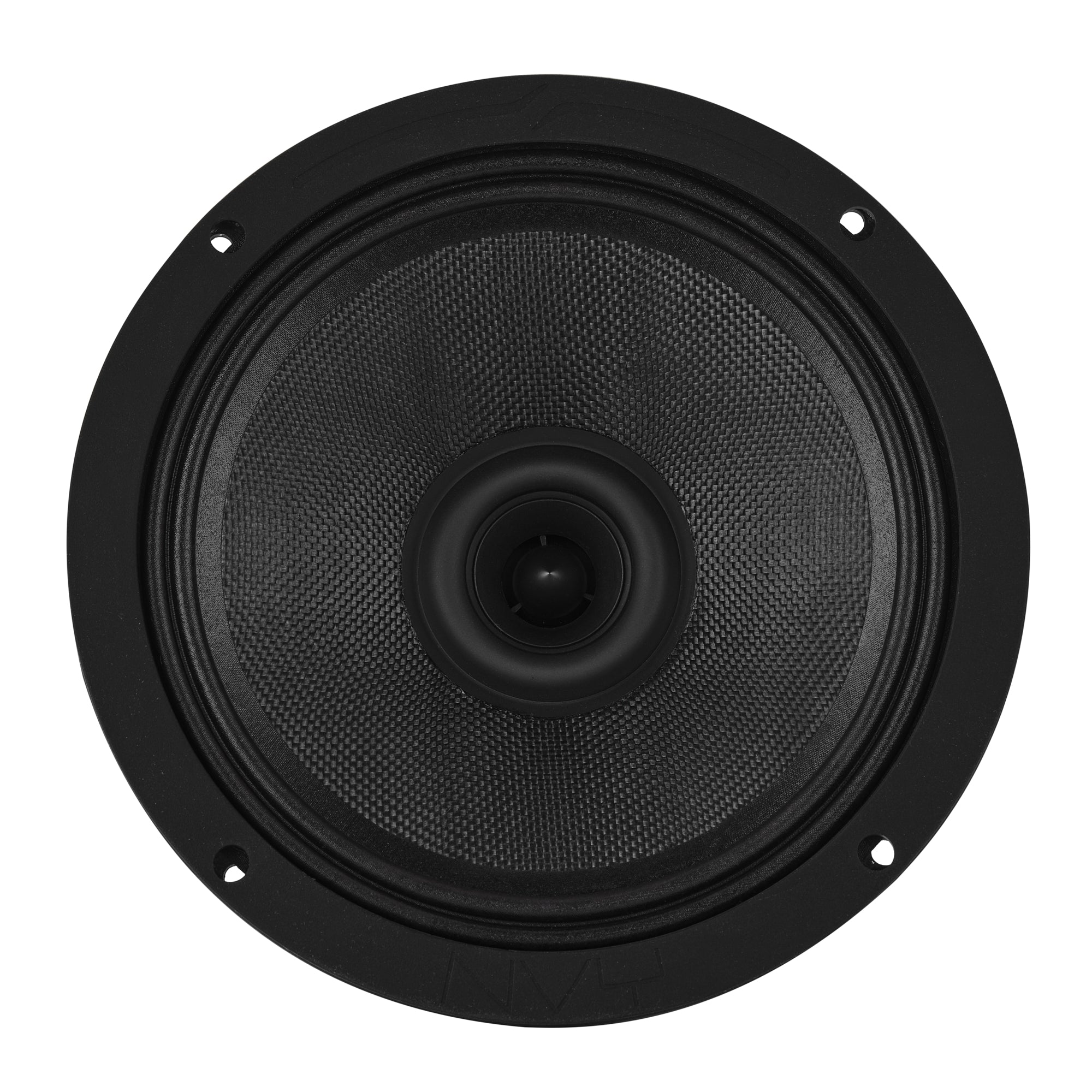

8” 2-Way Coaxial Loudspeaker with Kevlar Cone and Neodymium Magnet | 200W RMS 4-Ohm

$550.00/ PAIR

Size: 8"

KEY FEATURES

  • Kevlar Cone

    Kevlar Cone

  • Patent-Pending Hybrid Tweeter Design

    Patent-Pending Hybrid Tweeter Design

  • High Sensitivity

    High Sensitivity

  • Water-Resistant IP65

    Water-Resistant IP65

  • Neodymium Magnet

    Neodymium Magnet

  • Perfect for Motorcycles and Powersports

    Perfect for Motorcycles and Powersports

Motorcycle-Ready

Standard 8” fit with a shallow 3.23” depth makes it perfect for fairings and custom bags. Dual push terminals make install smooth and clean.

Patent Pending
Hybrid Tweeter Design

The high-frequency tweeter is sealed in a patent pending rubber-surround housing that mimics a hybrid driver—delivering sharp highs that travel far in any environment.

Kevlar Strength

A Kevlar-reinforced woofer cone brings tight midbass and hard-hitting output, backed by a marine-grade IP65 aluminum frame that’s ready for whatever the road throws at it.

  • Specifications
  • Nominal Diameter: 8" / 203mm
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 200W
  • MAX Power Handling: 400W
  • Sensitivity (1w/1m): 97.5 dB
  • Frequency Response: 40Hz - 20kHz
  • Recommended High-Pass Crossover: 85Hz
  • Number of Ways: 2-Way
  • Water-Resistant Rating: IP65
  • Cone Shape: Curvilinear
  • Speaker Terminals: Dual Push 16ga (TW/WF)
  • Pair

  • Woofer Specifications
  • Voice Coil Diameter: 2” / 50.6 mm
  • Voice Coil Former Material: Fiber Glass
  • Winding Material: CCAW
  • Cone Material: Kevlar
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color/Finish: Black Corrugated
  • Magnet Material: Neodymium
  • Magnet Weight: 8.8 Oz

  • Thiele & Small Parameters
  • Equivalent Volume Vas: 15L / 0.529ft3
  • Excursion (one way) Xmax: 1.2mm
  • Free Air Resonance Fs:: 92Hz
  • Mechanical Factor Qms 6.836
  • Electrical Factor Qes: 0.382
  • Total Factor Qts: 0.362
  • Moving Mass Mms: 15.263g
  • Mechanical Compliance Cms: 0.230 mm/N
  • BL Factor BL: 8.25
  • Diaphragm Area Sd: 213.82 Cm2
  • DC Resistance Re: 3.2 Ohms

  • Tweeter Specifications
  • Nominal Diameter: 1.35" / 34mm
  • Voice Coil Diameter: 1" / 25.4mm
  • Voice Coil Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Aluminum
  • Magnet Material: Neodymium (N38H)
  • Magnet Weight: 0.44 Oz

  • Measurements
  • Overall Diameter: 8.3" / 210mm
  • Overall Depth: 3.6" / 91.5mm
  • Front Mount Baffle Cutout: 7" / 178mm
  • Mounting Depth: 3.2" / 82mm
  • Motor Diameter: 3.6" / 92mm
