NVY-57PROEVO-N2

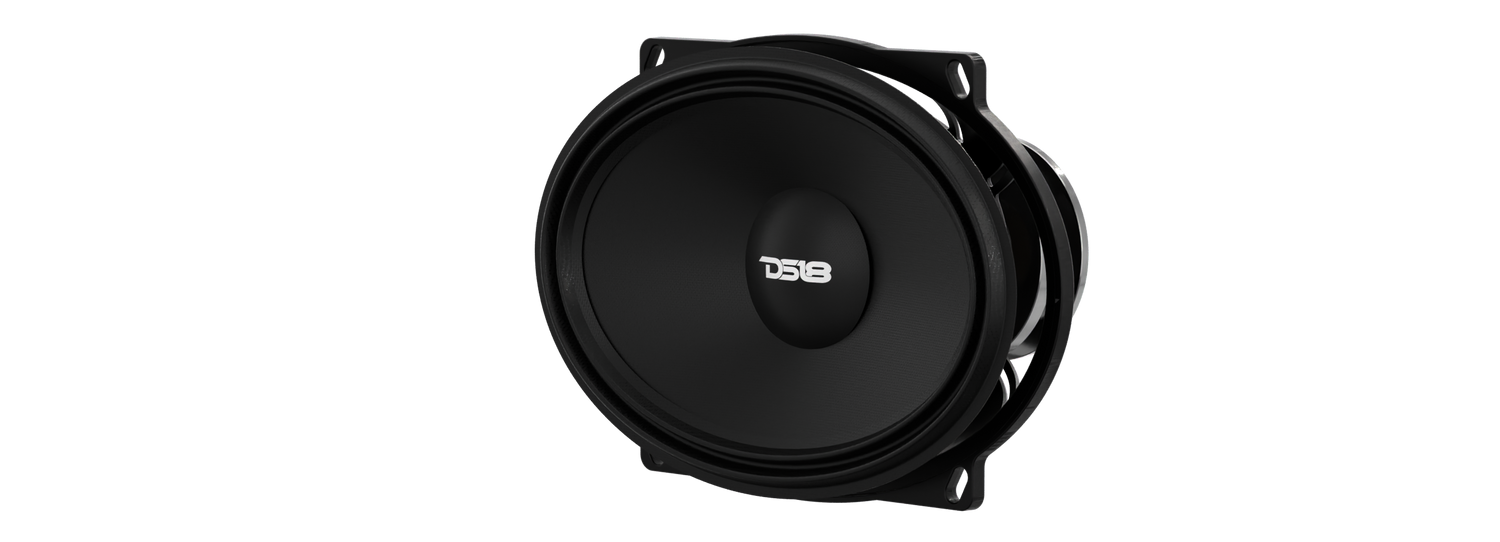

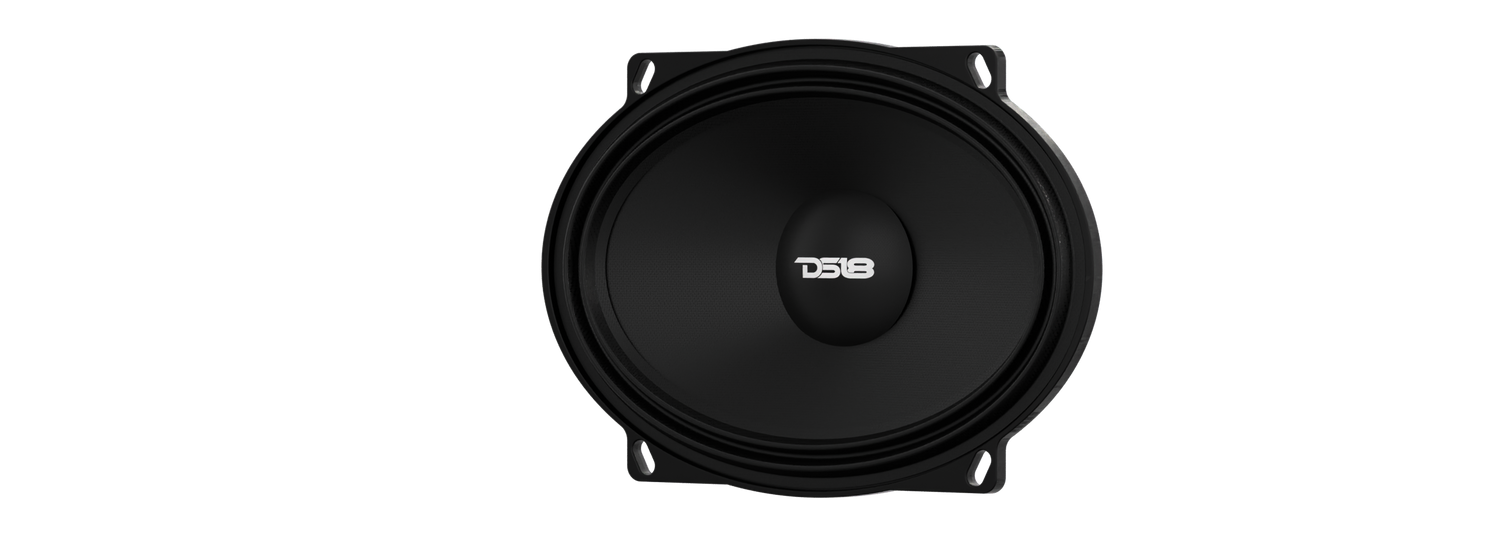

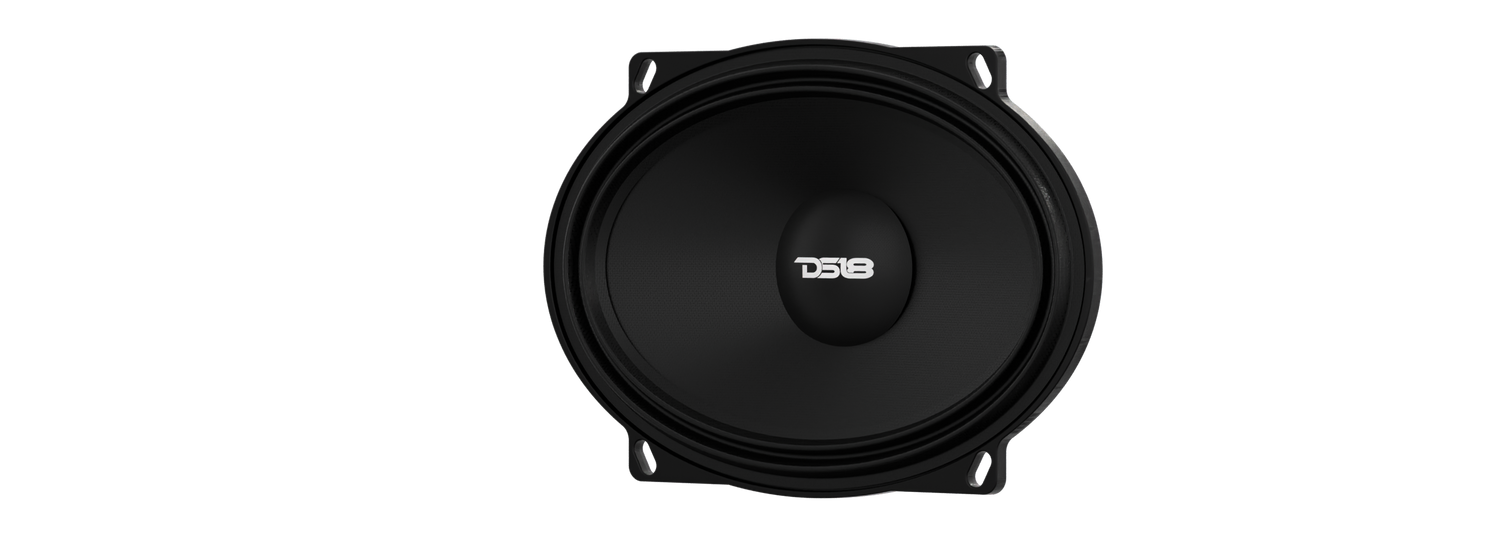

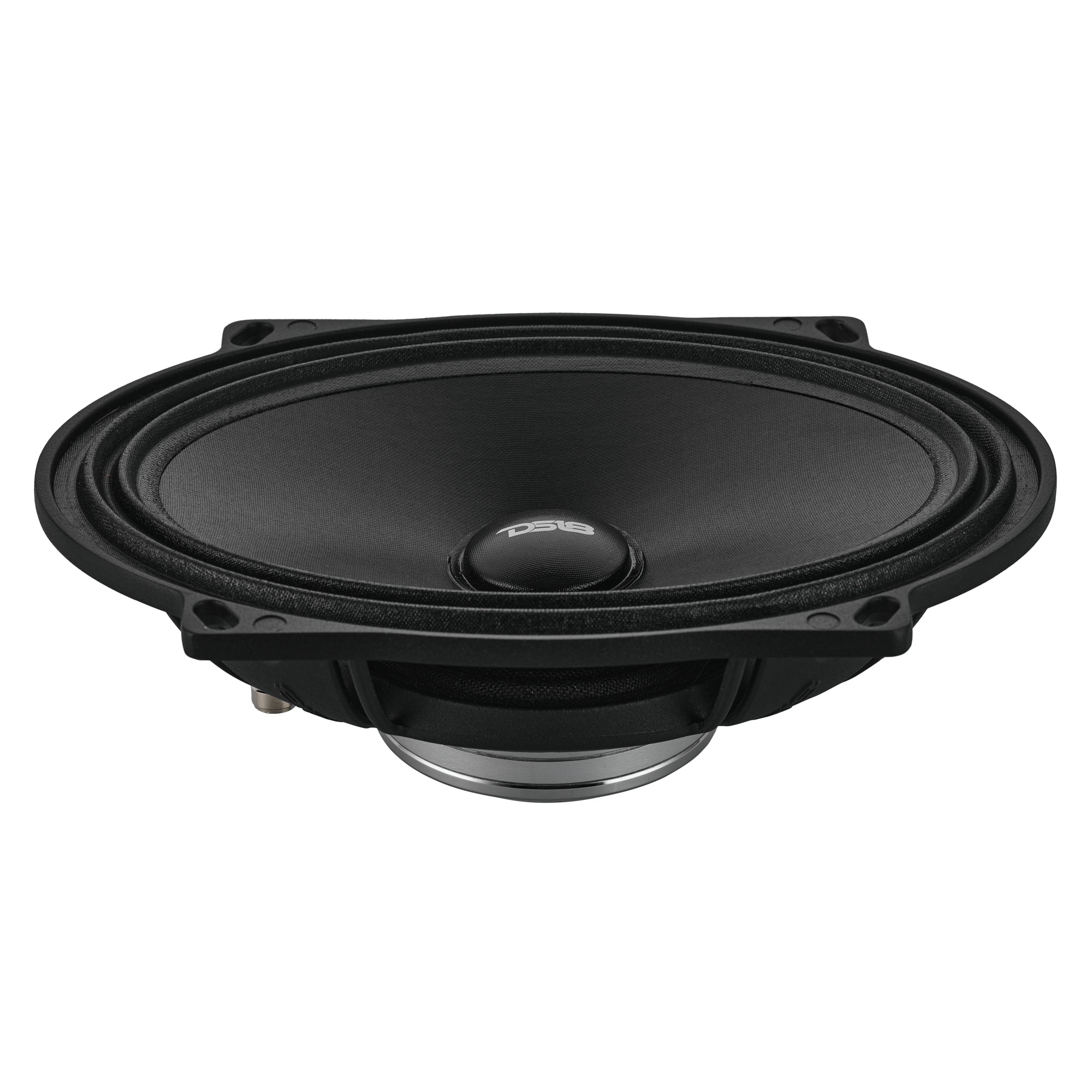

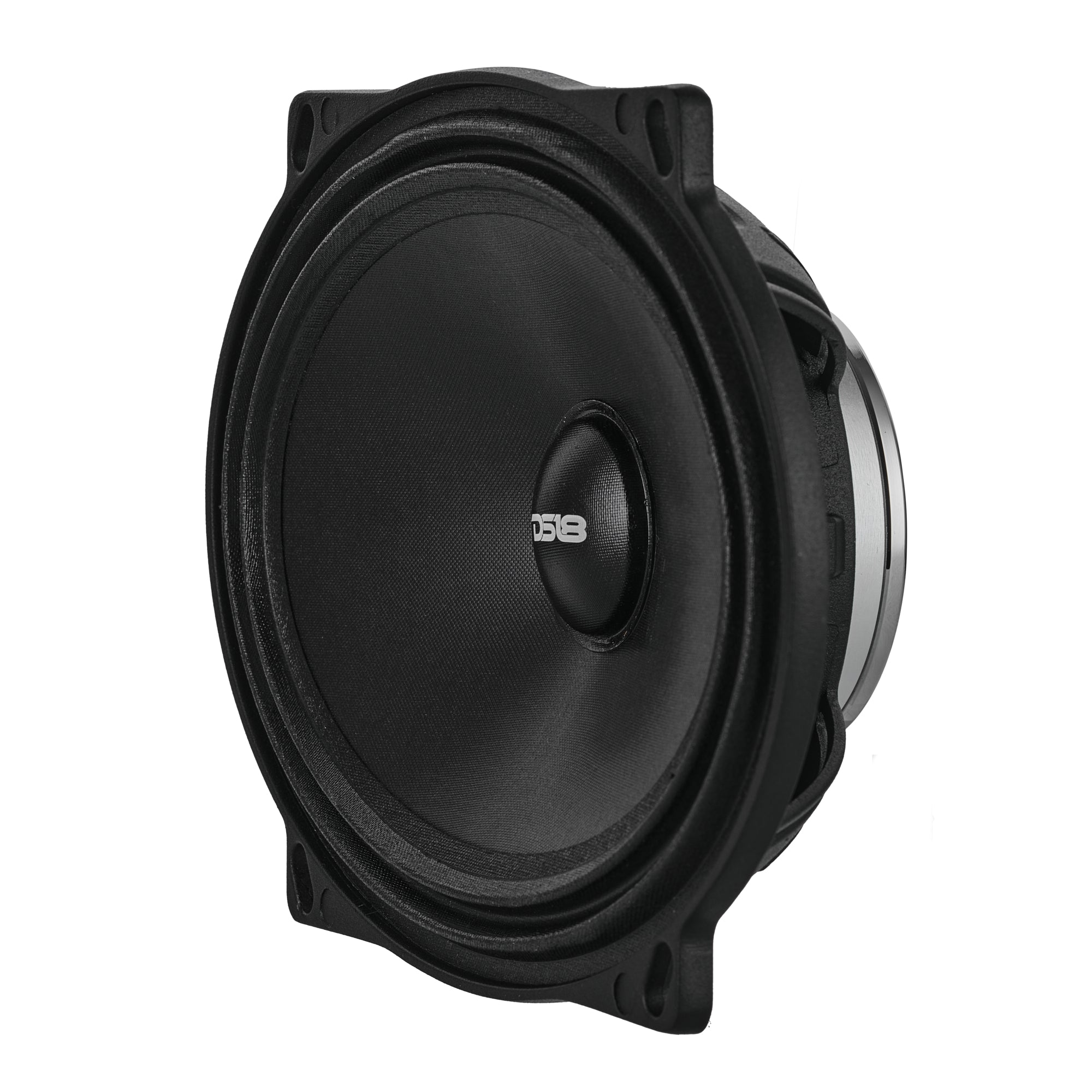

5x7" Full-Range Neodymium Speaker With Water-Resistant Cone | 150W RMS 2-Ohm

$500.00/ PAIR

Size: 5x7"

Impedance: 2-Ohm

2-Ohm
4-Ohm

KEY FEATURES

  • Glass Fiber + Foam Composite with Resin Cone

    Glass Fiber + Foam Composite with Resin Cone

  • Full-Range Frequency Response

    Full-Range Frequency Response

  • Perfect for Motorcycles and Powersports

    Perfect for Motorcycles and Powersports

  • Water-Resistant IP65

    Water-Resistant IP65

  • Neodymium Magnet

    Neodymium Magnet

  • Aluminum <br> Basket

    Aluminum
    Basket

Ready for the Road

With an IP65-rated water-resistant cone, resin-treated materials, and sealed construction, this 5x7” speaker is built for life beyond the garage.

Consistent Performance

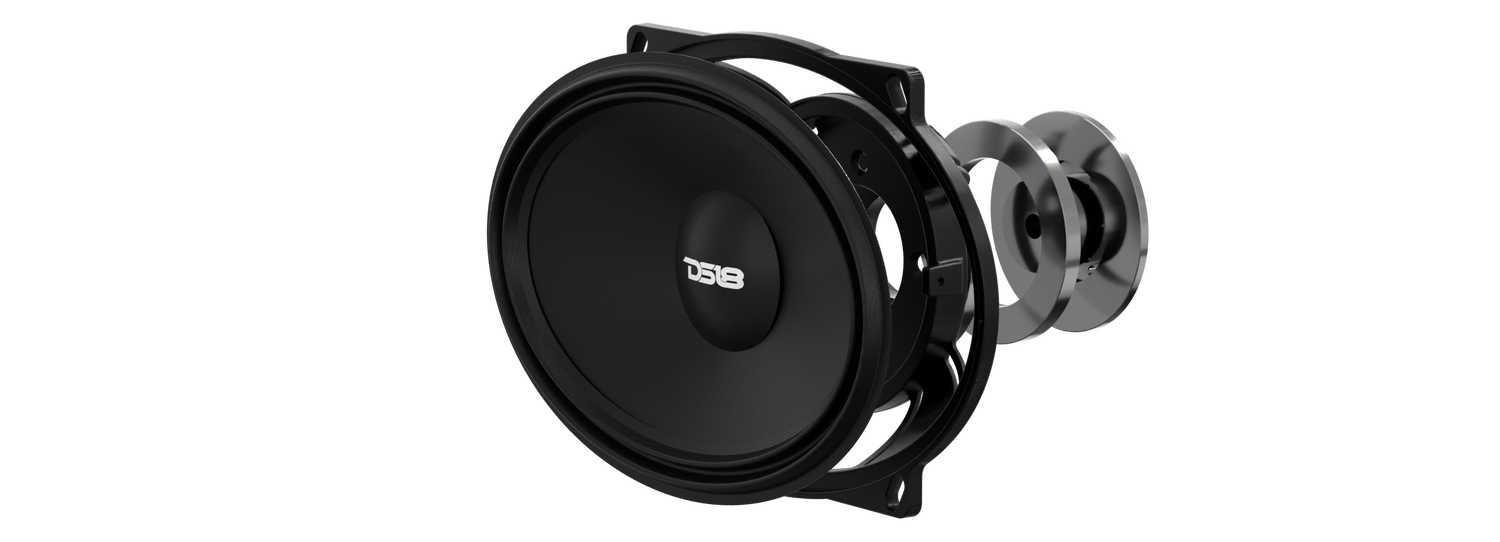

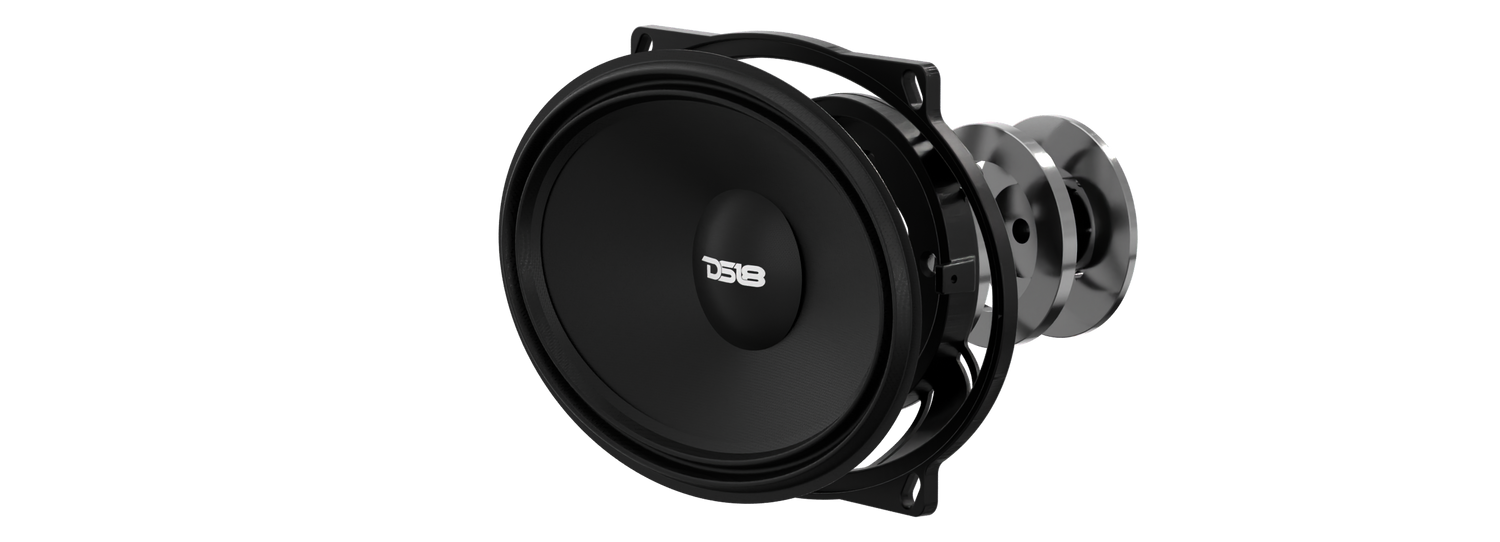

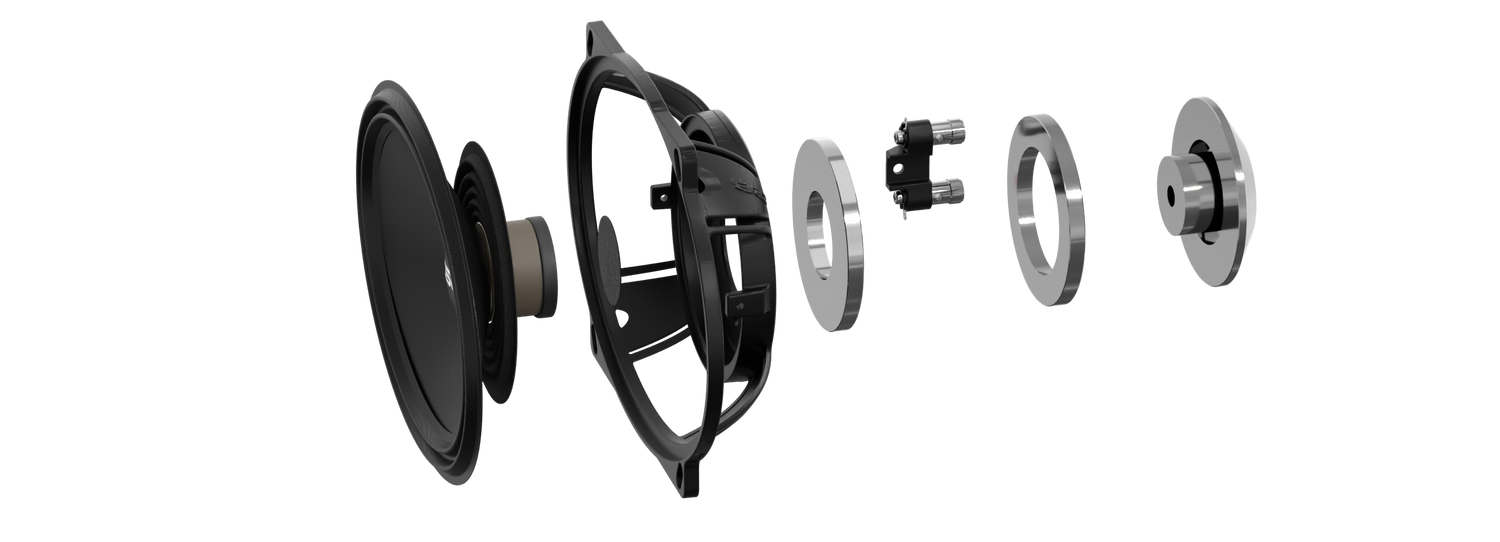

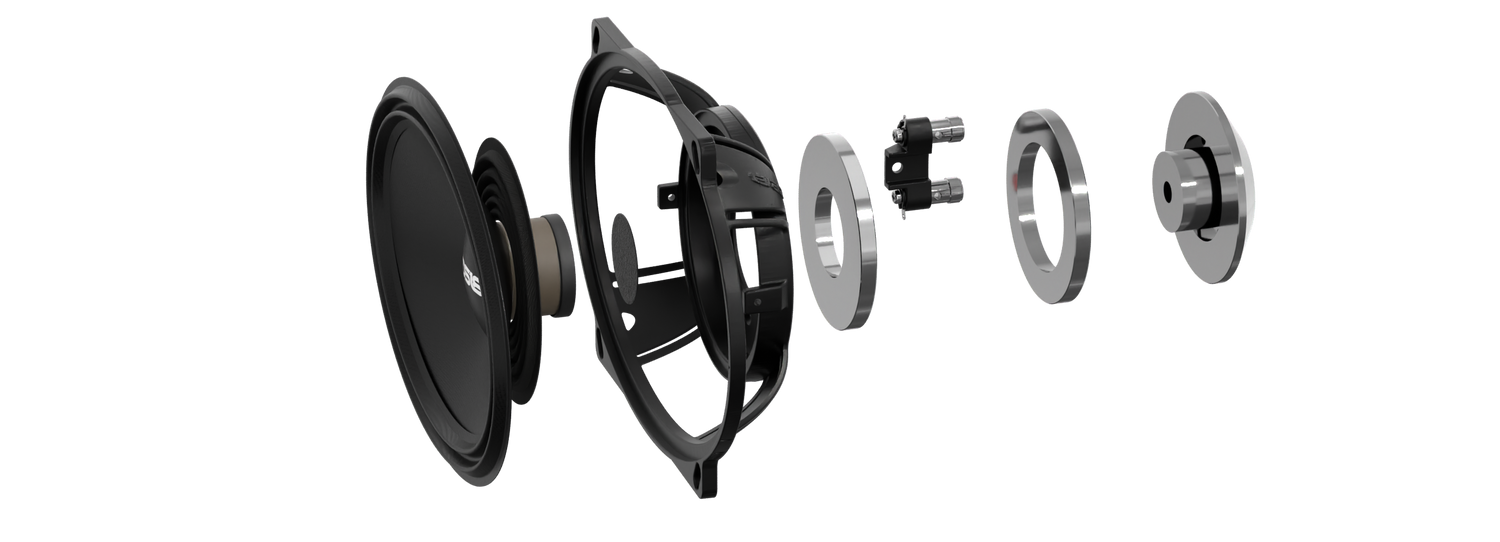

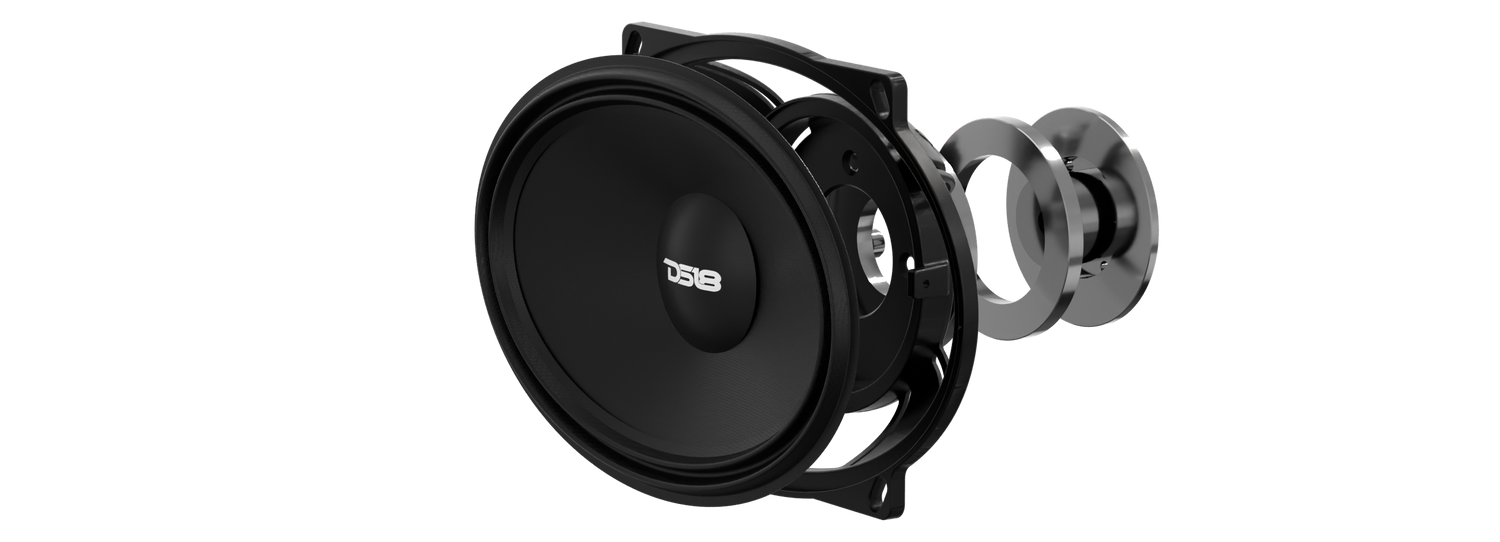

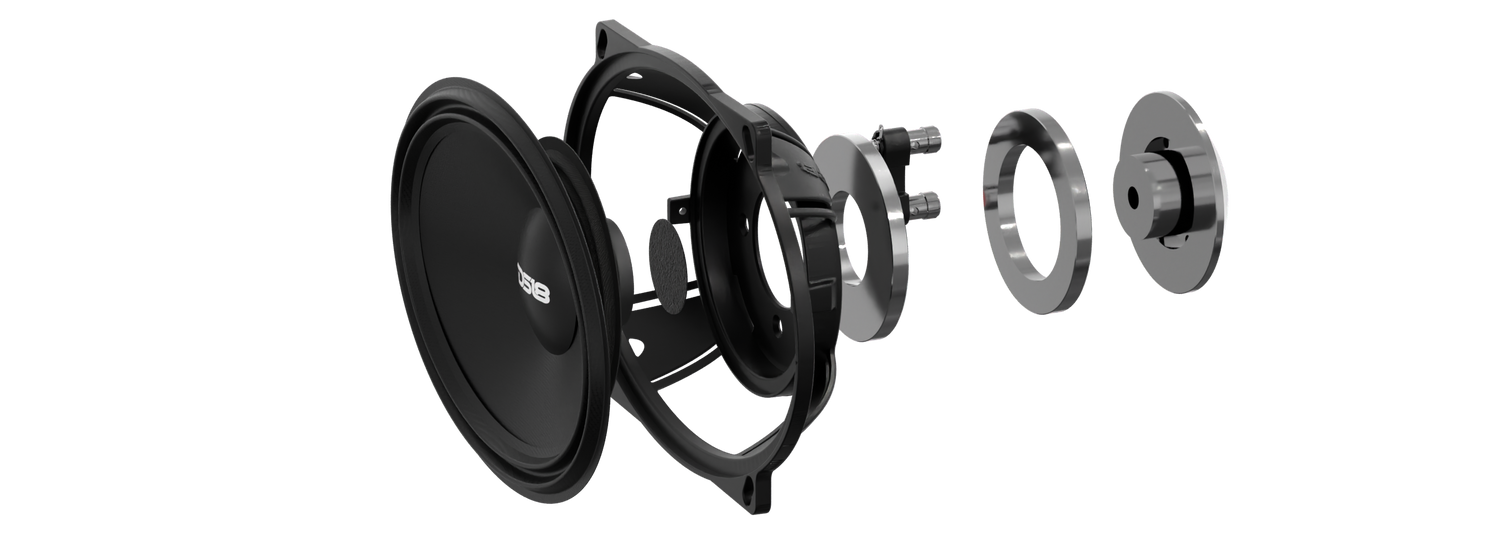

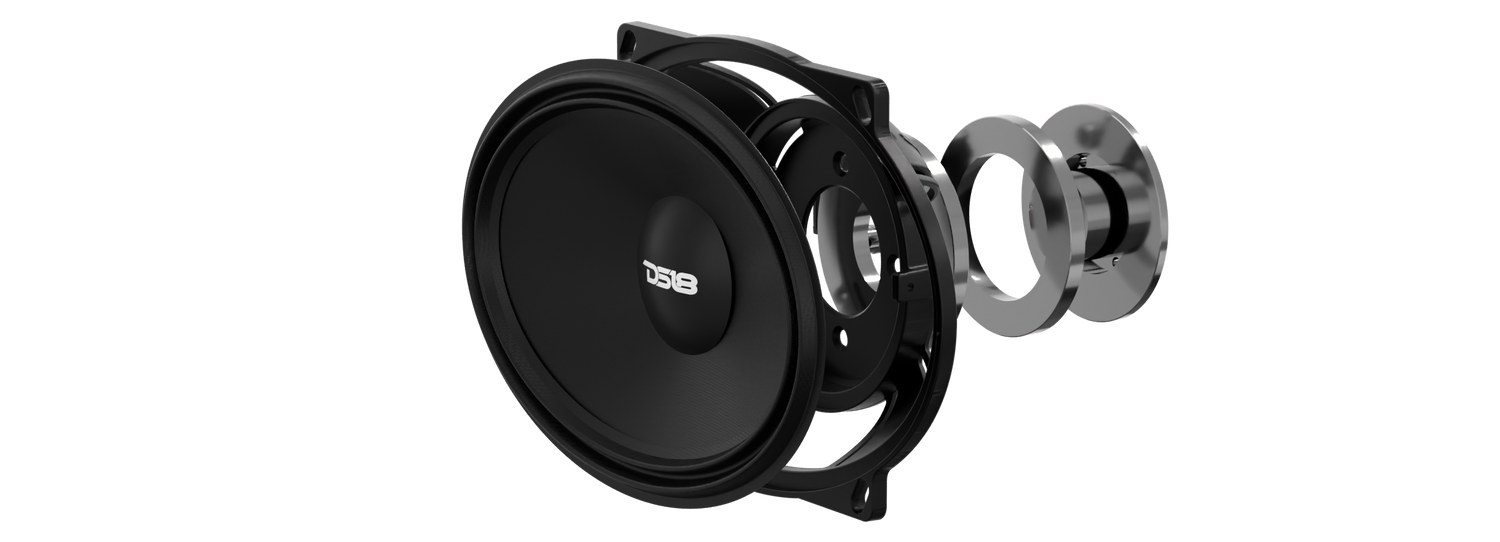

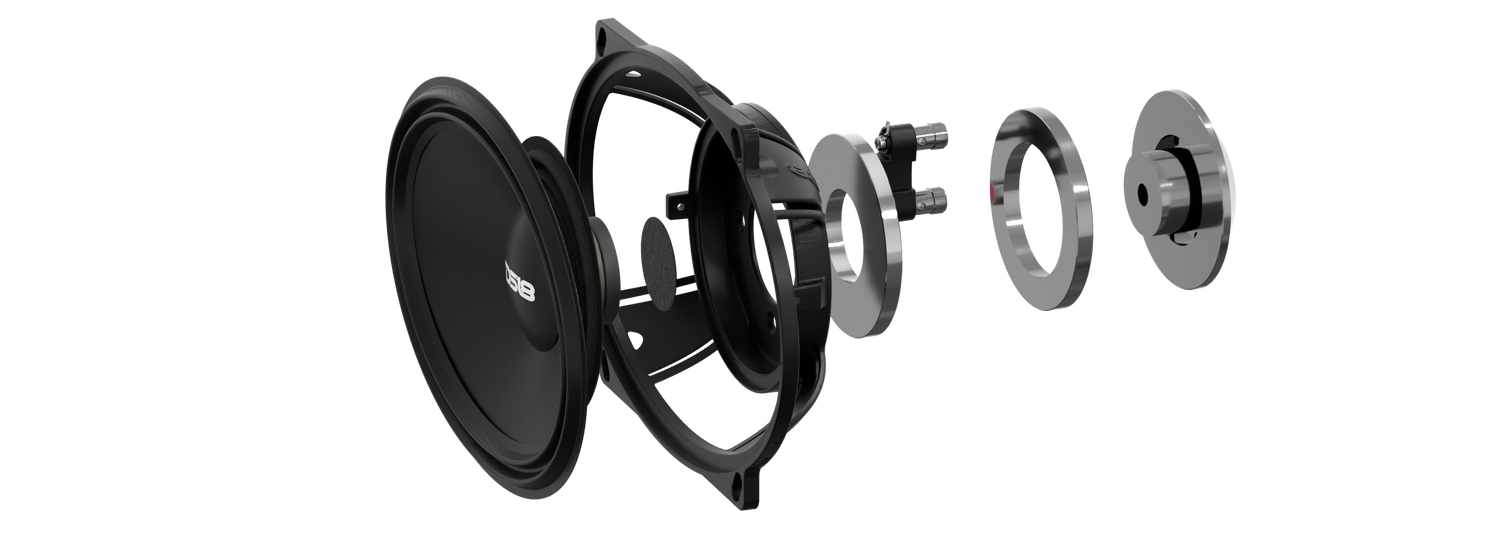

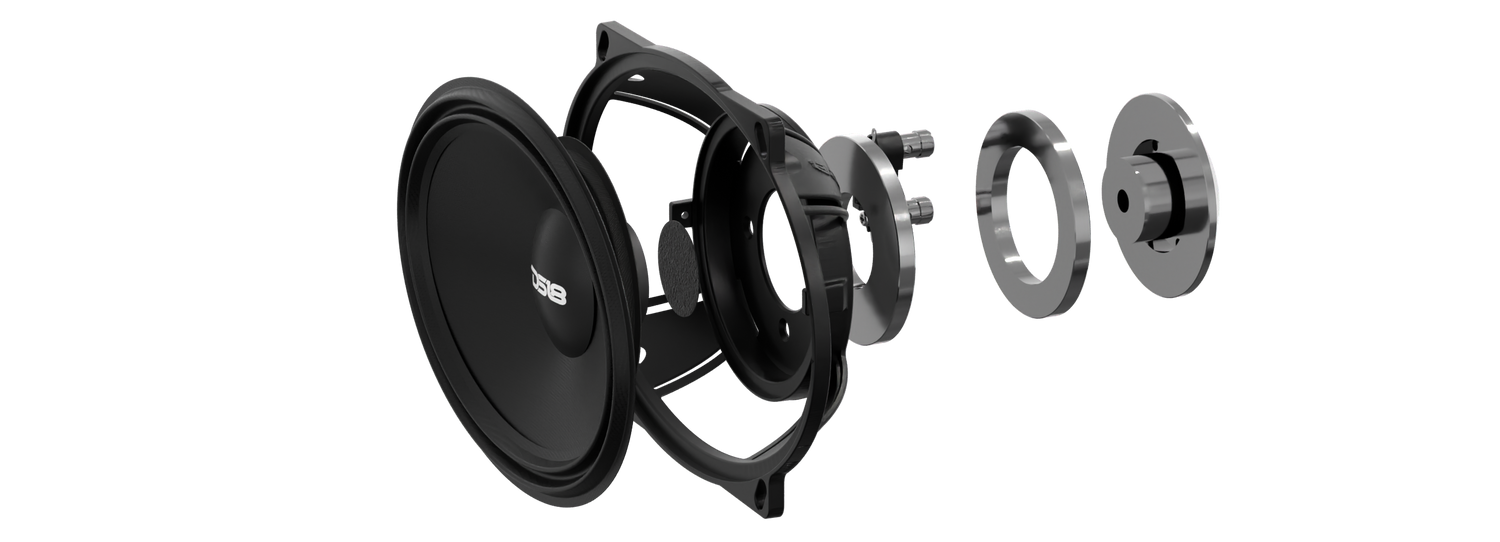

From the copper ribbon coil to the TIL former and demodulation rings, every detail in the 57PROEVO is designed for clean output mile after mile.

Seamless Fit

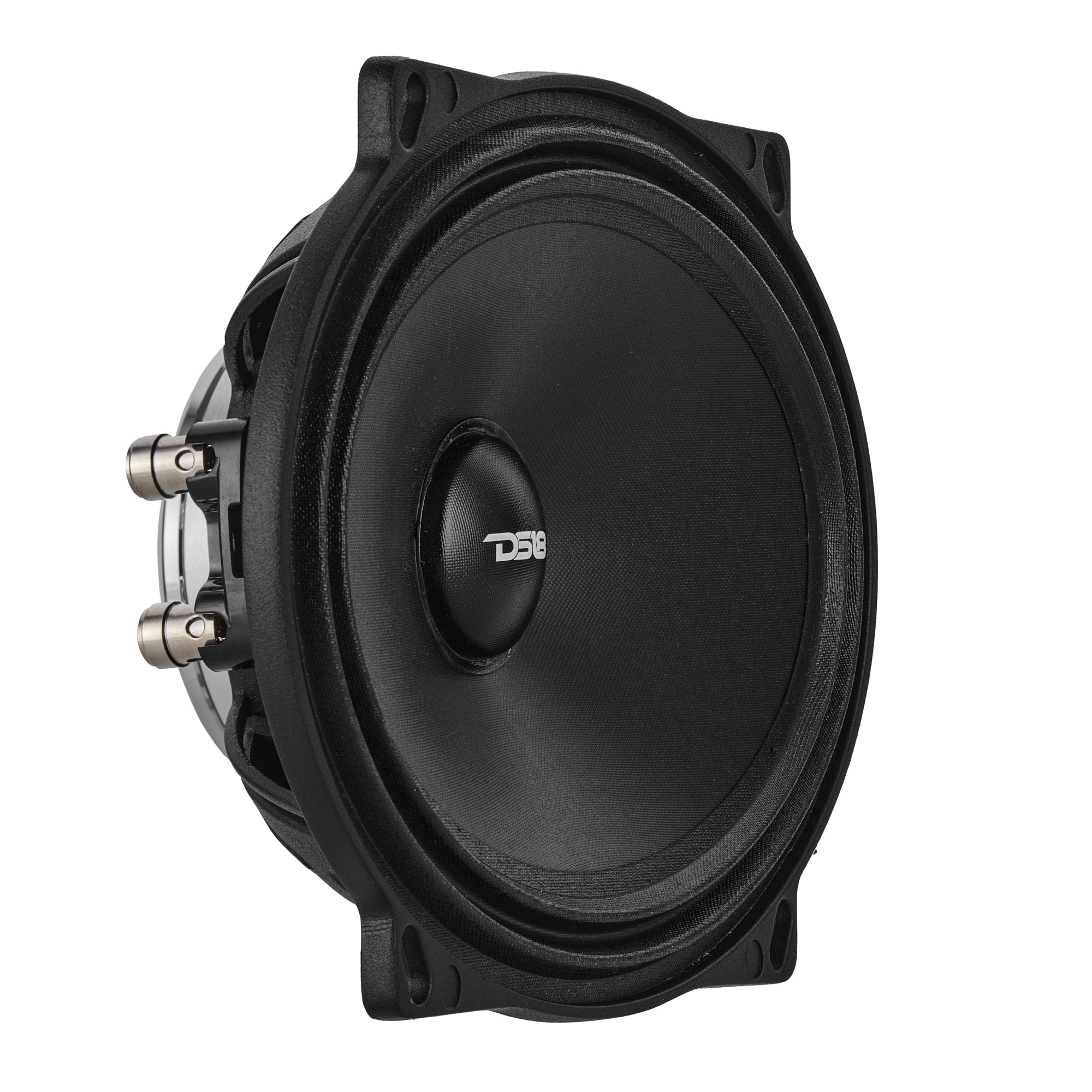

With push terminals and a compact footprint, this speaker installs easily into motorcycles, powersports, and marine setups.

  • General Specifications
  • Nominal Diameter: 5x7" / 127x185mm
  • Nominal Impedance: 2-Ohms
  • RMS Power Handling: 150W
  • MAX Power Handling: 300W
  • Sensitivity (1w/1m): 94dB
  • Frequency Response: 100Hz-20Khz
  • Recommended High-Pass Crossover: 120Hz
  • Sold in Pairs

  • Body / Features
  • Demodulating Rings: Yes
  • Improved Heat Dissipation: Yes
  • Cone Shape: Curvilinear
  • Speaker Terminals: Push 14ga
  • Waterproof Rating: IP65

  • Motor
  • Voice Coil Diameter: 1.2" / 30.8mm
  • Voice Coil Former Material: TIL
  • Winding Material: Copper Ribbon
  • Cone Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish
  • Dust Cap Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish
  • Surround Material: Treated Cloth
  • Leads Connection: Type Spider Crossed
  • Basket Material: Aluminum
  • Basket Color/Finish: Black
  • Magnet Material: Neodymium
  • Magnet Weight: 3.3 Oz

  • Thiele & Small Parameters
  • Equivalent Volume: 7.05L / 0.248ft3
  • Excursion (one way): 2mm
  • Free Air Resonance: 100HZ
  • Mechanical Factor: 9.07
  • Electrical Factor: 0.96
  • Total Factor: 0.86
  • Mechanical Mass: 13.007g
  • Mechanical Compliance: 0.181mm/N
  • BL Factor: 4.2
  • Voice Coil Inductance: 0.030mH
  • Cone Area: 156.15cm2
  • DC Resistance: 2.16 Ohms
  • Mechanical Mass w/o air: 10.849g

  • Speaker Measurement
  • Overall Diameter: 5.4x7.8" / 138x198mm
  • Overall Depth: 2.5" / 64.5mm
  • Front Mount Baffle Cutout: 5x7.3" / 127x185mm
  • Mounting Depth: 2.3" / 57.5mm
  • Motor Diameter: 2.75" / 70mm
