NVY-6HDCF-N4

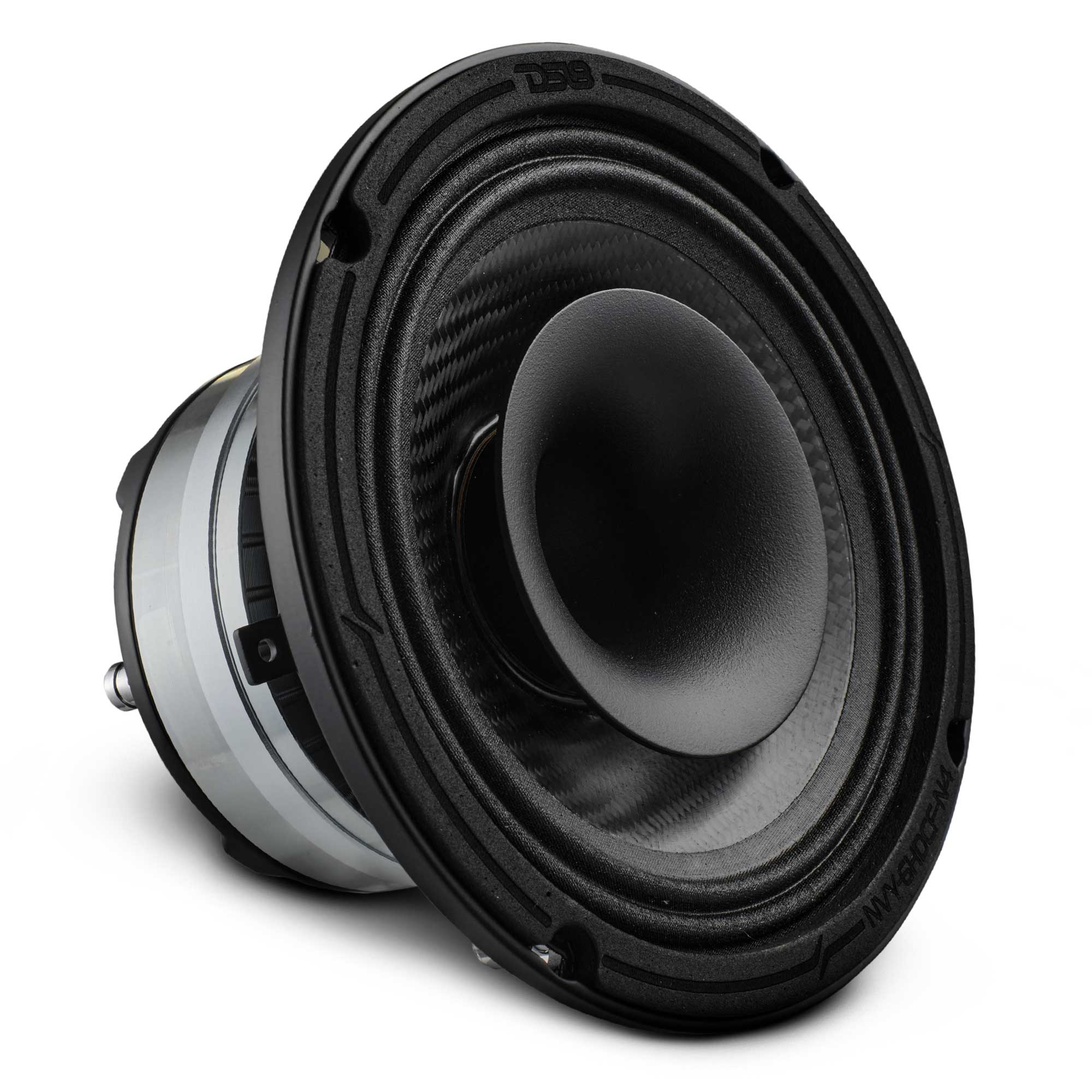

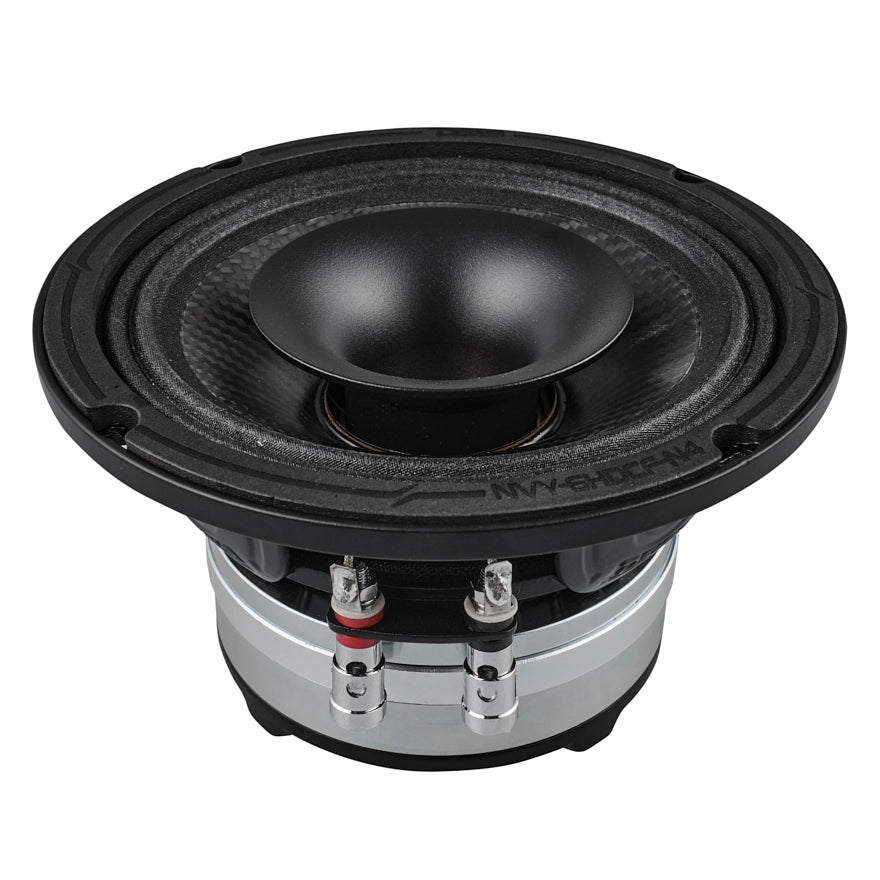

6.5" Water Resistant Carbon Fiber Cone Hybrid Loudspeaker With 2" VC Compression Driver and Neodymium Magnet | 300W RMS 4-Ohm

$500.00/ EACH

Size: 6.5"

6.5"
8"

Impedance: 4-Ohm

4-Ohm
8-Ohm

KEY FEATURES

  • Carbon Fiber Cone

    Carbon Fiber Cone

  • Hybrid <br> Loudspeaker

    Hybrid
    Loudspeaker

  • Compression Horn Driver

    Compression Horn Driver

  • Detachable Horn Driver

    Detachable Horn Driver

  • Water-Resistant IP65

    Water-Resistant IP65

  • Neodymium Magnet

    Neodymium Magnet

Tuned For Power And Precision

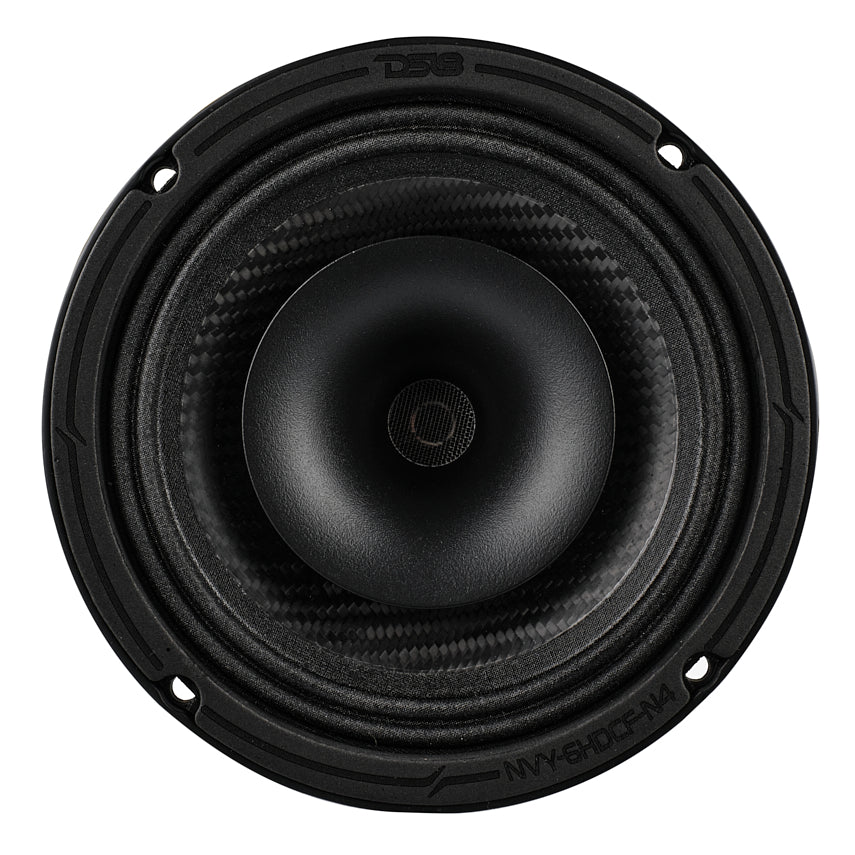

With a 6.5" carbon fiber cone, 2" compression driver, and handling an RMS power of 300W, it delivers high-output volume and clarity at all speeds.

Made to Move

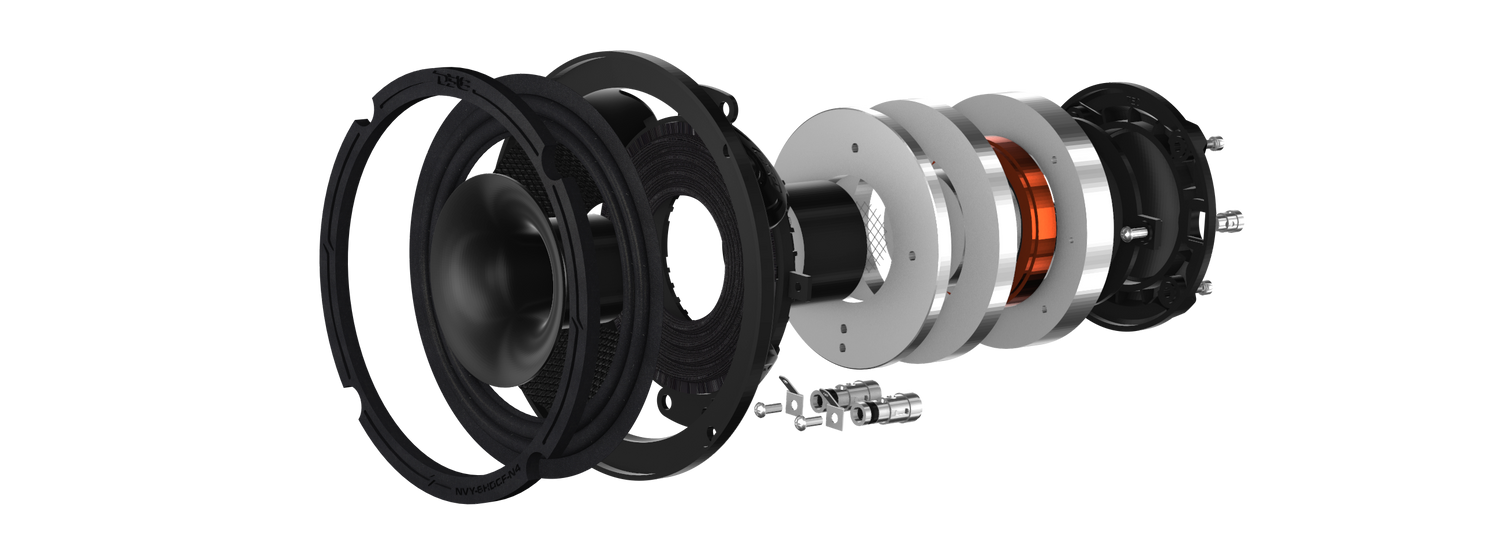

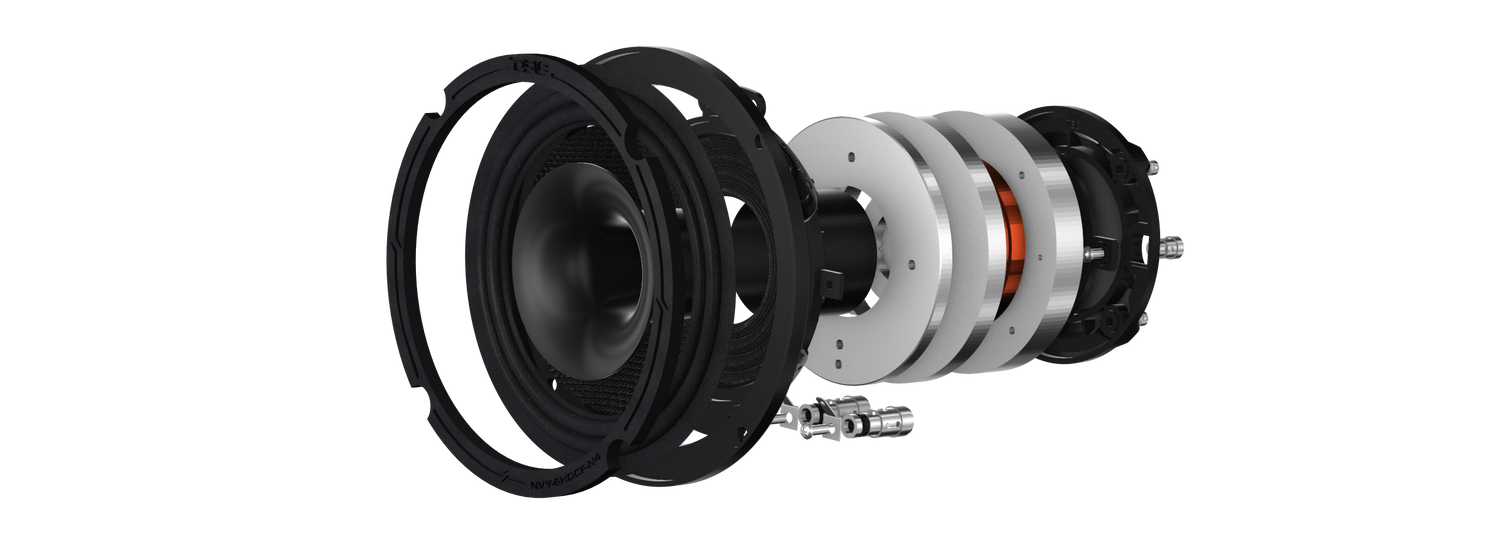

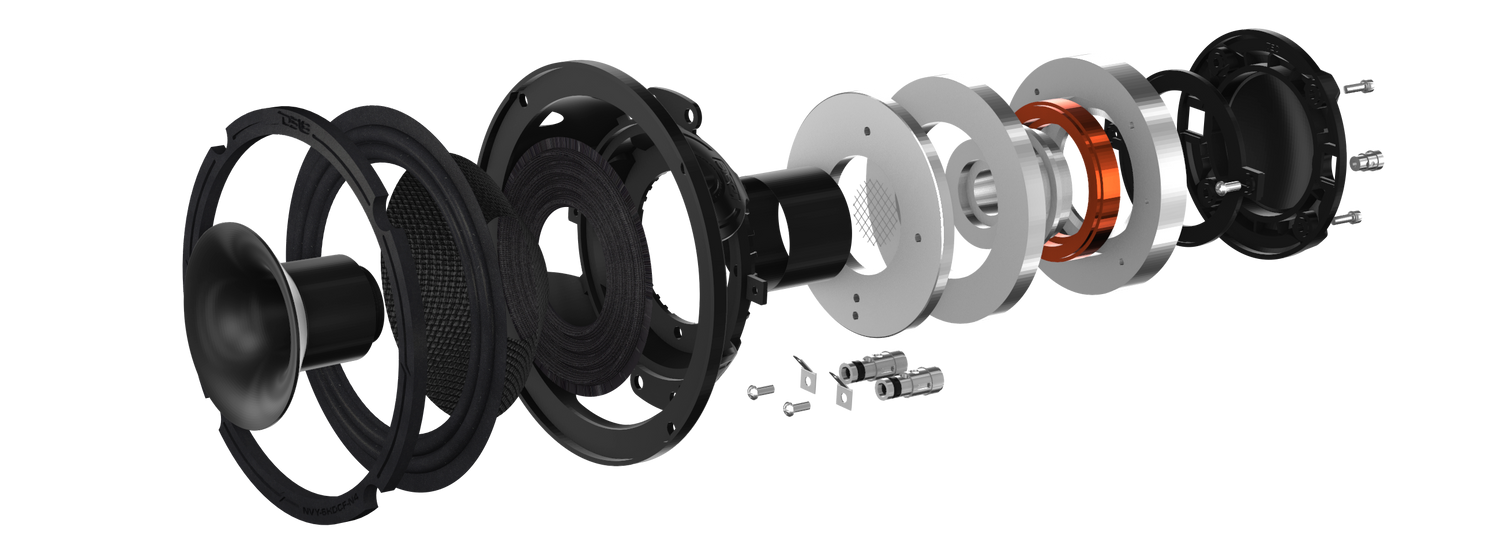

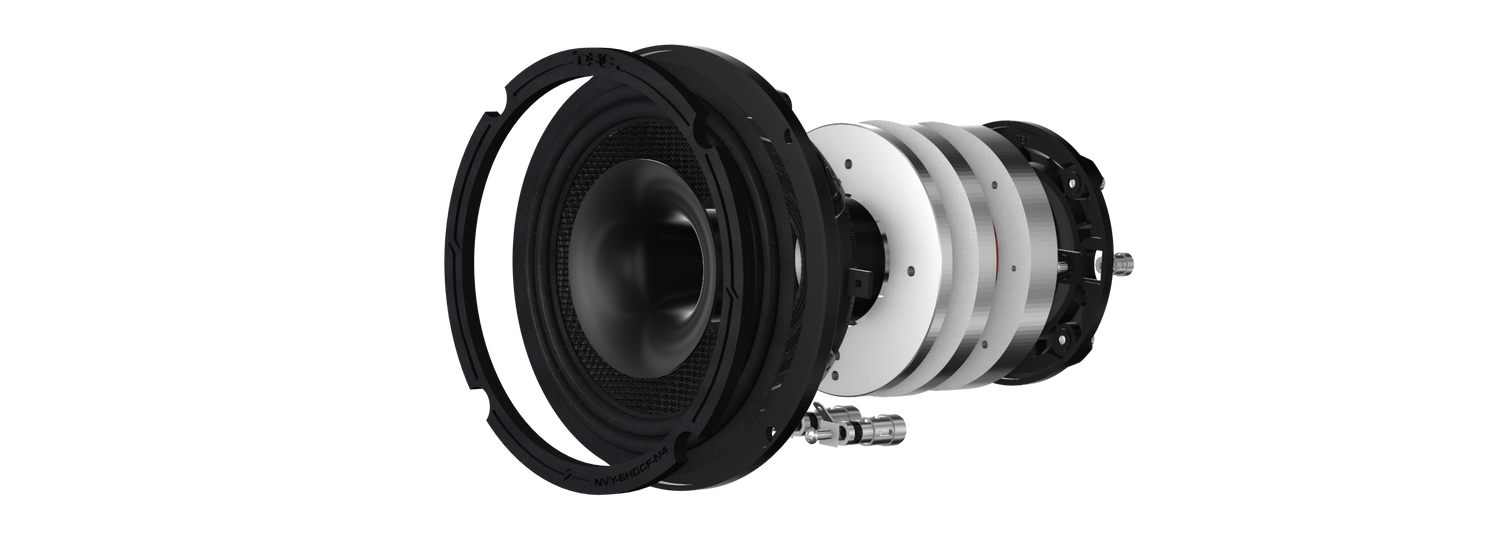

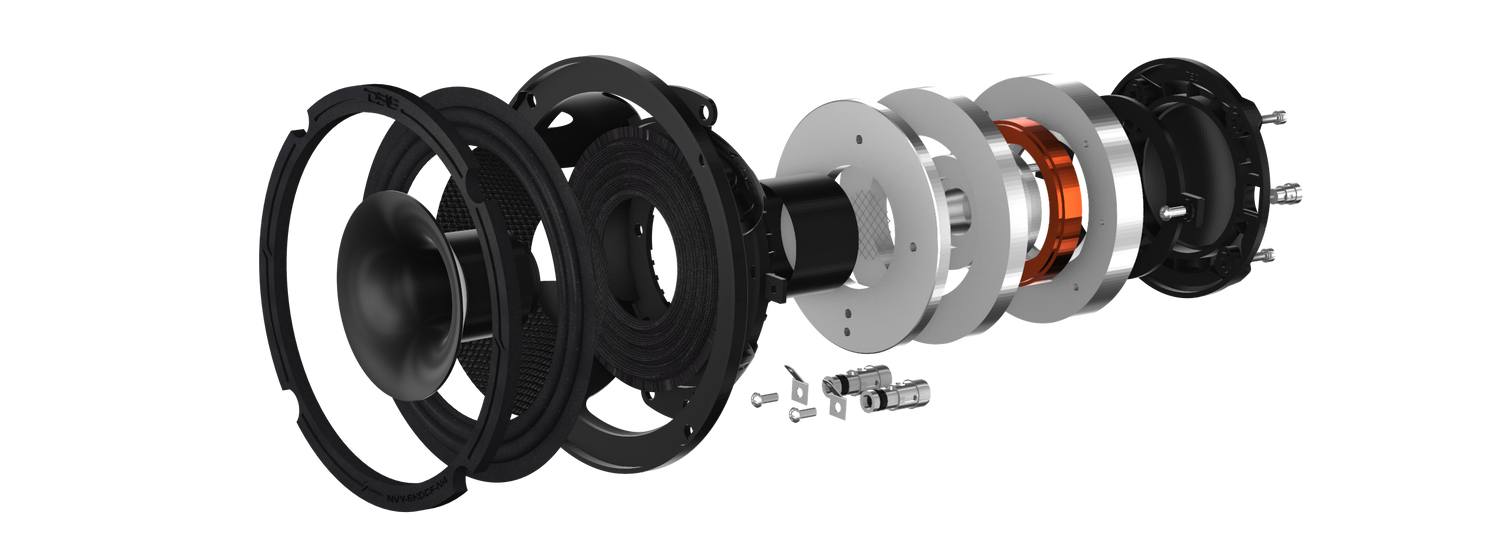

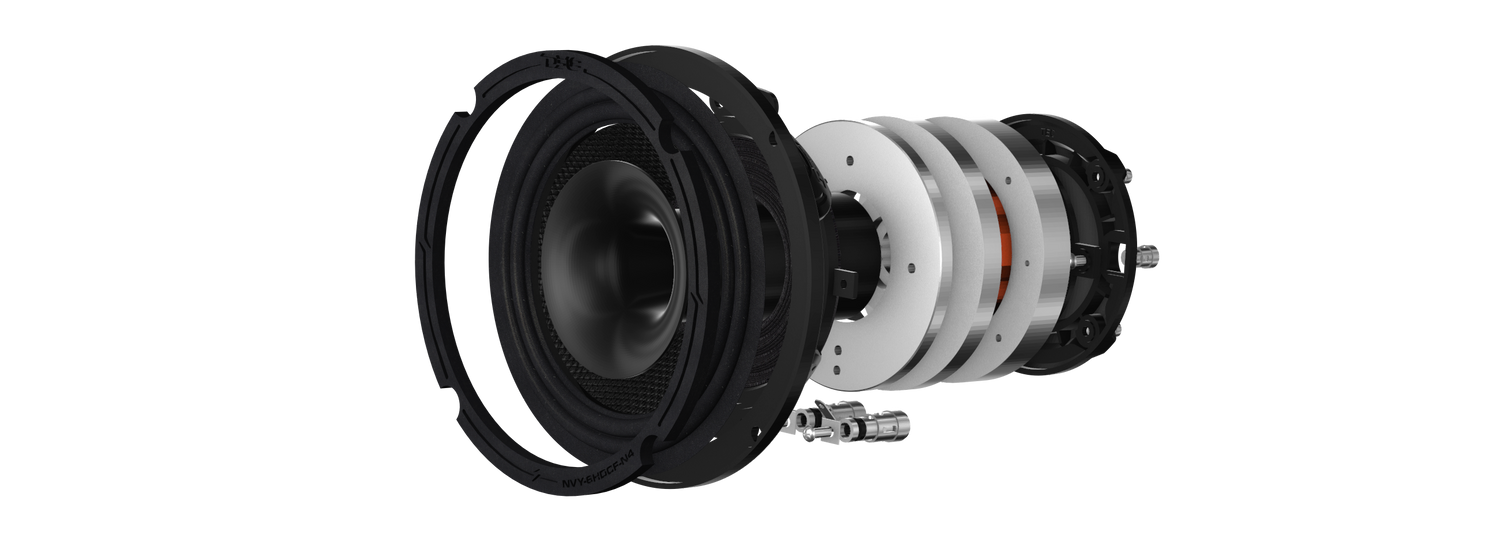

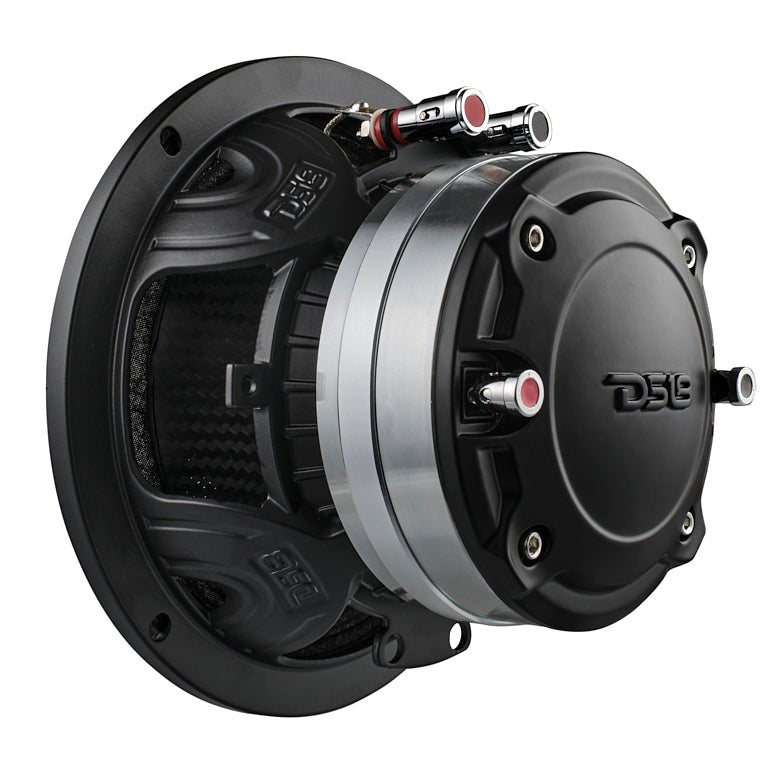

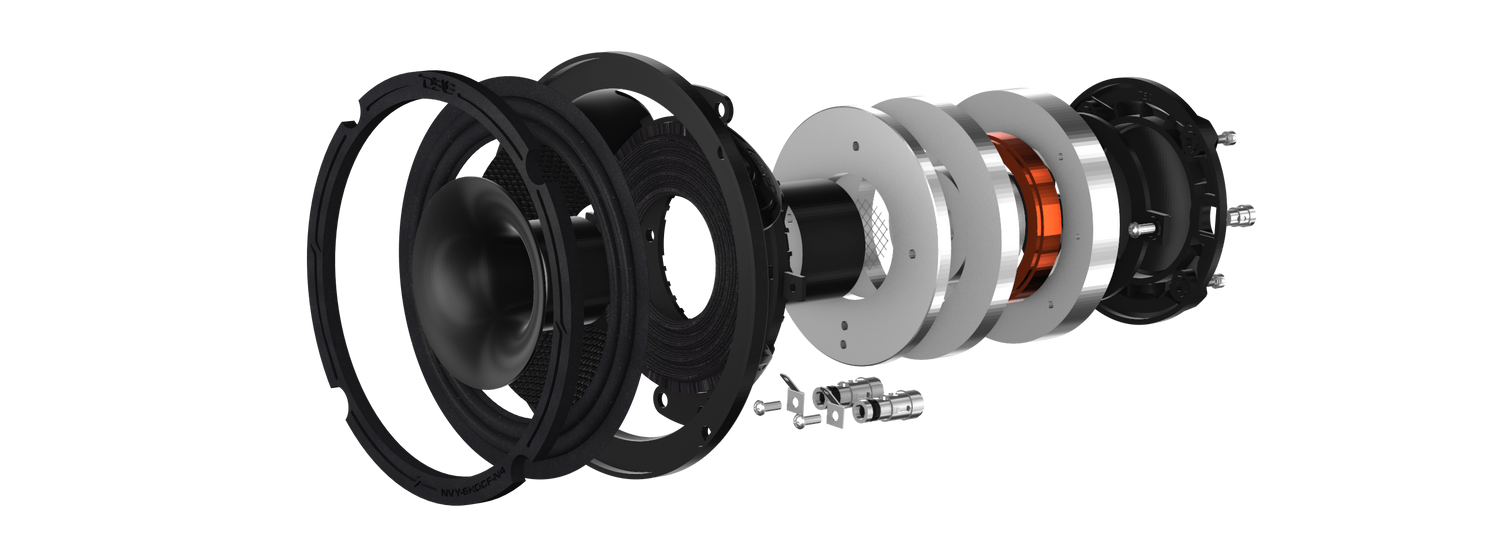

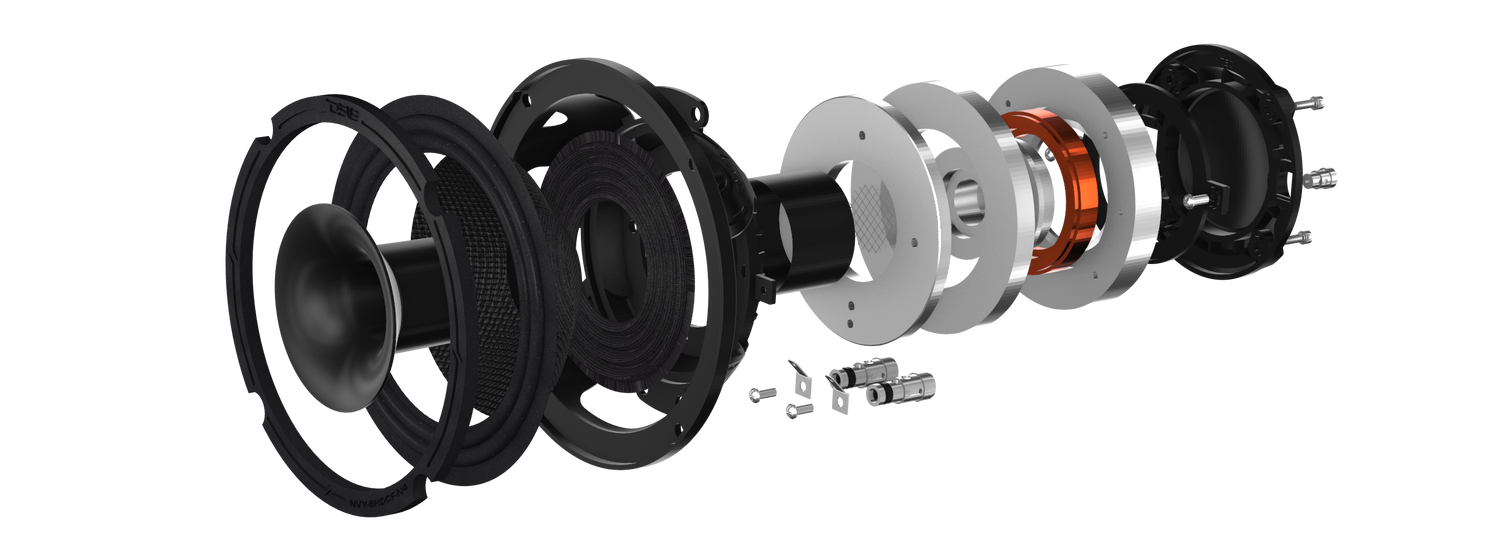

At its core is a 4-ohm woofer and an 8-ohm neodymium compression driver featuring a Japanese titanium diaphragm, and die-cast aluminum horn for high-frequency projection and clarity.

Built For Extremes

The IP65-rated carbon fiber cone shrugs off the harshest conditions, while the die-cast aluminum basket provides a powerful foundation for long-lasting performance.

  • General Specifications
  • Nominal Diameter: 6.5” / 165mm
  • Nominal Impedance: 4 Ohms (Woofer) / 8 Ohms (Driver)
  • RMS Power Handling (Combined): 300W
  • MAX Power Handling (Combined): 600W
  • Sensitivity (1w/1m) (Combined): 105dB
  • Frequency Response (Combined): 70Hz-20KHz
  • Number of Ways: 2
  • Single
  • Water Resistant Rating: IP65

  • Woofer Specifications
  • RMS Power Handling: 200W
  • MAX Power Handling: 400W
  • Nominal Impedance: 4 Ohms
  • Sensitivity (1w/1m): 96dB
  • Frequency Response: 70Hz-10KHz
  • Recommended Band-Pass Crossover: 120Hz-2000Hz
  • Voice Coil Diameter: 2" / 50.8mm
  • Voice Coil Former Material: KAPTON
  • Winding Material: CCAW
  • Cone Material: Carbon Fiber
  • Surround Material: Treated Cloth
  • Basket Material: Die Cast Aluminum
  • Basket Color/Finish: Black Sandblasted
  • Magnet Material: Neodymium
  • Magnet Size: 110x10mm
  • Magnet Weight: 17.63 Oz

  • Driver Specifications
  • AES Power Handling: 100W
  • Program Power Handling: 200W
  • Nominal Impedance: 8 Ohms
  • Sensitivity (1w/1m): 100dB
  • Frequency Response: 600Hz-20KHz
  • Recommended Hi Pass Crossover: 2000Hz
  • Voice Coil Diameter: 2" / 50.8mm
  • Voice Coil Former Material: KAPTON
  • Winding Material: CCA
  • Diaphragm Material: Titanium from Japan
  • Magnet Material: Neodymium
  • Horn Diameter: 3.2" / 81.9mm
  • Horn Material: Die Cast Aluminum

  • Thiele & Small Parameters
  • Equivalent Volume Vas: 3.97L / 0.14ft3
  • Excursion (one way) Xmax: 3mm
  • Free Air Resonance Fs: 125Hz
  • Mechanical Factor Qms: 7.757
  • Electrical Factor Qes: 0.424
  • Total Factor Qts: 0.402
  • Mechanical Mass Mms: 10.862g
  • Mechanical Compliance Cms: 0.154mm/N
  • BL Factor BL: 8.448
  • Voice Coil Inductance Le: 0.07mH
  • Cone Area Sd: 143.7 cm2
  • DC Resistance Re: 3.6 Ohms

  • Speaker Measurement
  • Overall Diameter: 6.7" / 170mm
  • Overall Depth: 4.15" / 105.5mm
  • Front Mount Baffle Cutout: 5.7" / 145mm
  • Mounting Depth: 3.8" / 97.3mm
  • Motor Diameter: 4.3" / 110mm
