NVY-5PROEVO-N2

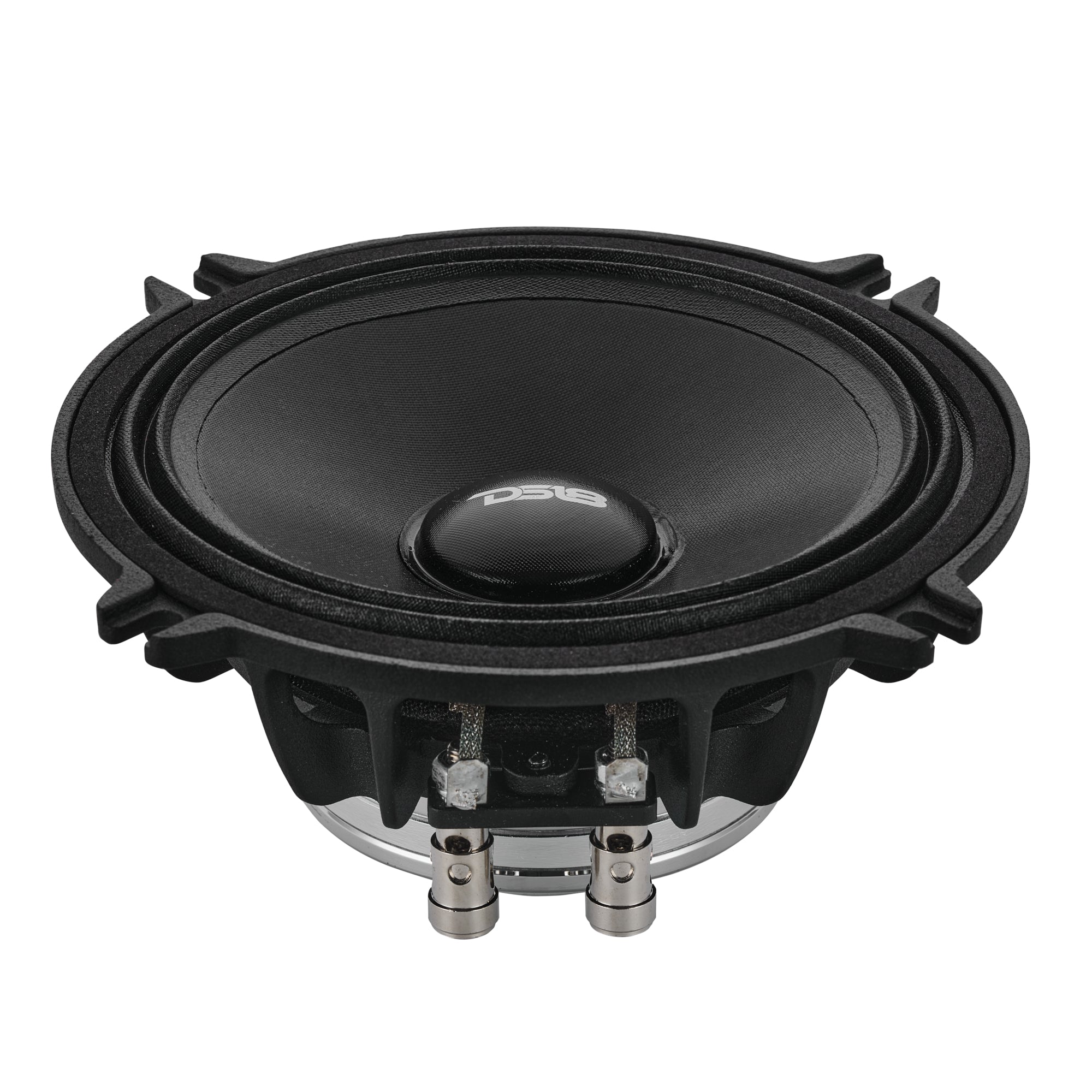

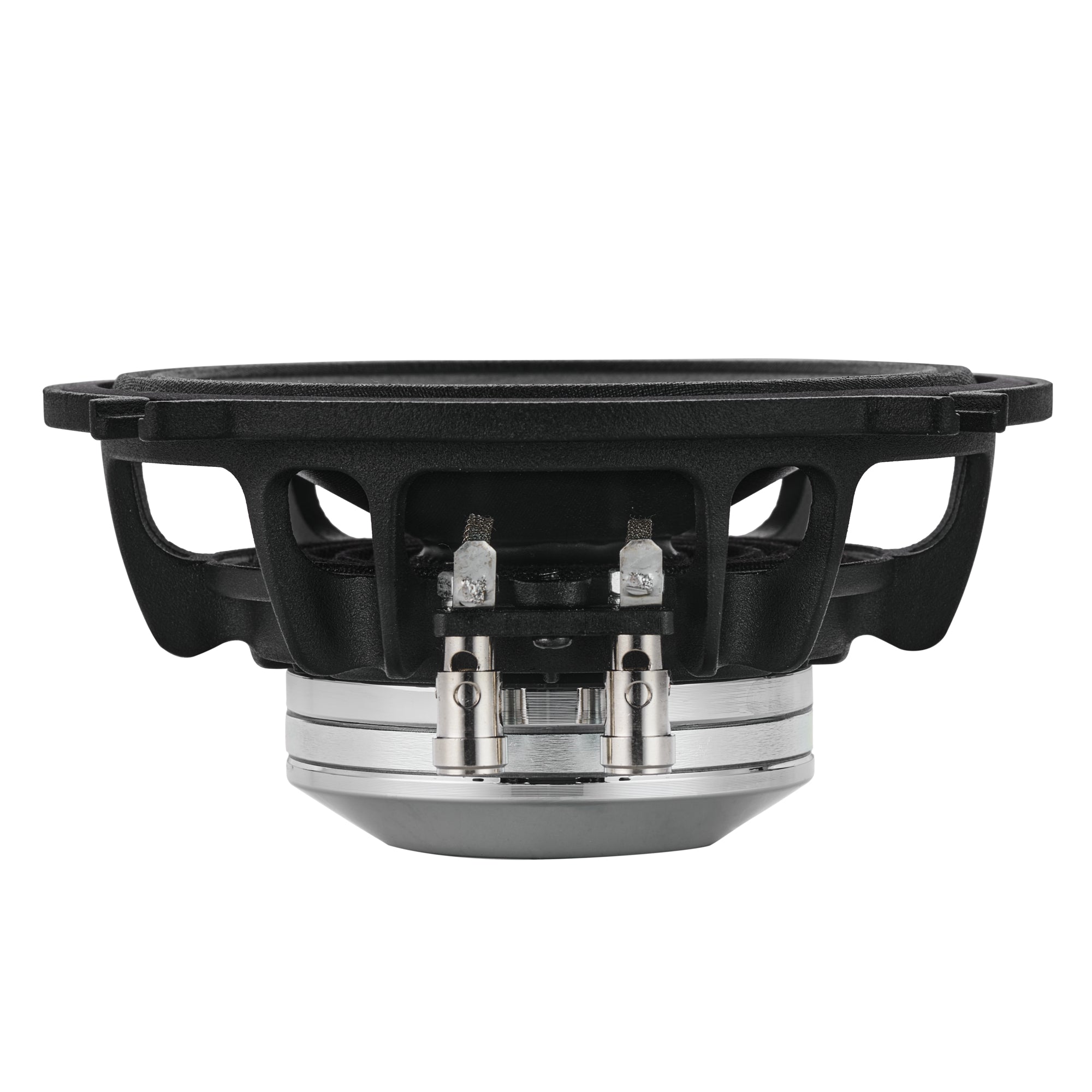

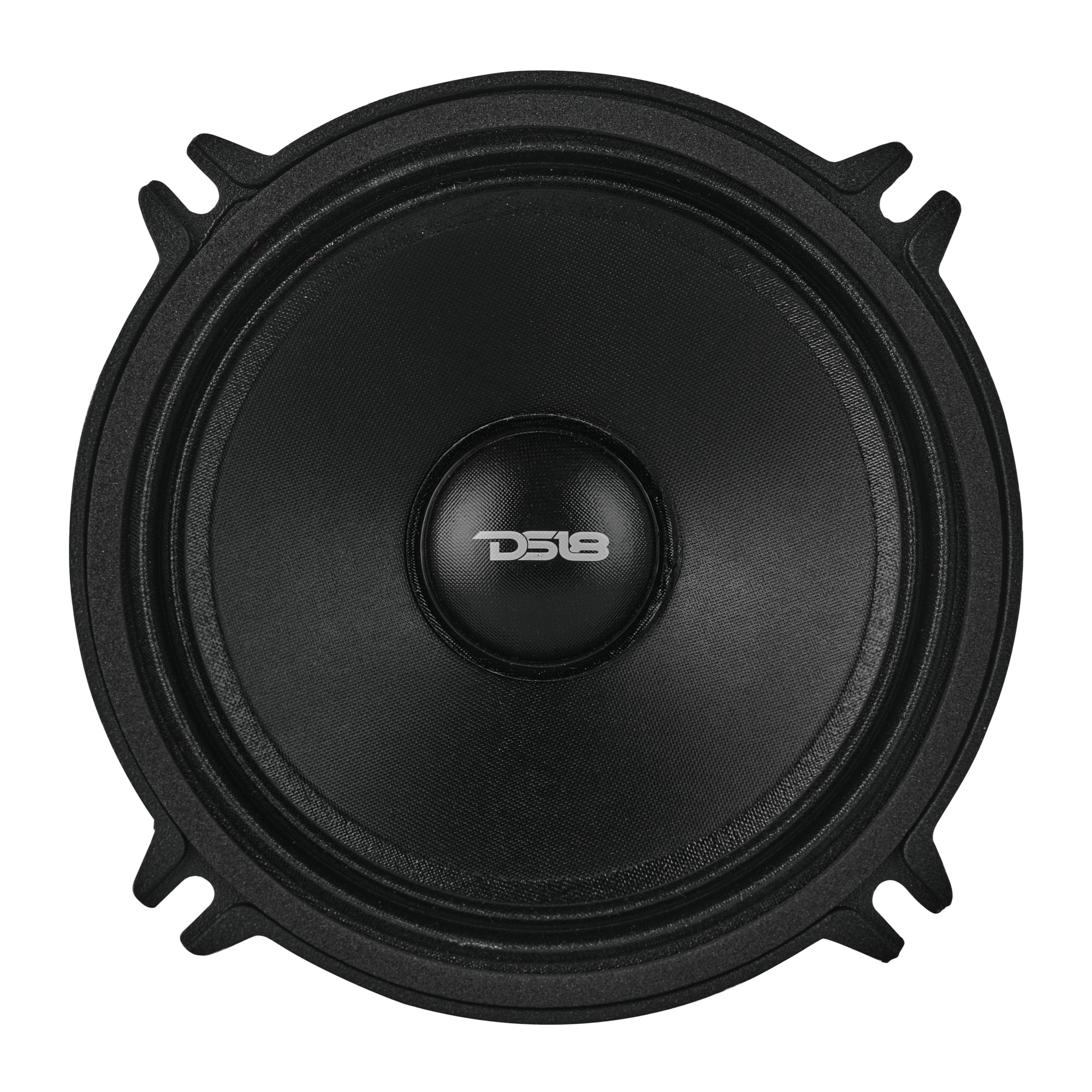

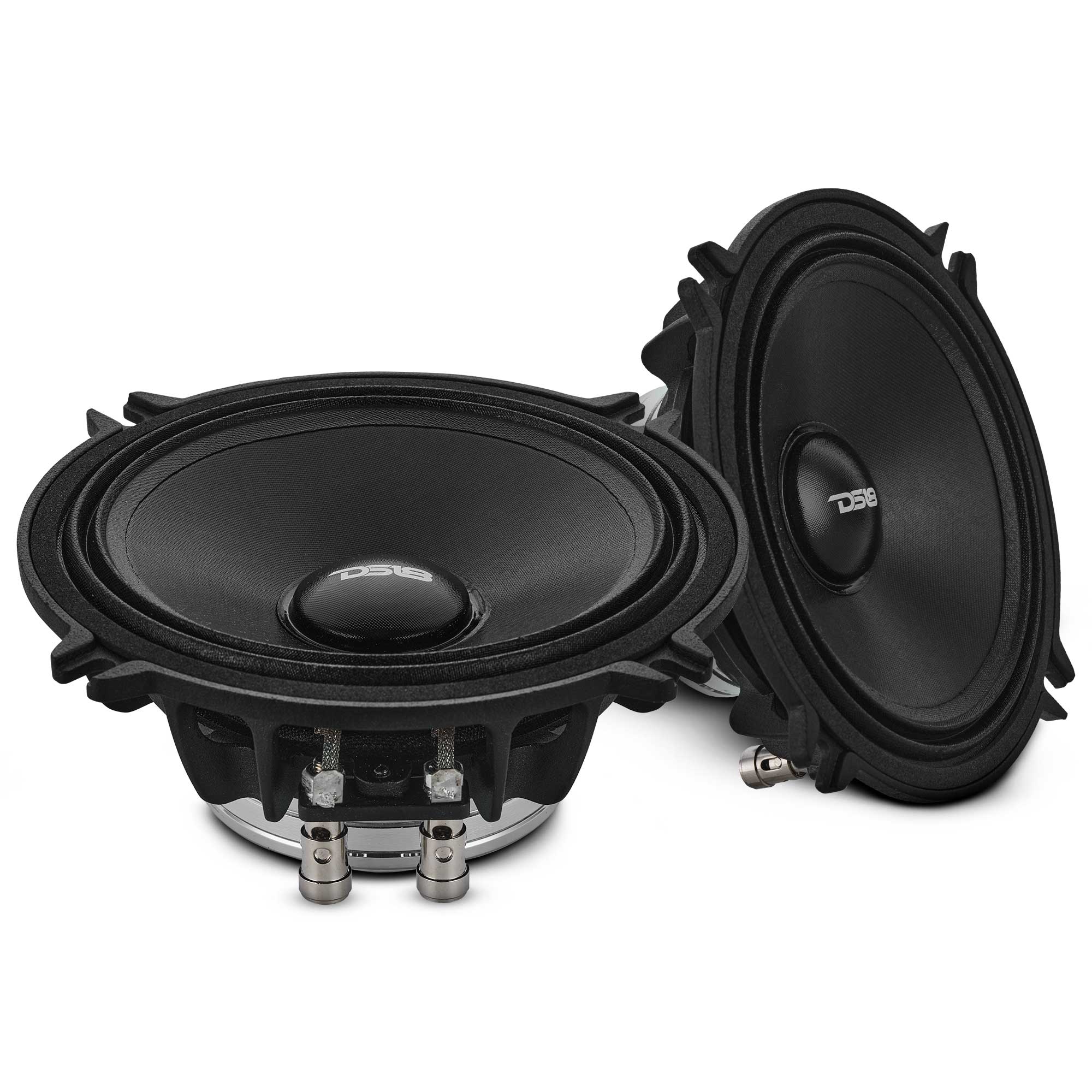

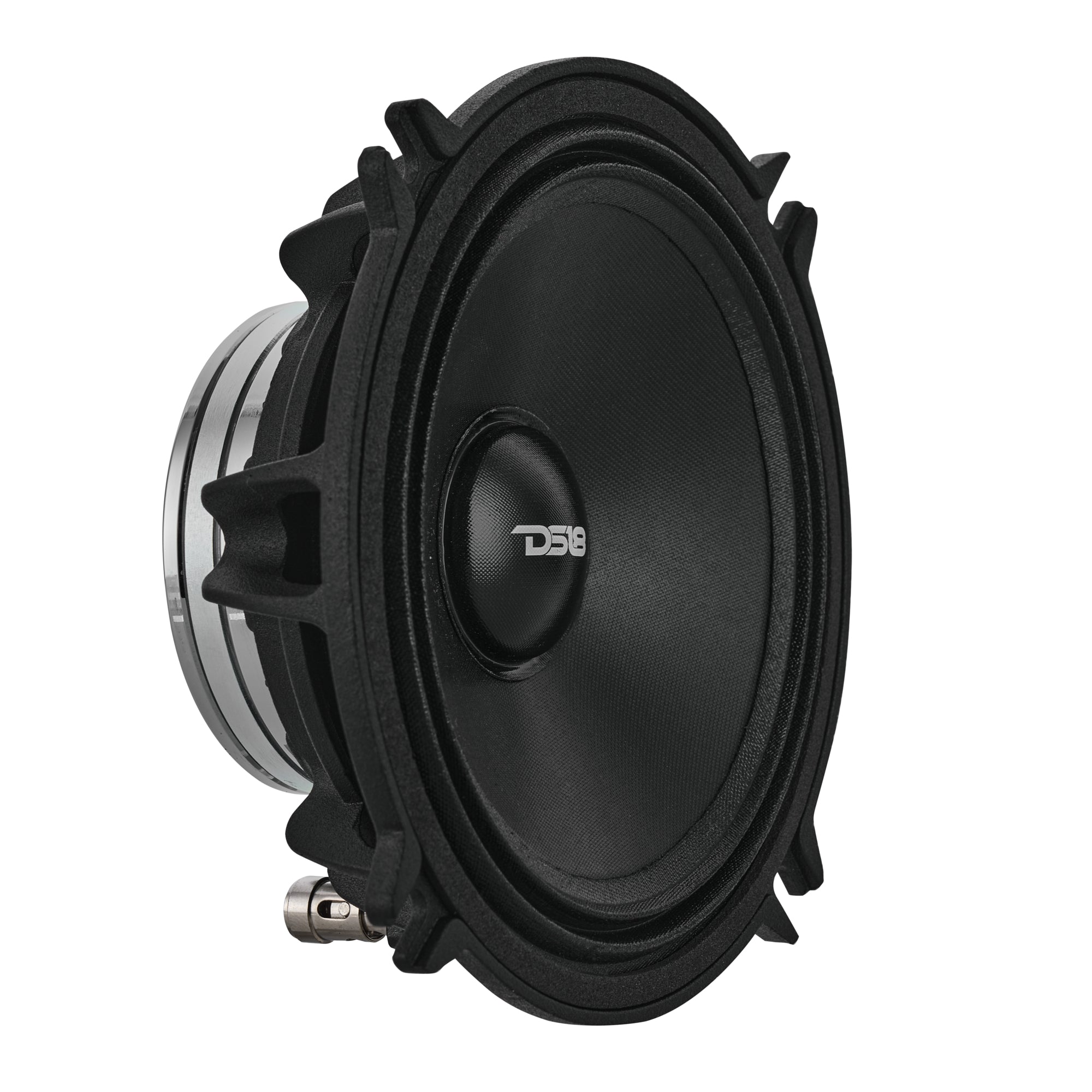

5.25” Full-Range Neodymium Speaker With Water-Resistant Cone | 150W RMS 2-Ohm

$400.00/ PAIR

Size: 5.25"

Impedance: 2-Ohm

2-Ohm
4-Ohm

KEY FEATURES

  • Glass Fiber + Foam Composite with Resin Cone

    Glass Fiber + Foam Composite with Resin Cone

  • Full-Range Frequency Response

    Full-Range Frequency Response

  • Perfect for Motorcycles and Powersports

    Perfect for Motorcycles and Powersports

  • Water-Resistant IP65

    Water-Resistant IP65

  • Ferrite Magnet

    Ferrite Magnet

  • Aluminum <br> Basket

    Aluminum
    Basket

All Elements Ready

A water-resistant glass fiber cone, sealed internals, and IP65 protection help this speaker make it through every mile: for reliable performance in all weather conditions.

Dynamic Power

At 93dB sensitivity and 150W RMS, this speaker balances power and stamina. Its copper ribbon coil and TIL former ensure consistent performance.

Seamless Fit

With push terminals and a compact footprint, this speaker installs easily into motorcycles, powersports, and marine setups.

  • General Specifications
  • Nominal Diameter: 5.25"/ 133.6mm
  • Nominal Impedance: 2 Ohms
  • RMS Power Handling: 150W
  • MAX Power Handling: 300W
  • Sensitivity (1w/1m): 93dB
  • Frequency Response: 100Hz-20Khz
  • Recommended High-Pass Crossover: 120Hz
  • Sold in Pairs

  • Features
  • Demodulating Rings: Yes
  • Improved Heat Dissipation: Yes
  • Cone Shape: Curvilinear
  • Speaker Terminals: Push 14ga
  • Waterproof Rating: IP65

  • Motor
  • Voice Coil Diameter: 1.2" / 30.5mm
  • Voice Coil Former Material: TIL
  • Winding Material:  Copper Ribbon
  • Cone Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish
  • Dust Cap Material: Water-Resistant Glass Fiber + Foam Composite with Resin Finish
  • Surround Material: Treated Cloth
  • Leads Connection Type: Spider Crossed
  • Basket Material:  Aluminum
  • Basket Color/Finish: Black
  • Magnet Material: Neodymium
  • Magnet Weight: 3.3 Oz

  • Thiele & Small Parameters
  • Equivalent Volume Vas: 2.2L / 0.077ft3
  • Excursion (one way) Xmax: 2mm
  • Free Air Resonance Fs: 132Hz
  • Mechanical Factor Qms: 8.74
  • Electrical Factor Qes: 0.87
  • Total Factor Qts: 0.79
  • Mechanical Mass Mms: 8.896g
  • Mechanical Compliance Cms: 0.20mm/N
  • BL Factor BL: 5.24
  • Voice Coil Inductance Le: 0.064mH
  • Cone Area Sd: 88.25cm2
  • DC Resistance Re: 3.9 Ohms
  • Mechanical Mass w/o air Mmd: 7.905g

  • Measurements
  • Overall Diameter: 5.25" / 133.6mm
  • Overall Depth: 2.48" / 63mm
  • Front Mount Baffle Cutout: 4.65" / 118.3mm
  • Mounting Depth: 2.2" / 56 mm
  • Motor Diameter: 2.75" / 70mm
