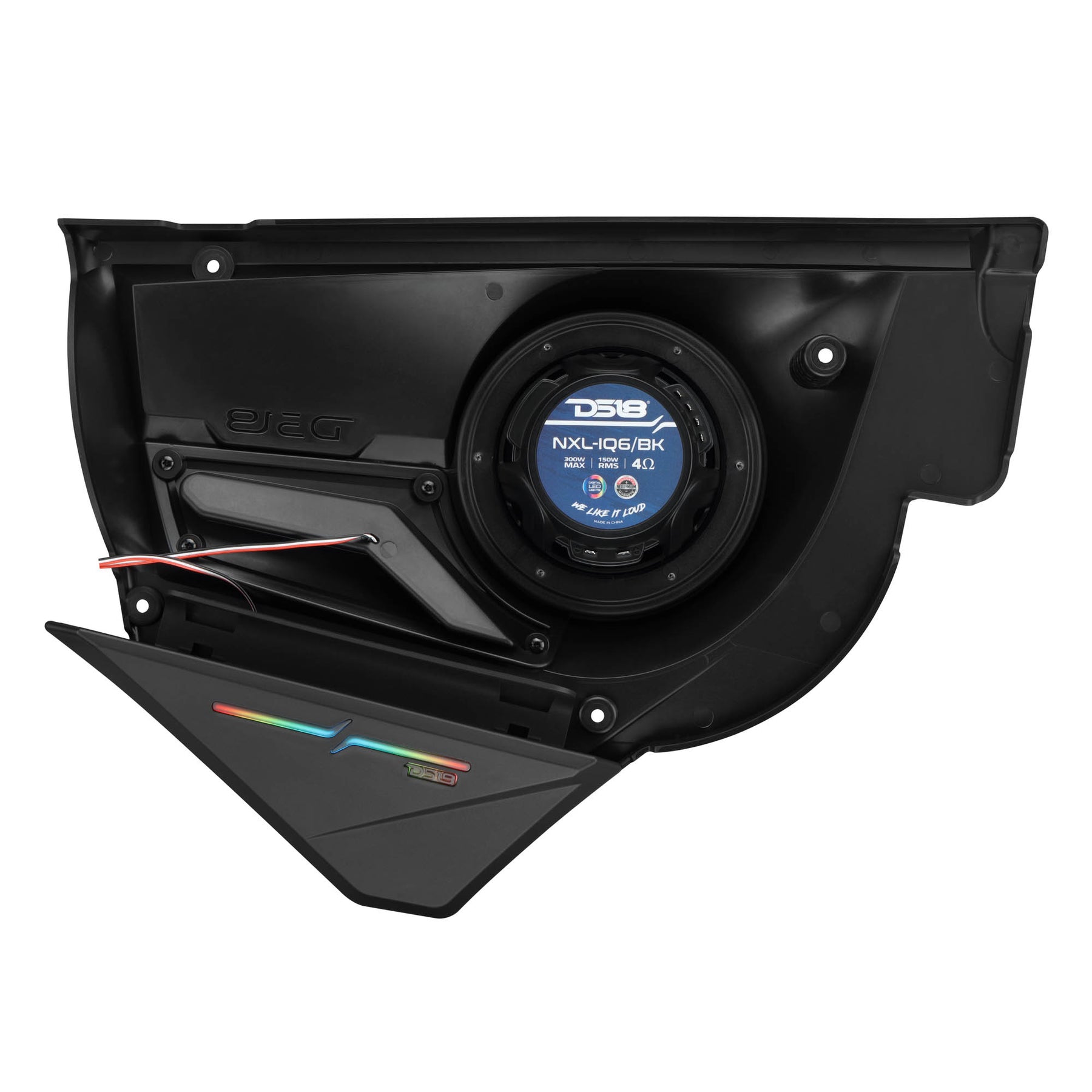

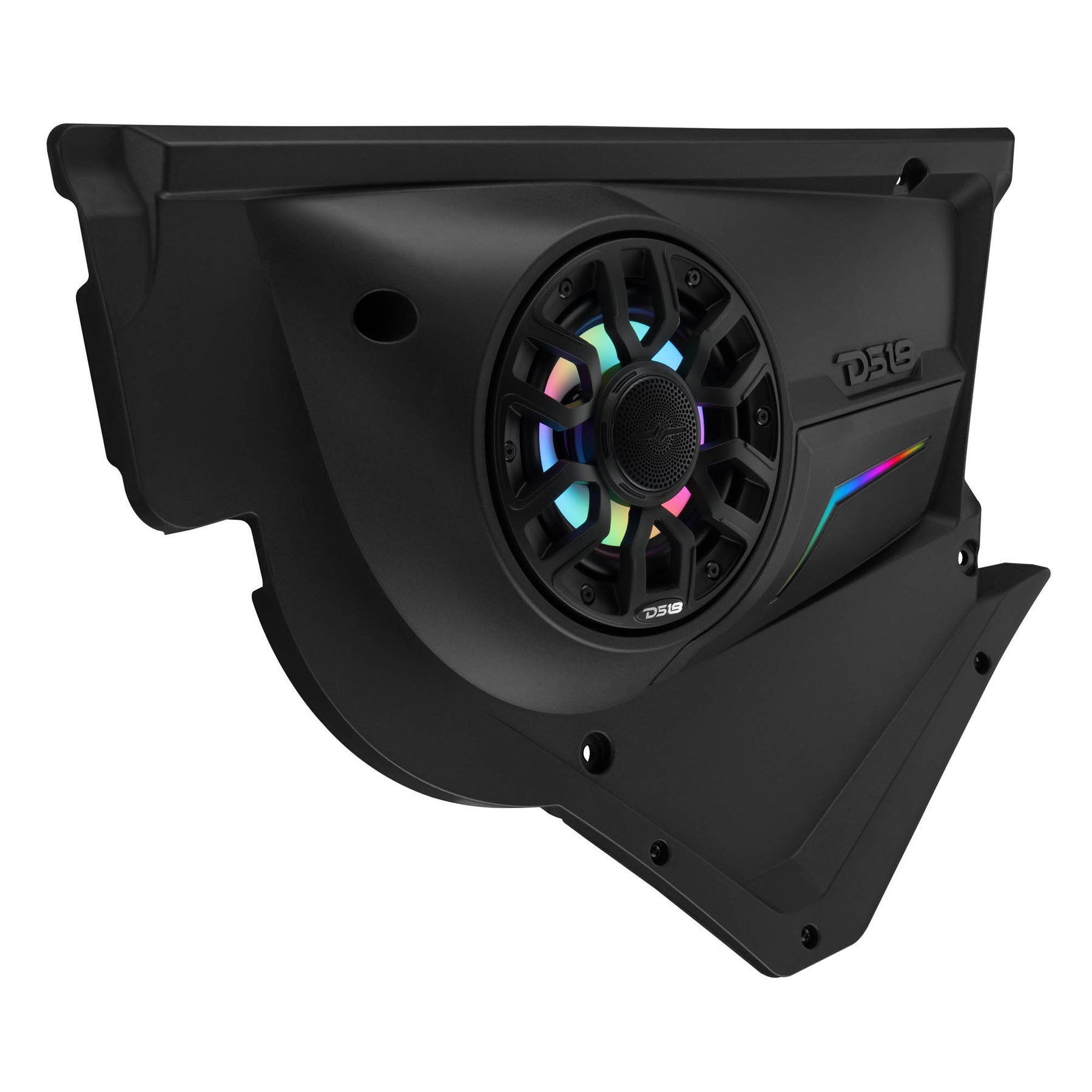

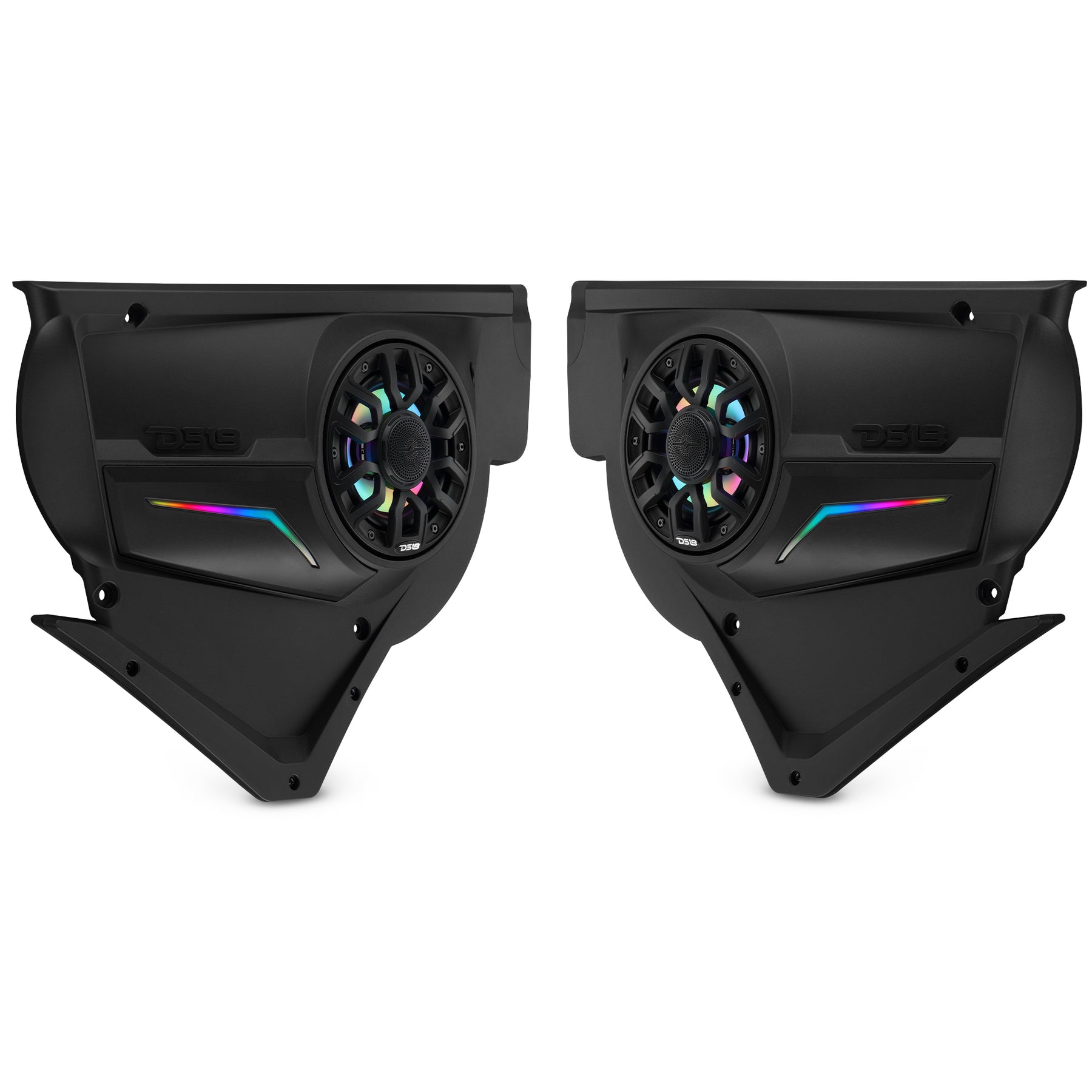

Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting

SKU: CA-X3FD6LD

NEW ARRIVAL

Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting
Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting

Can-Am Maverick X3 Front Door Speaker Panels with 6.5" NXL-IQ6/BK and Digital LED Lighting

SKU: CA-X3FD6LD

NEW ARRIVAL

Sale price$549.95
/PAIR
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume
In stock

Enclosure: Loaded

Empty
Loaded
Quantity:
  • Key Features

    • Seamless Factory Fit - Maverick X3 / 2020-Up 2 & 4 Door models
    • Complete Plug-and-Play Setup
    • Pre-loaded with NXL-IQ6/BK 6.5" coaxial speakers
    • Dual LED Illumination
    • All-Elements Ready
  • Technical Data - Manual

    General

    Total Impedance
    4-Ohm
    Load Configuration
    Individual
    Input Wire
    5 Core OFC Tinned (SPK+D-LED)
    Compatibility
    Maverick X3 / 2020-Up 2 & 4 Door models

    Speaker Specifications (NXL-IQ6/BK)

    Speaker Type / Size
    6.5" Water-Resistant Coaxial with Digital LED
    RMS Power Handling
    150W (Each)
    MAX Power Handling
    300W (Each)
    Sensitivity (1w/1m)
    95dB
    Frequency Response
    45Hz - 20KHz
    Recommended Hi Pass Crossover
    60Hz
    Voice Coil Diameter
    1.5" / 38.6mm
    Voice Coil Former Material
    Glass Fiber
    Winding Material
    CCAW
    Cone Material
    Injection Molded Polypropylene + UV Compliant
    Surround Material
    Butyl (Rubber)
    Basket Material
    Injection Molded Composite PC with UV Protection coating
    Magnet Material
    Ferrite + Neodymium
    Magnet Weight
    13oz + 1.1oz
    LED Lights
    Yes, Digital LED integrated (behind cone)
    LED Connection Type
    12V & Digital IN/OUT terminal
    Digital LED Chip Type
    1815S

    Tweeter Specifications (NXL-IQ6/BK)

    Speaker Type / Size
    Floating Bullet Tweeter
    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Diaphragm Material
    Aluminium
    Bullet Material
    Injection Molded Composite PC with UV Protection coating
    Magnet Material
    Neodymium (N35H)
    Magnet Weight
    0.4 oz

    Panel Specifications (CA-X3FD6)

    Panel Type
    Front Bafle
    Box Material
    Polyethylene (PE)
    Finish Material
    Black
    UV Protection
    YES
    Waterproof Rating
    IP65
    LED Badge / Lighting
    Yes, 12V / Digital 1815S Chip
    Speaker Mounting Hole
    /
    Speaker Mounting Ring
    /
    Speaker Mounting Depth

    Measurement

    Overall Height
    16.1" / 409mm
    Overall Width
    22.83" / 578mm
    Overall Depth
    4.39" / 111mm

    Load More
  • Product Overview

    Product Overview

    Built for Can-Am X3

    Upgrading your Can-Am X3’s sound system has never been easier than with the CA-X3FD6LD front door speaker panels, loaded with NXL-IQ6/BK speakers. These panels are designed to integrate seamlessly into your X3’s front doors, allowing you to add 6.5” coaxial speakers to your sound system. They come as a pair: one for the driver-side door and one for the passenger-side door. Compatible with 2-door and 4-door models (2020-Up).

    Light Up the Trail

    An integrated digital LED badge adds a subtle illuminated accent to your doors. The NXL-IQ6/BK speakers also feature built-in digital LED lighting behind the cone for added style. All lighting is controlled with the LC-DRM Bluetooth controller (sold separately) using the DS18 LC App, available for iPhone and Android.

    All-Elements Audio

    These panels are UV-protected and IP65-rated and come loaded with water-resistant coaxial speakers, making them perfect for the trail. Whether you encounter mud, rain, or other harsh elements, your audio system will be ready.

    Factory Look

    These panels are designed to look like they came straight from the factory, featuring a black finish that blends seamlessly with your X3’s interior. Beneath the sleek OEM-style finish is everything needed for a clean and long-lasting installation, including wiring and mounting screws for both the speakers and LED lighting.

    The DS18 CA-X3 Series

    At DS18, we understand the desire to take the party everywhere. With the CA-X3 Series, you have everything you need to upgrade your Can-Am X3’s sound system with products built to integrate easily into your vehicle. Each product is all-elements ready, so you can hit the trails knowing your audio system can keep up with the conditions.
